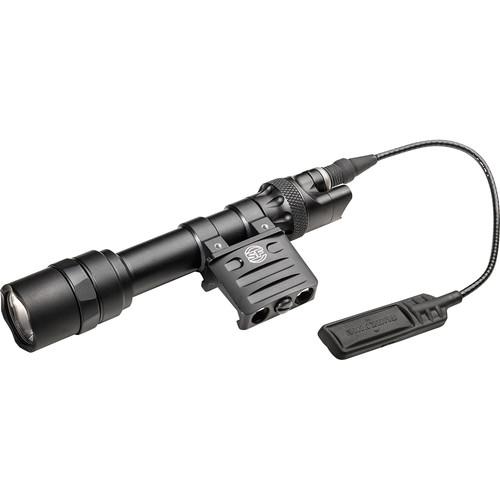

User Manual for SureFire M613 Ultra Scout Light LED Weapon Light with DS-SR07-D-IT Switch Assembly and RM45 Offset Mount Click to enlarge the picture
Contents of the user manual for the SureFire M613 Ultra Scout Light LED
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
 |
User manual for the SureFire M613 Ultra Scout Light LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|
Product description Designed to offer power and durability to tactical professionals, SureFire's black M613 Ultra Scout Light LED Weapon Light is outfitted with a darkness-piercing 600-lumen output white light LED and a factory-focused Total Internal Reflection (TIR) lens. The output lights up large areas or can cause temporary blindness, while the lens is optimized for a long throw and produces a beam with a bright center, and a dimmer peripheral ring without holes or hotspots; making it ideal for close to mid-range uses. Its digitally regulated output is designed to maximize battery life and provide consistent beam intensity throughout the life of the battery. This configuration of the Scout Light can be activated using the remote pressure pad switch, which enables fingertip activation while in the firing position, or the integrated push-button tailcap switch. The DS-SR07-D-IT dual pressure switch can be used to operate the Scout Light and a separately sold Advanced Target Pointer/Illuminator/Aiming Laser (ATPIAL). The light comes with the RM45 Picatinny/Weaver offset rail mount. The mounting bracket places the light to the side, and between, the rail which not only lowers the weapon's overall profile and reduces the snag hazard, but also eliminates the light's interference with other accessories such as optics, illuminators, grips, and iron sights. Its lightweight aluminum housing is anodized with a Type III hard coat for abrasion and corrosion resistance, and gasket-sealed for weatherproof performance – making this tactical accessory ready for just about any situation or condition. - Performance
-
- Single 600-lumen output
- One white LED emitter
- Total Internal Reflection (TIR) lens system produces a smooth prefocused visible beam of light without holes or hotspots; beam has a large center of bright light and long throw, with a generous spill to maintain situational awareness
- Digitally regulated output maintains consistent beam intensity throughout life of battery
- Switching
-
- Type: Push button and remote cable touchpad
- Location: Tailcap, and 7" cable for precise placement based on personal shooting style
- Momentary-on only for remote touchpad
- DS-SR07-D-IT dual pressure switch operates Scout Light and separately sold Advanced Target Pointer/Illuminator/Aiming Laser (ATPIAL)
- Momentary and constant-on switch on tailcap provides switch redundancy
- System disable to prevent accidental activation during transport and storage, or when strict light discipline must be maintained
- Construction Details
-
- 1.125" diameter bezel
- RM45 Picatinny/Weaver offset rail mount places the light to the side of the rail for a smaller profile, reduced snag hazard, and to avoid interference with other accessories like scopes, sights, illuminators, or iron sights
- Lightweight aluminum housing
- Scratch- and corrosion-resistant black Type III hard-anodized finish
- O-ring and gasket sealed for weather resistance
- Tempered impact-resistant glass lens window
- Powered by two CR123A lithium batteries
- Weight: 6.6 ounces with batteries
UPC: 084871326995 In the Box SureFire M613 Ultra Scout Light LED Weapon Light with DS-SR07-D-IT Switch Assembly and RM45 Offset Mount (Black) DS-SR07-D-IT Remote Switch Assembly for Weapon Light + Laser (Black) Offset Rail Mount for M300/M600 Scout Light (Black) wusdabfvevwtryfcdqxdydaf 2 x CR123A Lithium Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire M613 Ultra Scout Light LED Weapon Light with DS-SR07-D-IT Switch Assembly and RM45 Offset Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire M613 Ultra Scout Specs | Illumination Source | 1 x white LED | | Output Range | 600 lumens | | Battery | 2 x CR123A lithium | | Runtime | 1.75 h, max | | Mount | Offset Picatinny/Weaver | | Dimensions | Bezel: 1.125" / 2.85 cm
Length: 6.2" / 15.7 cm | | Weight | 6.6 oz / 187.1 g, with batteries |
