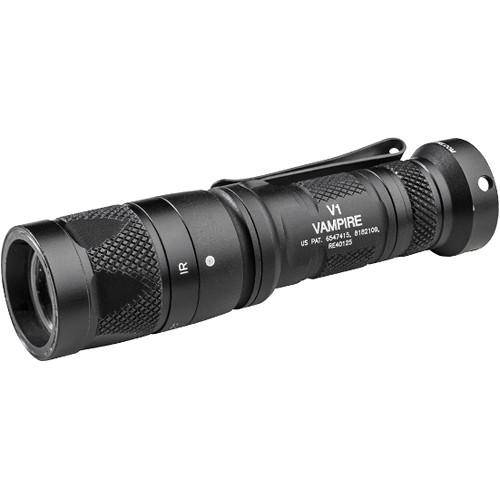

User Manual for SureFire V1 Vampire Visible IR Dual Output LED Flashlight Click to enlarge the picture
Contents of the user manual for the SureFire V1 Vampire Visible IR Dual
- Product category: Handheld Flashlights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Handheld Flashlights
|
User manual for the SureFire V1 Vampire Visible IR Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|
Product description With visible or infrared illumination options, the V1 Vampire Visible/IR Dual Output LED Flashlight from SureFire can serve you equally well on your night mission or professional tasks. If you need a search light to illuminate your path or tool chest, you have an option of momentary or constant-on with outputs of 5 or 250 lumens. To stay undetected at night while using your night vision device, just pull the head and switch to the infrared mode. With this mode on, you get 5 or 100mW of output that enable you to improve visibility with your NVD. The optical system also features power-regulated LEDs, precision Total Internal Reflection (TIR) optic, and anti-reflection coated tempered glass window.
Beyond illumination options, the flashlight is engineered to withstand harsh environments for years to come. The high-quality aluminum housing is sealed with O-rings and offers waterproof performance. It has fine diamond knurling for sure handling, smooth bezel for breaking window glass or self-defense, tempered glass window for impact-resistance, and shrouded tailcap for preventing accidental turn-on. Also included is a stainless steel clip and one CR-123A Light Performance -
- White LED light:
Low mode: 5 lumens
High mode: 250 lumens
- Infrared LED Light:
Low mode: 5mW
High mode: 100mW
- Anti-reflection coated, impact-resistant tempered window
- Total Internal Reflection (TIR) Lens creates precise beam
Switching -
- Tailcap pushbutton switches between the modes
- Pull-push head switches between visible and infrared
Construction Details -
- Aluminum alloy body
- Hard-anodized finish
- 1" diameter smooth bezel
- Shrouded tailcap
- Weatherproof with O-rings and gasket seals
- Two-way steel pocket clip
UPC: 084871325356 In the Box SureFire V1 Vampire Visible/IR Dual Output LED Flashlight - 123A Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire V1 Vampire Visible IR Dual Output LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire V1-B-BK Specs | | | Lumen Output | High: 250 Lumens
Low: 5 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High (White): 1.5 Hours
Low (White): 20.5 Hours
High (IR): 4.75 Hours
Low (IR): 57 Hours | | Battery Type | 1 x CR123A | | | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions | L: 4.4" / L: 11.2 cm | | Weight | 3.2 oz / 91 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.9 x 4.2 x 2.7" |
