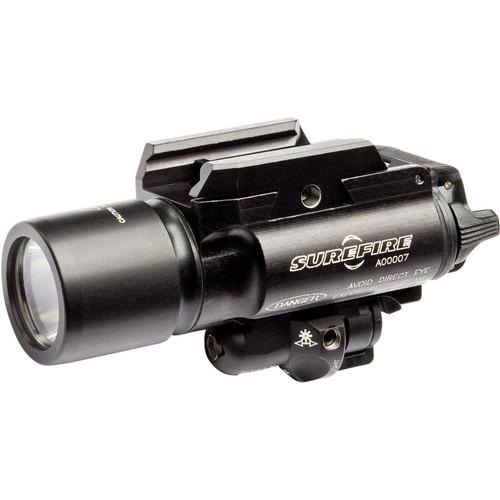

User Manual for SureFire X400-A-RD Ultra LED Weapon Light with Red Aiming Laser Sight Click to enlarge the picture
Contents of the user manual for the SureFire X400-A-RD Ultra LED Weapon Light
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
|
User manual for the SureFire X400-A-RD Ultra LED Weapon Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|
Product description Combining bright light for after-dark tactical activity and a laser beam for certainty in target acquisition, the X400-A-RD Ultra LED Weapon Light with Red Aiming Laser from SureFire combines a 600-lumen, single-output LED light with a 635nm Class IIIb red aiming laser that can be mounted on Picatinny/Weaver rails. The light features a Total Internal Reflection (TIR) lens that produces a pre-focused beam with a tight center cone of bright light, and a dimmer ring on the periphery to help maintain situational awareness. An ambidextrous toggle switch controls the momentary and constant-on modes, and is easily accessible with your support hand while keeping a firm grip on your weapon. The selector switch, located behind the laser, controls the output modes and features a lock-out function to prevent accidental activation during storage or when strict light discipline must be maintained. The red laser is easy to see and can be readily differentiated from other aiming lasers used by devices like Tasers. Designed for durability, this system features a weatherproof O-ring and gasket-sealed milspec anodized aluminum housing. - Light Performance
-
- 600-lumen output
- White LED emitter
- Pre-focused Total Internal Reflection (TIR) lens produces tight beam with bright center and dimmer peripheral ring
- Laser Performance
-
- Class IIIb red
- 635nm peak wavelength
- 5mW peak output
- Switching
-
- Toggle Switch:
Location: Back of light
Type: Multi-directional toggle
Push switch forward for momentary on
Push switch up or down for constant on
Ambidextrous switch for use by all shooters - Selector Switch:
Location: Behind laser emitter
Function: Output and lock-out control
Rotating positions controls output modes
Lock-out function to prevent accidental activation
Output modes: white-light only, laser only, or flashlight and laser
- Construction Details
-
- 1.125" diameter bezel
- Aluminum alloy housing
- Type III milspec hard anodized finish
- O-ring and gasket sealed for water resistance
- Anti-reflective coated, tempered glass lens window
- Rail-Lock system for quick attachment/detachment
- Picatinny and Universal-rail mountable for pistols or rifles
- Accepts optional pistol grip and long gun forend switches
- Adapter mounts available for several non-rail equipped handguns
UPC: 084871321211 In the Box SureFire X400-A-RD Ultra LED Weapon Light with Red Aiming Laser Sight 2 x 123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire X400-A-RD Ultra LED Weapon Light with Red Aiming Laser Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire X400 Specs | | | Illumination Source | White LED | | Output Range | 600 lumens | | Bezel Diameter | 1.125" | | | | Type | Class IIIb red | | Output Power | 5 mW | | Peak Wavelength | 635 nm | | | | Mount Type | Picatinny/Weaver rails | | Battery | 2 x 123A | | Runtime | 1.75 h | | Construction | Aluminum | | Dimensions | 3.6 x 1.9 x 1.5" / 9.1 x 4.8 x 3.8 cm | | Weight | 4.9 oz / 139 g, with batteries | | | | Package Weight | 0.485 lb | | Box Dimensions (LxWxH) | 8.3 x 4.75 x 1.7" |
