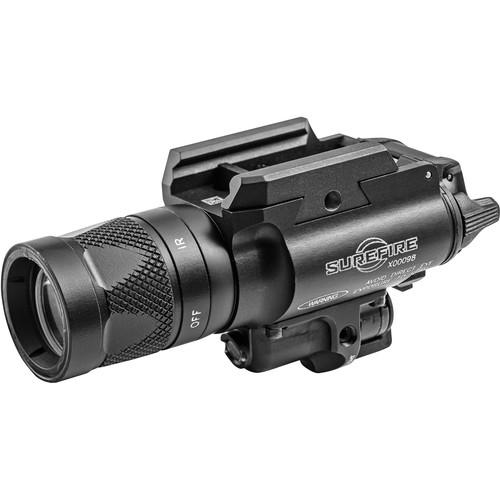

User Manual for SureFire X400V-B-IRC Vampire IRc White Infrared LED & Infrared Laser WeaponLight Click to enlarge the picture
Contents of the user manual for the SureFire X400V-B-IRC Vampire IRc White Infrared
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
|
User manual for the SureFire X400V-B-IRC Vampire IRc White Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|
Product description Designed to be compatibility with their innovative MASTERFIRE Rapid Deploy Holster, the Surefire X400V-B-IRC Vampire IRc White/Infrared LED & Infrared Laser WeaponLight has a specially-engineered bezel and body that locks the light into the holster, at a natural and comfortable angle for a fast and easy draw. An additional function of the holster system is a selector switch that can automatically turn the light on as the weapon is drawn, saving valuable time in high-stress situation. For ease-of-use the light is automatically turned off when put back in the holster, with the ability to disable the automatic function if the situation requires it.This highly versatile light is outfitted with a visible white LED and an invisible 850nm IR LED for use in conventional and stealth operations. A unique rotating selector on the bezel allows users to quickly and easily switch from the visible to IR LED and back without the need to put on or take off external filters that can take valuable seconds, or get lost and broken. Complementing the two LEDs is an IR aiming laser, equipped with windage and elevation adjustments for zeroing with your pistol. The IR LED and laser are compatible with most night vision devices (NVDs).Three switches provide an easy way to customize the outputs and activate the light. The bezel switch allows users to select from the visible and IR LEDs. A rear-facing switch sets mode: laser only, LED only, or light and LED. The LED that activates is dependent upon which is selected on the bezel switch. Finally, a simple ambidextrous toggle switch provides momentary or constant-on activation, independent of the MASTERFIRE holster system. - Light Performance
-
- White light output: 350-lumen
- Infrared output: 120mW
- One white LED, and one 850nm invisible infrared LED
- Total Internal Reflection (TIR) lens system produces a smooth pre-focused visible beam of light without holes or hotspots; beam has a large center of bright light and long throw, with a generous spill to maintain situational awareness
- IR LED output is compatible with most NVD devices and scopes and provides a wide area of invisible illumination
- Laser Performance
-
- Eye-safe Class 1 infrared
- Output wavelength: 850 nm
- <0.7mW peak output
- Compatible with most NVD devices and scopes for improved accuracy without giving position away
- Individual windage and elevation adjustments to zero with weapon for improved accuracy
- Low-output user-facing amber LED indicates when IR light is on
- MASTERFIRE Rapid Deploy Holster Functionality
-
- Holster system available separately
- Designed to automatically activate the primary LED (visible or IR, depending on selected output) when the weapon is drawn from the MASTERFIRE holster
- Saves time and makes one-handed use easier; this feature can be deactivated if required
- Unique bezel design with cam slots, and pin slots on both sides of the body, lock the light into the holster and secures the weapon at a comfortable angle for quick deployment
- The MASTERFIRE holster interfaces with the light, instead of the pistol, almost any X300UH-equipped pistol can be can be used with the holster, eliminating the need for multiple holsters for different pistols
- Switching
-
Activation:- Rear (user-facing) ambidextrous toggle style
- Push switch forward for momentary activation; toggle up or down for constant-on
- Repeat up or down toggle to turn off
Visible light/IR LED:- Rotating selector on the bezel changes output from visible to IR LED
- Self-locking system ensures output won't accidentally be changed
- Selector eliminates the need to put on and take off filters that can get lost or broken
- "Off" switch on the bezel selector helps to maintain strict light discipline
Mode selection:- Rear-facing selector switch
- Choose one of three outputs
- Off, to lock system for light discipline
- IR laser only, to limit IR signature
- Light and laser, which LED is activated depends on bezel switch position
- Visible/IR LED only
- Construction Details
-
- 1.06" diameter bezel
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III MIL-STD matte-black hard anodized finish
- O-ring and gasket-sealed to be highly dust and water-resistance
- Anti-reflective coated, tempered glass lens window
- Picatinny/Weaver rail mount for pistols or rifles
UPC: 084871326605 In the Box SureFire X400V-B-IRC Vampire IRc White/Infrared LED & Infrared Laser WeaponLight 2 x CR123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire X400V-B-IRC Vampire IRc White Infrared LED & Infrared Laser WeaponLight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire X400VH-B-IRC Specs | Illumination Source | 1 x White LED
1 x 850 nm infrared LED | | Output | White LED: 350 lumens
IR LED: 120 mW | | Laser | Class 1 eye-safe IR
Wavelength: 850 nm
Peak output: 0.7 mW | | Runtime | White LED: 1.8 h
IR LED: 8.0 h
IR laser: 20 h | | Power Source | 2 x CR123A lithium batteries | | Mount | Picatinny/Weaver | | Construction | Aluminum alloy | | Dimensions | Bezel: 1.06" / 2.69 cm
Length: 4.0" / 10.2 cm | | Weight | 4.8 oz / 136.1 g | | | | Package Weight | 0.52 lb | | Box Dimensions (LxWxH) | 5.9 x 4.05 x 2.55" |
