User Manual for SVS PB-2000 12" 500W Subwoofer Click to enlarge the picture
Contents of the user manual for the SVS PB-2000 12" 500W Subwoofer
- Product category: Subwoofers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Subwoofers
 |
User manual for the SVS PB-2000 12" 500W Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

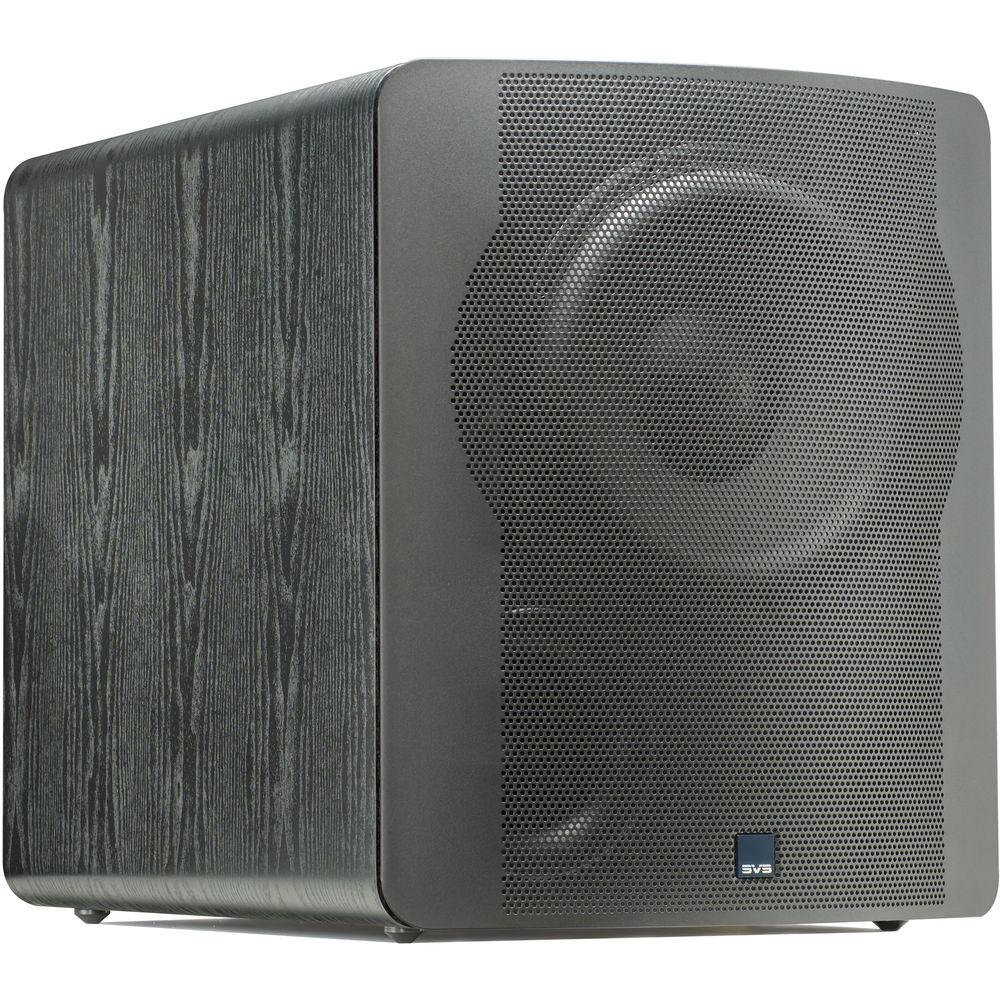

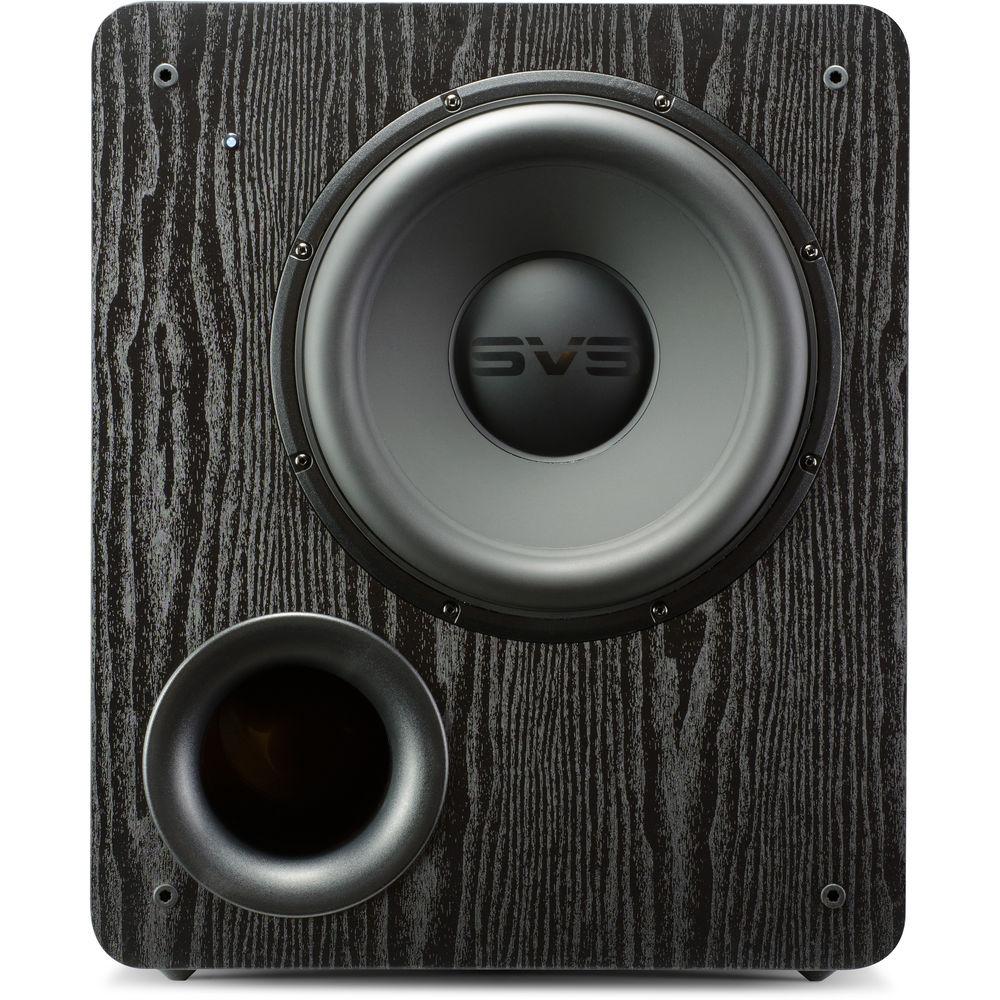

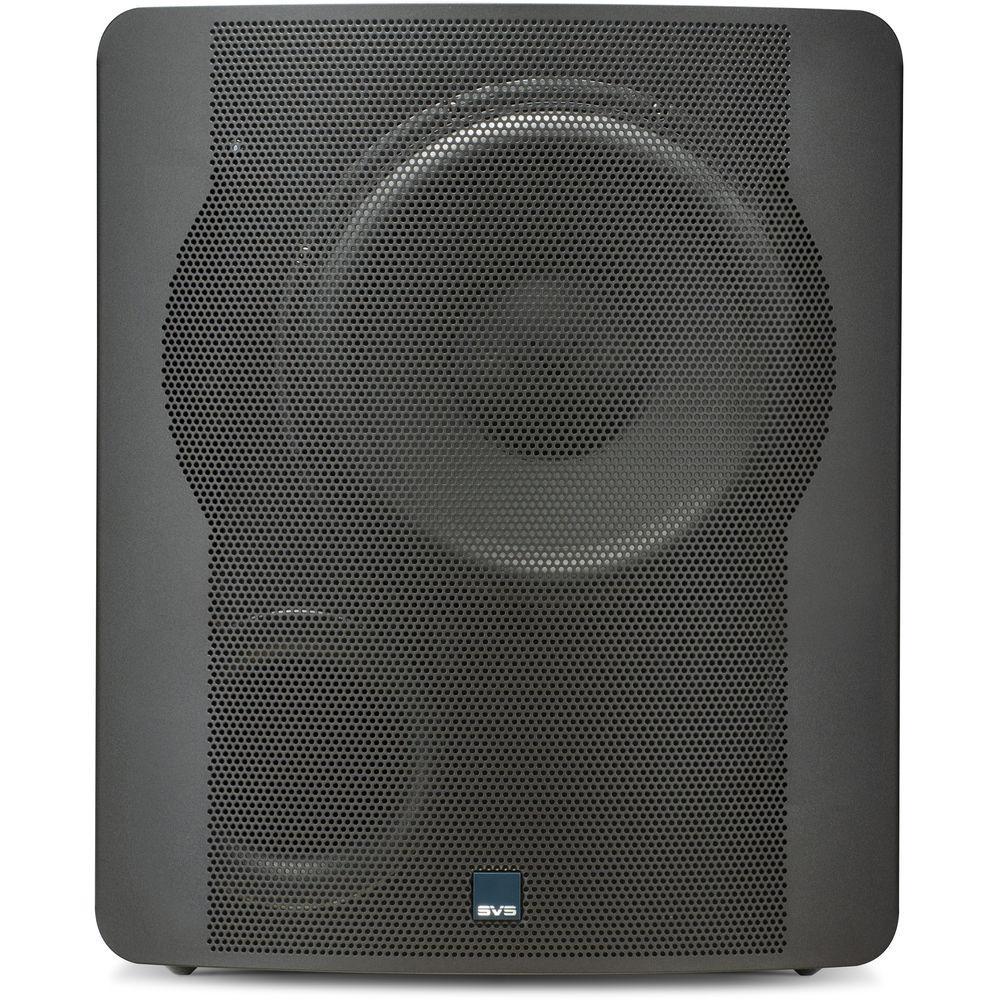

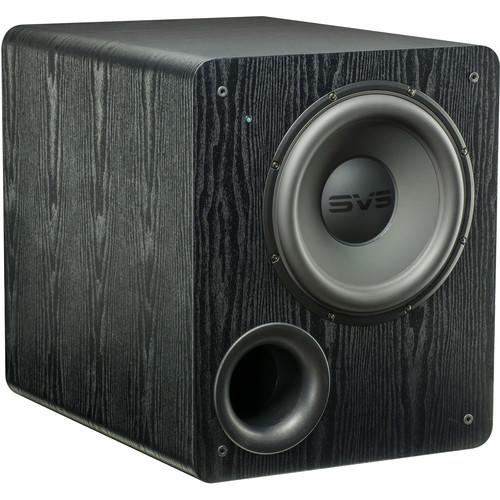

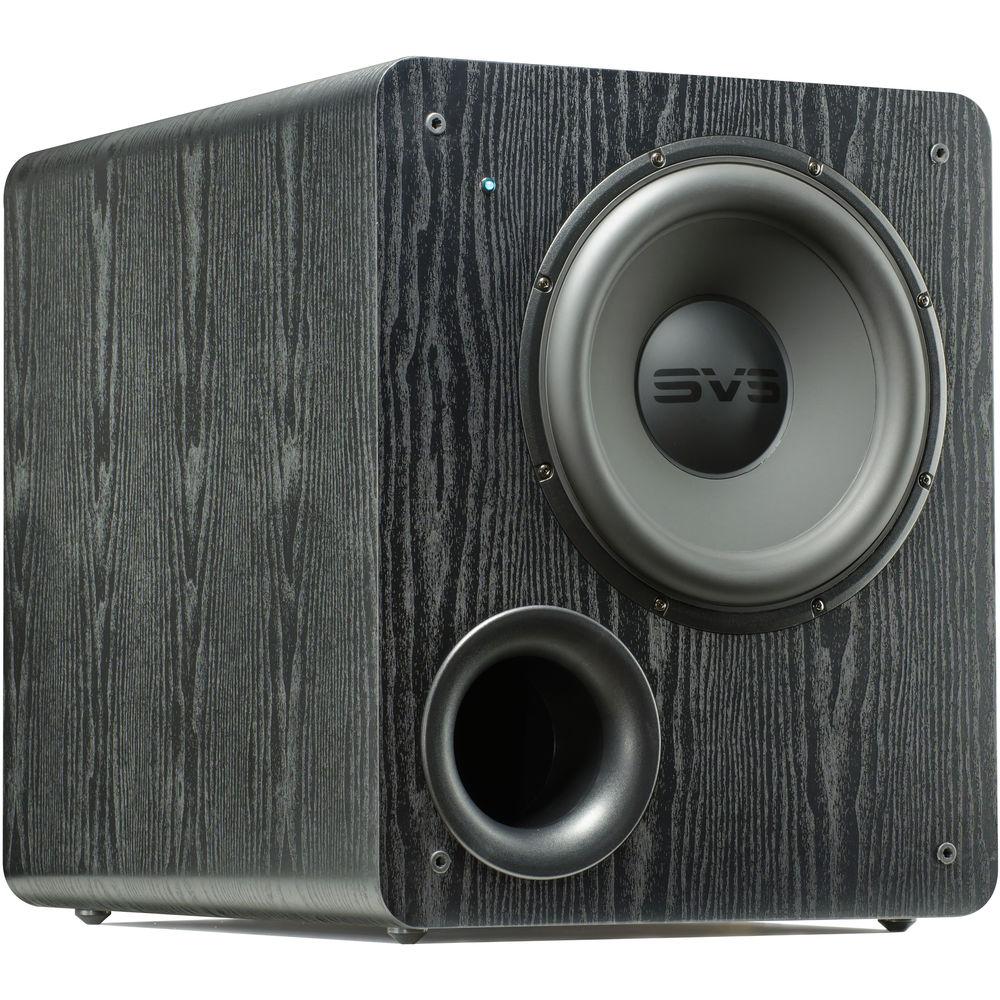

Product description Add powerful bass to your home entertainment experience with the black ash SVS PB-2000 12" 500W Subwoofer. It features a 12" front-firing woofer with 500W of RMS power and 1100W of peak power for ground-shaking performance in nearly any listening environment, and its bass port will further enhance the rumble. With a frequency response of 17 to 260 Hz, the PB-2000 is equipped to handle virtually all types of listening material. Its controls include volume, phase, and a low-pass filter. - Driver Features
-
- Front-firing 12" driver
- Powder-coated cast aluminum basket
- Dual ferrite magnets
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings designed to reduce gap induction and lower distortion
- Pole piece fashioned to improve heat sink and thermal management properties
- Nomex spider designed to improve linearity and driver control at extreme drive levels
- Insulated tinsel leads with 3-point-contact alignment
- Aluminum cone with polypropylene dust cap enhances rigidity and pistonic behavior
- Low-creep rubber long-throw surround for augmented durability and longevity
- Amp Features
-
- Sledge STA-500D DSP amplifier
- Class D topology designed to be efficient and cool-running
- DSP control for accurate response and refined behavior
- Main power rocker switch
- Auto-On / On toggle switch
- Green standby mode with <0.5W power consumption
- 47 kOhm unbalanced line-level RCA input impedance
- Continuously variable volume/gain control
- Continuously variable (0 to 180°) phase control
- Continuously variable (50 to 160 Hz) 12 dB/octave low-pass filter frequency with disable/LFE setting
- Fixed 80 Hz 12 dB/octave high-pass filter on line-level outputs
- RoHS compliant, lead-free construction
- General Features
-
- Interchangeable top cap
- Front-firing 4" high-flow port with outer port flare
- Protective non-resonant removable steel mesh grille
- Screw-in rubber feet
UPC: 850071005233 In the Box SVS PB-2000 12" 500W Subwoofer (Black Ash) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS PB-2000 12" 500W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PB-2000-BLACK ASH Specs | Amplifier Type | Class D | | Driver | 12" (30.5 cm) | | Voice Coil Diameter | 2" (5.1 cm) | | Enclosure Type | Ported | | Output Power | RMS: 500 W
Peak: 1100 W | | Frequency Response | 17 to 260 Hz, ±3dB | | Controls | Volume, phase, low-pass filter, auto/standby/on switch, main power switch | | Inputs/Outputs | 1x 1/8" (3.5 mm) 3 to 12 V trigger input
1x RCA line level / LFE input pair
1x RCA line level output pair | | Input Impedance | Unbalanced Line-Level RCA: 47 kOhms | | Port | 1x 4" (10.2 cm) | | Cabinet Construction | MDF | | Grille Material | Non-resonant steel mesh | | Standby Power Consumption | <0.5 W | | Power Requirements | 110 VAC | | Dimensions (W x H x D) | 17.3 x 20.9 x 23.2" (43.9 x 53.1 x 58.9 cm) | | Weight | 65.6 lb (29.8 kg) | | | | Package Weight | 81.0 lb | | Box Dimensions (LxWxH) | 30.3 x 26.3 x 22.3" |
