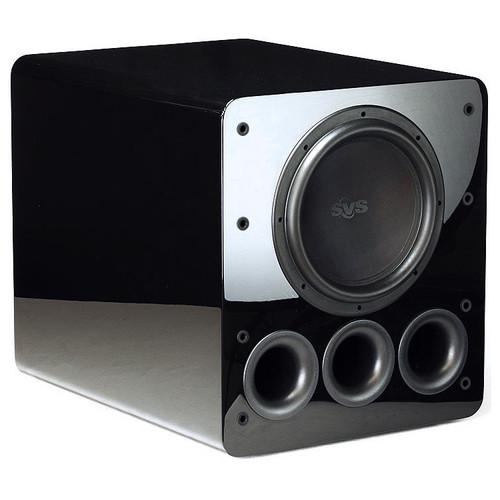

Product description Add powerful bass to your home entertainment experience with the piano gloss black SVS PB12-Plus 12" 800W Subwoofer. It uses a 12" front-firing woofer to produce up to 800W of RMS power and up to 2300W of peak power for ground-shaking performance in nearly any listening environment. It features three bass ports, which can be either left open or sealed to adjust the minimum frequency response between 16, 18, or 23 Hz, making the PB12-Plus equipped to handle virtually all types of listening material. - Subwoofer
- Protective, non-resonant steel mesh grille
- Braced MDF (medium density fiberboard) cabinet
- Includes 3 foam port blockers
- Variable 20 Hz, 16 Hz, and sealed tuning modes
Driver - Bifilar wound, 3" diameter aluminum voice coil
- Polyimide-impregnated fiberglass former/bobbin
- Single, composite-layered, linear-roll long-throw spider
- Injection-molded gasket and parabolic SBR surround
- Composite pulp/fiberglass press-layered cone with stitched surround
- Low-carbon 1008 steel components, electrophoresis black plating
- FEA (finite element analysis)-optimized motor structure
- Copper shorting sleeve is designed to reduce gap induction and distortion, and enhance thermal conductivity
- Dual Genox 8H/Y-35 ferrite magnets
- Pole vent for enhanced cooling and reduced noise

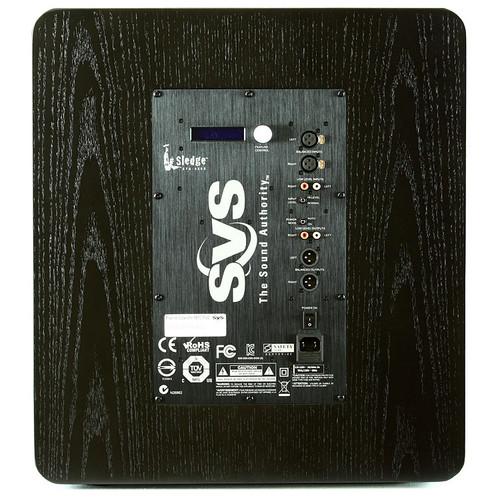

Amplifier - Sledge STA-800D amplifier
- Class D switching topology for enhanced efficiency and cool running
- RoHS-compliant, lead-free construction
- On / Auto-On switch with "green" standby mode
- Stereo line-level RCA and balanced (XLR) input/output connections
- Normal and Hi input voltage switch
- Customized EQ and DSP limiter settings
- Detachable power cord with a main power switch and ceramic fuse
- Fully adjustable (frequency and slope) phase-correct speaker/sub digital crossover
- IFC (Intelligent Feature Control) with an LCD display
- Digital PEQ with adjustable frequency, cut/boost, and Q values
- Room gain compensation control with adjustable frequency and slope
- Fixed 80 Hz, 12 dB/octave high-pass filter on line-level outputs
In the Box SVS PB12-Plus 12" 800W Subwoofer (Piano Gloss Black) 3 x Foam Port Blockers Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS PB12-Plus 12" 800W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PB12-PLUS-PIANO GLOSS Specs | Configuration | Front-firing | | Driver Size | 12" (30.48 cm) | | Ports | 3x 3" (7.62 cm) | | Amplifier | RMS: 800 W
Peak: 2300 W | | Frequency Response ± 3dB | 20 Hz Mode: 18 to 250 Hz
16 Hz Mode: 16 to 250 Hz
Sealed Mode: 23 to 250 Hz | | Voice Coil | Bifilar-wound, 3" (7.62 cm) diameter, aluminum | | Inputs | 1 x XLR balanced L/R pair
1 x stereo RCA pair | | Outputs | 1 x XLR balanced L/R pair
1 x stereo RCA pair | | Input Impedance | Unbalanced RCA: 24 kOhms
Balanced XLR: 22 kOhms | | Construction Material | MDF (medium density fiberboard) | | Power Cord Length | 8' (2.44 m) | | Power Requirements | Not specified by manufacturer | | Dimensions (W x H x D) | Without Grille: 19.8 x 22 x 26.6" (50.29 x 55.88 x 67.56 cm)
With Grille: 19.8 x 22 x 28.3" (50.29 x 55.88 x 71.88 cm) | | Weight | 127 lb (57.61 kg) |
