User Manual for SVS PC-2000 12" 1100W Cylindrical Subwoofer Click to enlarge the picture
Contents of the user manual for the SVS PC-2000 12" 1100W Cylindrical Subwoofer
- Product category: Subwoofers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Subwoofers
 |
User manual for the SVS PC-2000 12" 1100W Cylindrical Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

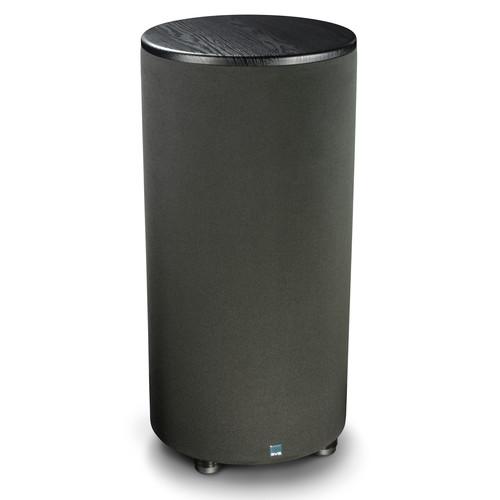

Product description Add powerful bass to your home entertainment experience with the premium black ash SVS PC-2000 12" 1100W Cylindrical Subwoofer. It features a 12" down-firing woofer with 500W of RMS power and 1100W of peak power for ground-shaking performance in nearly any listening environment, and its 4" rear bass port will further enhance the rumble. With a frequency response of 16 to 260 Hz, the PC-2000 is equipped to handle virtually all types of listening material. Its controls include volume, phase, and a low-pass filter. - Driver Features
-
- Down-firing 12" driver
- Powder-coated cast aluminum basket
- Dual ferrite magnets
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings designed to reduce gap induction and lower distortion
- Pole piece fashioned to improve heat sink and thermal management properties
- Nomex spider designed to improve linearity and driver control at extreme drive levels
- Insulated tinsel leads with 3-point-contact alignment
- Aluminum cone with polypropylene dust cap enhances rigidity and pistonic behavior
- Low-creep rubber long-throw surround for augmented durability and longevity
- Amp Features
-

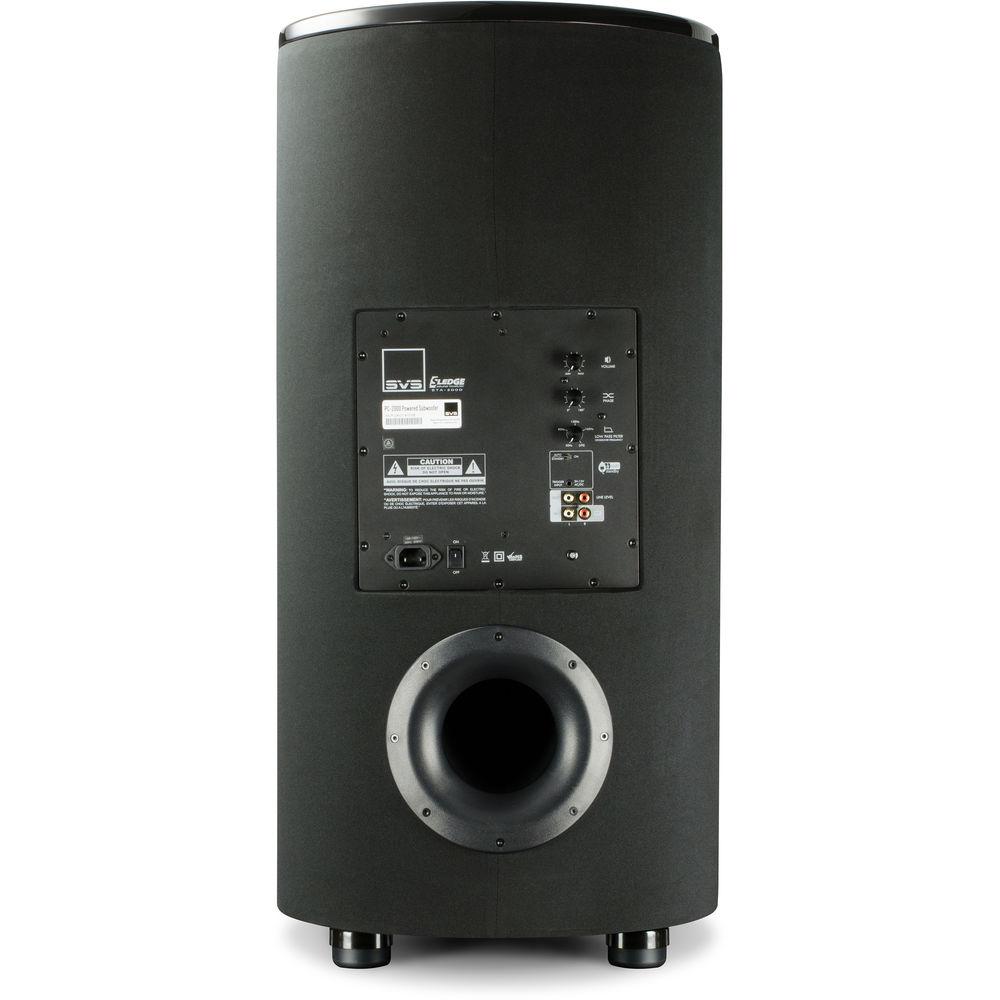

- Rear flush-mounted Sledge 500W STA-500D amplifier
- Class-D topology designed to be efficient and cool-running
- DSP control for accurate response and refined behavior
- Main power rocker switch
- Auto-On / On toggle switch
- Green standby mode with <0.5W power consumption
- 47 kOhm unbalanced line-level RCA input impedance
- Continuously variable volume/gain control
- Continuously variable (0 to 180°) phase control
- Continuously variable (50 to 160 Hz) 12 dB/octave low-pass filter frequency with disable/LFE setting
- Fixed 80 Hz 12 dB/octave high-pass filter on line-level outputs
- RoHS compliant, lead-free construction
- General Features
-
- Interchangeable top cap

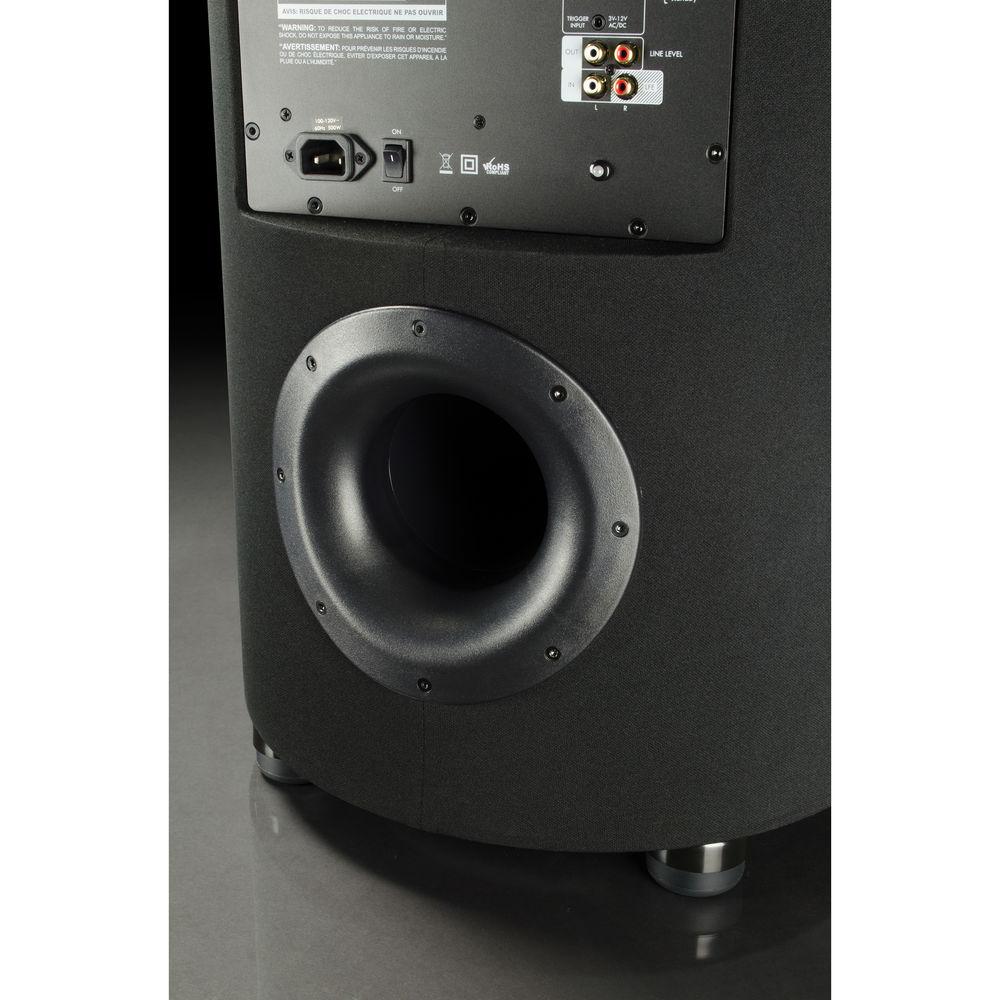

- Rear-firing 4" high-flow port with outer port flare

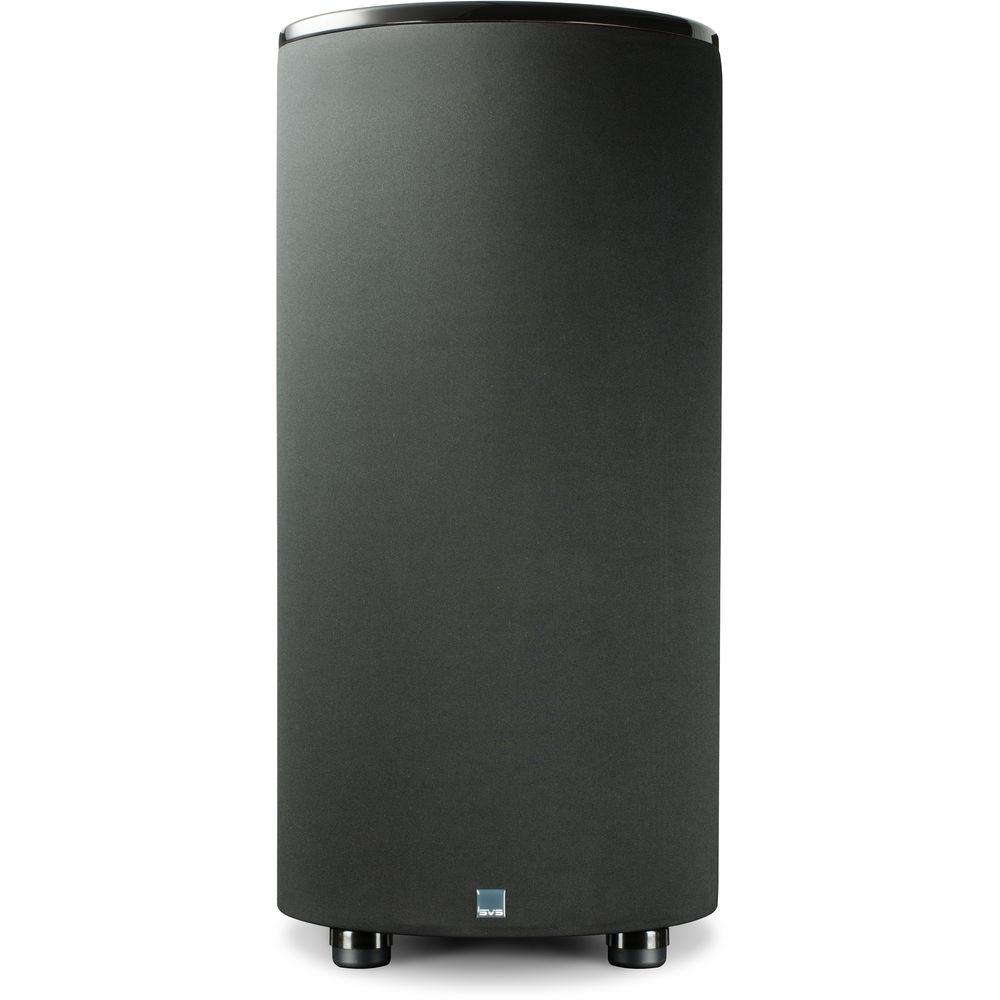

- Black-knit speaker grille cloth cylinder covering

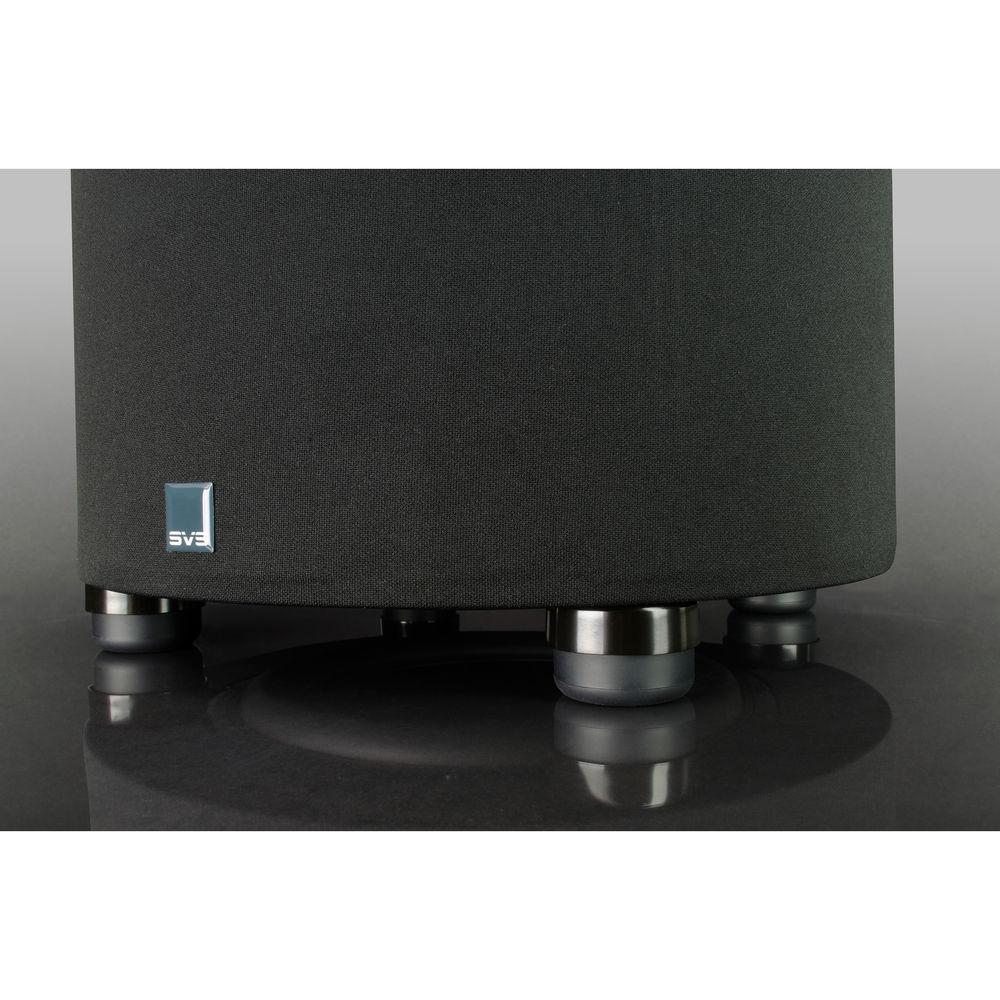

- SoundPath Subwoofer Isolation System feet
- Cylinder enclosure designed for rigidity
UPC: 850071005332 In the Box SVS PC-2000 12" 1100W Cylindrical Subwoofer (Premium Black Ash) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS PC-2000 12" 1100W Cylindrical Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PC-2000 - BLACK ASH Specs | Amplifier Type | Class-D | | Driver | 12" (30.5 cm) | | Voice Coil Diameter | 2" (5.1 cm) | | Enclosure Type | Ported | | Output Power | RMS: 500 W
Peak: 1100 W | | Frequency Response | 16 to 260 Hz, ±3dB | | Controls | Volume, phase, low-pass filter, auto/standby/on switch, main power switch | | Inputs/Outputs | 1x 1/8" (3.5 mm) 3 to 12 V trigger input
1x RCA line level / LFE input pair
1x RCA line level output pair | | Input Impedance | Unbalanced Line-Level RCA: 47 kOhms | | Port | 1x 4" (10.2 cm) | | Standby Power Consumption | <0.5 W | | Power Requirements | 110 VAC | | Dimensions (W x H x D) | 16.6 x 34 x 16.6" (42.2 x 86.4 x 42.2 cm) | | Weight | 50 lb (22.7 kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 34.4 x 20.0 x 19.1" |
