Product description

Driver

• 13.5" down-firing subwoofer driver with underhung motor configuration optimized for ported cabinet design

• 49.6 lb woofer with a 44.3 lb motor

• Underhung 53mm Xmax, 91.6mm Xmech precision-aligned excursion

• 8-layer aluminum flat wire edge wound 3" voice coil for low distortion, heat dissipation, linearity, and zero power compression

• Two toroidal ferrite magnets generate high levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the authoritative bass possible

• High density FEA-optimized cast aluminum basket

• Dual 24-strand copper and Nomex composite high-temperature leads woven through the suspension provide a remarkably durable electrical connection from the amplifier to the voice coil

• Glass fiber laminated dustcap and reinforced, vented paper-composite cone sub-structure ensures a neutral radiating surface

• Precision machined motor elements and narrow tolerance suspension parts produce high linearity at full excursion for tight and fast response, even at reference volumes

• Oversized low carbon vented steel U-yoke and top plate provide cooling and improved magnetics for maximum performance and efficiency

• Copper ring shorting sleeve reduces gap induction and distortion, enhances thermal conductivity

• Nickel-plated high-tension spring terminals provide secure connections

• Proprietary injection molded gasket and parabolic SBR extreme-excursion surround maintains suitable pistonic motion for accuracy and control

• Low carbon 1008 steel components with black electrophoresis plating

Amplifier

• Sledge 1200W continuous Class D design with 4000W of peak power

• User adjustable low pass, phase, polarity, and room gain compensation with three parametric EQs and port tuning for alignment with speakers and optimized performance in any room

• SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system

• High-efficiency, cool-running Class D switching topology with massive 32A 600V MOSFET's result in lower EMI and highest efficiency while providing power to produce SPLs and low frequency output with clarity well beyond reference listening levels

• 50 MHz Analog Devices audio DSP with double precision

• 100 to 240V full range input active PFC (Power Factor Correction) pre-regulates mains to solid 360 VDC regardless of main voltage or quality so the sound quality never falters

• Active PFC lowers average current and smooths mains input current allowing for 1200W output from a standard 15A mains circuit

• XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications

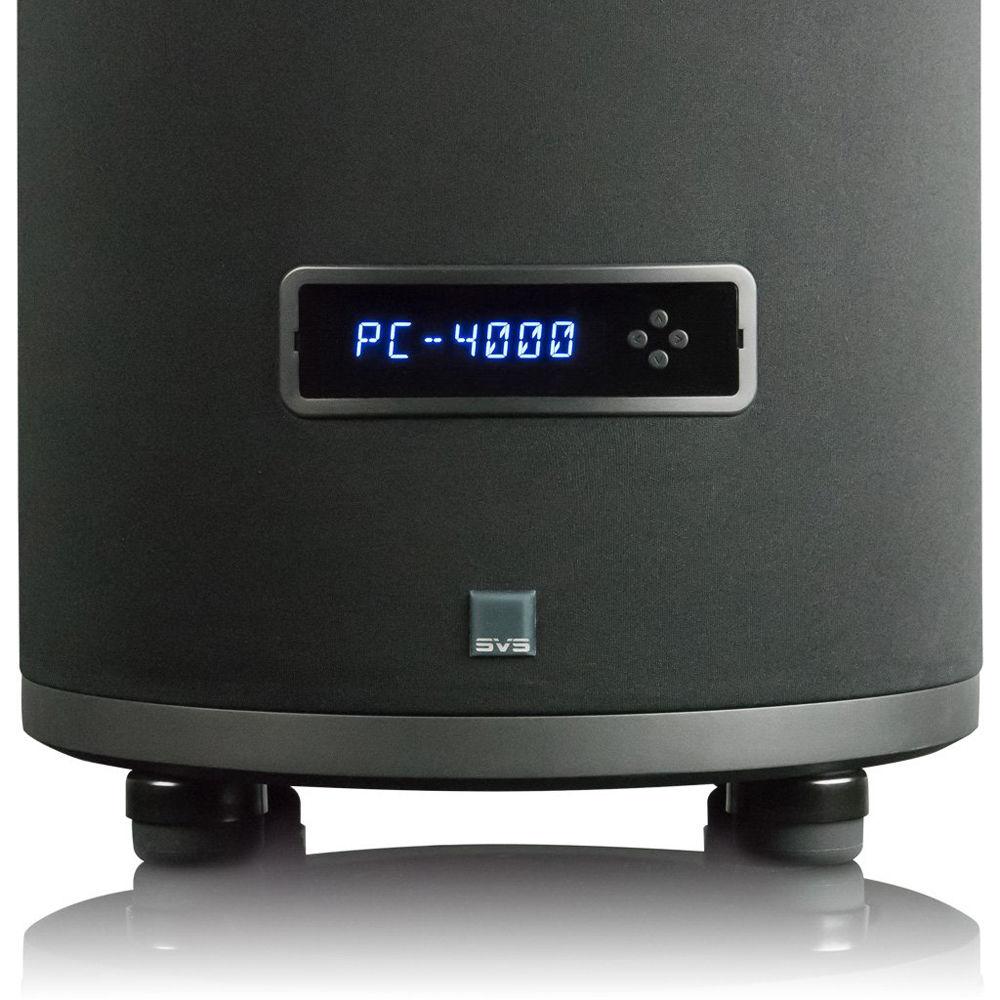

• Convenient front-mounted display featuring new IFC (Intelligent Feature Control) with bright blue dimmable/defeatable 8-digit LED front display

• Variable port tuning with standard, extended, and sealed modes for easy optimization of output based on listening preferences and content

• Auto/On and 3 to 30 VAC/DC trigger for maximum installation convenience

• Green 0.5W low standby power consumption

• RoHS compliant, lead-free construction, world-wide safety certifications

Cabinet

• 2" thick MDF cabinet walls and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment

• Reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.

• Protective, non-resonant steel mesh grille and SoundPath custom elastomer feet for reducing noise artifacts within a room by decoupling the PC-4000 from the floor

• Foam port plugs allow for variable tuning to achieve balanced and accurate low frequency response with all tuning preferences

SVS App

• Bluetooth controlled subwoofer DSP app, works with both iOS and Android operating systems

• 3-band parametric EQ controller allows precise adjustments for frequency slope and Q factor down to the single Hz level with four different slopes

• Stores three custom presets to allow for ideal tuning with movies, music, and other listening experiences

• Bidirectional feedback shows adjustments in real time on both app and subwoofer interface

• Easy-to-follow tutorial provides clear guidance for all functions

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

SVS PC-4000 Specs

Frequency Response

17 to 200 Hz Rating 100% users recommend this product to others. And what about you? This product has already been rated by 94 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
