User Manual for SVS Prime 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the SVS Prime 2-Way Bookshelf Speakers
- Product category: Bookshelf Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Bookshelf Speakers
 |
User manual for the SVS Prime 2-Way Bookshelf Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

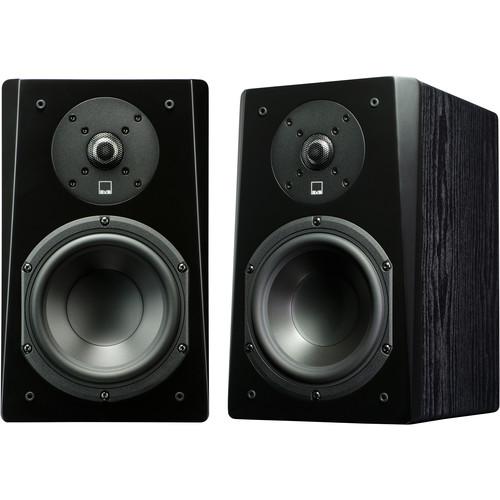

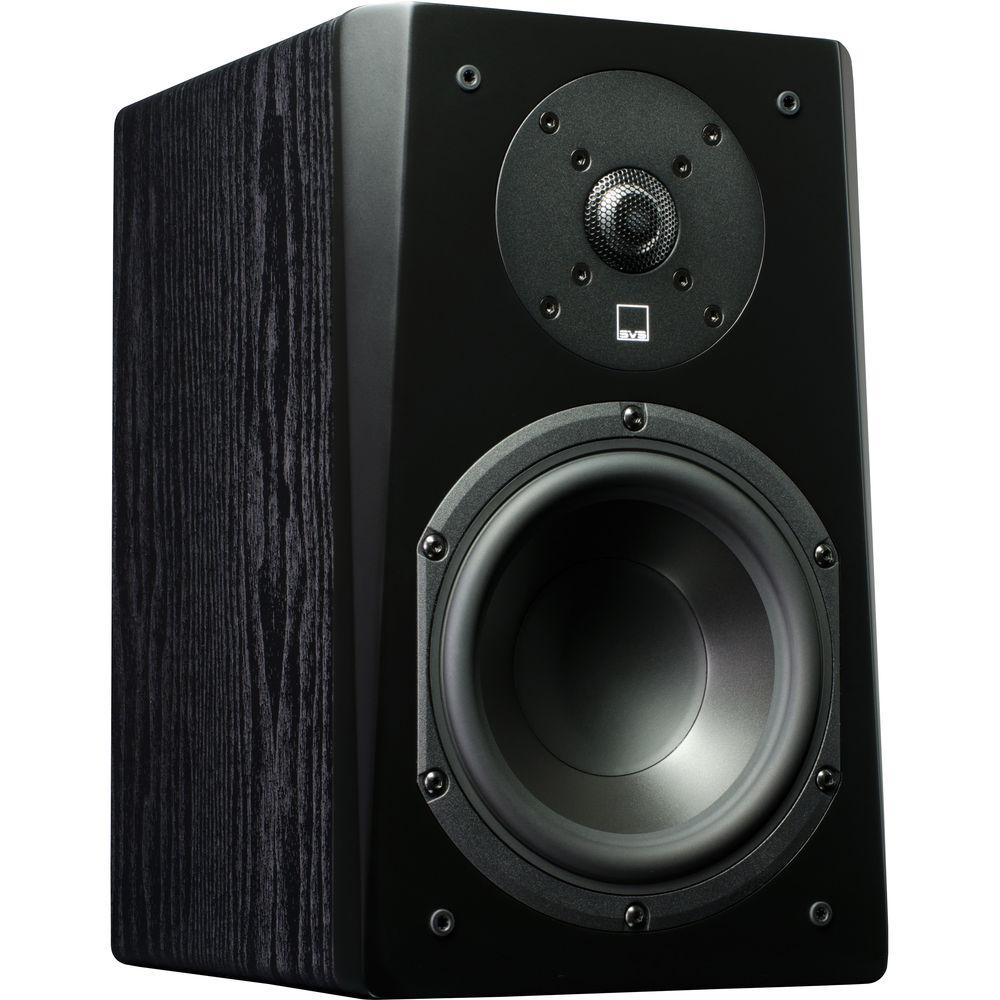

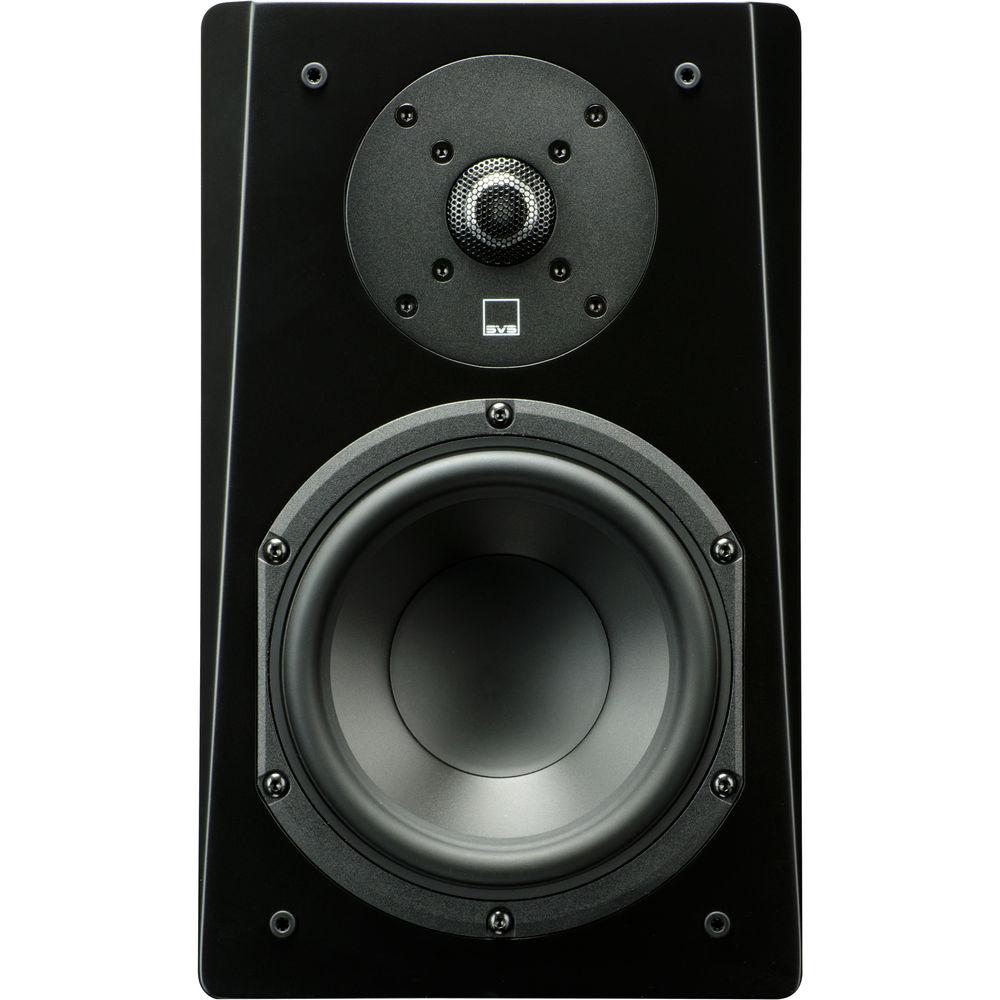

Product description Enjoy a wide frequency response with this pair of black ash SVS Prime 2-Way Bookshelf Speakers. They have a 48 Hz to 25 kHz frequency range for enhanced highs with respectable bass from their 6.5" woofers and 1" tweeters. They feature a 1.7" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps. - Tweeter Features
-
- FEA-optimized diffuser for enhanced presentation
- Aluminum dome for augmented transient response
- Woofer Features
-
- Long stroke motor and suspension for enhanced output
- Polypropylene cone for a high stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket helps ensure precision component alignment and thermal transfer
- Vented voice coil former aids in minimizing air compression artifacts
- Crossover Features
-
- 2-way crossover with air-core inductors and heavy-trace printed circuit boards
- Crossover network designed to deliver enhanced phase coherency and time domain behavior
- Cabinet Features
-
- Acoustically transparent and FEA-optimized grilles help minimize diffraction
- FEA-optimized cabinet and bracing reduces resonances
- Chamfered front baffle and flush-mounted drivers help reduce edge diffraction and improve on-axis high frequency response

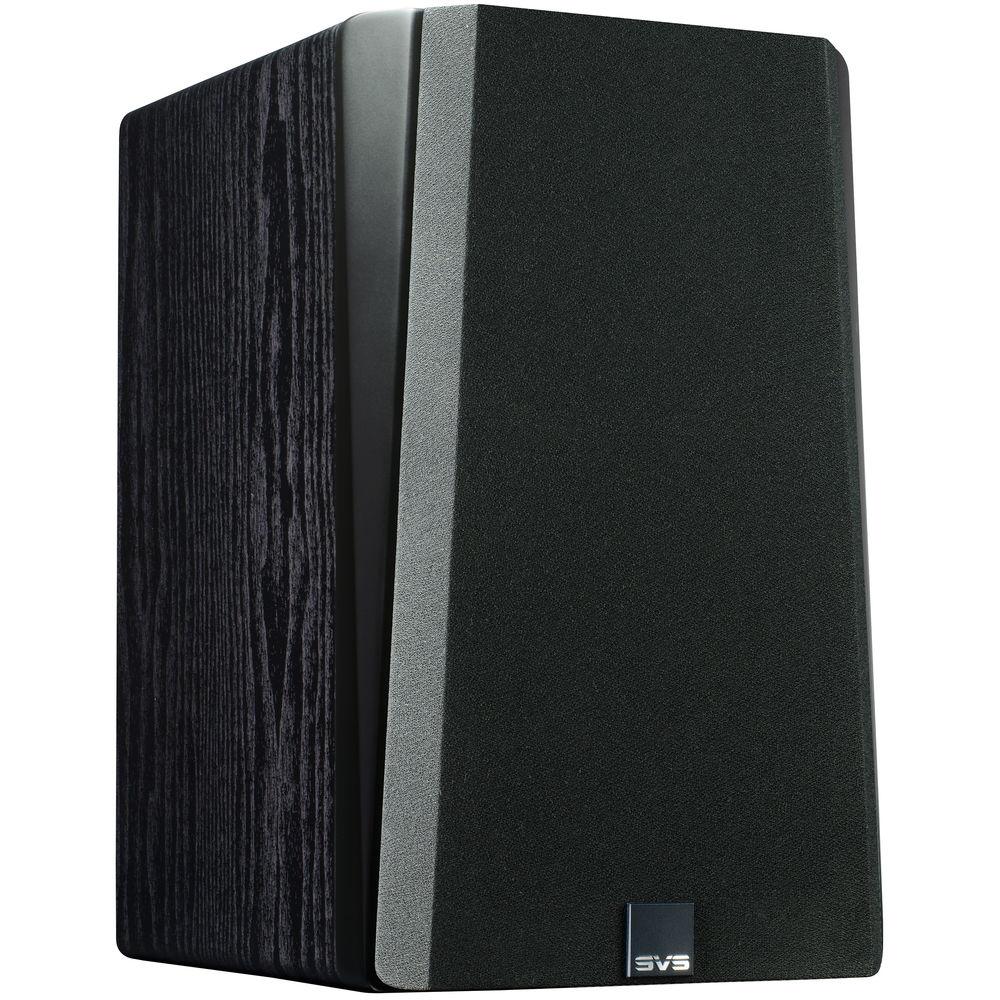

- Cloth grille with pin/cup retention system
UPC: 850071005387 In the Box SVS Prime 2-Way Bookshelf Speakers (Black Ash, Pair) 2 x Grilles Limited 5-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PRIME BOOKSHELF - BLACK ASH Specs | Tweeter | 1x 1" (2.5 cm) | | Woofer | 1x 6.5" (16.5 cm) | | Port | 1x 1.7" (4.3 cm) wide-flared, rear-firing | | Frequency Response ± 3dB | 48 Hz to 25 kHz | | Nominal Impedance | 8 Ohms | | Sensitivity | 87 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | | Recommended Amplifier Power | 20 to 150 W | | Crossover | 2.3 kHz (12 dB/octave slopes) | | Connectors | 5-way binding posts | | Dimensions (W x H x D) | Without Grille and Bumper Feet: 8 x 13.2 x 9.7" (20.3 x 33.5 x 24.6 cm)
With Grille and Bumper Feet: 8 x 13.3 x 10.3" (20.3 x 33.8 x 26.2 cm) | | Weight | 15.5 lb (7.0 kg) each | | | | Package Weight | 35.2 lb | | Box Dimensions (LxWxH) | 22.5 x 18.2 x 14.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
