User Manual for SVS Prime 3.5-Way Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the SVS Prime 3.5-Way Floorstanding Speaker
- Product category: Floorstanding Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Floorstanding Speakers
 |
User manual for the SVS Prime 3.5-Way Floorstanding Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

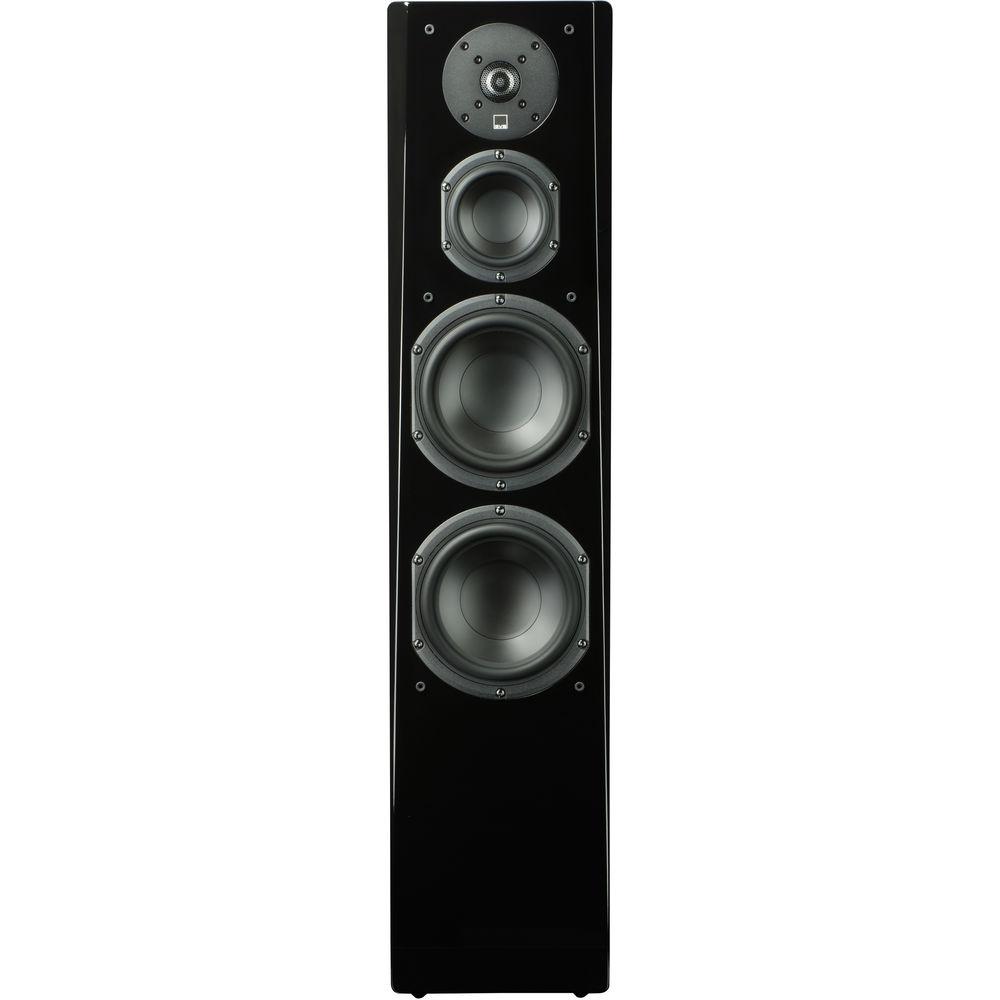

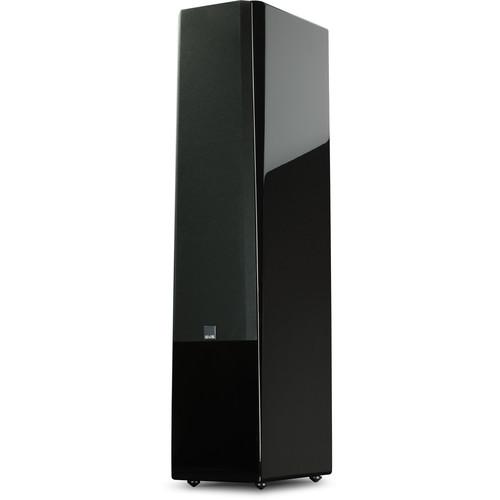

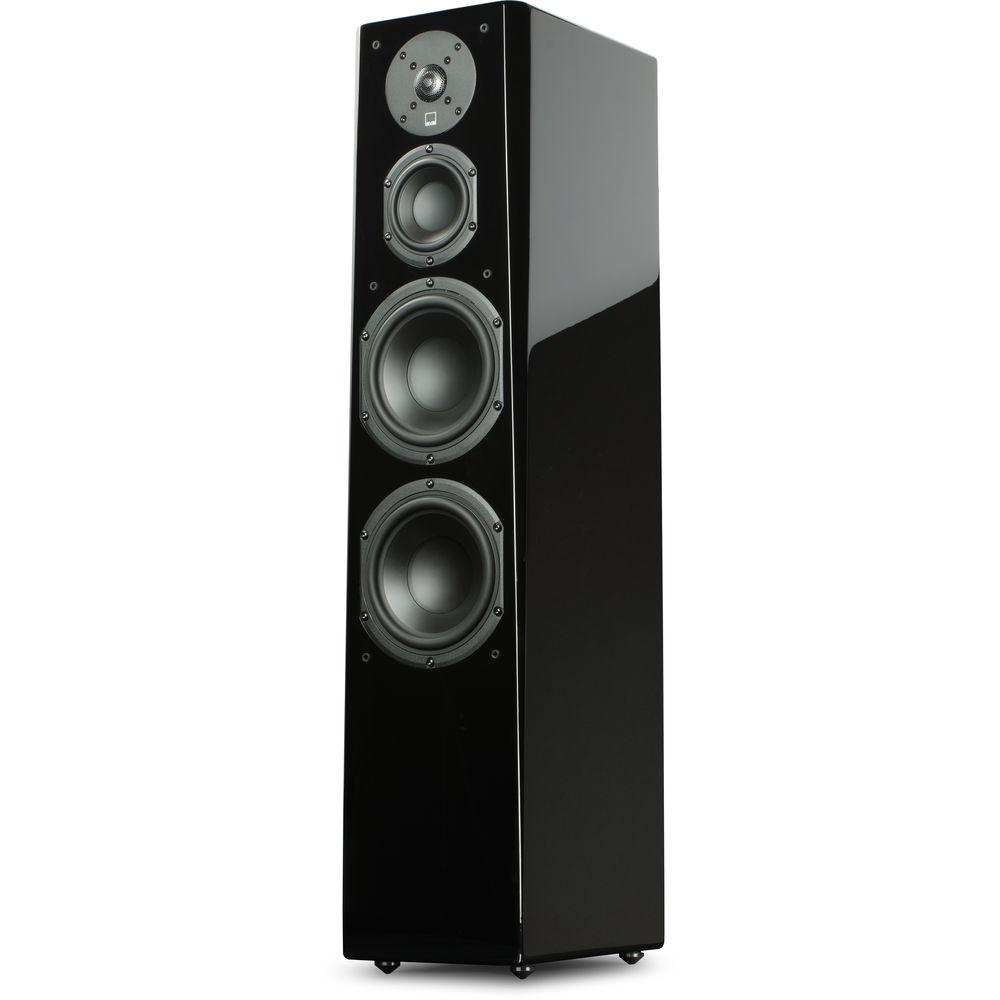

Product description Enjoy a wide frequency response with the piano gloss black SVS Prime 3.5-Way Floorstanding Speaker. It has a 30 Hz to 25 kHz frequency range for enhanced highs, bass, and mids from its 1" tweeter, 4.5" midrange, and dual 6.5" woofers. The 3.5-way crossover allows each woofer to output a different frequency for more detailed midrange and bass, and its dual 1.7" rear-firing bass ports are designed to further enhance the bass. This speaker is recommended for 20 to 250W amps. - Tweeter Features
-
- FEA-optimized diffuser for enhanced presentation
- Aluminum dome for augmented transient response and stiffness/mass ratio
- Midrange Features
-
- Polypropylene cone for an enhanced stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket helps ensure precision component alignment and thermal transfer
- Vented voice coil former aids in minimizing air compression artifacts
- Woofer Features
-
- Long stroke motor and suspension for enhanced output
- Polypropylene cone for an enhanced stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket helps ensure precision component alignment and thermal transfer
- Vented voice coil former aids in minimizing air compression artifacts
- Crossover Features
-
- 3.5-way crossover with air-core inductors and heavy-trace printed circuit boards
- 3.5-way crossover design allows each woofer to handle a different frequency response for enhanced bass and midrange sound reproduction
- Tapered woofer array helps optimize the transition to the midrange driver and reduce vertical axis lobing
- Cabinet Features
-
- Separate sealed midrange enclosure is designed to shift standing waves beyond the driver pass band for enhanced sound quality
- Separate woofer enclosures with optimized port tuning frequencies help to produce smooth and accurate bass response
- Acoustically transparent and FEA-optimized grilles help minimize diffraction
- FEA-optimized cabinet and bracing reduces resonances
- Chamfered front baffle and flush-mounted drivers help reduce edge diffraction and improve on-axis high frequency response
- Dual 1.7" wide-flared rear-firing bass ports
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet and level-adjustable spiked metal screw-in feet included
UPC: 850071005400 In the Box SVS Prime 3.5-Way Floorstanding Speaker (Piano Gloss Black, Single) Grille Spiked Metal Feet Elastomer Stick-On Bumper Feet Limited 5-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime 3.5-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PRIME TOWER - PIANO GLOSS Specs | Tweeter | 1x 1" (2.5 cm) | | Midrange | 1x 4.5" (11.4 cm) | | Woofer | 2x 6.5" (16.5 cm) | | Ports | 2x 1.7" (4.3 cm) | | Frequency Response ± 3dB | 30 Hz to 25 kHz | | Crossover | Midrange-to-Tweeter: 2.1 kHz (12 dB/octave slopes)
Top Woofer to Midrange: 350 Hz (12 dB/octave slopes)
Bottom Woofer: 165 Hz (customized filter Q and slope) | | Nominal Impedance | 8 Ohms | | Sensitivity | 87 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | | Recommended Amplifier Power | 20 to 250 W | | Dimensions (W x H x D) | Without Grille and Feet: 8 x 36 x 11.1" (20.3 x 91.4 x 28.2 cm)
With Grille and Feet: 8 x 36.6 x 11.6" (20.3 x 93 x 29.5 cm) | | Weight | 40.1 lb (18.2 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
