Product description

Add Height Effects for Dolby Atmos, DTS:X, and Auro-3D

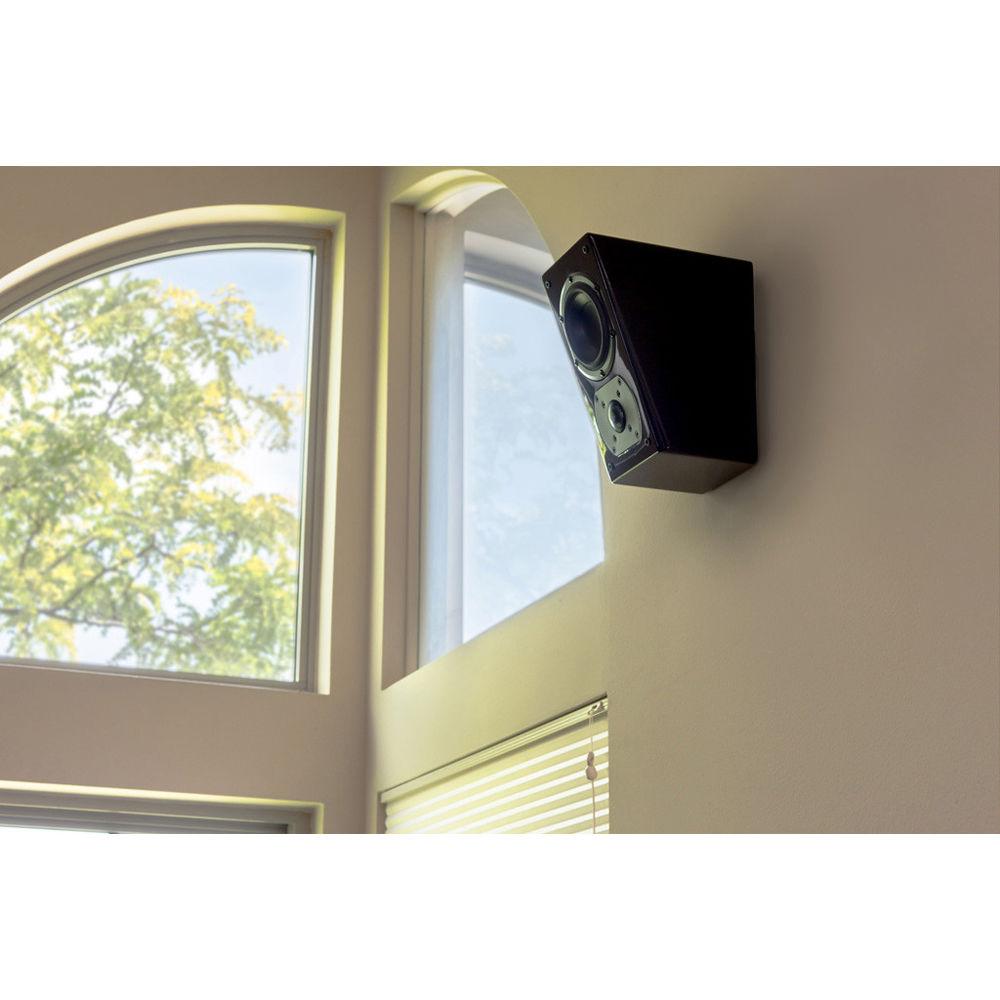

• The Prime Elevation is designed to accurately radiate the height effects of your movies. Place it high on a wall near the ceiling, and object-based surround sound can be enjoyed at full fidelity in nearly any room, without using ceiling bounce or in-ceiling speakers.

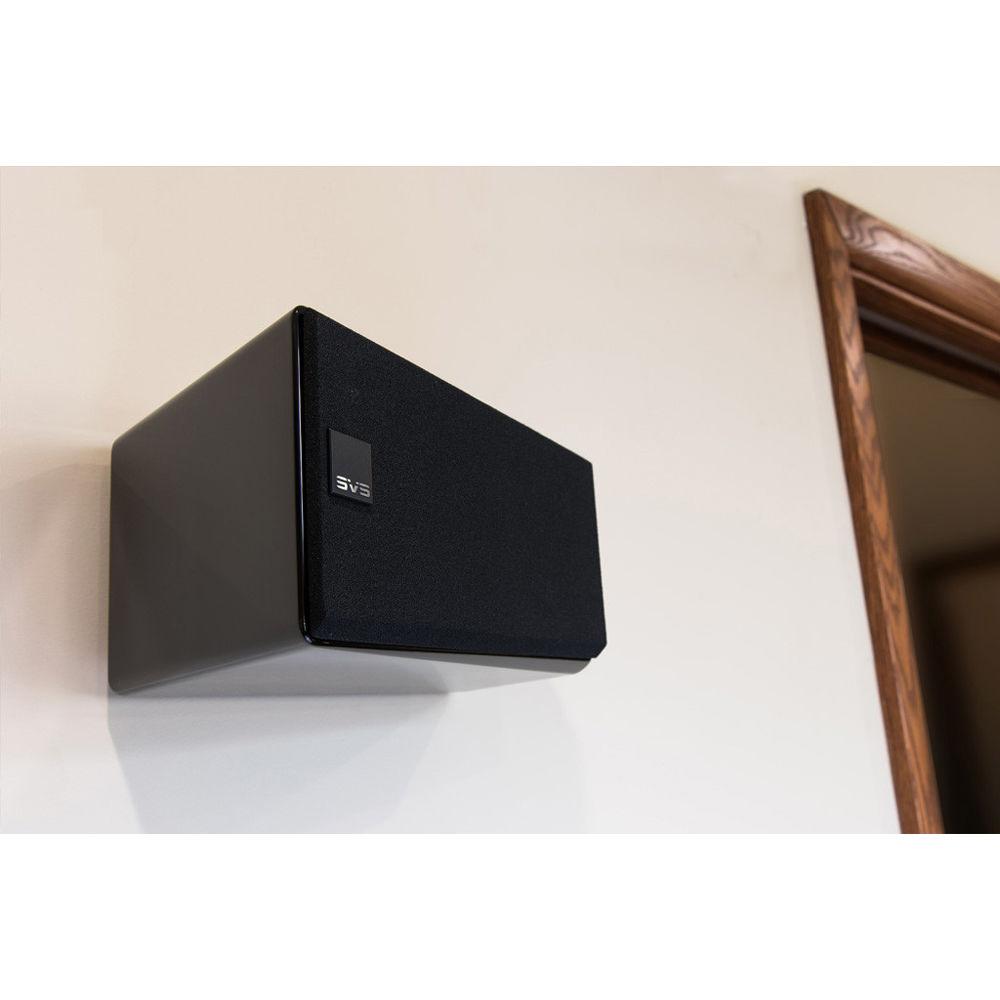

Multi-Angle Wall Bracket
• The included Multi-Angle Wall Bracket allows for hanging the speaker in any of four directions (up- or down-firing, and side- or rear-firing). Also included is a universal mounting option with a 1/4"-20 brass insert that works with other kits. As a finishing touch, the magnetic SVS logo on the grille is adjustable to accommodate positioning.

Angled Front Baffle
• The angled front baffle is designed to deliver enhanced direct radiating height effects and enable versatility in nearly any channel position.

Enhanced Versatility
• The angled front baffle and Multi-Angle Wall Bracket combine to add versatility to the Prime Elevation speaker. Engineered to address a multitude of room challenges, the Prime Elevation is well suited for imperfect room placement options:

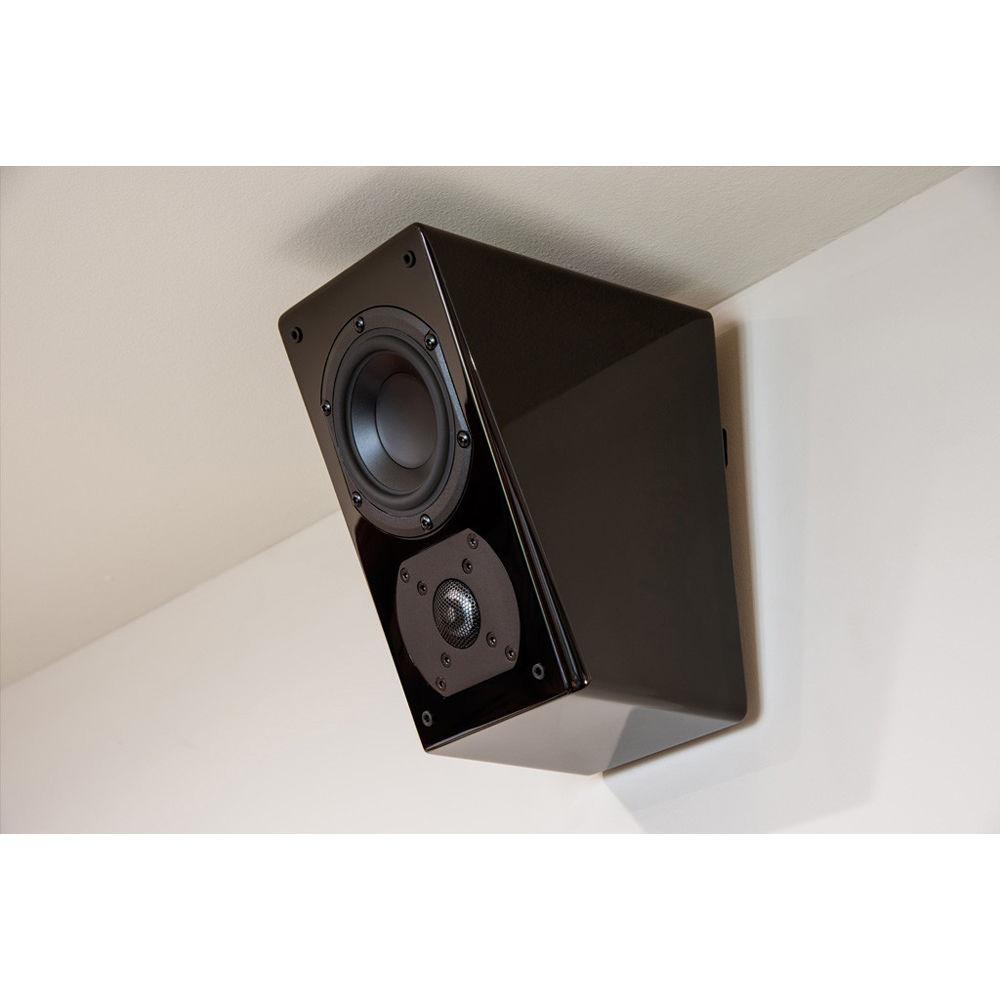

  • Down-firing height-effects speaker – placed high on a side wall, the directly radiated sound is designed to provide more direct sound than "ceiling bounce" solutions.

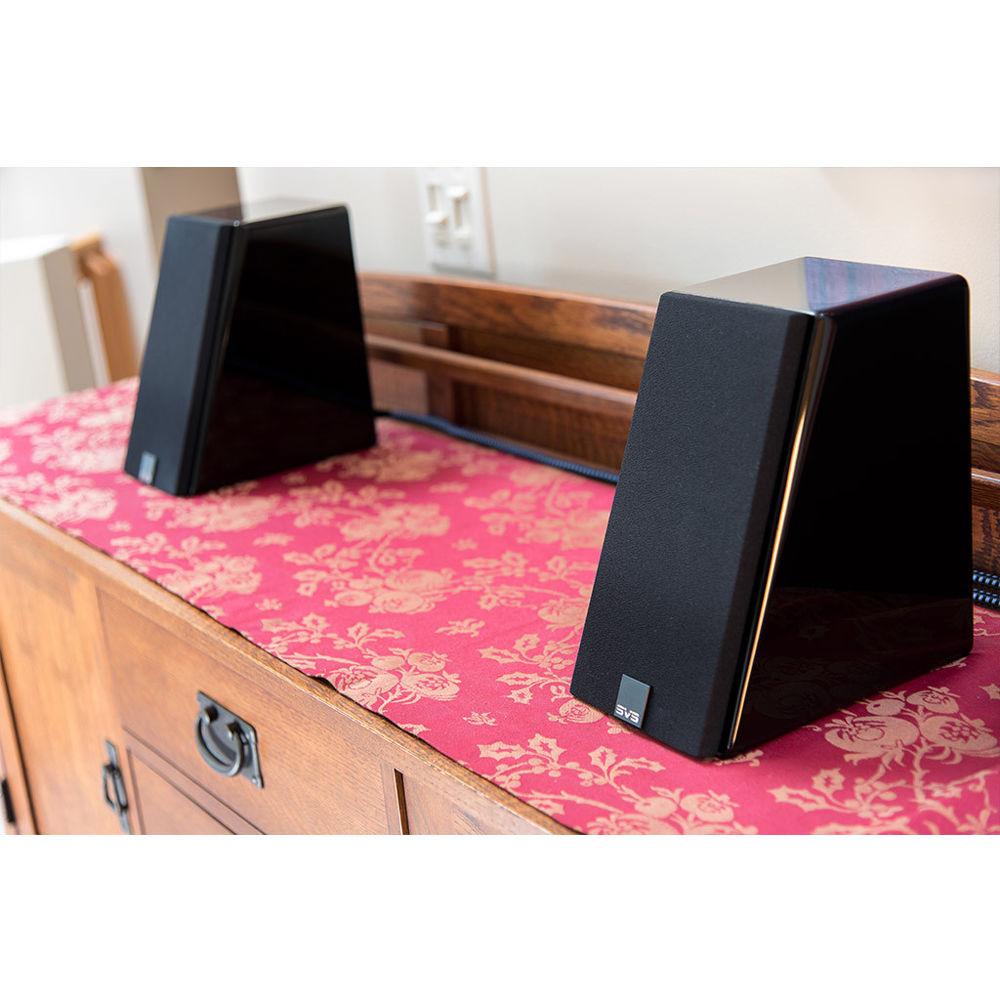

  • Up- or down-firing front, L/C/R (left/center/right) and/or center channel speaker – placed above or below the viewing area, directed at the listener, when placement at ear level isn't possible.
  • Side- or rear-firing surround speaker – placed on a side wall for rear effects, or on the rear wall for side effects, when optimal placement is not possible.

Reinforced, Acoustically Inert Cabinet
• The cabinet is designed to be resonance-free, with MDF walls and bracing for enhanced acoustics.

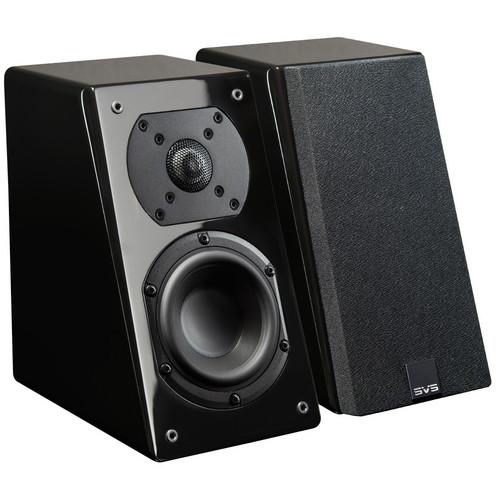

4.5" Mid-Woofer
• The 4.5" poly midrange/bass woofer features an augmented stiffness-to-mass ratio for accurate dynamics at all drive levels.

Tweeter Designed for Accuracy
• The 1" aluminum dome tweeter uses an FEA-optimized diffuser for clear high frequencies with enhanced transparency and refinement.

SoundMatch Crossover
• The SoundMatch crossover is designed to blend tweeter and woofer output for enhanced balance, accuracy, and overall performance across the frequency spectrum.

Additional Driver Features
• • Aluminum shorting ring in mid-woofer helps reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket in mid-woofer helps ensure precision component alignment and augmented thermal transfer
  • Vented voice coil former minimizes air compression artifacts in mid-woofer

Additional Cabinet Features
• • Cloth grille with pin/cup retention system
  • Elastomer stick-on bumper feet
  • Chamfered front baffle and flush-mounted drivers help reduce edge diffraction and enhance off-axis high-frequency response
