User Manual for SVS Prime Elevation 2-Way Atmos Add-On Speakers Click to enlarge the picture
Contents of the user manual for the SVS Prime Elevation 2-Way Atmos Add-On
- Product category: Bookshelf Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Bookshelf Speakers
 |
User manual for the SVS Prime Elevation 2-Way Atmos Add-On contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

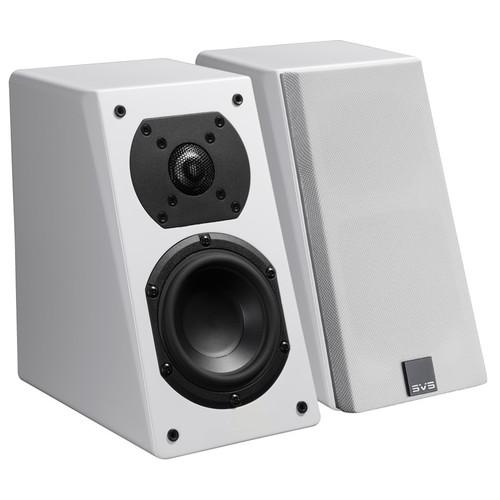

Product description Add height effect channels to your compatible home theater system with this pair of piano gloss white SVS Prime Elevation 2-Way Atmos Add-On Speakers. The feature an angled front baffle, so they can be placed on the wall near the ceiling with the included wall mount for height effects without the required sound reflection of up-firing speakers. They use a 1" aluminum dome tweeter and a 4.5" polypropylene cone woofer and accept 20 to 150W of power from your amplifier.
Alternative placement options are available, such as low-angle up-firing or side-firing speakers, left-/center-/right-channel configurations with a third Prime Elevation speaker, or left/right setups. - Add Height Effects for Dolby Atmos, DTS:X, and Auro-3D

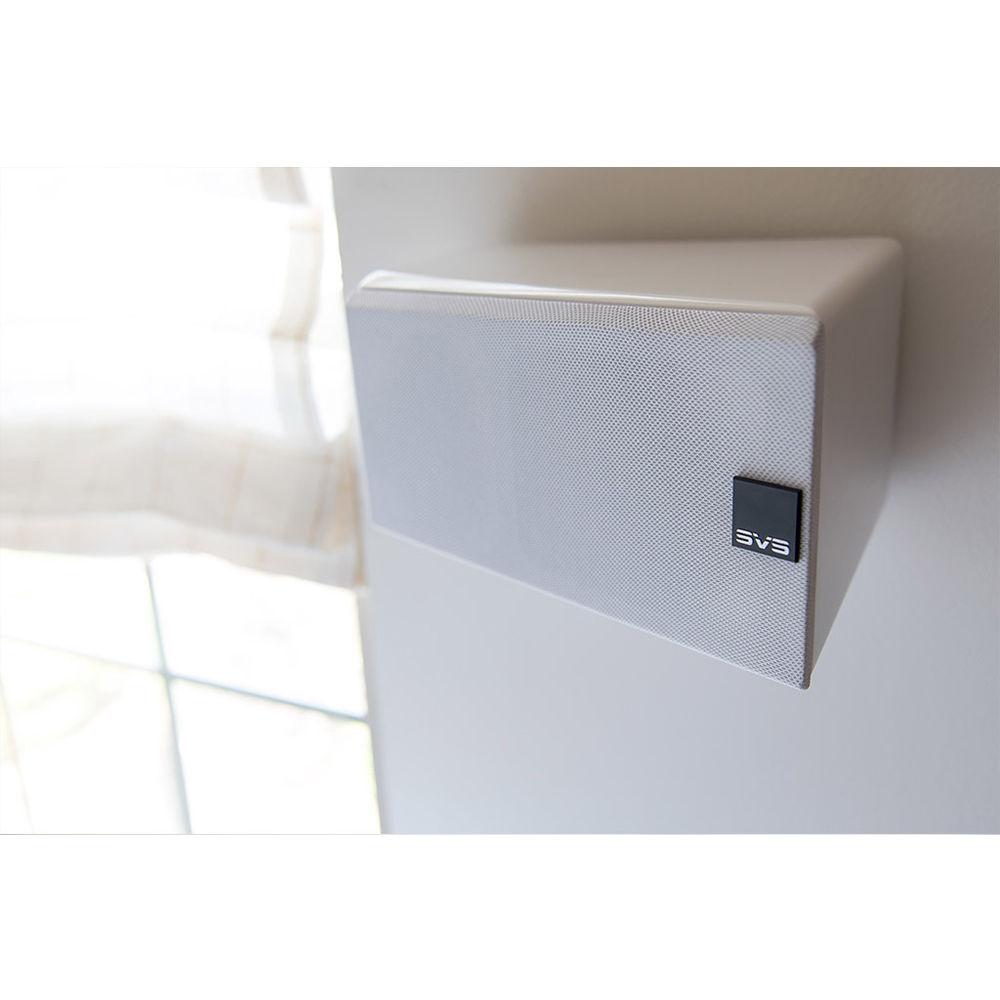

- The Prime Elevation is designed to accurately radiate the height effects of your movies. Place it high on a wall near the ceiling, and object-based surround sound can be enjoyed at full fidelity in nearly any room, without using ceiling bounce or in-ceiling speakers.
- Multi-Angle Wall Bracket

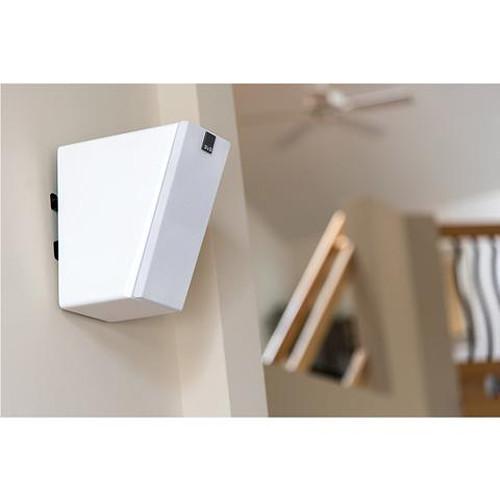

- The included Multi-Angle Wall Bracket allows for hanging the speaker in any of four directions (up- or down-firing, and side- or rear-firing). Also included is a universal mounting option with a 1/4"-20 brass insert that works with other kits. As a finishing touch, the magnetic SVS logo on the grille is adjustable to accommodate positioning.
- Angled Front Baffle
- The angled front baffle is designed to deliver enhanced direct radiating height effects and enable versatility in nearly any channel position.
- Enhanced Versatility
- The angled front baffle and Multi-Angle Wall Bracket combine to add versatility to the Prime Elevation speaker. Engineered to address a multitude of room challenges, the Prime Elevation is well suited for imperfect room placement options:

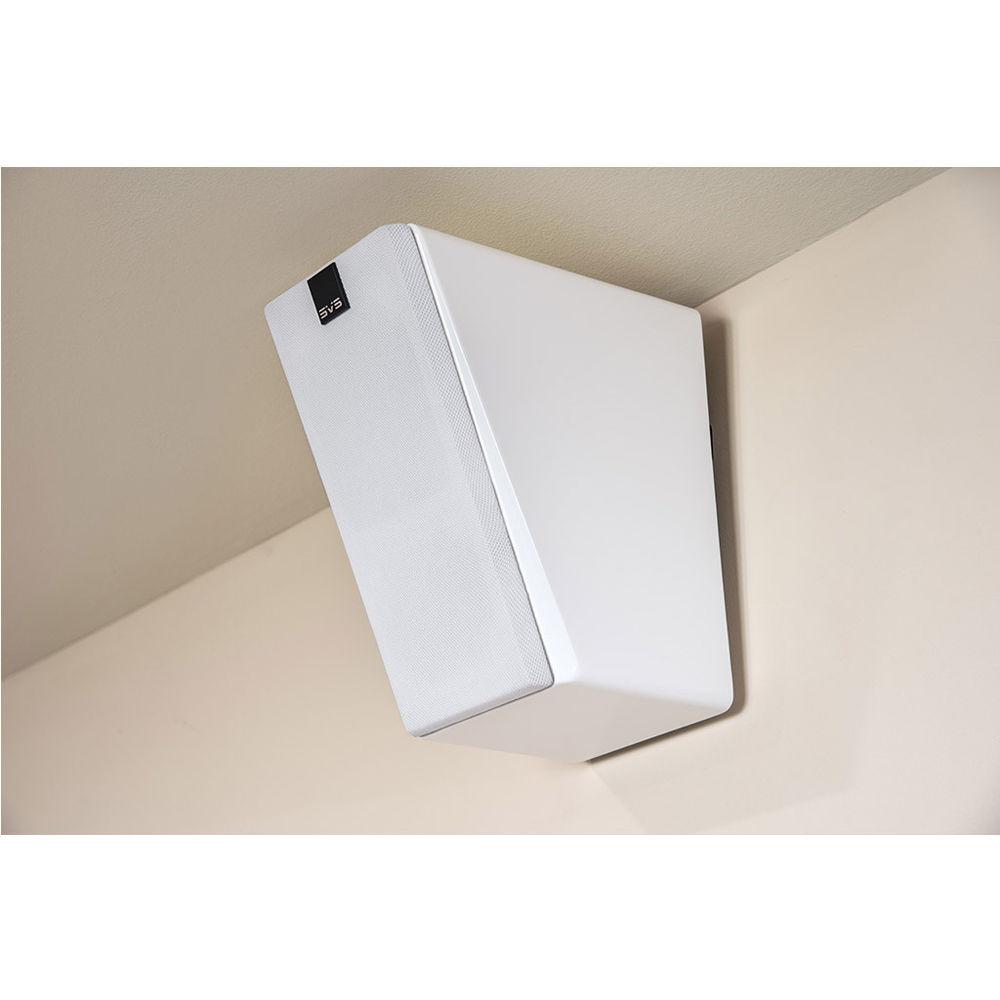

- Down-firing height-effects speaker – placed high on a side wall, the directly radiated sound is designed to provide more direct sound than "ceiling bounce" solutions.
- Up- or down-firing front, L/C/R (left/center/right) and/or center channel speaker – placed above or below the viewing area, directed at the listener, when placement at ear level isn't possible.
- Side- or rear-firing surround speaker – placed on a side wall for rear effects, or on the rear wall for side effects, when optimal placement is not possible.
- Reinforced, Acoustically Inert Cabinet
- The cabinet is designed to be resonance-free, with MDF walls and bracing for enhanced acoustics.
- 4.5" Mid-Woofer
- The 4.5" poly midrange/bass woofer features an augmented stiffness-to-mass ratio for accurate dynamics at all drive levels.
- Tweeter Designed for Accuracy
- The 1" aluminum dome tweeter uses an FEA-optimized diffuser for clear high frequencies with enhanced transparency and refinement.
- SoundMatch Crossover
- The SoundMatch crossover is designed to blend tweeter and woofer output for enhanced balance, accuracy, and overall performance across the frequency spectrum.
- Additional Driver Features
-
- Aluminum shorting ring in mid-woofer helps reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket in mid-woofer helps ensure precision component alignment and augmented thermal transfer
- Vented voice coil former minimizes air compression artifacts in mid-woofer
- Additional Cabinet Features
-
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet
- Chamfered front baffle and flush-mounted drivers help reduce edge diffraction and enhance off-axis high-frequency response
UPC: 856654006031 In the Box SVS Prime Elevation 2-Way Atmos Add-On Speakers (Piano Gloss White, Pair) 2 x Grilles Speaker Bracket Stick-On Bumper Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime Elevation 2-Way Atmos Add-On Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PRIME ELEVATION 2-PACK - WHITE GLOSS Specs | Tweeter | 1" (2.5 cm) FEA-optimized aluminum dome | | Woofer | 4.5" (11.4 cm) polypropylene cone | | Port | 1" (2.5 cm) rear-firing | | Recommended Amplifier Power | 20 to 150 W | | Crossover Frequency | 2.5 kHz (12 dB/octave slopes) | | Nominal Impedance | 8 Ohms | | Frequency Response ± 3dB | 55 Hz to 25 kHz | | Sensitivity | 87 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | | Terminals | 1 x 5-way binding post pair | | Cabinet Construction | MDF (medium-density fiberboard) | | Dimensions (W x H x D) | 5.44 x 9.25 x 7.88" (13.82 x 23.5 x 20.02 cm) (without grille, binding posts, and bumper feet
5.44 x 9.4 x 8.33" (13.82 x 23.88 x 21.16 cm) (with grille, binding posts, and bumper feet | | Weight | 7.8 lb (3.5 kg), each | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 17.9 x 12.5 x 9.1" |
