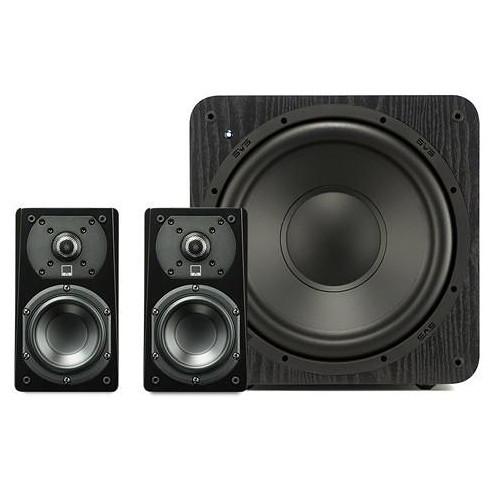

SVS Prime Satellite 2.1-Channel Home Theater

User Manual for SVS Prime Satellite 2.1-Channel Home Theater Speaker System

• Product category: Speaker Separates SVS
• Brand: SVS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SVS Speaker Separates

Product description

• Prime Satellite 2-Way Bookshelf Speakers (Premium Black Ash, Pair) Enjoy enhanced high-frequency response and respectable low end with this pair of premium black ash SVS Prime Satellite 2-Way Bookshelf Speakers. They have a 69 Hz to 25 kHz frequency range for enhanced highs with sufficient bass from their 4.5" woofers and 1" tweeters. They also employ a 1" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps.
  1" Aluminum Dome Tweeter
  • The 1" aluminum dome tweeter is designed to be light, efficient, and rigid, providing high SPL (sound pressure level) with minimal distortion and a sense of transparency. It deploys a finite-element-analysis (FEA)-optimized diffuser to help ensure that the tweeter has optimal on-axis and off-axis frequency response, so that everyone in your listening room gets the best performance.
  4.5" Woofer
  • The 4.5" bass woofer is built on a cast ABS-fiberglass composite basket for enhanced component alignment and an inert frame without resonances or added harmonics. Its polypropylene cone is designed to be light and rigid to give a flat frequency response and the SPL necessary to keep up with the other drivers.The woofer uses aluminum shorting rings for reduced distortion, and a vented voice coil former to keep the motor assembly cool during high SPL playback. For augmented bass extension, the cabinet is rear-ported and tuned for the woofer.
  SoundMatch Crossover
  • The SoundMatch crossover uses air-core inductors and heavy-trace printed circuit boards to help produce sound with lower distortion and tighter tolerances with better heat dissipation. The 2-way crossover is tuned so each driver can blend each other while offering optimal on- and off-axis response, while maintaining phase coherency and sharp time domain behavior.
  Speaker Features
  • • 1" wide-flared rear-firing port
    • Cloth grille with pin/cup retention system
    • Elastomer stick-on bumper feet
    • Keyway bracket for wall mounting
  Cabinet Features
  • • Acoustically transparent and FEA-optimized grilles, chamfered front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and augmented on-axis high-frequency response
    • FEA-optimized bracing reduces cabinet resonances
  UPC: 850071005424
• SB-1000 12" 300W Subwoofer (Premium Black Ash) Add powerful bass to your home entertainment experience with the premium black ash SB-1000 12" 300W Subwoofer. It features a 12" front-firing woofer with 300W of RMS power and 720W of peak power for ground-shaking performance in most listening environments. With a frequency response of 24 to 260 Hz, the SB-1000 is equipped to handle virtually all types of listening material. Its controls include volume, phase, and a low-pass filter.
  Driver Features
  • • Front-firing 12" driver
    • Finite Element Analysis (FEA)-optimized motor structure
    • Voice coil designed for enhanced thermal management
    • Cone designed for enhanced sensitivity and transient response
    • Rubber surround for enhanced durability and longevity
    • Dual ferrite magnets
    • Vented pole piece fashioned for enhanced cooling and low noise
  Amp Features
  • • Sledge STA-300D with 300W RMS continuous power (720W peak dynamic power)
    • Class D topology designed to be efficient and cool-running
    • Green standby mode with <0.5W power consumption
    • Detachable power cord with main power switch
    • Auto-On / On switch
    • DSP control for accurate behavior
    • Stereo line-level RCA input & 80 Hz high pass filtered output connections
    • Stereo speaker level 5-way binding post input connections
    • Continuously variable low-pass filter frequency with disable/LFE setting
    • Continuously variable volume/phase control
    • RoHS compliant, lead-free construction
  UPC: 850071005158

• Elastomer Stick-On Bumper Feet

• 2 x Removable Grilles

• Limited 5-Year Warranty

• Grille

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Prime Satellite 2-Way Bookshelf Speakers (Premium Black Ash, Pair)

  Speaker Design	2-way
  Drivers	1x 1" (2.6 cm) aluminum dome tweeter 1x 4.5" (11.4 cm) polypropylene cone woofer
  Port	1x 1" (2.6 cm) rear-firing
  Sensitivity	85 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz)
  Recommended Amplifier Power	20 to 150 W
  Nominal Impedance	8 Ohms
  Crossover Frequency	2.3 kHz (12 dB/octave slopes)
  Frequency Response ± 3dB	69 Hz to 25 kHz
  Terminals	Gold-plated 5-way binding posts
  Dimensions (W x H x D)	4.9 x 8.75 x 6" (12.4 x 22.2 x 15.2 cm) 4.9 x 8.85 x 6.3" (12.4 x 22.5 x 16 cm) with grille and bumper feet
  Weight	6.5 lb (2.9 kg) each

  Box Dimensions (LxWxH)	17.1 x 12.0 x 8.9"

• SB-1000 12" 300W Subwoofer (Premium Black Ash)

  Amplifier Type	Class D
  Driver	12" (30.5 cm)
  Output Power	RMS: 300 W Peak: 720 W
  Frequency Response	24 to 260 Hz, ±3dB
  Controls	Volume, phase, low-pass filter, auto/standby/on switch, main power switch
  Inputs/Outputs	1x 1/8" (3.5 mm) 3 to 12 V trigger input 2x 5-way binding post input pairs 1x RCA line level / LFE input pair 1x RCA line level output pair
  Input Impedance	Unbalanced Line-Level RCA: 47 kOhms Speaker Level: 2 kOhms
  Standby Power Consumption	<0.5 W
  Power Requirements	110 VAC
  Dimensions (W x H x D)	13 x 13.5 x 14.6" (33 x 34.3 x 37.1 cm) with grille
  Weight	27 lb (12.2 kg)

  Box Dimensions (LxWxH)	19.3 x 19.2 x 18.8"
