User Manual for SVS Prime Satellite 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the SVS Prime Satellite 2-Way Bookshelf Speakers
- Product category: Bookshelf Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Bookshelf Speakers
 |
User manual for the SVS Prime Satellite 2-Way Bookshelf Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

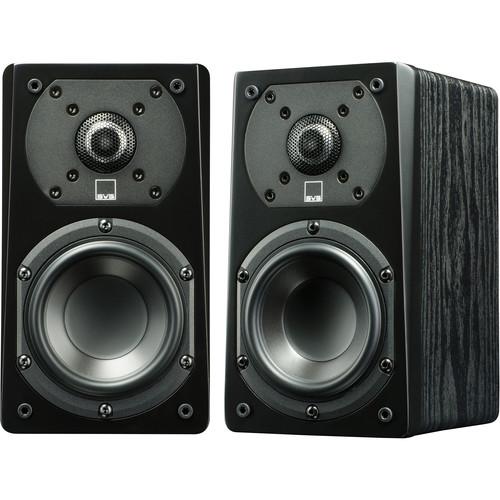

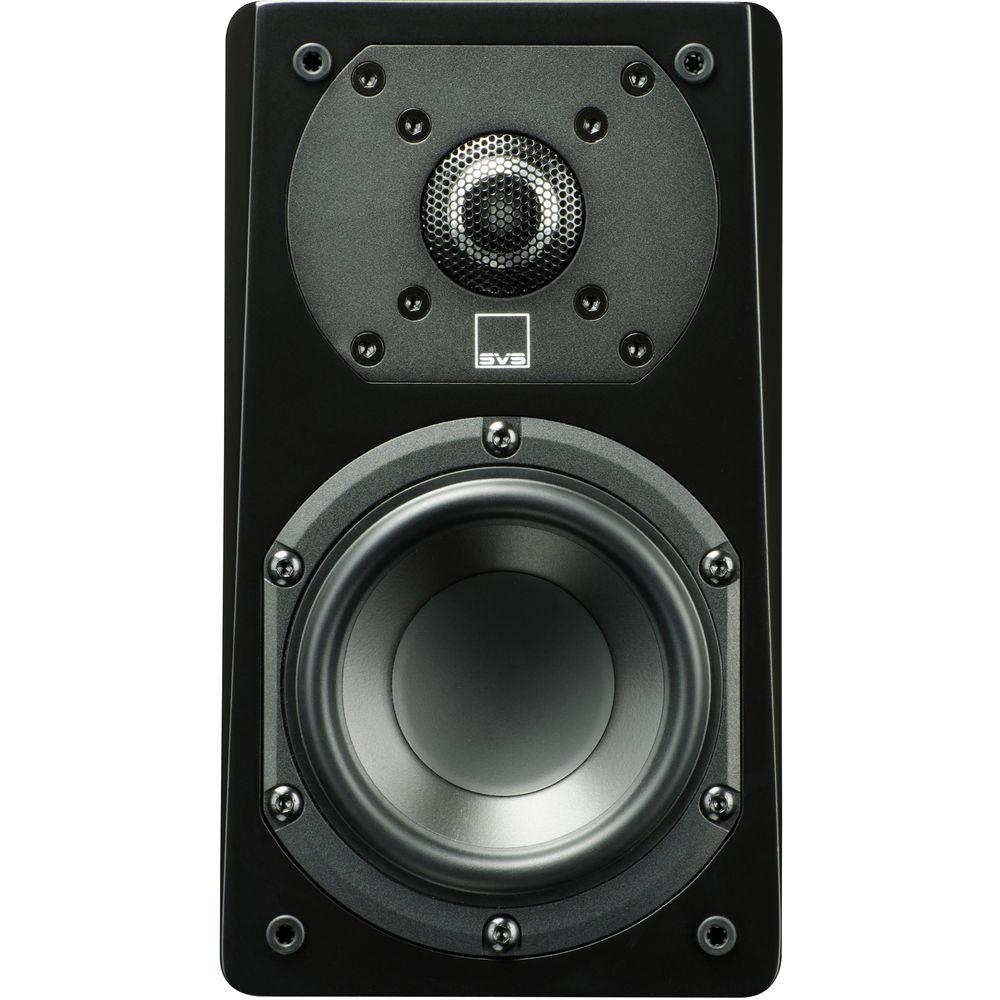

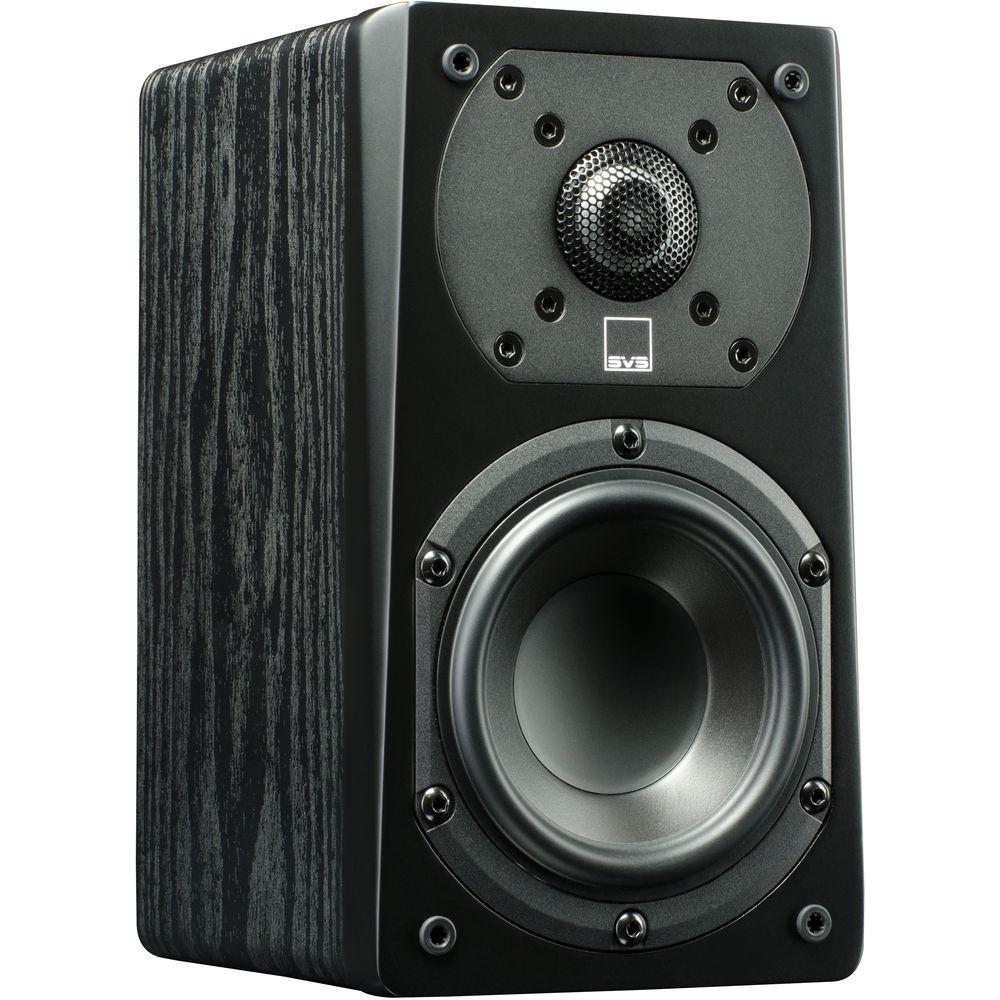

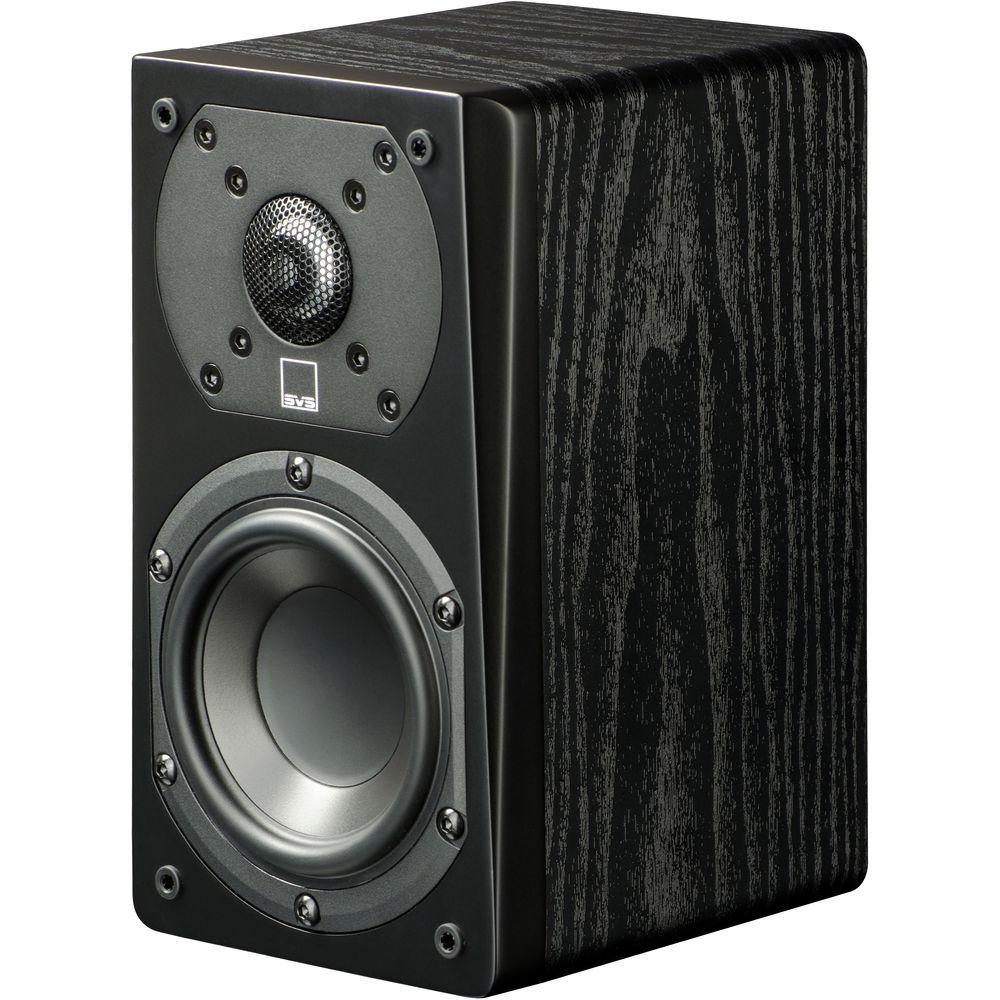

Product description Enjoy enhanced high-frequency response and respectable low end with this pair of premium black ash SVS Prime Satellite 2-Way Bookshelf Speakers. They have a 69 Hz to 25 kHz frequency range for enhanced highs with sufficient bass from their 4.5" woofers and 1" tweeters. They also employ a 1" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps. - 1" Aluminum Dome Tweeter
- The 1" aluminum dome tweeter is designed to be light, efficient, and rigid, providing high SPL (sound pressure level) with minimal distortion and a sense of transparency. It deploys a finite-element-analysis (FEA)-optimized diffuser to help ensure that the tweeter has optimal on-axis and off-axis frequency response, so that everyone in your listening room gets the best performance.
- 4.5" Woofer
- The 4.5" bass woofer is built on a cast ABS-fiberglass composite basket for enhanced component alignment and an inert frame without resonances or added harmonics. Its polypropylene cone is designed to be light and rigid to give a flat frequency response and the SPL necessary to keep up with the other drivers.The woofer uses aluminum shorting rings for reduced distortion, and a vented voice coil former to keep the motor assembly cool during high SPL playback. For augmented bass extension, the cabinet is rear-ported and tuned for the woofer.
- SoundMatch Crossover
- The SoundMatch crossover uses air-core inductors and heavy-trace printed circuit boards to help produce sound with lower distortion and tighter tolerances with better heat dissipation. The 2-way crossover is tuned so each driver can blend each other while offering optimal on- and off-axis response, while maintaining phase coherency and sharp time domain behavior.
- Speaker Features
-

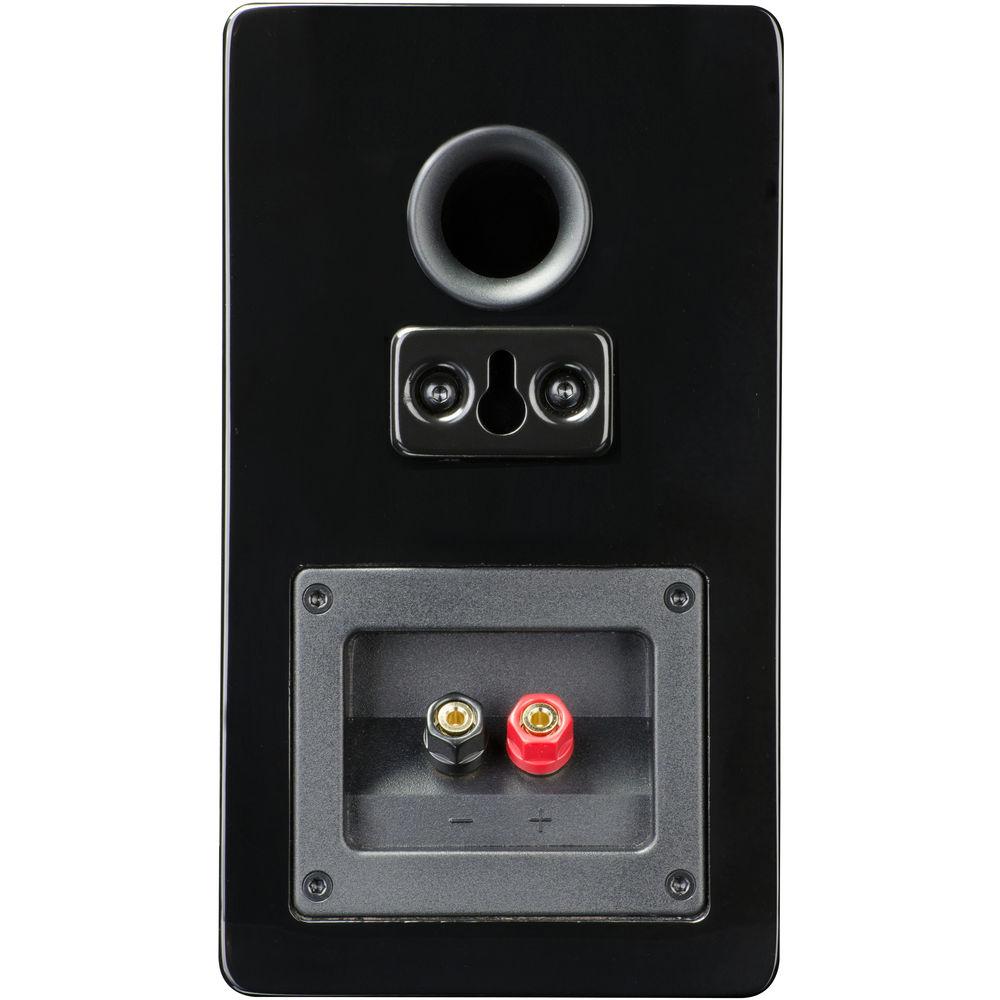

- 1" wide-flared rear-firing port

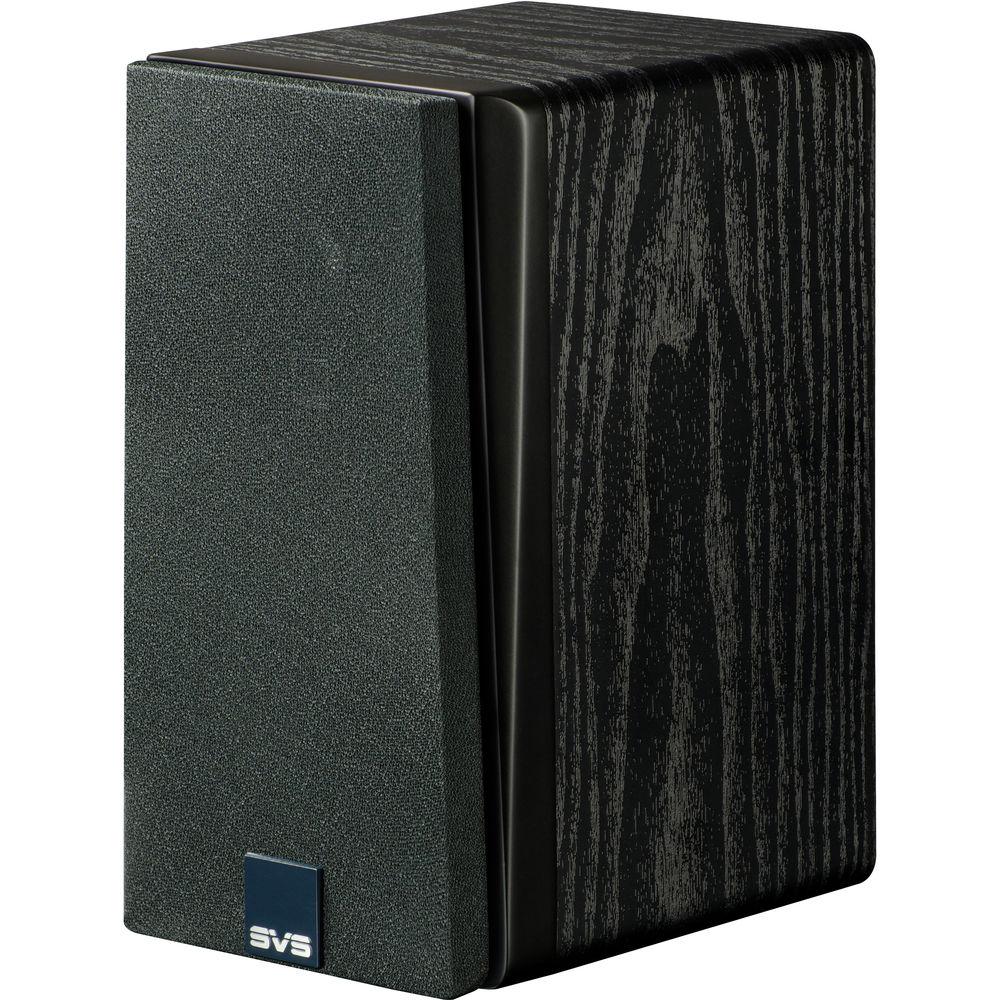

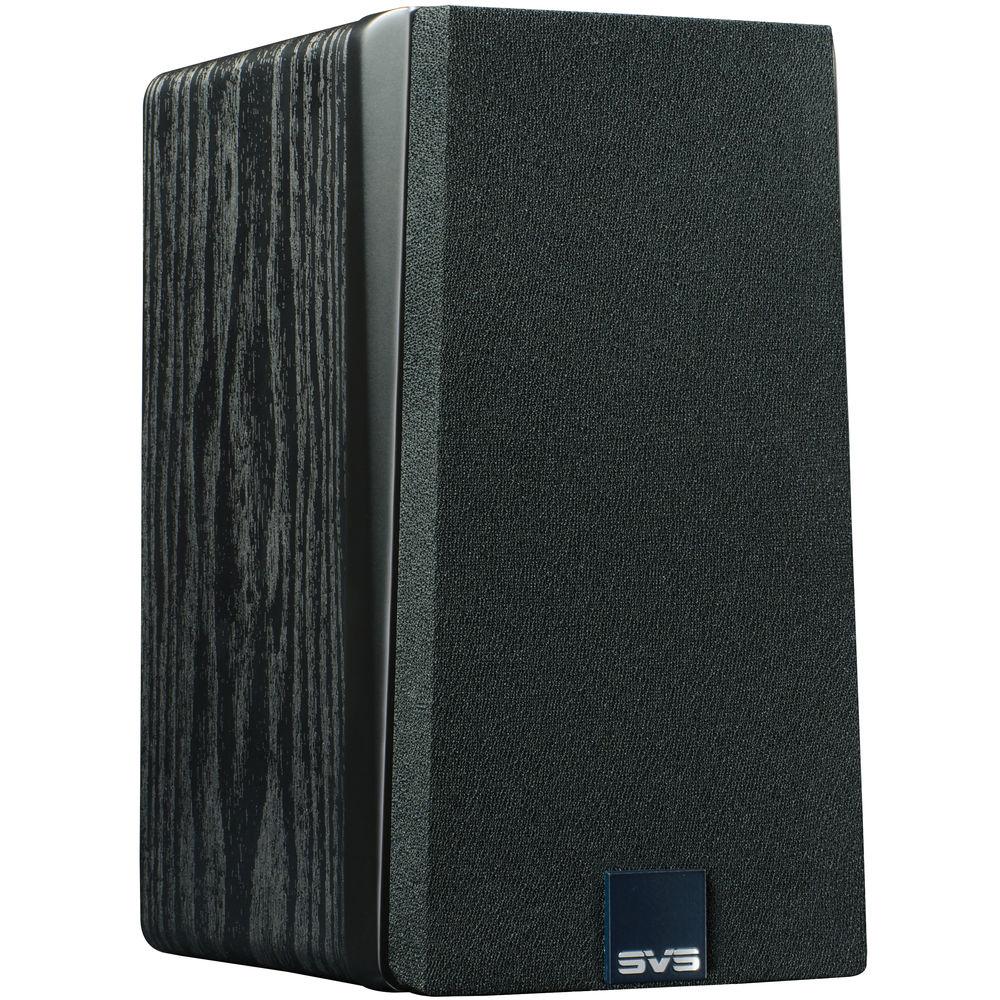

- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet
- Keyway bracket for wall mounting
- Cabinet Features
-
- Acoustically transparent and FEA-optimized grilles, chamfered front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and augmented on-axis high-frequency response
- FEA-optimized bracing reduces cabinet resonances
UPC: 850071005424 In the Box SVS Prime Satellite 2-Way Bookshelf Speakers (Premium Black Ash, Pair) Elastomer Stick-On Bumper Feet 2 x Removable Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime Satellite 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PRIME SATELLITE 2-PACK - BLACK ASH Specs | Speaker Design | 2-way | | Drivers | 1x 1" (2.6 cm) aluminum dome tweeter
1x 4.5" (11.4 cm) polypropylene cone woofer | | Port | 1x 1" (2.6 cm) rear-firing | | Sensitivity | 85 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | | Recommended Amplifier Power | 20 to 150 W | | Nominal Impedance | 8 Ohms | | Crossover Frequency | 2.3 kHz (12 dB/octave slopes) | | Frequency Response ± 3dB | 69 Hz to 25 kHz | | Terminals | Gold-plated 5-way binding posts | | Dimensions (W x H x D) | 4.9 x 8.75 x 6" (12.4 x 22.2 x 15.2 cm)
4.9 x 8.85 x 6.3" (12.4 x 22.5 x 16 cm) with grille and bumper feet | | Weight | 6.5 lb (2.9 kg) each | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 17.1 x 12.0 x 8.9" |
