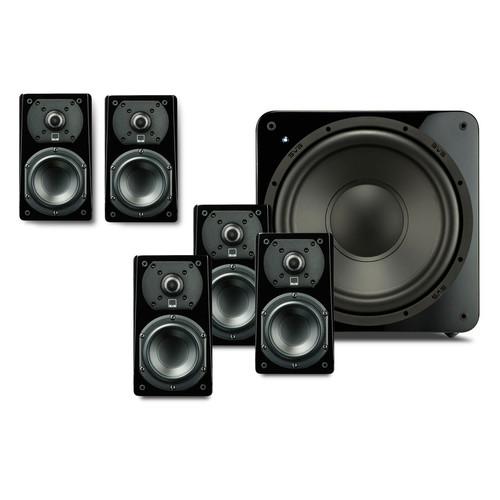

User Manual for SVS Prime Satellite 5.1-Channel Home Theater Speaker System Click to enlarge the picture
Contents of the user manual for the SVS Prime Satellite 5.1-Channel Home Theater
- Product category: Speaker Separates SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Speaker Separates
|
User manual for the SVS Prime Satellite 5.1-Channel Home Theater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|
Product description Enjoy true surround sound with your favorite receiver and the piano gloss black SVS Prime Satellite 5.1-Channel Home Theater Speaker System. The speakers accept 20 to 150W per channel while the included 12" powered subwoofer adds extra bass punch with up to 300W of power. - Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, Pair) Enjoy enhanced high-frequency response and respectable low end with this pair of piano gloss black SVS Prime Satellite 2-Way Bookshelf Speakers. They have a 69 Hz to 25 kHz frequency range for enhanced highs with sufficient bass from their 4.5" woofers and 1" tweeters. They also employ a 1" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps.
- 1" Aluminum Dome Tweeter
- The 1" aluminum dome tweeter is designed to be light, efficient, and rigid, providing high SPL (sound pressure level) with minimal distortion and a sense of transparency. It deploys a finite-element-analysis (FEA)-optimized diffuser to help ensure that the tweeter has optimal on-axis and off-axis frequency response, so that everyone in your listening room gets the best performance.
- 4.5" Woofer
- The 4.5" bass woofer is built on a cast ABS-fiberglass composite basket for enhanced component alignment and an inert frame without resonances or added harmonics. Its polypropylene cone is designed to be light and rigid to give a flat frequency response and the SPL necessary to keep up with the other drivers.The woofer uses aluminum shorting rings for reduced distortion, and a vented voice coil former to keep the motor assembly cool during high SPL playback. For augmented bass extension, the cabinet is rear-ported and tuned for the woofer.
- SoundMatch Crossover
- The SoundMatch crossover uses air-core inductors and heavy-trace printed circuit boards to help produce sound with lower distortion and tighter tolerances with better heat dissipation. The 2-way crossover is tuned so each driver can blend each other while offering optimal on- and off-axis response, while maintaining phase coherency and sharp time domain behavior.
- Speaker Features
-
- 1" wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet
- Keyway bracket for wall mounting
- Cabinet Features
-
- Acoustically transparent and FEA-optimized grilles, chamfered front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and augmented on-axis high-frequency response
- FEA-optimized bracing reduces cabinet resonances
UPC: 850071005417 - Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, 3-Pack) Enjoy enhanced high-frequency response and respectable low end with this 3-pack of piano gloss black SVS Prime Satellite 2-Way Bookshelf Speakers. They have a 69 Hz to 25 kHz frequency range for enhanced highs with sufficient bass from their 4.5" woofers and 1" tweeters. They also employ a 1" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps. With this 3-pack, you can create a matched left/center/right setup for your home theater.
- 1" Aluminum Dome Tweeter
- The 1" aluminum dome tweeter is designed to be light, efficient, and rigid, providing high SPL (sound pressure level) with minimal distortion and a sense of transparency. It deploys a finite-element-analysis (FEA)-optimized diffuser to help ensure that the tweeter has optimal on-axis and off-axis frequency response, so that everyone in your listening room gets the best performance.
- 4.5" Woofer
- The 4.5" bass woofer is built on a cast ABS-fiberglass composite basket for enhanced component alignment and an inert frame without resonances or added harmonics. Its polypropylene cone is designed to be light and rigid to give a flat frequency response and the SPL necessary to keep up with the other drivers. The woofer uses aluminum shorting rings for reduced distortion, and a vented voice coil former to keep the motor assembly cool during high SPL playback. For augmented bass extension, the cabinet is rear-ported and tuned for the woofer.
- SoundMatch Crossover
- The SoundMatch crossover uses air-core inductors and heavy-trace printed circuit boards to help produce sound with lower distortion and tighter tolerances with better heat dissipation. The 2-way crossover is tuned so each driver can blend each other while offering optimal on- and off-axis response, while maintaining phase coherency and sharp time domain behavior.
- Speaker Features
-
- 1" wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet
- Keyway bracket for wall mounting
- Cabinet Features
-
- Acoustically transparent and FEA-optimized grilles, chamfered front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and augmented on-axis high-frequency response
- FEA-optimized bracing reduces cabinet resonances
UPC: 850071005448 - SB-1000 12" 300W Subwoofer (Piano Gloss Black) Add powerful bass to your home entertainment experience with the piano gloss black SB-1000 12" 300W Subwoofer. It features a 12" front-firing woofer with 300W of RMS power and 720W of peak power for ground-shaking performance in most listening environments. With a frequency response of 24 to 260 Hz, the SB-1000 is equipped to handle virtually all types of listening material. Its controls include volume, phase, and a low-pass filter.
- Driver Features
-
- Front-firing 12" driver
- Finite Element Analysis (FEA)-optimized motor structure
- Voice coil designed for enhanced thermal management
- Cone designed for enhanced sensitivity and transient response
- Rubber surround for enhanced durability and longevity
- Dual ferrite magnets
- Vented pole piece fashioned for enhanced cooling and low noise
- Amp Features
-
- Sledge STA-300D with 300W RMS continuous power (720W peak dynamic power)
- Class D topology designed to be efficient and cool-running
- Green standby mode with <0.5W power consumption
- Detachable power cord with main power switch
- Auto-On / On switch
- DSP control for accurate behavior
- Stereo line-level RCA input & 80 Hz high pass filtered output connections
- Stereo speaker level 5-way binding post input connections
- Continuously variable low-pass filter frequency with disable/LFE setting
- Continuously variable volume/phase control
- RoHS compliant, lead-free construction
UPC: 850071005349 In the Box Bundle Items Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, Pair) zrystwvywt - Elastomer Stick-On Bumper Feet
Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, 3-Pack) - Elastomer Stick-On Bumper Feet
SB-1000 12" 300W Subwoofer (Piano Gloss Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime Satellite 5.1-Channel Home Theater Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, Pair)
Speaker Design | 2-way | Drivers | 1x 1" (2.6 cm) aluminum dome tweeter 1x 4.5" (11.4 cm) polypropylene cone woofer | Port | 1x 1" (2.6 cm) rear-firing | Sensitivity | 85 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | Recommended Amplifier Power | 20 to 150 W | Nominal Impedance | 8 Ohms | Crossover Frequency | 2.3 kHz (12 dB/octave slopes) | Frequency Response ± 3dB | 69 Hz to 25 kHz | Terminals | Gold-plated 5-way binding posts | Dimensions (W x H x D) | 4.9 x 8.75 x 6" (12.4 x 22.2 x 15.2 cm) 4.9 x 8.85 x 6.3" (12.4 x 22.5 x 16 cm) with grille and bumper feet | Weight | 6.5 lb (2.9 kg) each | | Box Dimensions (LxWxH) | 14.1 x 12.1 x 9.0" | - Prime Satellite 2-Way Bookshelf Speakers (Piano Gloss Black, 3-Pack)
Speaker Design | 2-way | Drivers | 1x 1" (2.6 cm) aluminum dome tweeter 1x 4.5" (11.4 cm) polypropylene cone woofer | Port | 1x 1" (2.6 cm) rear-firing | Sensitivity | 85 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | Recommended Amplifier Power | 20 to 150 W | Nominal Impedance | 8 Ohms | Crossover Frequency | 2.3 kHz (12 dB/octave slopes) | Frequency Response ± 3dB | 69 Hz to 25 kHz | Terminals | Gold-plated 5-way binding posts | Dimensions (W x H x D) | 4.9 x 8.75 x 6" (12.4 x 22.2 x 15.2 cm) 4.9 x 8.85 x 6.3" (12.4 x 22.5 x 16 cm) with grille and bumper feet | Weight | 6.5 lb (2.9 kg) each | | Box Dimensions (LxWxH) | 20.25 x 11.75 x 9.0" | - SB-1000 12" 300W Subwoofer (Piano Gloss Black)
Amplifier Type | Class D | Driver | 12" (30.5 cm) | Output Power | RMS: 300 W Peak: 720 W | Frequency Response | 24 to 260 Hz, ±3dB | Controls | Volume, phase, low-pass filter, auto/standby/on switch, main power switch | Inputs/Outputs | 1x 1/8" (3.5 mm) 3 to 12 V trigger input 2x 5-way binding post input pairs 1x RCA line level / LFE input pair 1x RCA line level output pair | Input Impedance | Unbalanced Line-Level RCA: 47 kOhms Speaker Level: 2 kOhms | Standby Power Consumption | <0.5 W | Power Requirements | 110 VAC | Dimensions (W x H x D) | 13 x 13.5 x 14.6" (33 x 34.3 x 37.1 cm) with grille | Weight | 27 lb (12.2 kg) | | Box Dimensions (LxWxH) | 19.4 x 19.3 x 18.4" |
