User Manual for SVS Prime Three-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the SVS Prime Three-Way Center Channel Speaker
- Product category: Center Channel Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Center Channel Speakers
 |
User manual for the SVS Prime Three-Way Center Channel Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

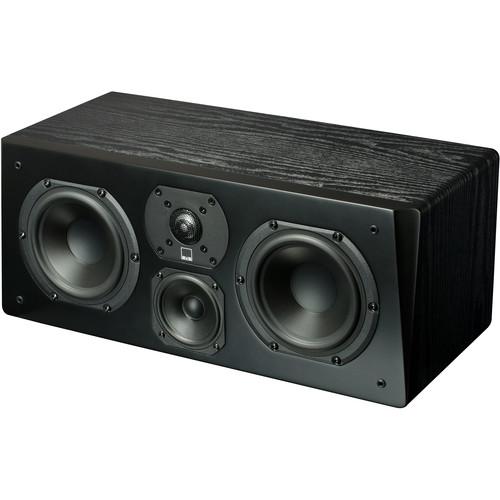

Product description Enhance the dialogue of your favorite movies and TV shows with the premium black ash SVS Prime Three-Way Center Channel Speaker. It sports a 1" aluminum dome tweeter, 3.5" polypropylene cone midrange driver, and dual 5.25" polypropylene cone woofers, plus two 1" rear-firing ports for additional bass. This speaker features a cloth grille with pin/cup retention system, stick-on bumper feet, and dual gold-plated 5-way binding posts for versatile connection to your receiver. - Tweeter Features
-
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for an enhanced transient response
- Midrange Features
-
- Polypropylene cone for enhanced stiffness/mass ratio and pistonic behavior
- Cast ABS-fiberglass composite basket promotes precise component alignment and thermal transfer
- Vented voice coil former designed to minimize air compression artifacts
- Woofer Features
-
- Long-stroke motor and suspension for high output
- Polypropylene cone for enhanced stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high-frequency response
- Cast ABS-fiberglass composite basket promotes precise component alignment and thermal transfer
- Vented voice coil former designed to minimize air compression artifacts
- Crossover & Cabinet Features
-
- 3-way crossover with air-core inductors and heavy-trace printed circuit boards
- Separate sealed midrange enclosure designed to shift standing waves beyond the driver pass band for enhanced sound quality
- Chamfered front baffle and flush-mounted drivers designed to reduce edge diffraction and enhance on-axis high frequency response
- FEA-optimized cabinet and bracing to virtually eliminate resonances
UPC: 850071005356 In the Box SVS Prime Three-Way Center Channel Speaker (Premium Black Ash) Stick-On Bumper Feet Grille Limited 5-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Prime Three-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS PRIME CENTER - BLACK ASH Specs | Tweeter | 1" (2.54 cm) aluminum dome | | Midrange Driver | 3.5" (8.89 cm) polypropylene cone | | Woofer | 2x 5.25" (13.34 cm) polypropylene cones | | Ports | 2x 1" (2.54 cm) wide-flared rear-firing ports | | Recommended Amplifier Power | 20 to 200 W | | Crossover | Midrange-to-Tweeter: 2.4 kHz (12 dB/octave slopes)
Woofer-to-Midrange: 350 Hz (12 dB/octave slopes) | | Frequency Response ± 3dB | 48 Hz to 25 kHz | | Nominal Impedance | 8 Ohms | | Sensitivity | 86 dB (2.83 V @ 39.37" (1 m) full-space, 300 Hz to 3 kHz) | | Connectors | Dual gold-plated, 5-way binding posts | | Grille | Cloth with pin/cup retention system | | Dimensions (W x H x D) | Without Grille and Bumper Feet: 18.6 x 7.6 x 8.6" (47.24 x 19.3 x 21.8 cm)
With Grille and Bumper Feet: 18.6 x 7.7 x 9.2" (47.24 x 19.56 x 23.37 cm) | | Weight | 20.2 lb (9.16 kg) | | | | Package Weight | 23.85 lb | | Box Dimensions (LxWxH) | 23.1 x 13.6 x 12.5" |
