User Manual for SVS SB-2000 12" 500W Subwoofer Click to enlarge the picture
Contents of the user manual for the SVS SB-2000 12" 500W Subwoofer
- Product category: Subwoofers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Subwoofers
 |
User manual for the SVS SB-2000 12" 500W Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

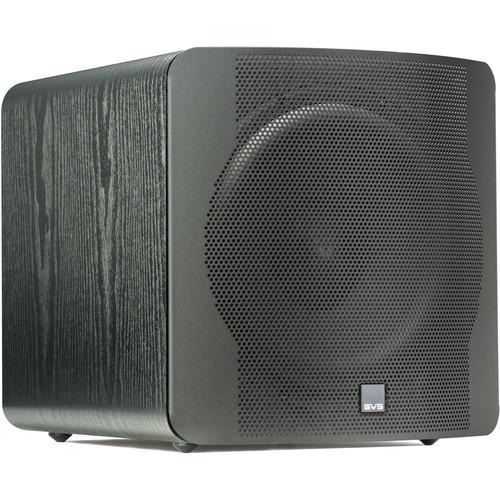

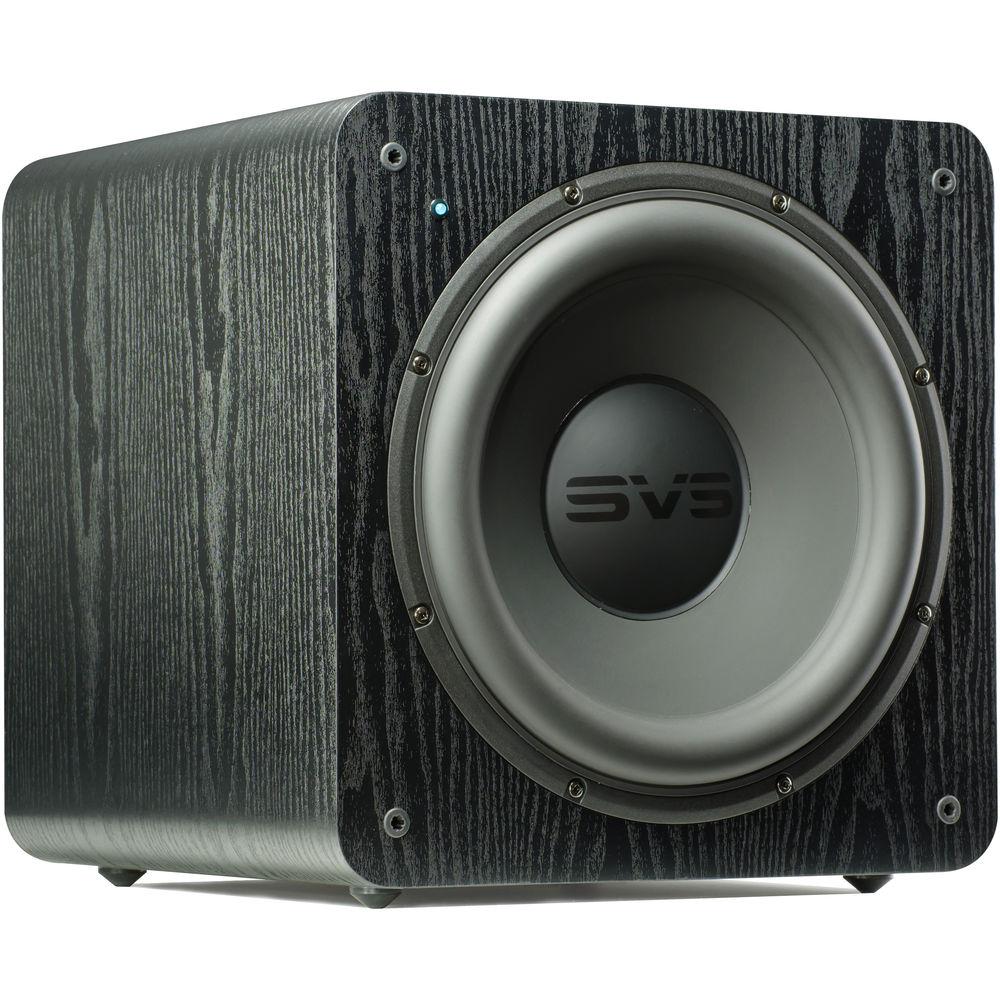

Product description Add powerful bass to your home entertainment experience with the black ash SVS SB-2000 12" 500W Subwoofer. It uses a 12" front-firing woofer to produce up to 500W of RMS power and up to 1100W of peak power for a ground-shaking performance in nearly any listening environment. With a frequency response of 19 to 220 Hz, the SB-2000 is equipped to handle nearly all types of listening material. - Subwoofer Features
-

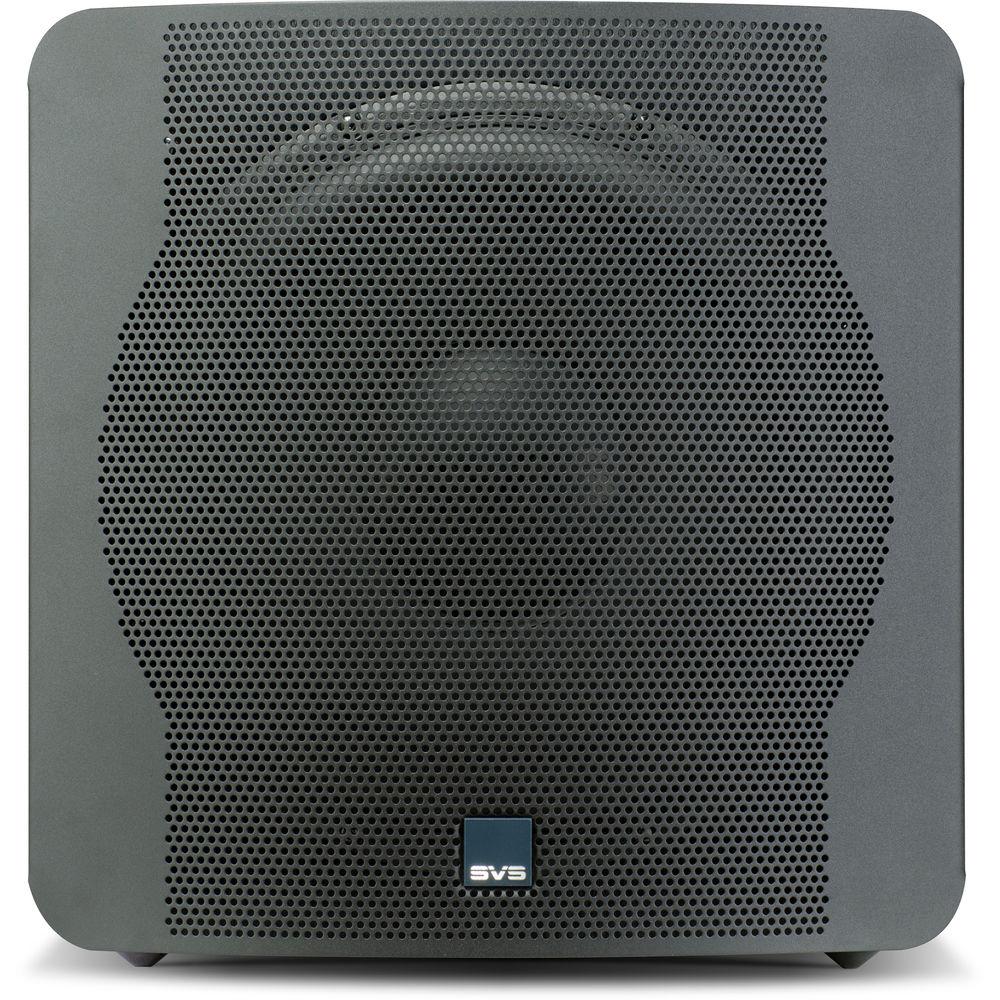

- Protective non-resonant steel mesh grille

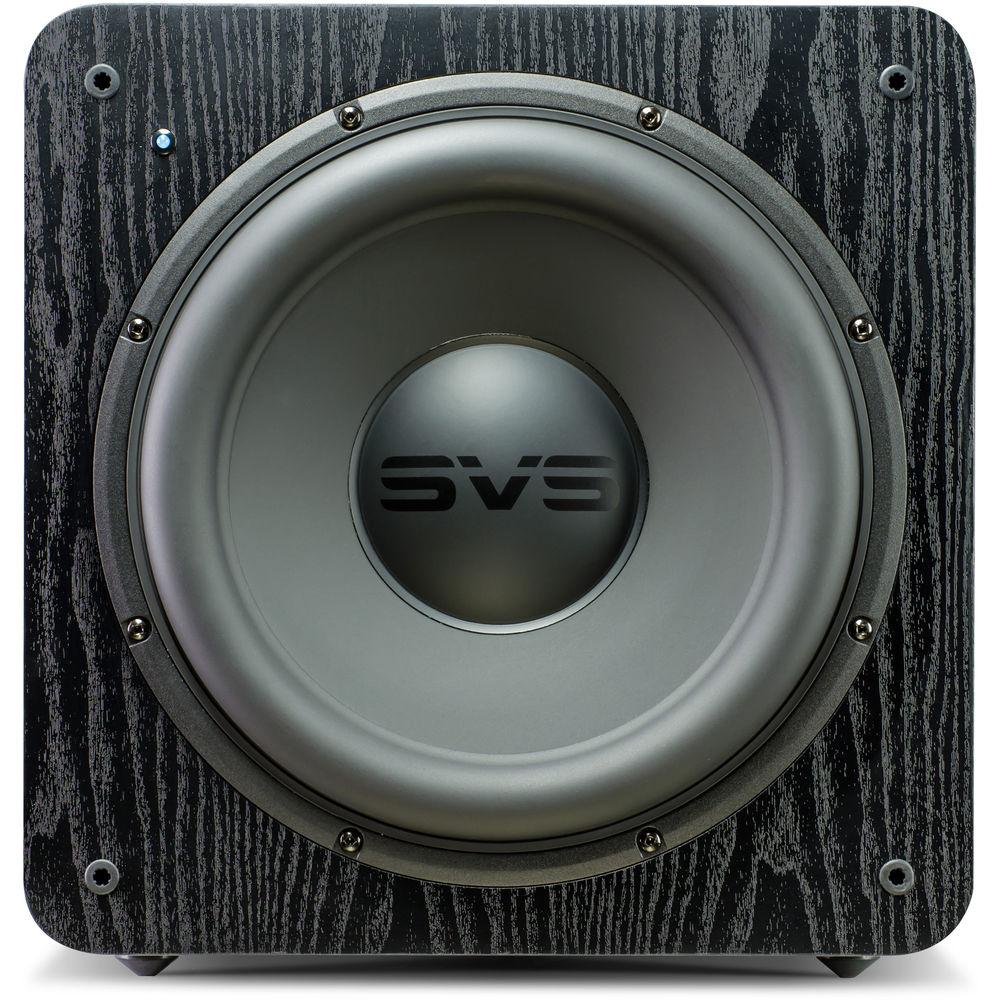

- Front-firing 12" driver
- Rear-mounted amplifier
- Screw-in rubber feet
- Medium-density fiberboard (MDF) cabinet construction
- Driver Features
-
- Powder-coated cast-aluminum basket
- Dual ferrite magnets
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings reduce gap induction and lower distortion
- Extended pole piece improves heat sink and thermal management properties
- 2"-diameter voice coil for enhanced power handling
- Nomex spider designed to provide augmented linearity and driver control at extreme drive levels
- Insulated tinsel leads with 3-point-contact precision alignment
- Aluminum cone with polypropylene dust cap provides augmented rigidity and pistonic behavior
- Rubber long-throw surround for excellent durability and longevity
- Amplifier Features
-
- Sledge STA-500D DSP amplifier
- Class D topology designed for cool-running
- DSP control for accurate response and refined behavior under all operating conditions
- Main power rocker switch
- Auto-On / On toggle switch
- 3 to 12 V trigger with 1/8" TRS mini-jack input
- Green standby mode with >0.5 watts consumption
- Stereo line-level RCA input & output connections
- Continuously variable volume/gain control
- Continuously variable (0 to 180°) phase control
- Continuously variable (50 to 160 Hz) 12 dB/octave low-pass filter frequency with disable/LFE setting
- Fixed 80 Hz 12 dB/octave high-pass filter on line-level outputs
- RoHS-compliant, lead-free construction, and worldwide safety certifications
- Detachable power cord
- Additional Features
-
- Enhanced suspension for improved linearity and control
- Aluminum cone designed to deliver high efficiency
- Rubber surround for augmented durability and long-life
- 6.6' ground plane away from reflective structures (quasi-anechoic)
- Roll-off slope optimized to take advantage of available room gain
UPC: 850071005240 In the Box SVS SB-2000 12" 500W Subwoofer (Black Ash) Power Cord Limited 5-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS SB-2000 12" 500W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS SB-2000-BLACK ASH Specs | Configuration | Front-firing | | Driver Size | 12" (30.5 cm) | | Amplifier | RMS: 500 W
Peak: 1100 W | | Amplifier Type | Class D | | Frequency Response ± 3dB | 19 to 220 Hz | | Voice Coil | 2" (5.1 cm) diameter | | Input Impedance | 47 kOhms | | Input | 1 x Stereo L/R pair (R can be used independently for LFE) | | Output | 1 x Stereo L/R pair line-level | | Control | 1 x 1/8" (3.5 mm) TRS 3 to 12 V trigger in | | Cabinet Construction | MDF (medium density fiberboard) | | Grille Material | Non-resonant steel mesh | | Power Consumption (Standby) | >0.5 W | | Dimensions (W x H x D) | Without Grille: 14.2 x 14.6 x 15.4" (36.1 x 37.1 x 39.1 cm)
With Grille: 14.2 x 14.6 x 17.1" (36.1 x 37.1 x 43.4 cm) | | Weight | 34.8 lb (15.8 kg) | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 20.5" |
