User Manual for SVS Ultra 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the SVS Ultra 2-Way Bookshelf Speakers
- Product category: Bookshelf Speakers SVS
- Brand: SVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SVS Bookshelf Speakers
 |
User manual for the SVS Ultra 2-Way Bookshelf Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SVS product will considerably shorten its lifespan!
|

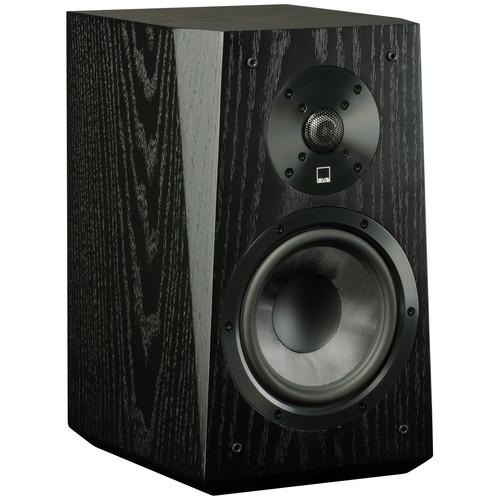

Product description Enjoy a wide frequency response with this pair of black oak veneer SVS Ultra 2-Way Bookshelf Speakers. They have a 45 Hz to 32 kHz frequency range for enhanced highs with respectable bass from its 6.5" woofers and 1" tweeters. It features a 1.7" rear-firing bass port to help enhance the bass. These speakers are recommended for 20 to 150W amps. - 1" Aluminum Dome Tweeter
- FEA-optimized diffuser designed to deliver an open "airy" presentation and unveiled highs.
- 6.5" Woofer
-
- Composite glass-fiber cone with an enhanced stiffness/mass ratio designed to improve sensitivity and maintain pistonic behavior beyond the pass-band of the driver.
- Vented voice coil to minimize air compression artifacts at high drive levels.
- Aluminum shorting ring to reduce gap inductance, lower distortion, and improve high-frequency response.
- Cast aluminum basket to help ensure precise alignment of critical components and enhance heat-sinking capacity.
- Long-stroke motor and suspension for high output.
- SoundMatch Crossover
- The SoundMatch 2-way crossover is designed to ensure pure signal transmission. Careful selection of the crossover frequency and slopes helps attain a smooth off-axis polar response, augmented phase coherency, and enhanced radiation of total sound power.
- Speaker Features
-

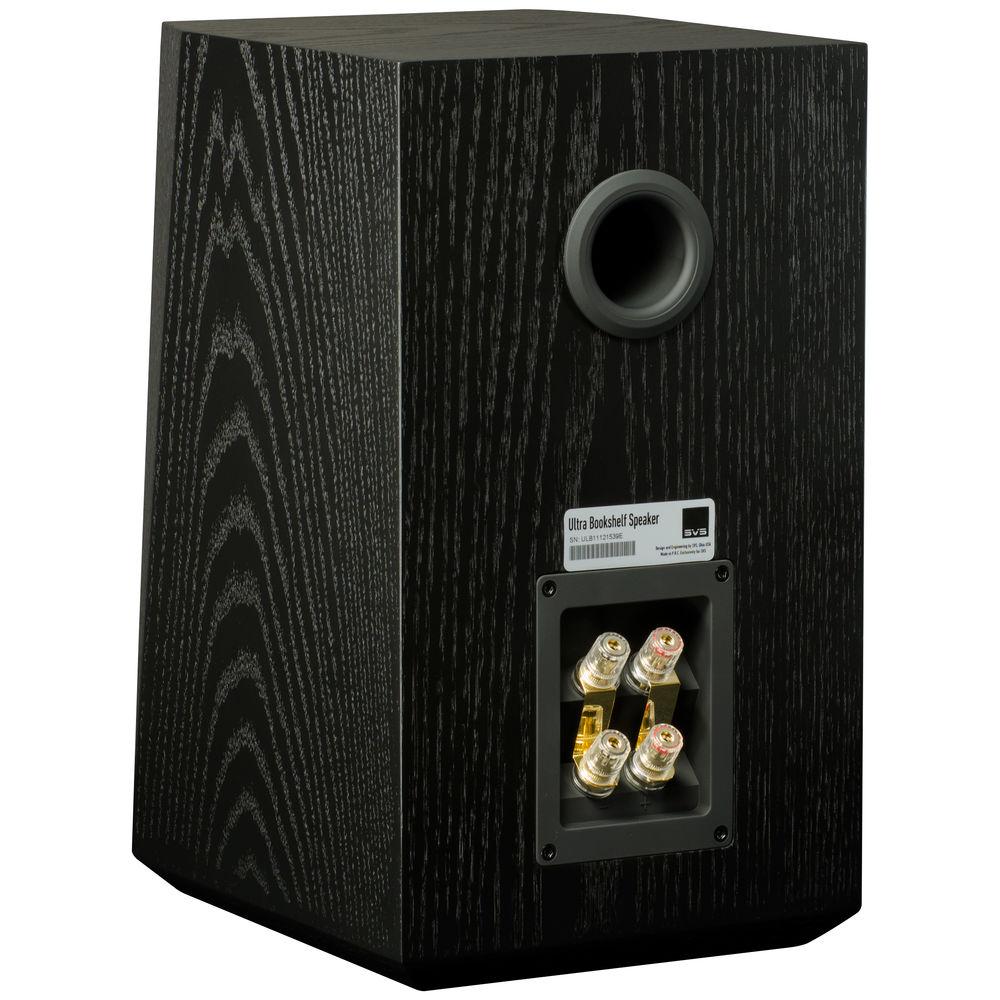

- Dual gold-plated 5-way binding posts.
- 1.7" wide-flared rear-firing port.

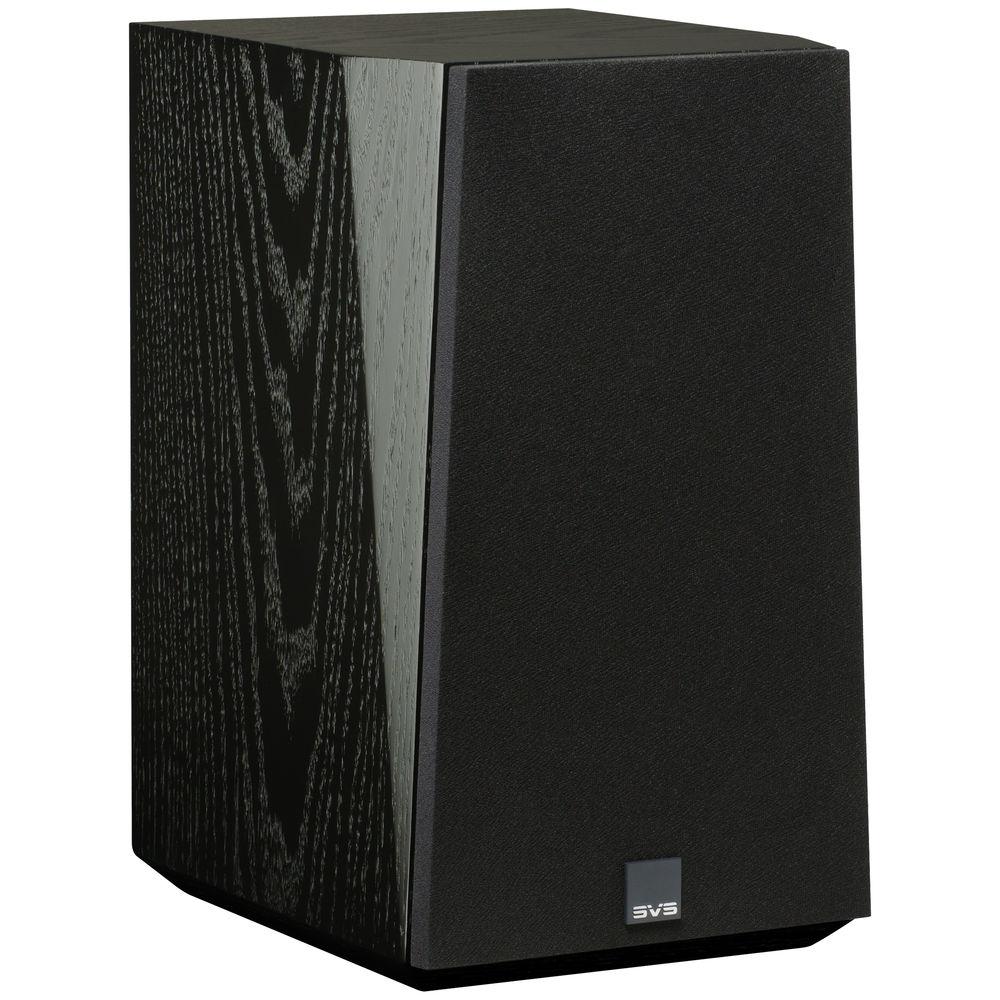

- Cloth grille with pin/cup retention system.
- Elastomer stick-on bumper feet.
- Crossover Features
-
- 2-way crossover with air-core inductors and heavy-trace printed circuit boards.
- Crossover frequency and slopes optimized for enhanced off-axis polar response, phase coherency, and total radiated sound power.
- Cabinet Features
-
- Acoustically transparent and FEA-optimized grilles, wedge-shaped front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and augmented on-axis high-frequency response.
- FEA-optimized bracing reduces cabinet resonances.
UPC: 850071005066 In the Box SVS Ultra 2-Way Bookshelf Speakers (Pair, Black Oak Veneer) Elastomer Stick-On Bumper Feet 2 x Removable Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Ultra 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS ULTRA BOOKSHELF-BLACK OAK Specs | Speaker Design | 2-Way | | Drivers | 1x 1" (2.6 cm) aluminum dome tweeter
1x 6.5" (16.5 cm) composite glass-fiber cone woofer | | Port | 1.7" (4.3 cm) rear-firing | | Sensitivity | 87 dB (2.83 V @ 1 m full-space, 300 Hz to 3 kHz) | | Recommended Amplifier Power | 20 to 150 W | | Nominal Impedance | 8 Ohms | | Crossover Frequency | 2 kHz | | Frequency Response | 45 Hz to 32 kHz ±3dB | | Terminals | Gold-plated 5-way binding posts | | Dimensions (W x H x D) | 8.5 x 15 x 10.9" (21.6 x 38.1 x 27.7 cm) without feet
8.5 x 15.1 x 10.9" (21.6 x 38.4 x 27.7 cm) with feet | | Weight | 19 lb (8.6 kg) each | | | | Package Weight | 39.5 lb | | Box Dimensions (LxWxH) | 23.5 x 20.5 x 14.9" |
