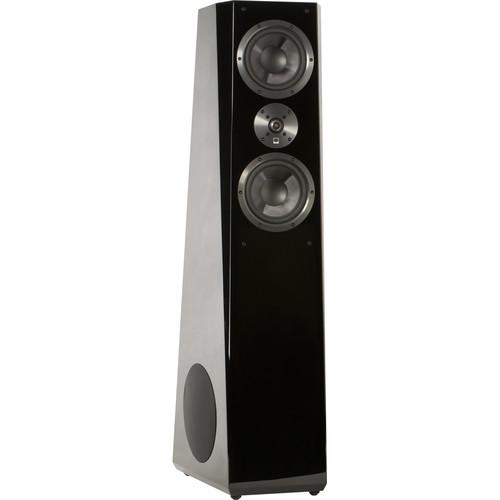

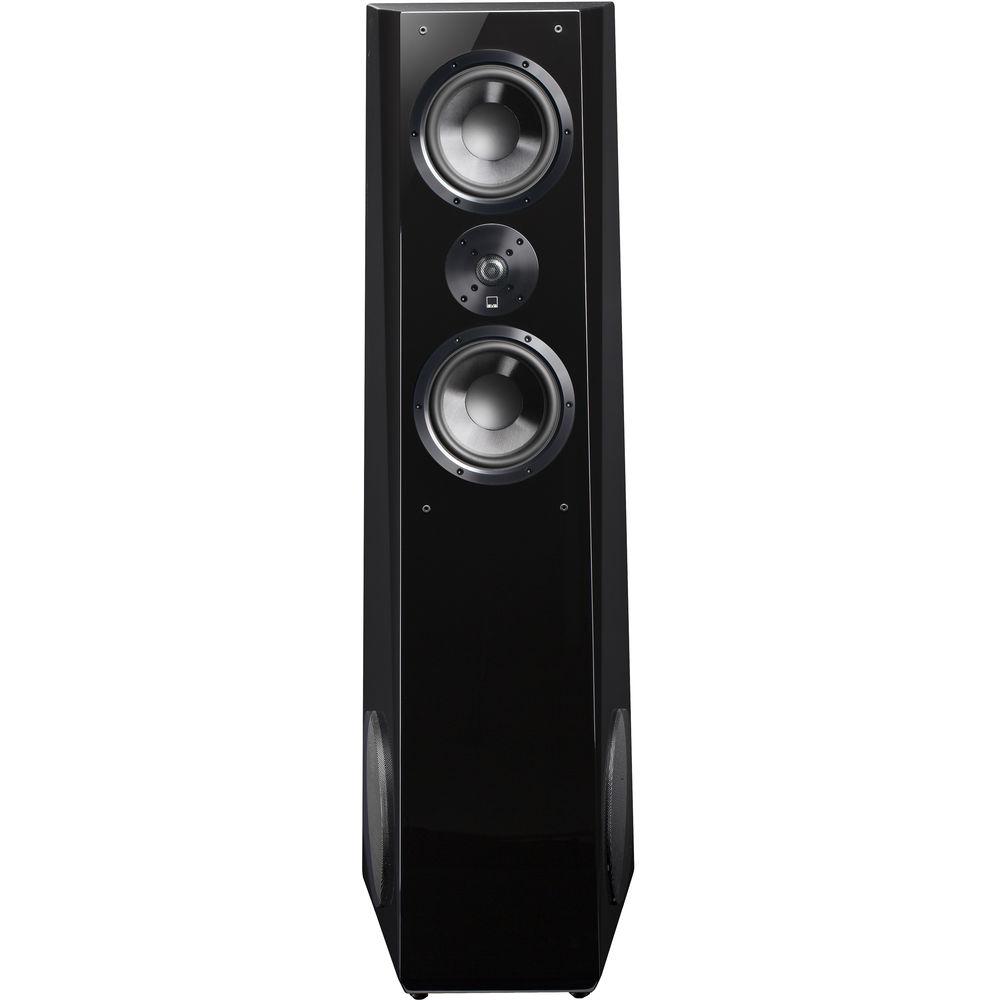

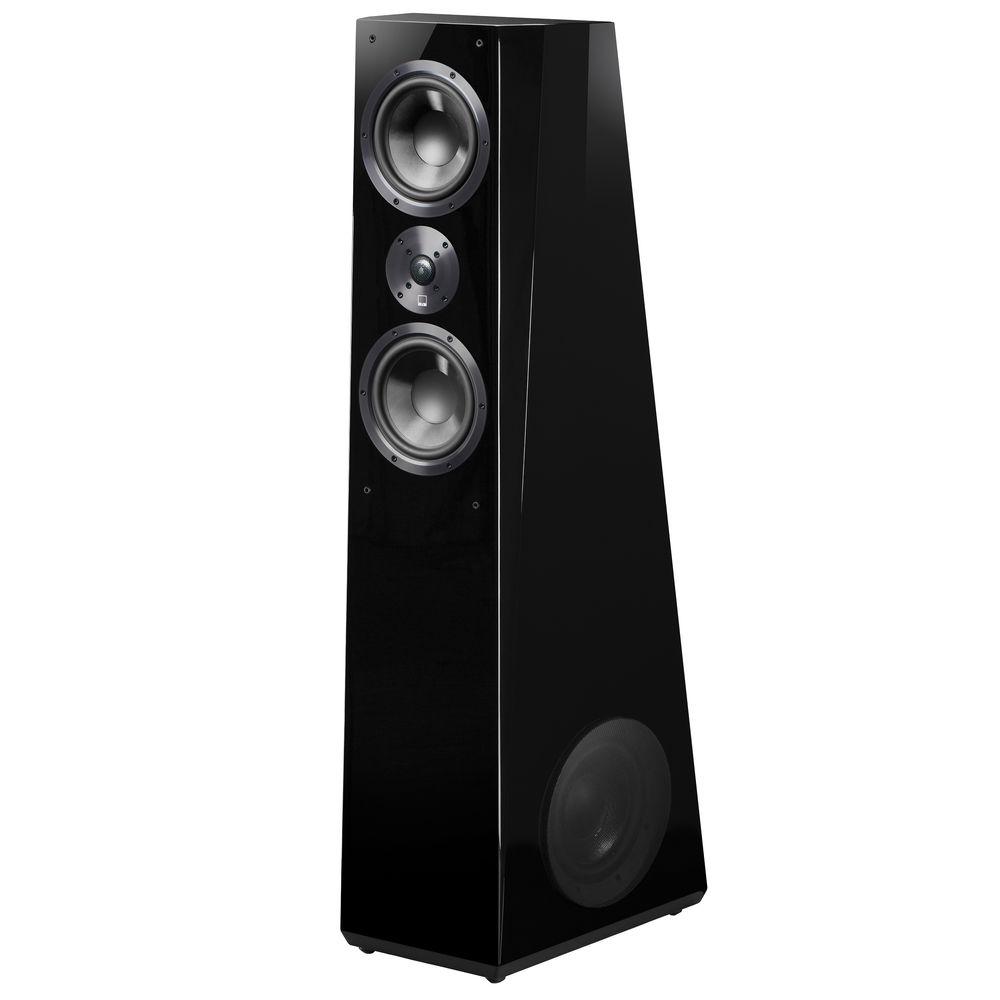

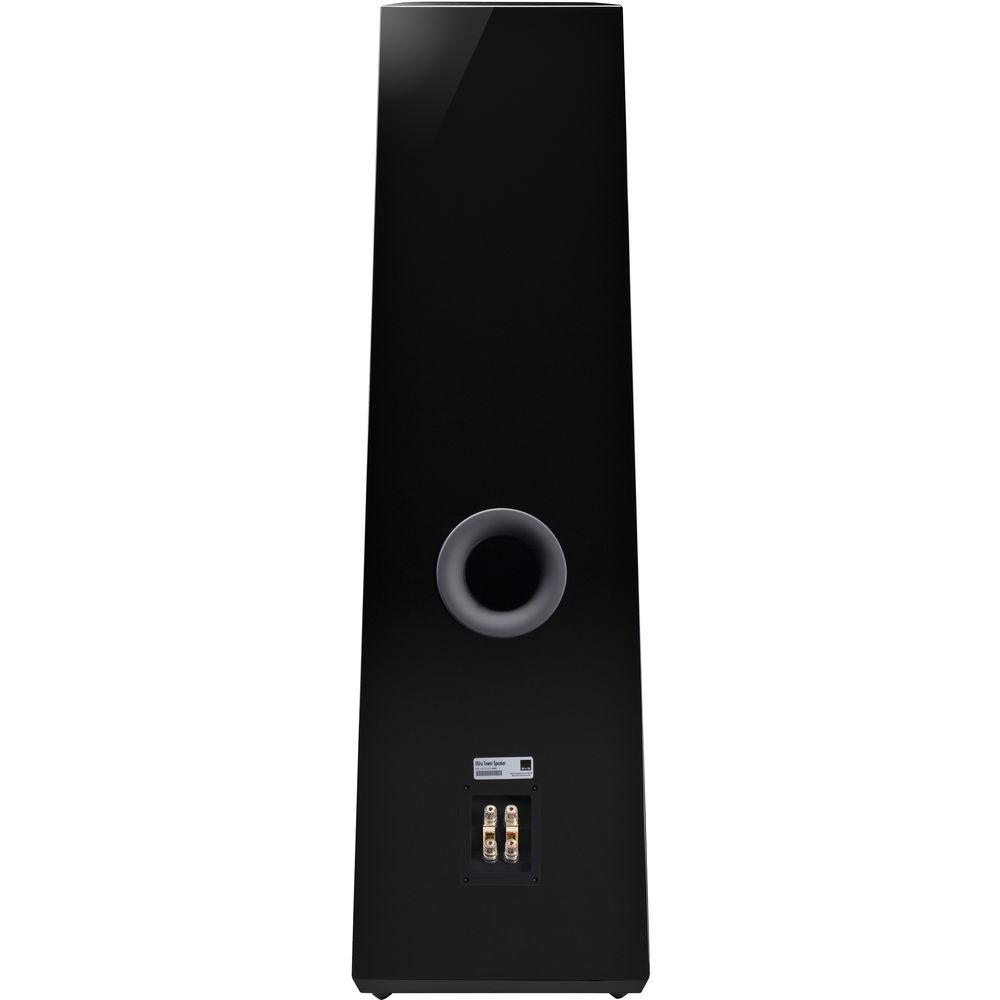

Product description Enjoy a wide frequency response with the piano gloss black SVS Ultra 3.5-Way Floorstanding Speaker. It has a 28 Hz to 32 kHz frequency range for enhanced highs, bass, and mids from its 1" tweeter, two 6.5" midrange, and two horizontally opposed 8" woofers. The 3.5-way crossover allows each midrange driver to output a different frequency for a more detailed frequency response, and its 3.5" bass port is designed to further enhance the bass. This speaker is recommended for 20 to 300W amplifiers. - ForceFactor Woofer Array
- The ForceFactor horizontally opposed, dual-woofer configuration helps provide mechanical force cancellation for reduced distortion and a cleaner bass response. The ForceFactor array also eliminates cabinet vibration, which could otherwise modulate the mid/high frequencies, helping to ensure that the soundstage is stable and clear. Also, since the woofers fire in different directions, the acoustical loading and modal density in the listening space is enhanced, providing a bass response free of room-based anomalies.
- Tweeter Features
-
- FEA-optimized diffuser for enhanced presentation
- Aluminum dome for augmented transient response and stiffness/mass ratio
- Midrange Features
-
- Composite glass-fiber cone with enhanced stiffness/mass ratio for augmented sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast aluminum basket helps ensure precise component alignment and additional heat-sinking capacity
- Vented voice coil former aids in minimizing air compression artifacts at high drive levels
- Woofer Features
-
- Aluminum shorting rings designed to reduce gap inductance and lower distortion
- Long stroke motor and suspension for enhanced output
- Vented voice coil former aids in minimizing air compression artifacts
- Crossover Features
-
- 3.5-way crossover with air-core inductors and heavy-trace printed circuit boards
- 3.5-way crossover design allows each woofer to handle a different frequency response for enhanced bass and midrange sound reproduction
- Tapered midrange array helps minimize off-axis lobing and enhance radiated sound power into the listening space
- Cabinet Features
-
- Separate sealed midrange enclosures designed to minimize top-to-bottom wall dimensions and shift standing waves beyond the driver pass band for minimized negative driver interaction and associated frequency response degradation
- Non-parallel cabinet panels reduce axial standing waves within the cabinet, reducing frequency response coloration

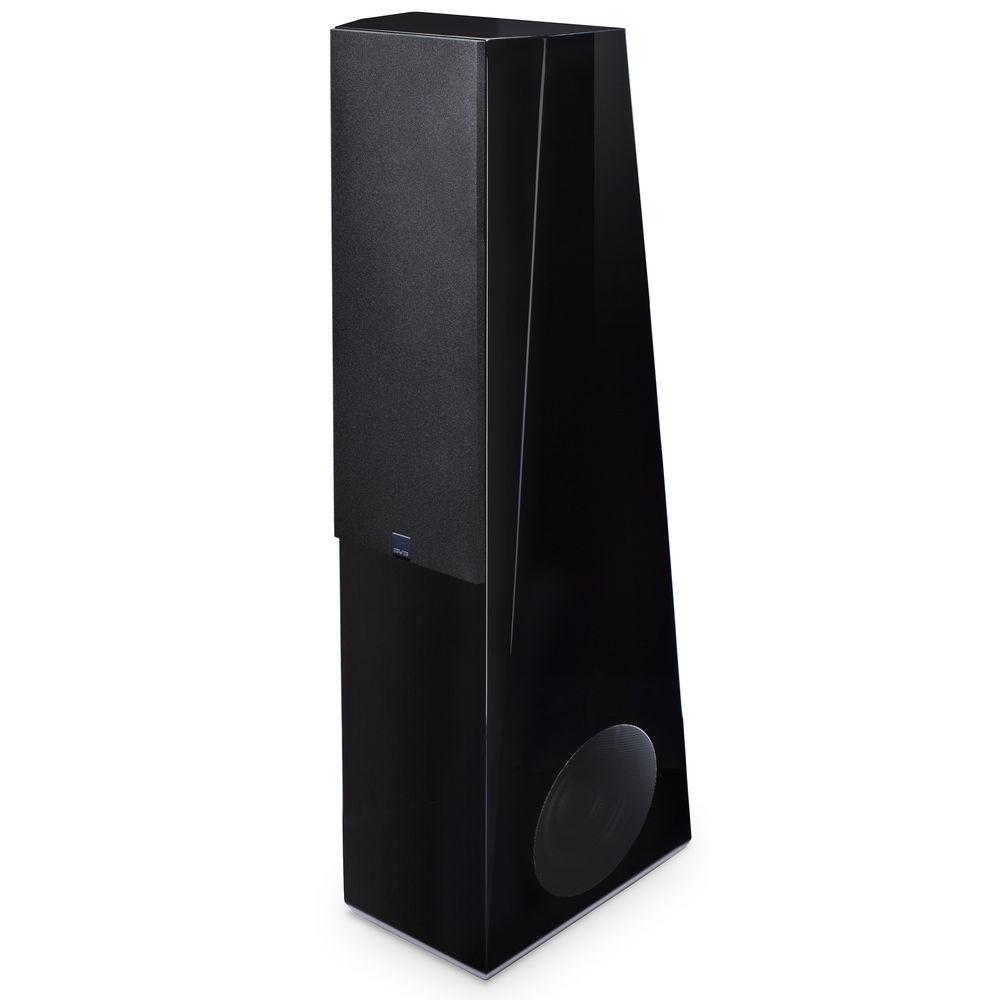

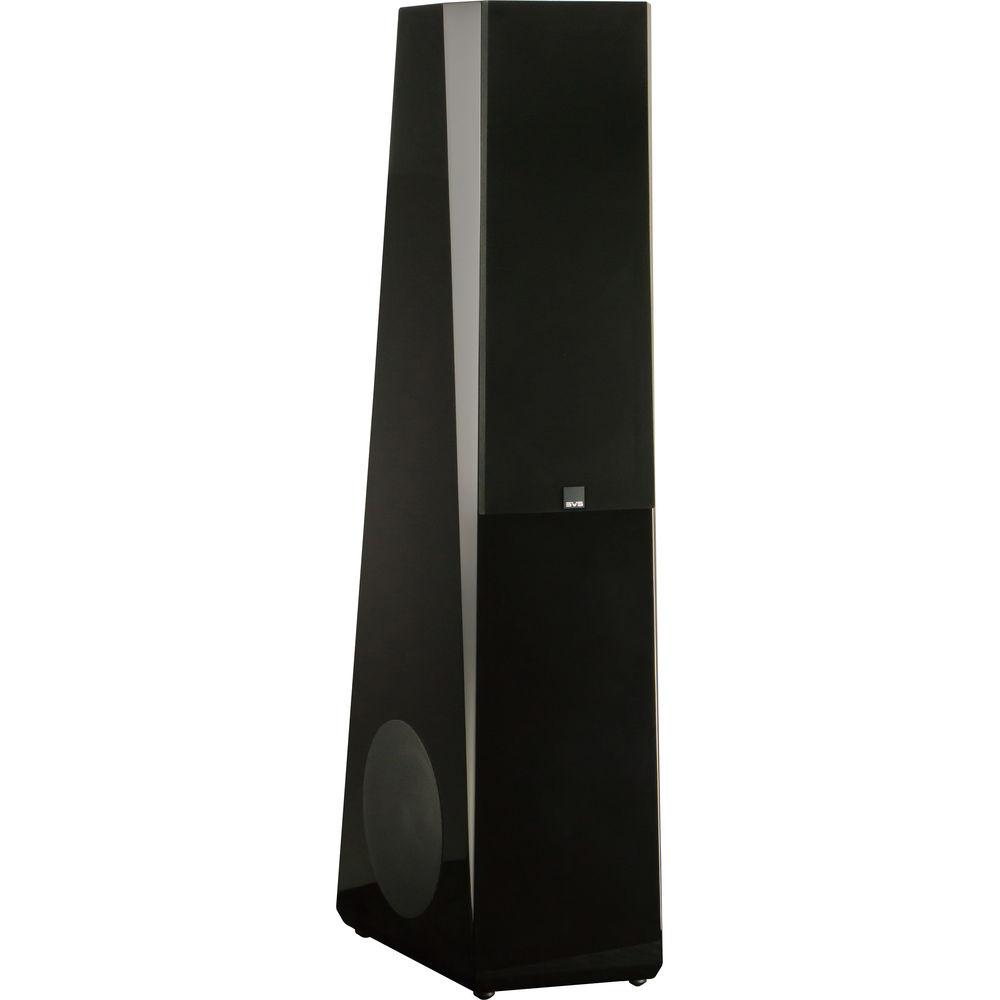

- Acoustically transparent and FEA-optimized grilles, a wedge-shaped front baffle, and flush-mounted drivers help minimize edge diffraction and improve on-axis high frequency response
- FEA-optimized bracing, 1"-thick midrange/tweeter baffles, and 1.5"-thick woofer baffles help eliminate structural resonances and ensure the cabinet remains acoustically inert for uncolored response at nearly all drive levels
UPC: 850071005134 In the Box SVS Ultra 3.5-Way Floorstanding Speaker (Piano Gloss Black, Single) Grille Spiked Metal Feet Elastomer Stick-On Bumper Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Ultra 3.5-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS ULTRA TOWER-PIANO GLOSS Specs | Tweeter | 1x 1" (2.5 cm) | | Midrange | 2x 6.5" (16.5 cm) | | Woofers | 2x 8" (20.3 cm) | | Ports | 1x 3.5" (8.9 cm) | | Frequency Response ± 3dB | 28 Hz to 32 kHz | | Crossover | Top Midrange to Tweeter: 2 kHz
Bottom Midrange Taper: 700 Hz
Dual Midrange to Woofer: 160 Hz | | Nominal Impedance | 8 Ohms | | Sensitivity | 88 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz) | | Recommended Amplifier Power | 20 to 300 W | | Dimensions (W x H x D) | Without Grille: 13.8 x 45.6 x 16.5" (35.1 x 115.8 x 41.9 cm)
With Grille: 13.8 x 45.6 x 16.8" (35.1 x 115.8 x 42.7 cm) | | Weight | 75.4 lb (34.2 kg) | | | | Package Weight | 87.5 lb | | Box Dimensions (LxWxH) | 51.0 x 23.0 x 21.5" |
