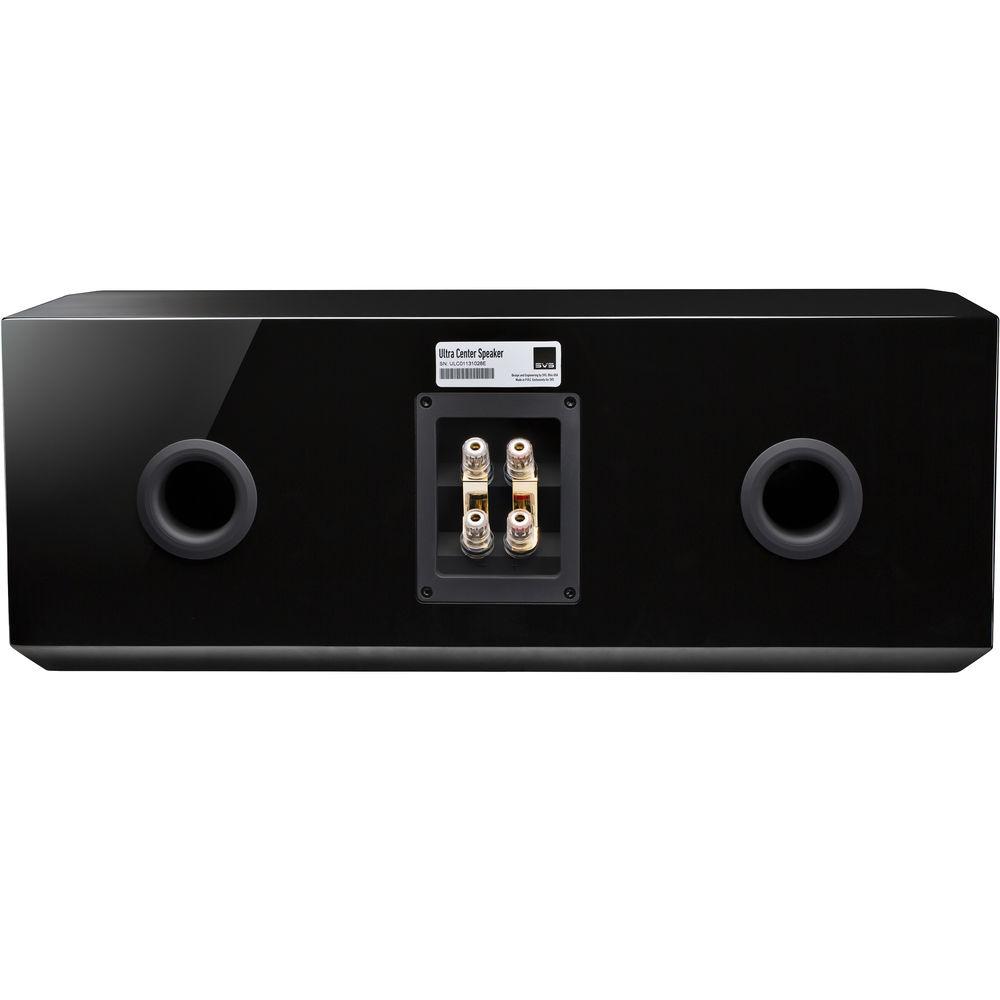

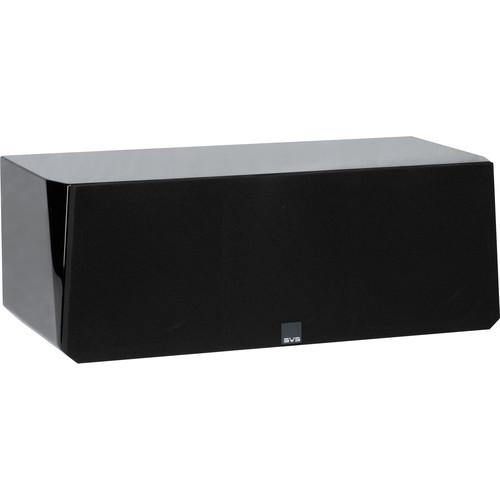

Product description Enhance the dialogue of your favorite movies and TV shows with the piano gloss black veneer SVS Ultra Center Three-Way Center Channel Speaker. It is designed to handle complex and dialogue-intensive scenes with realism, room-filling presence, augmented vocal reproduction, and dialogue intelligibility. The non-parallel cabinet panels help reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and enhance on-axis high frequency response. Its grille design is FEA-optimized to maximize acoustic transparency. This speaker features two pairs of gold-plated, 5-way binding posts, a cloth grille with pin/cup retention system, and elastomer stick-on bumper feet. The two pairs of binding posts allow you to bi-wire and bi-amp this speaker.

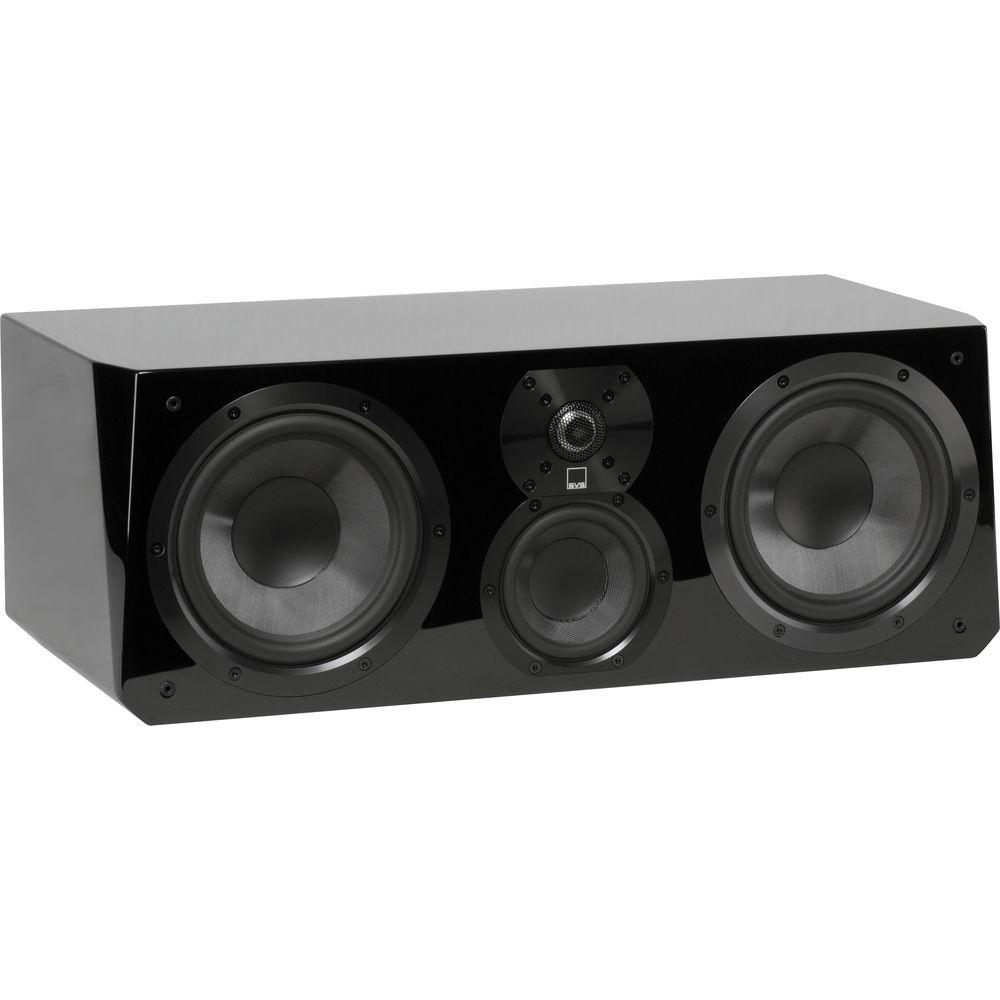

The Ultra Center driver array sports a 1" aluminum dome tweeter, 4" midrange driver, and dual 6.5" woofers, plus two 1.7" rear-firing bass ports for additional bass. The vertically aligned tweeter and midrange helps improve horizontal axis polar response, with reduced lobing and comb filtering for a smooth frequency response and augmented dialogue intelligibility at most listening positions. - 1" Aluminum Dome Tweeter
-
- Utilizes an FEA-optimized diffuser delivers an open, airy presentation and unveiled highs
- Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
- Aluminum dome delivers remarkable transient response and stiffness/mass ratio
- 4" Midrange Drivers
-
- Composite glass-fiber cone with high stiffness/mass ratio improves sensitivity and maintains pistonic behavior
- Vented voice coil to minimize air compression artifacts at high drive levels
- Cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity
- Aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response
- 6.5" Woofers
-
- Long-stroke motor and suspension for low distortion and high output capability
- Heavy-duty voice coil for enhanced power handling and thermal management
- Aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response
- Vented voice coil to minimize air compression artifacts at high drive levels
- Crossover
-
- 3-way crossover with capacitors, air-core inductors, and heavy-trace printed circuit boards
- Cabinet
-
- Acoustically transparent and FEA-optimized grilles, wedge-shaped front baffle, and flush-mounted drivers
- FEA-optimized bracing reduces cabinet resonances
- CNC-manufactured cabinet with internal blocking and bracing for reduced resonance and enhanced rigidity
UPC: 850071005097 In the Box SVS Ultra Center Three-Way Center Channel Speaker (Piano Gloss Black Veneer) Stick-On Bumper Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Ultra Center Three-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS ULTRA CENTER-PIANO GLOSS Specs | Tweeter | 1" (2.54 cm) aluminum dome | | Midrange Driver | 4" (10.16 cm) composite glass-fiber cone | | Woofer | 2x 6.5" (16.51 cm) composite glass-fiber cones | | Ports | 2x 1.7" (4.32 cm) rear-firing ports | | Recommended Amplifier Power | 20 to 225 W | | Crossover | Midrange-to-Tweeter: 2.2 kHz
Midrange-to-Woofer: 500 Hz | | Frequency Response ± 3dB | 45 Hz to 32 kHz | | Nominal Impedance | 8 Ohms | | Sensitivity | 87 dB (2.83 V @ 39.37" (1 m) full-space, 300 Hz to 3 kHz) | | Connectors | 2 x pairs, gold-plated 5-way binding posts | | Grille | Cloth with pin/cup retention system | | Dimensions (H x W x D) | Without Grille: 8.2 x 22.0 x 10.6" (20.82 x 55.88 x 26.92 cm)
With Grille: 8.2 x 22.0 x 10.9" (20.82 x 55.88 x 27.68 cm) | | Weight | 31 lb (14 kg) | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 27.0 x 15.0 x 13.8" |
