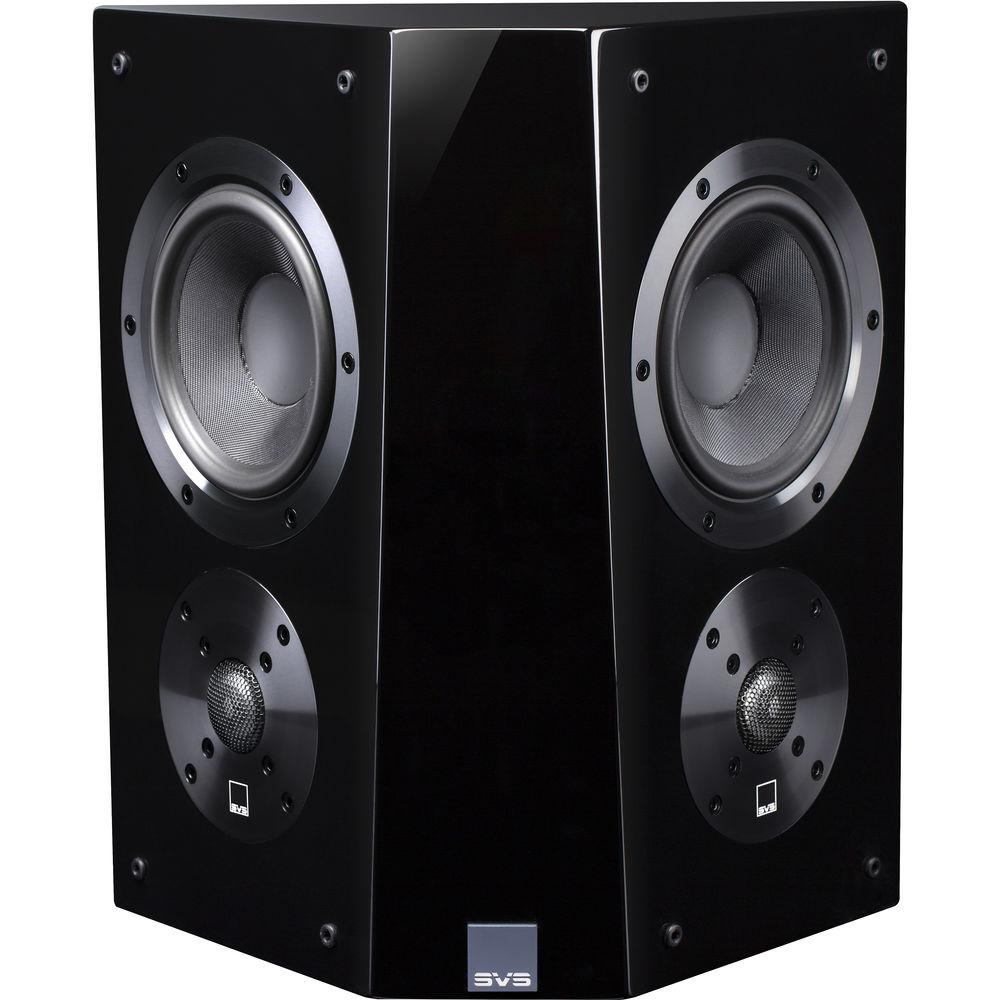

Product description Enjoy two simulated extra channels with Duet Mode and the pair of piano gloss black SVS Ultra Surround Speakers. Duet Mode will turn a 7.1-channel system into a virtual 9.1-channel system by allowing the two sets of drivers to receive discrete signals. The Ultra Surround Speakers feature a 58 Hz to 32 kHz frequency range for enhanced highs and mids from its two 1" tweeters and two 5.5" woofers. These speakers are recommended for amplifiers with 20 to 250W output and include wall mounting brackets. - Flexible Surround Sound Modes
- In Bipole Mode, both sets of drivers are in phase; in Dipole Mode, both sets of drivers are out of phase; in Duet Mode, each set of drivers receives a discrete signal.
- Duet Mode
- Duet Mode is designed to simulate two separate speakers within one cabinet for simulated 7-channel surround sound with just two surround speakers instead of the more common four.
- Tweeter Features
-
- FEA-optimized diffuser for enhanced presentation
- Aluminum dome for enhanced transient response and stiffness/mass ratio
- Woofer Features
-
- Composite glass-fiber cone with enhanced stiffness/mass ratio for augmented sensitivity and pistonic behavior beyond pass band
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Cast aluminum basket to help ensure precise alignment of components and additional heat-sinking capability
- Vented voice coil formers to help minimize air compression artifacts at high drive levels
- Crossover
-
- 2-way crossover with air-core inductors and heavy-trace printed circuit boards
- Dual isolated crossover networks allow for bipole, dipole, or Duet mode
- Crossover frequency and slopes optimized for off-axis polar response, enhanced phase coherency, and total radiated sound power
- Cabinet Features
-
- Non-parallel cabinet panels designed to reduce axial standing waves within the cabinet, reducing frequency response coloration
- Acoustically transparent and FEA-optimized grilles, wedge-shaped front baffle, and flush-mounted drivers all contribute to reduced edge diffraction and enhanced on-axis high frequency response
- Additional Features
-
- Dual independent gold-plated 5-way binding posts

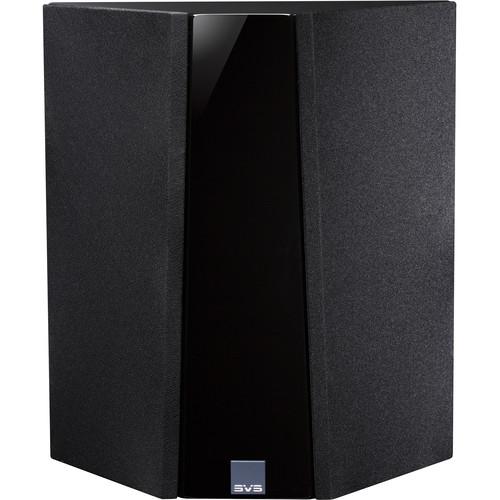

- Cloth grille with pin/cup retention system
- Aluminum wall mounting bracket with safety catch feature to help prevent inadvertent removal
UPC: 850071005110 In the Box SVS Ultra Surround Speakers (Pair, Piano Gloss Black) 2 x Wall Mount Brackets 4 x Speaker Grilles Elastomer Stick-On Bumper Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SVS Ultra Surround Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSVS ULTRA SURROUND-PIANO GLOSS Specs | Drivers | 2x 5.5" (13.97 cm) woofers
2x 1" (2.54 cm) tweeters | | Frequency Response ± 3dB | 58 Hz to 32 kHz | | Crossover Frequency | 2 kHz | | Nominal Impedance | 8 Ohms | | Sensitivity | 87 dB (2.83 V @ 3.3' (1 m) full-space, 300 Hz to 3 kHz, bipolar mode) | | Recommended Amplifier Power | 20 to 250 W | | Connectors | 2 x 5-way binding post pairs | | Dimensions (W x H x D) | Without Bracket: 12.3 x 14 x 6.9" (31.2 x 35.6 x 17.5 cm)
With Bracket: 12.3 x 14 x 7.0" (31.2 x 35.6 x 17.8 cm) | | Weight | 18 lb (8.2 kg) | | | | Package Weight | 38.5 lb | | Box Dimensions (LxWxH) | 21.8 x 18.9 x 17.0" |
