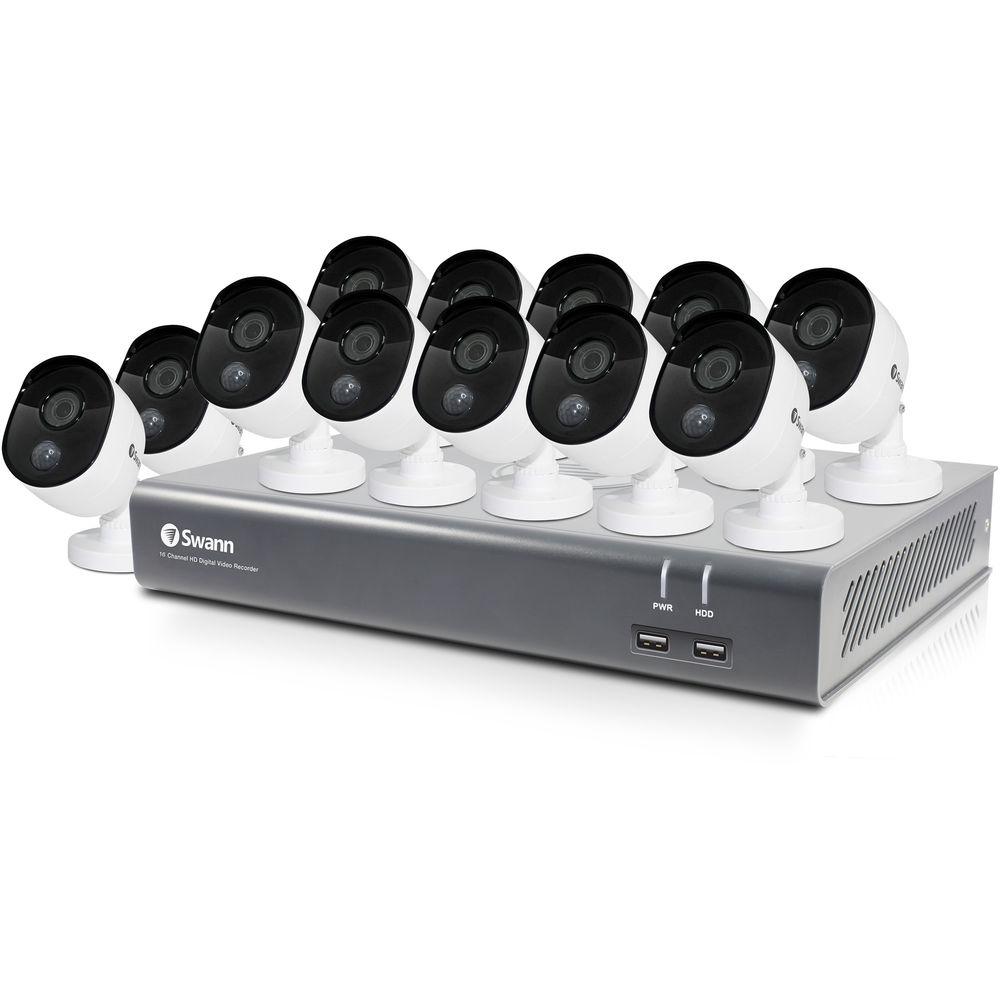

User Manual for Swann 16-Channel 1080P DVR with 1TB HDD & 12 1080p Outdoor Bullet Cameras with Night Vision Click to enlarge the picture
Contents of the user manual for the Swann 16-Channel 1080P DVR with 1TB
- Product category: Surveillance Systems Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Surveillance Systems
 |
User manual for the Swann 16-Channel 1080P DVR with 1TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|

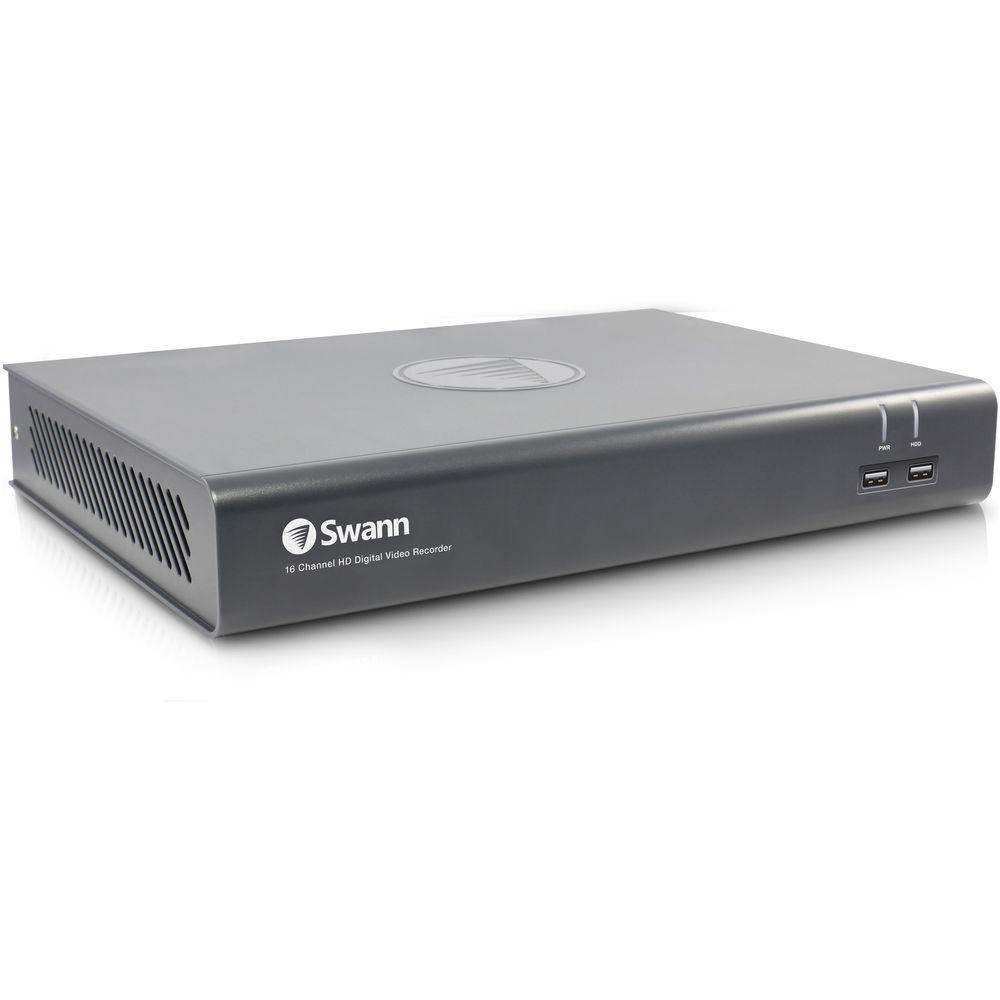

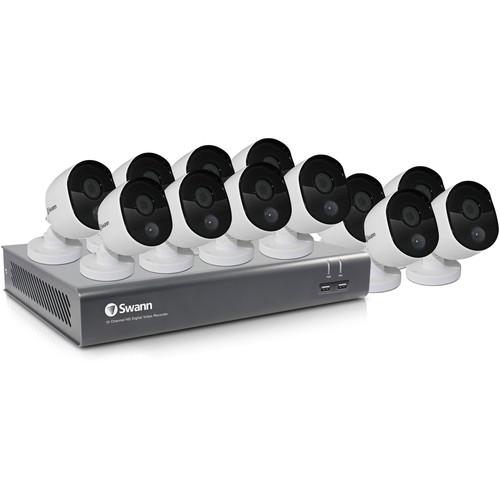

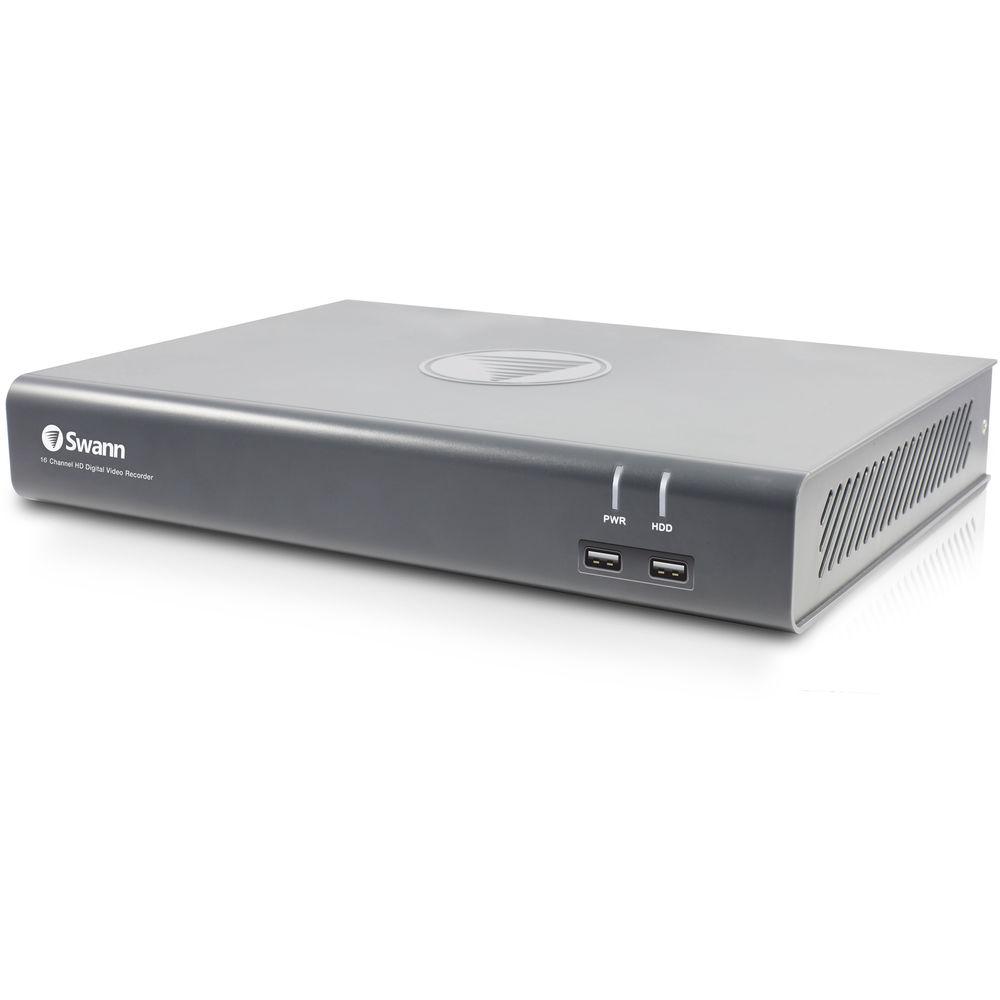

Product description Monitor your home or business with the 16-Channel 1080P DVR with 1TB HDD & 12 1080p Outdoor Bullet Cameras with Night Vision from Swann. This DVR kit comes with a preinstalled 1TB HDD to store recorded video from the included bullet cameras. HDD storage is expandable to 4TB. The built-in HDMI and VGA video outputs deliver a display resolution up to 1080p. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.

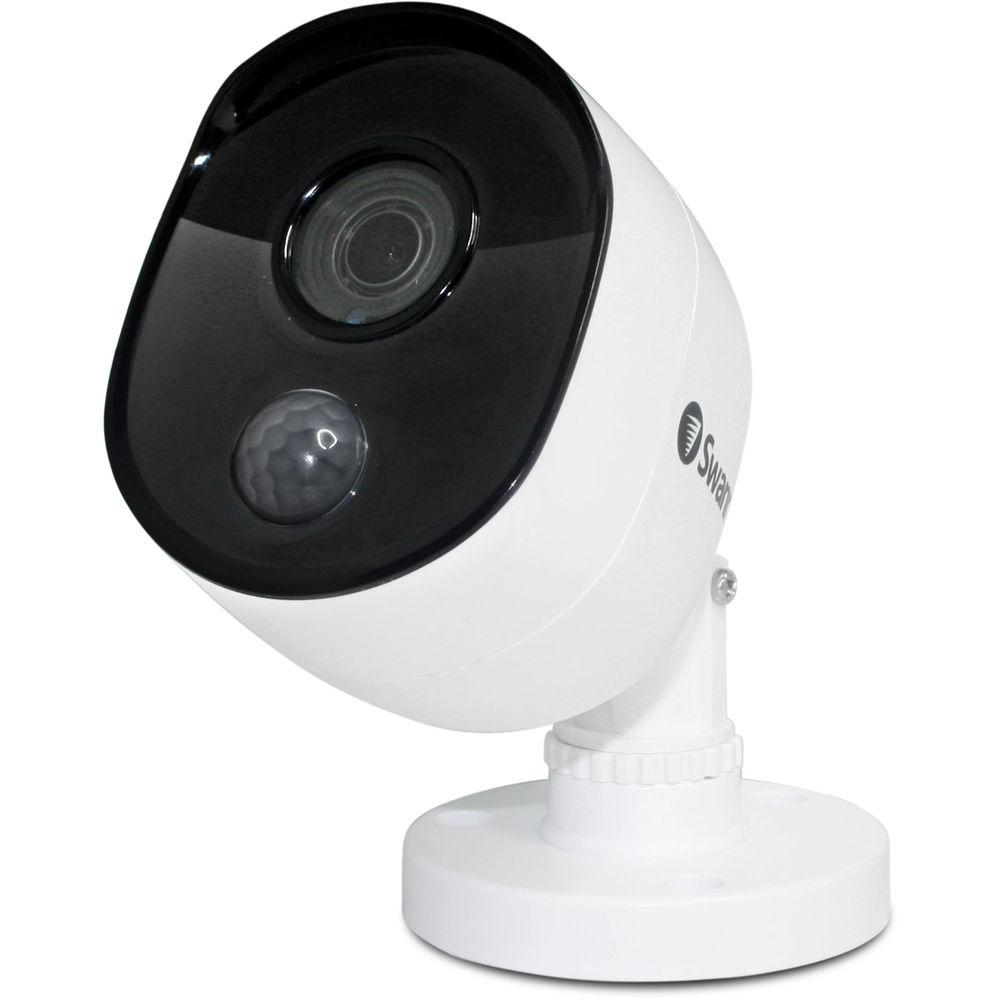

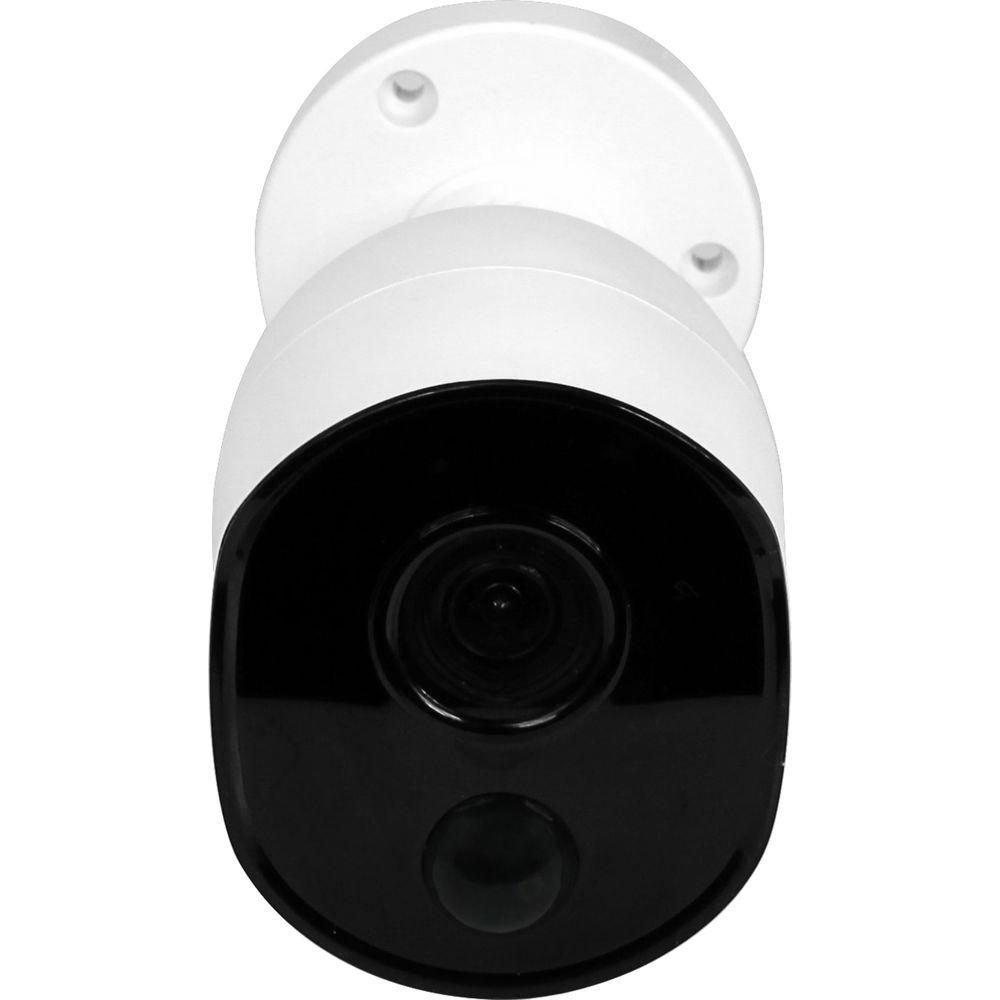

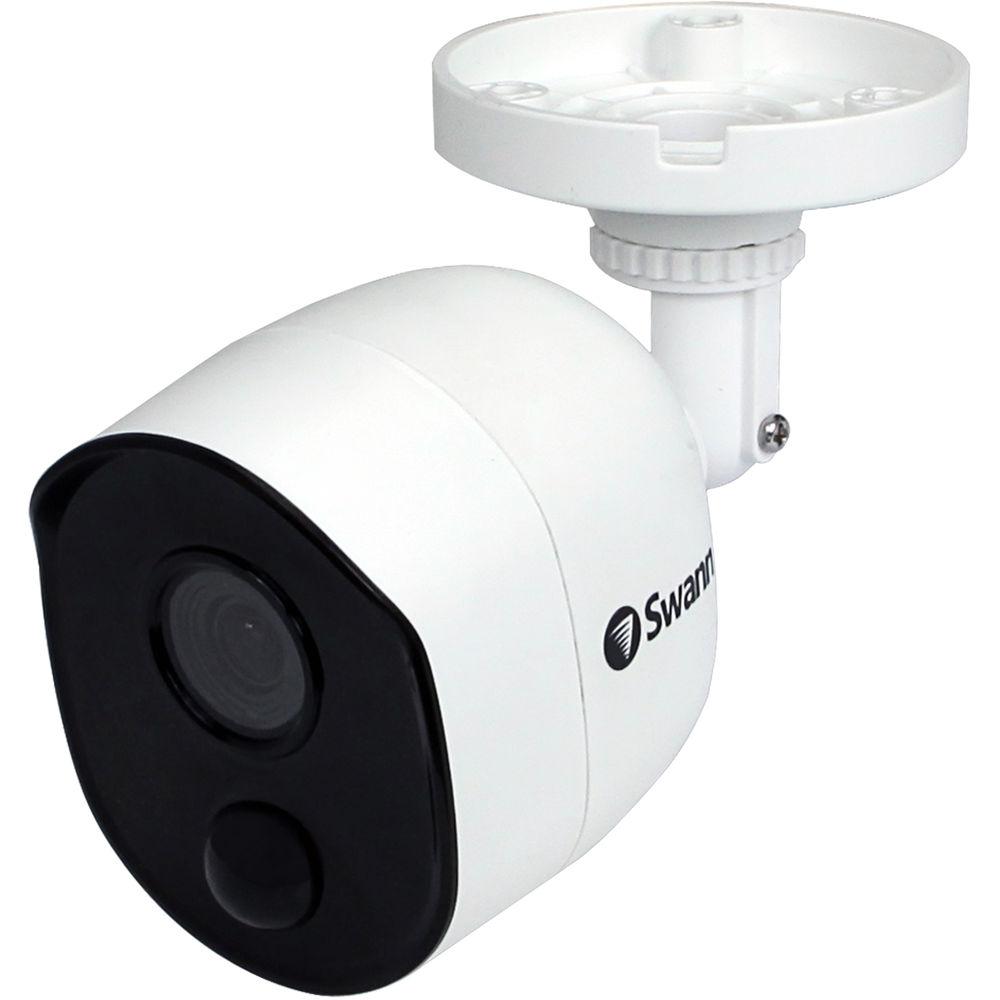

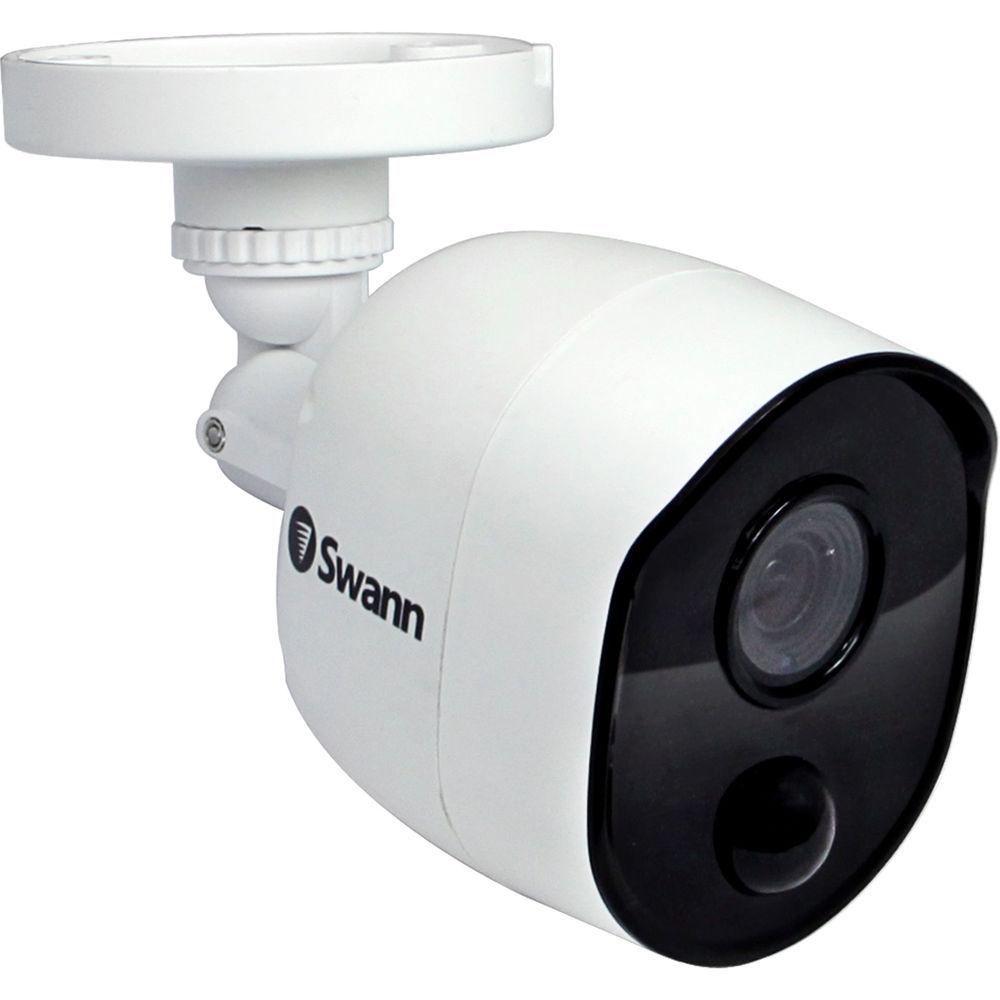

The 12 included bullet cameras capture video at a resolution of 1920 x 1080. They each feature a 102° field of view, and up to 100' of night vision. Additionally, the PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated polycarbonate enclosure, making them suitable for outdoor use. - True Detect technology for heat-based motion-activated recording and alerts
- PIR sensor detection range of up to 32'
- Remote viewing via the free HomeSafe View app
- QuickShot Cloud feature lets you review recordings from multiple cameras, and save still images to a personal Dropbox account
- QuickReview feature enables you to playback various recordings from a single camera
- IP66-rated polycarbonate camera enclosure that is suitable for outdoor use

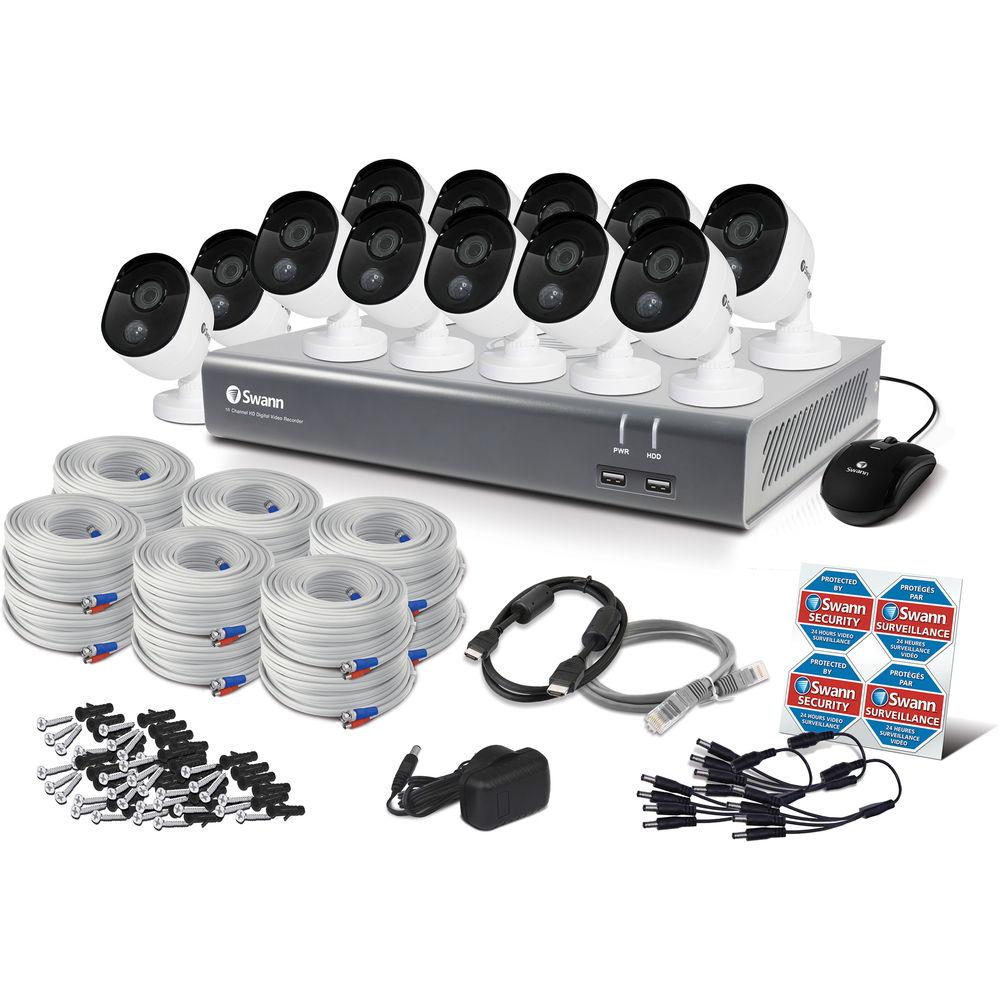

UPC: 840236122554 In the Box Swann 16-Channel 1080P DVR with 1TB HDD & 12 1080p Outdoor Bullet Cameras with Night Vision 12 x 60' / 18m BNC Cables Ethernet Cable HDMI Cable Power Adapter & Splitter Mouse Mounting Screws & Plugs 4 x Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann 16-Channel 1080P DVR with 1TB HDD & 12 1080p Outdoor Bullet Cameras with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

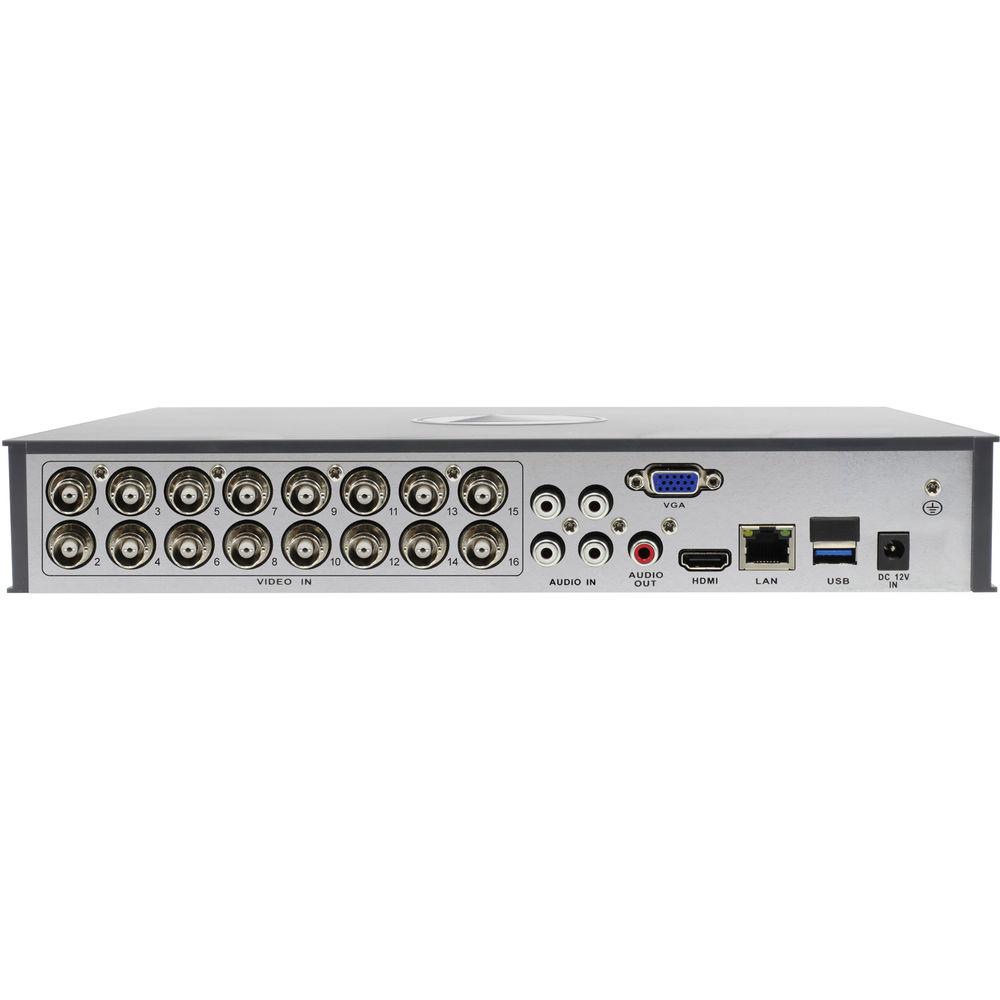

Technical parametersSwann 4580 Series Specs | | | Number of Channels | 16 | | Video Inputs | BNC | | Video Outputs | 1 x VGA
1 x HDMI | | Display Resolution | Up to 1080p (1920 x 1080) | | Audio Inputs | 4 x RCA | | Audio Output | 1 x RCA | | Recording Resolution | Up to 3 MP (2048 x 1536) | | HDD Capacity | 1 TB SATA HDD preinstalled, supports up to 4 TB | | Network Interface | 1 x RJ45 Ethernet | | USB Interface | 3 x USB 2.0 | | Operating Systems Supported | Windows, Mac OS | | Internet Viewing | HomeSafe View app | | Supported Mobile Devices | iOS, Android | | Dimensions | 9.05 x 8.3 x 1.9" / 230 x 210 x 47 mm | | Weight | Not specified by manufacturer | | | | Resolution | 1080p (1920 x 1080) | | Field of View | 102° | | Night Vision Range | Total Darkness: Up to 100' / 30 m
Ambient Light: Up to 130' / 40 m | | PIR Thermal/Motion Sensor | Yes | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Material of Construction | Polycarbonate | | Dimensions | 5.79 x 2.56 x 3.11" / 146.3 x 65 x 79 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 26.1 lb | | Box Dimensions (LxWxH) | 15.5 x 15.0 x 12.5" |
