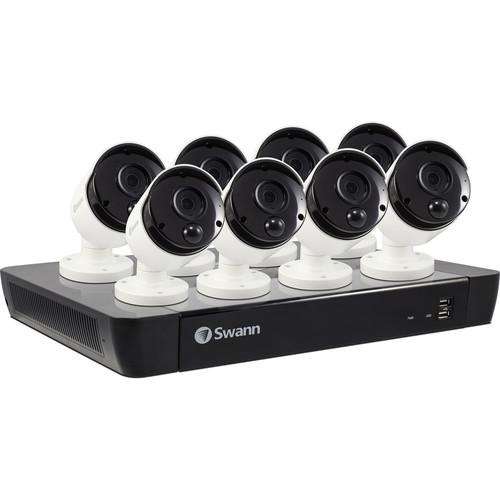

User Manual for Swann 16-Channel 4K UHD NVR with 2TB HDD & 8 5MP Outdoor Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Swann 16-Channel 4K UHD NVR with
- Product category: Surveillance Systems Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Surveillance Systems
 |
User manual for the Swann 16-Channel 4K UHD NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|
Product description - Speak to See with Swann on CyberShack TV (Long) - Google Assistant Demo

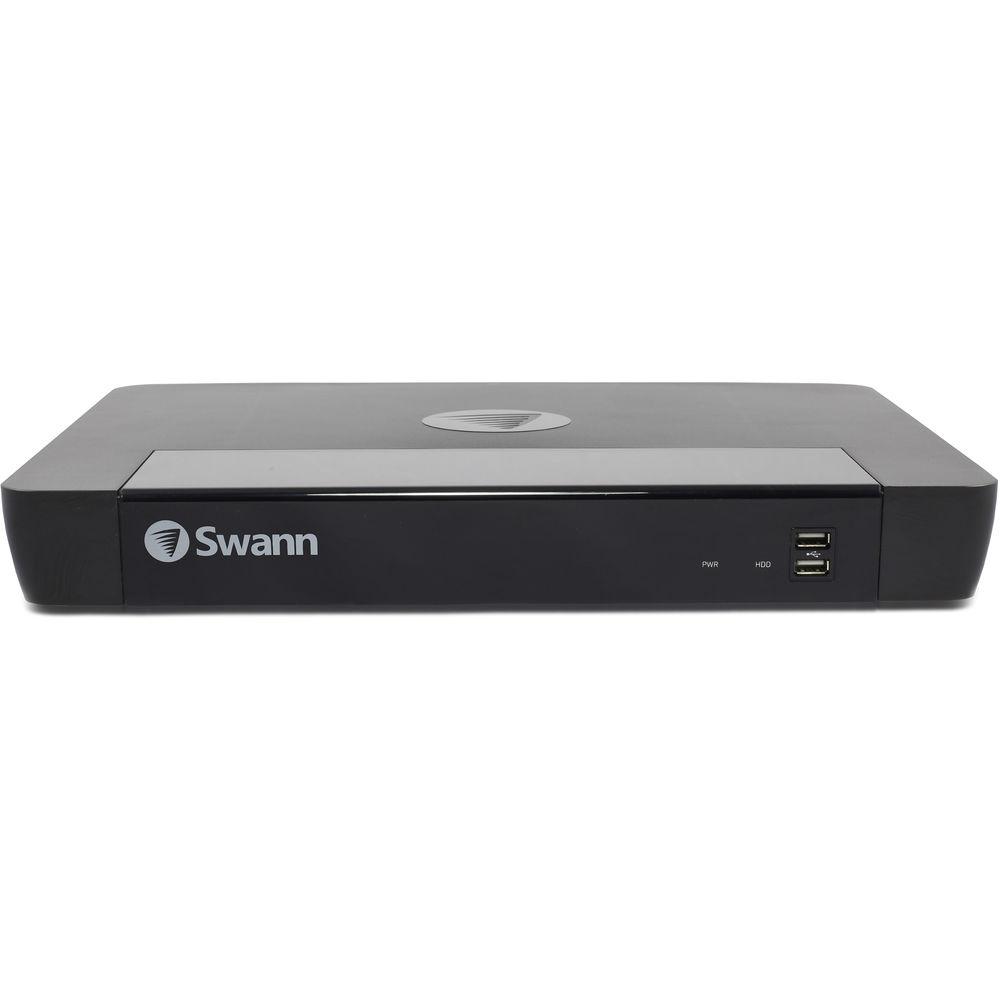

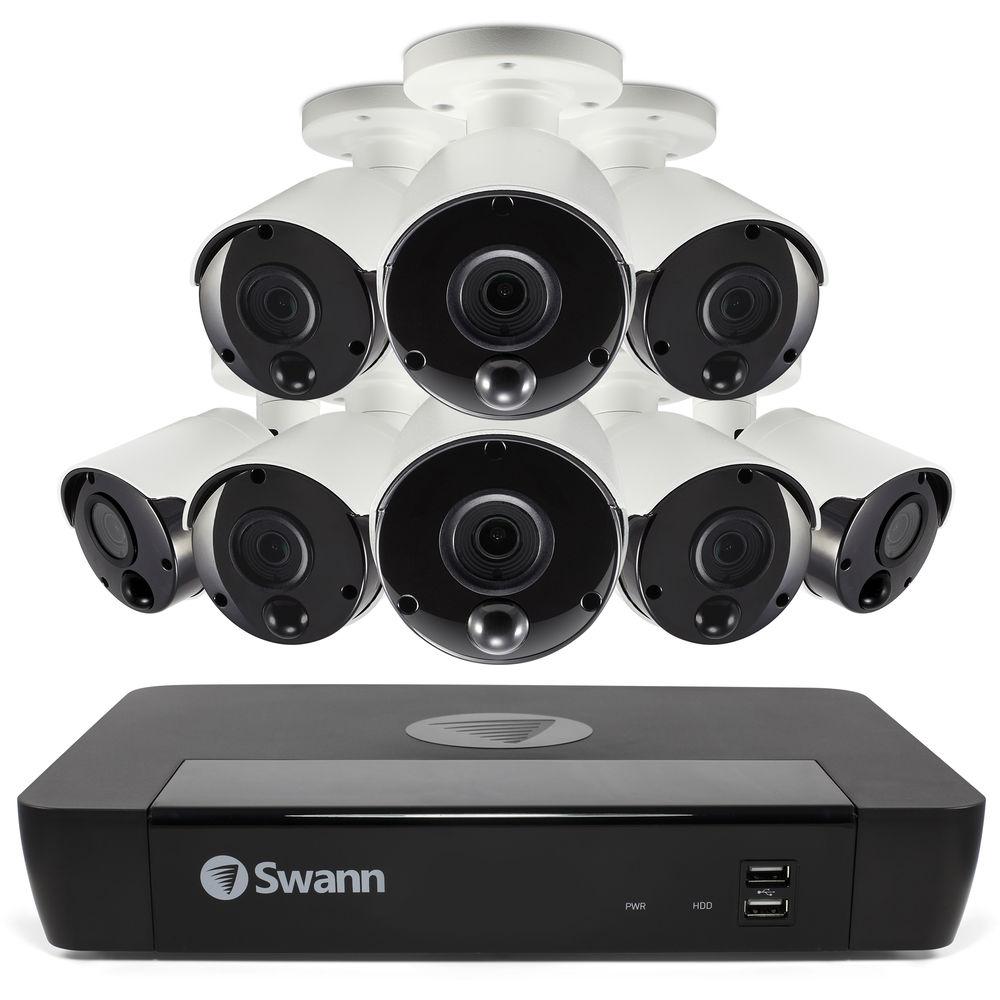

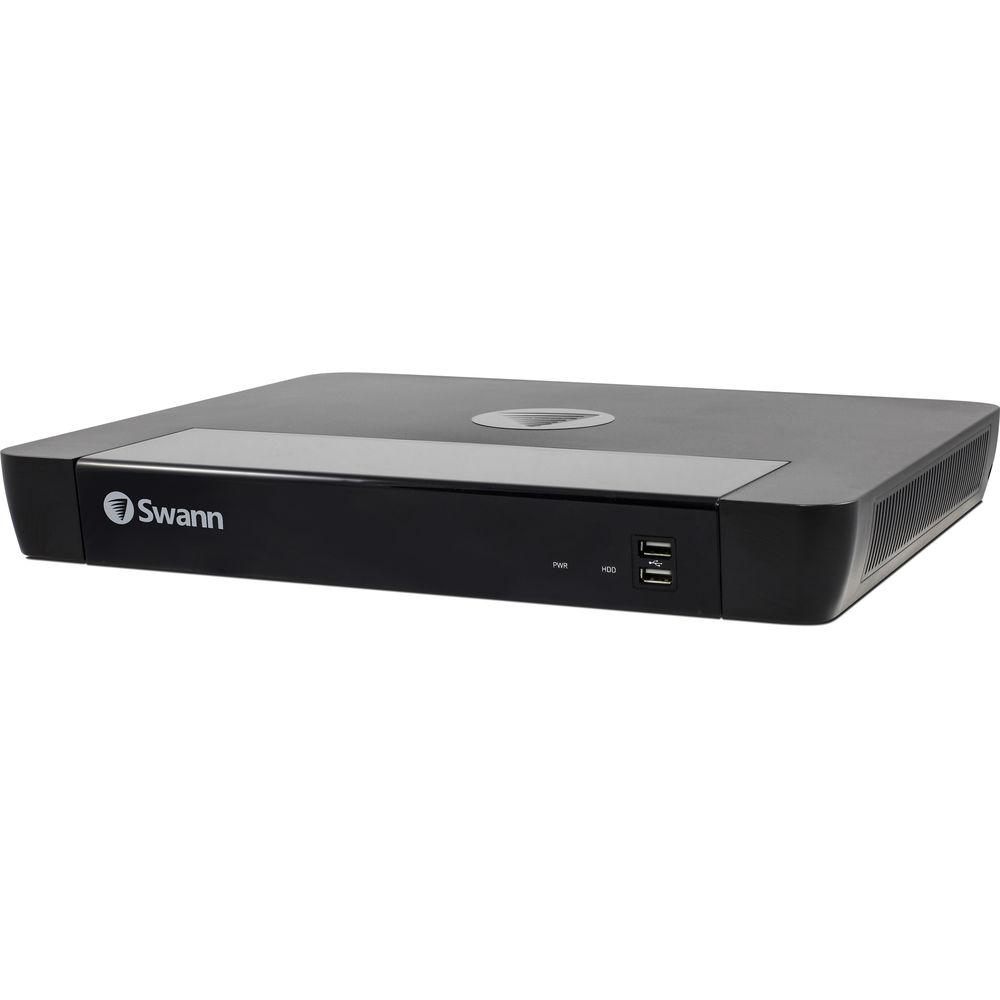

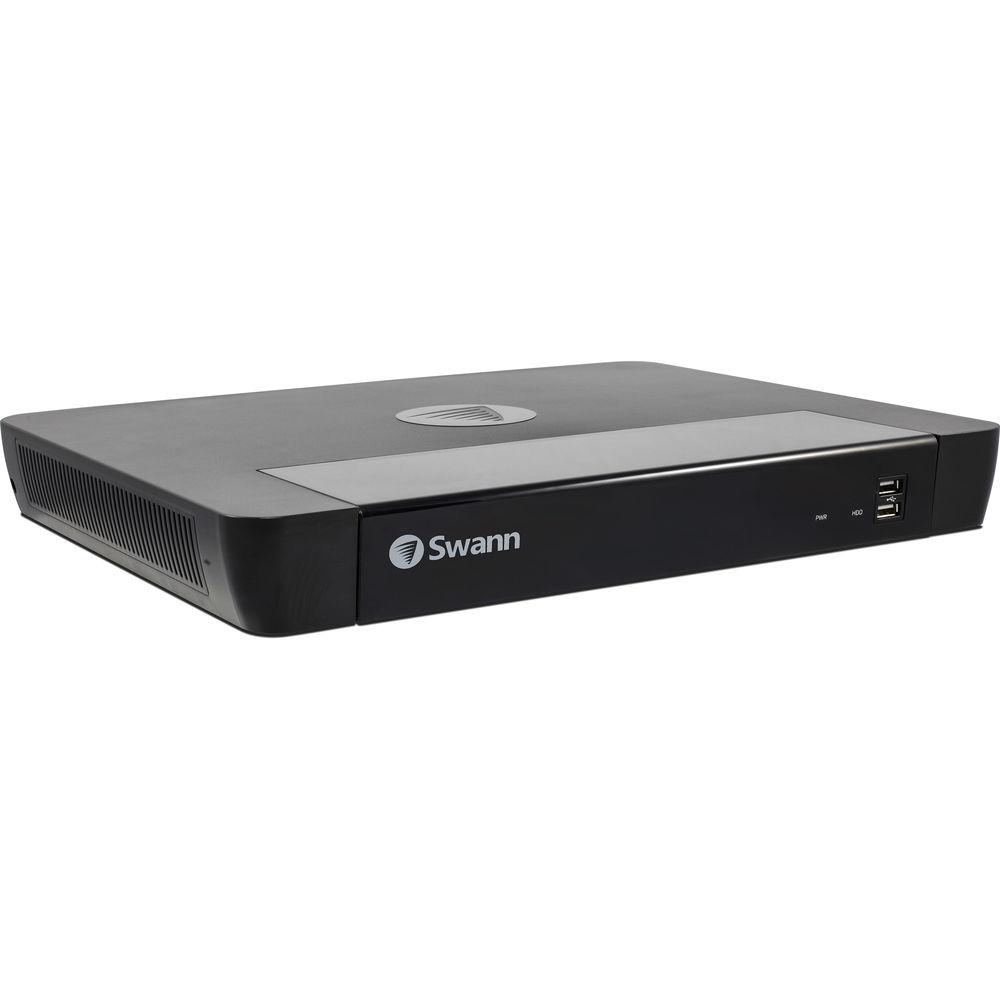

Monitor your home or business with the 16-Channel 4K UHD NVR with 2TB HDD & 8 5MP Outdoor Night Vision Bullet Cameras from Swann. This NVR kit comes with a preinstalled 2TB HDD to store recorded video from the included bullet cameras. HDD storage is expandable to 6TB. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.

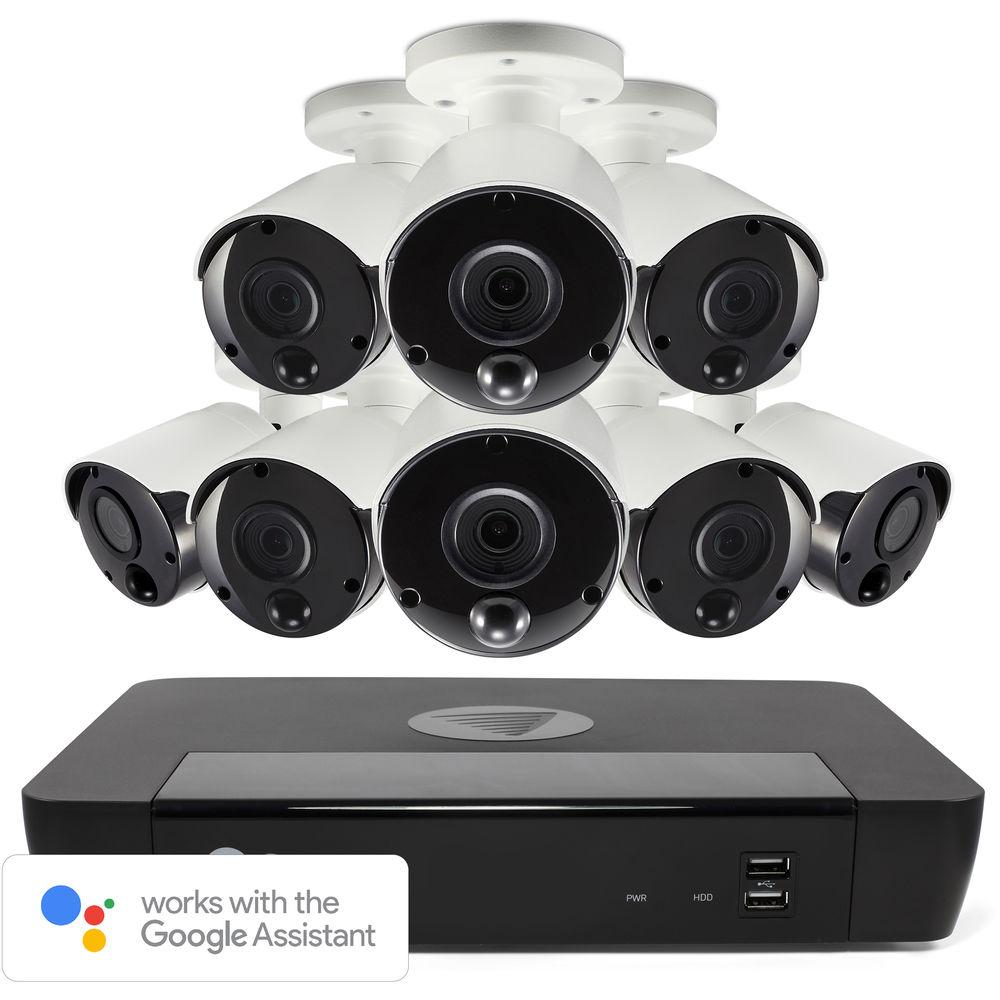

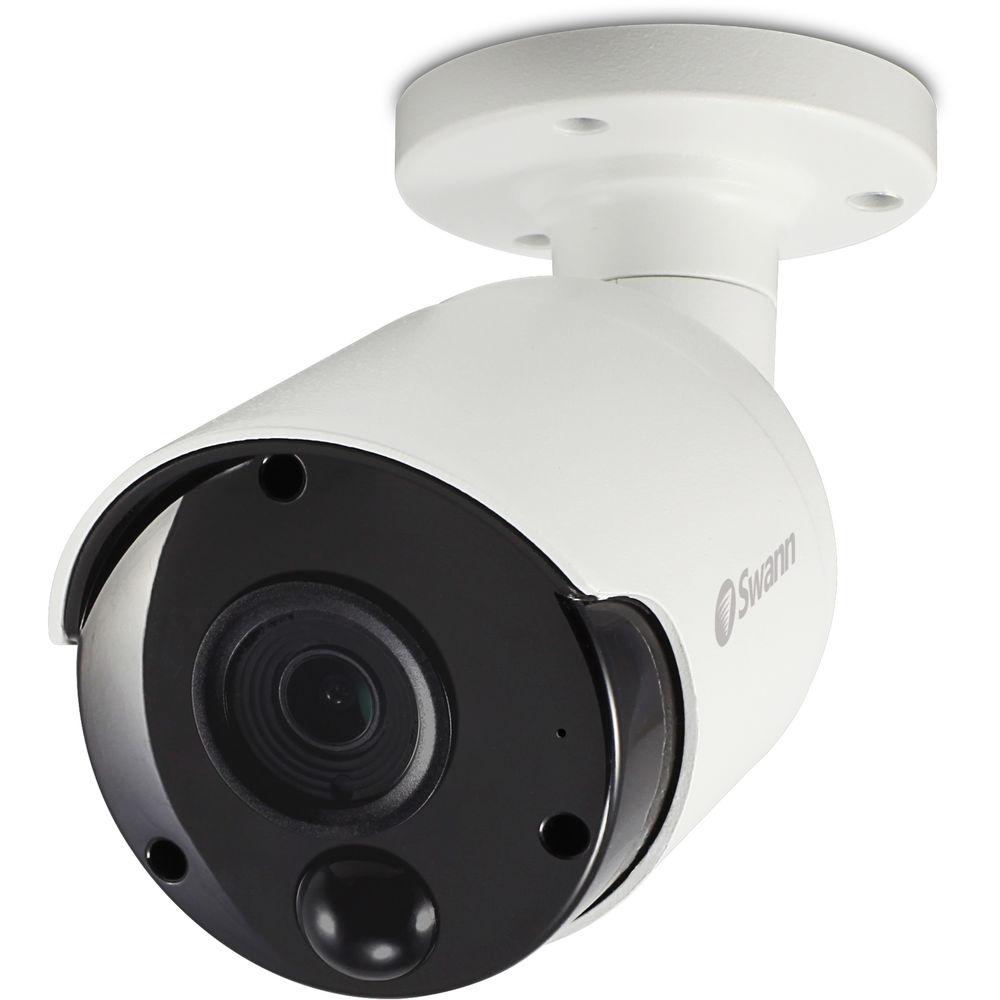

The included bullet cameras capture video at 5MP resolution. They each feature an 82° field of view and up to 130' of night vision. Audio is possible thanks to a built-in microphone. Additionally, a PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated aluminum enclosure, making them suitable for outdoor use. - Voice control via Google Assistant
- RJ45 Ethernet with PoE technology
- HDMI and VGA video outputs
- True Detect technology for heat-based motion-activated recording and alerts
- Remote viewing via the free HomeSafe View app
- QuickShot Cloud feature lets you review recordings from multiple cameras, and save still images to a personal Dropbox account
- 2 x USB 2.0 and 1 x USB 3.0
- IP66-rated aluminum cameras suitable for outdoor use

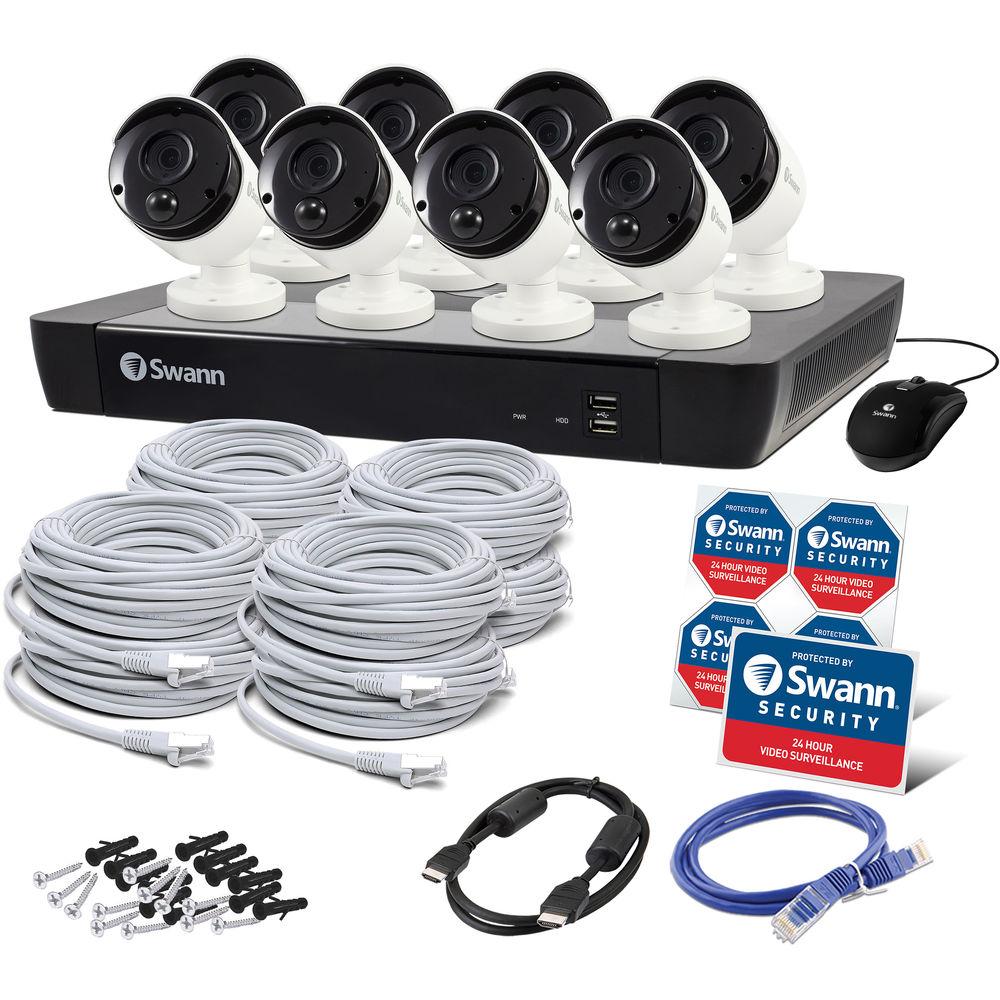

UPC: 840236122356 In the Box Swann 16-Channel 4K UHD NVR with 2TB HDD & 8 5MP Outdoor Night Vision Bullet Cameras HDMI Cable Mouse 8 x 60'/18m Cat 5e Ethernet Cables 3'/1m Cat 5e Ethernet Cable Power Adapter Mounting Screws & Plugs Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann 16-Channel 4K UHD NVR with 2TB HDD & 8 5MP Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

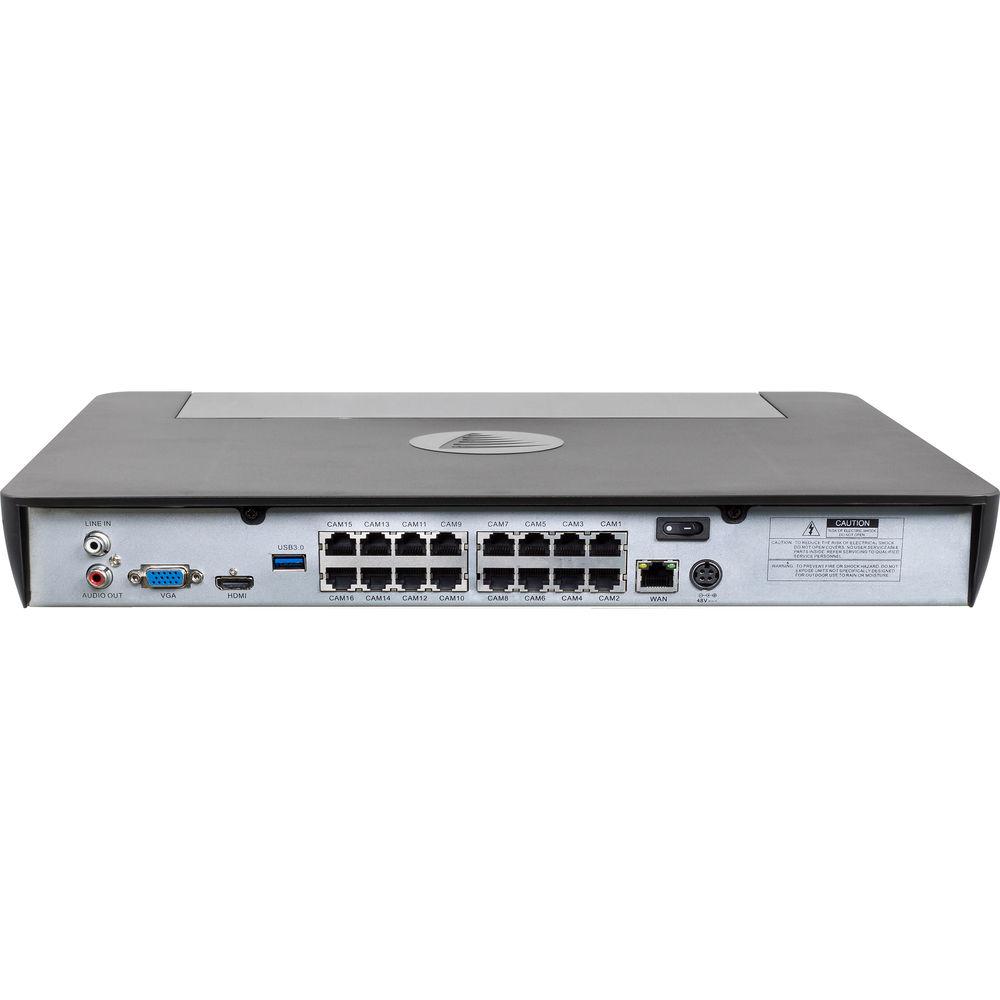

Technical parametersSwann 7580 Series Specs | | | Number of Channels (Input) | 16 | | Outputs | VGA, HDMI | | Display Resolution | Up to 3840 x 2160 | | Audio Inputs | 16 x PoE ports | | Audio Output | 1 x RCA | | Video Compression | H.264, H.265 | | Recording Resolution | Up to 4K / 8 MP | | Playback Speed | Up to 15 fps | | HDD Included | 2 TB | | HDD Capacity | Up to 6 TB | | Network Interface | 1 x RJ45 | | USB Interface | 2 x USB 2.0, 1 x USB 3.0 | | Supported Operating Systems | Windows, Mac OS | | Internet Viewing | HomeSafe View | | Supported Mobile Devices | iOS, Android, 3G/4G smartphones & tablets | | Dimensions | 9.25 x 12.6 x 2" / 235 x 310 x 53 mm | | Weight | Not specified by manufacturer | | | | Resolution | 5 MP | | Field of View | 82° | | Built-In Microphone | Yes | | Audio Range | 16' / 5 m | | Night Vision Range | 130' / 40 m | | IR Cut Filter | Yes | | PIR Thermal/Motion Sensor | Yes, True Detect | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Construction Material | Aluminum | | Dimensions | 5.94 x 2.76 x 2.76" / 151 x 70 x 70 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 21.1 x 15.8 x 11.6" |
