Swann 3K Series 16-Channel 5MP DVR

Search your instruction manual in PDF to download

User Manual for Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras

Click to enlarge the picture
Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Contents of the user manual for the Swann 3K Series 16-Channel 5MP DVR
  • Product category: Surveillance Systems Swann
  • Brand: Swann
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Swann Surveillance Systems

Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras
User manual for the Swann 3K Series 16-Channel 5MP DVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Swann product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!



Product description

  • Speak to See with Swann on CyberShack TV (Long) - Google Assistant Demo
Monitor your home or business with the 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras from Swann. This DVR comes with a preinstalled 2TB HDD to store recorded video from the included bullet cameras. HDD storage is expandable to 6TB if more space is required. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.

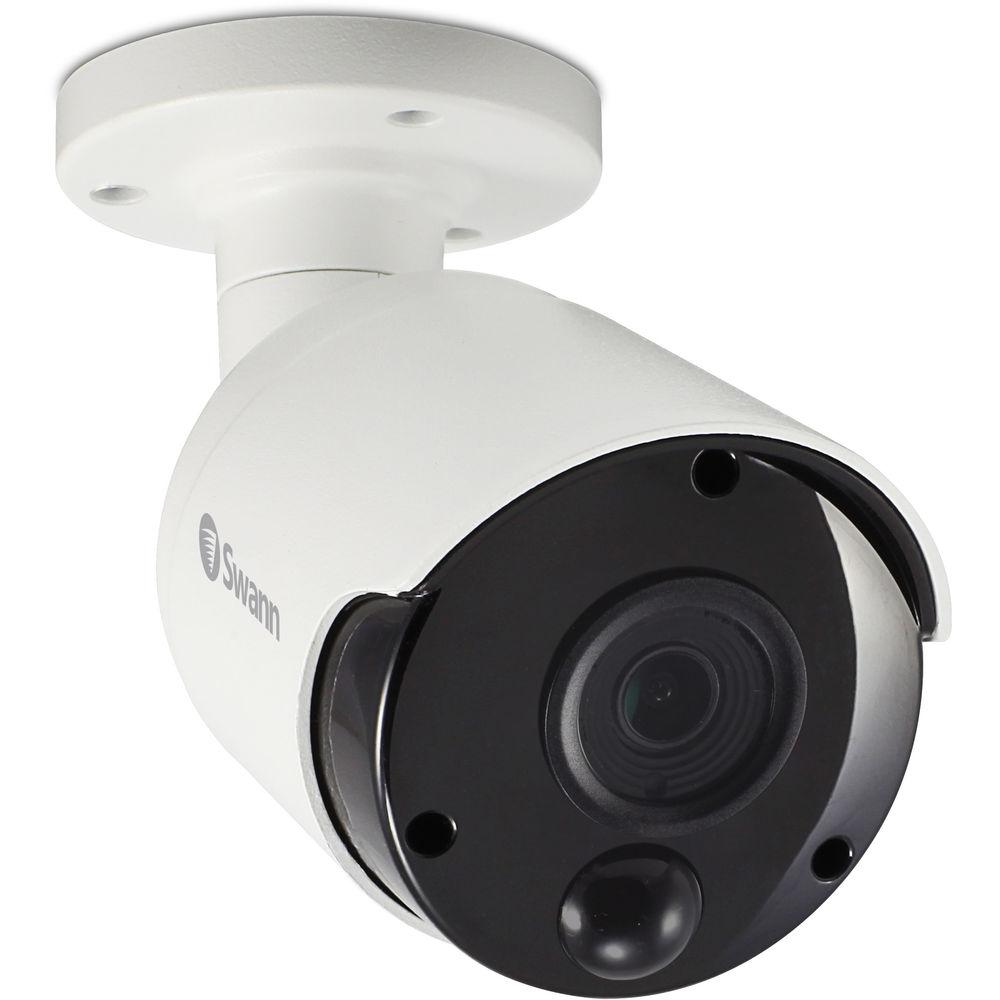

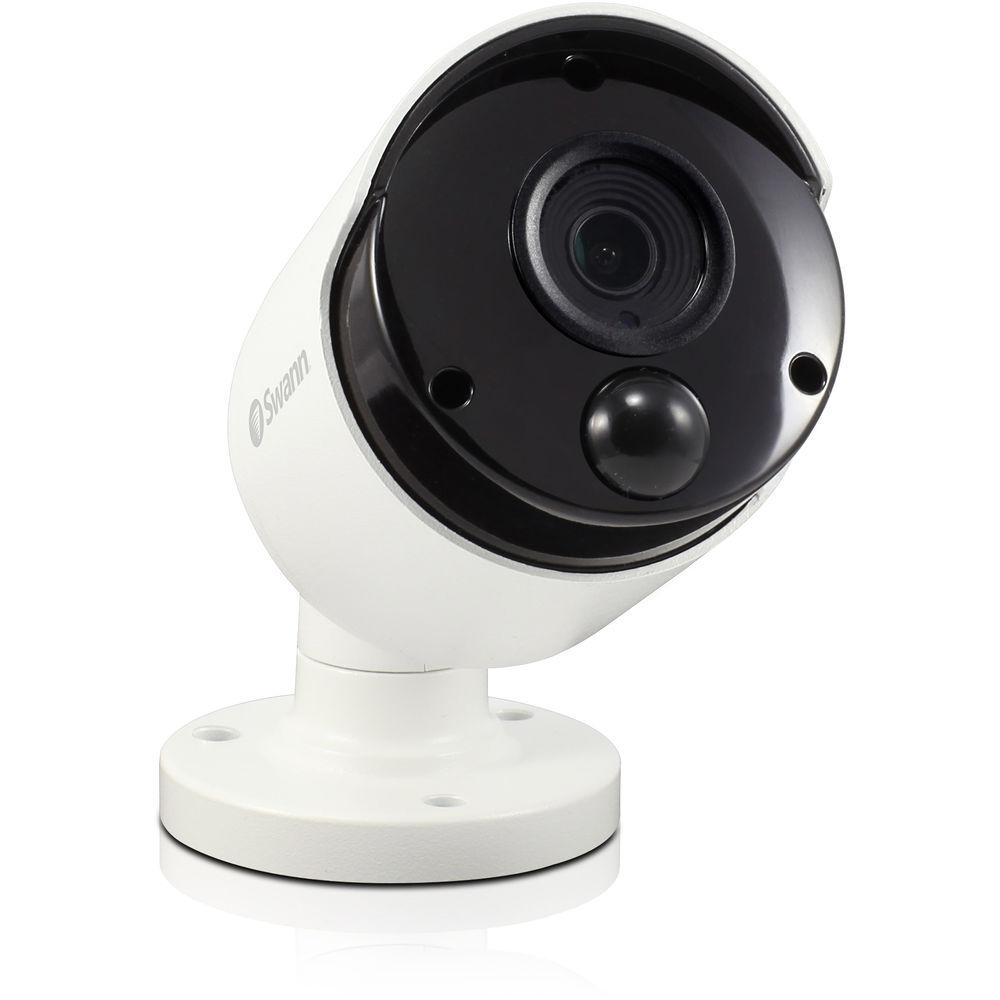

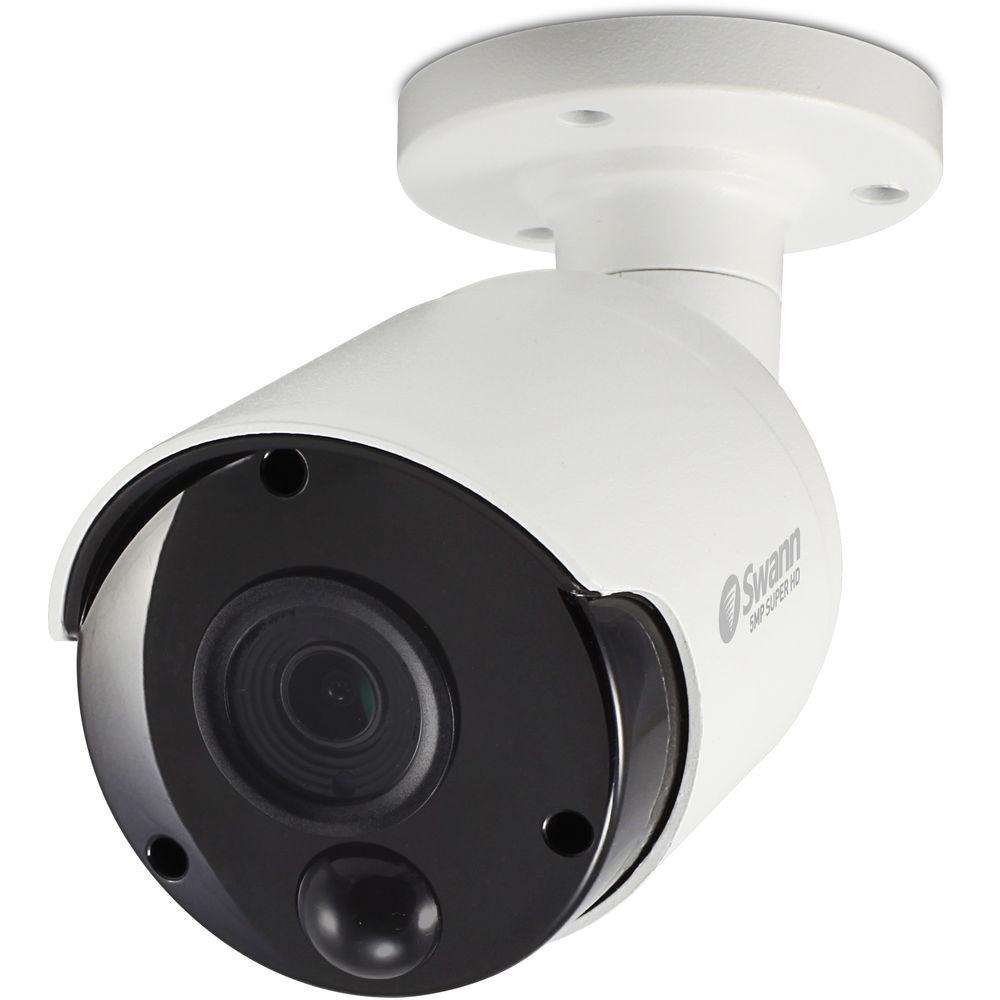

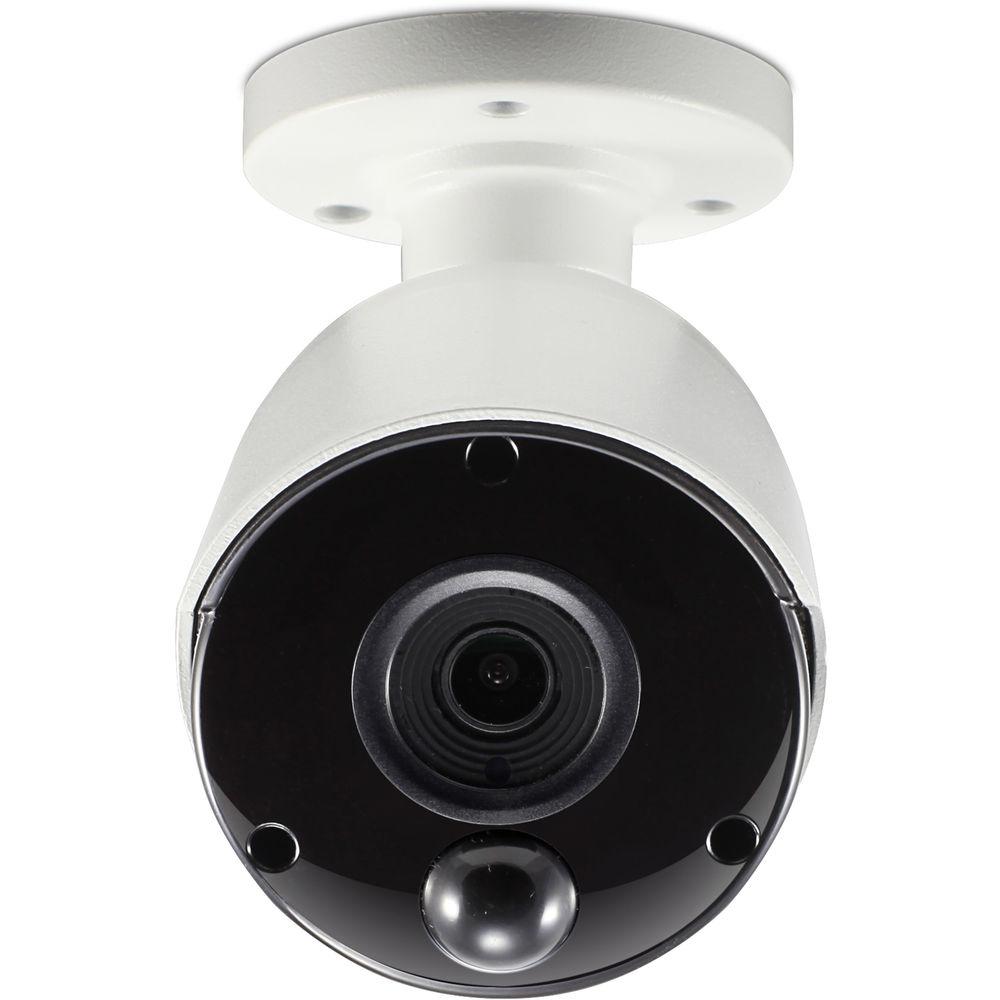

The included bullet cameras capture video at 5MP resolution. They each feature a 70° field of view and up to 100' of night vision. Additionally, a PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated aluminum enclosure, making them suitable for outdoor use. Ten 60' BNC cables are included to connect the cameras to the DVR.
  • Voice control via Google Assistant
  • Plug & play system
  • TrueDetect technology for heat-based motion-activated recording and alerts
  • Remote viewing via HomeSafe View app

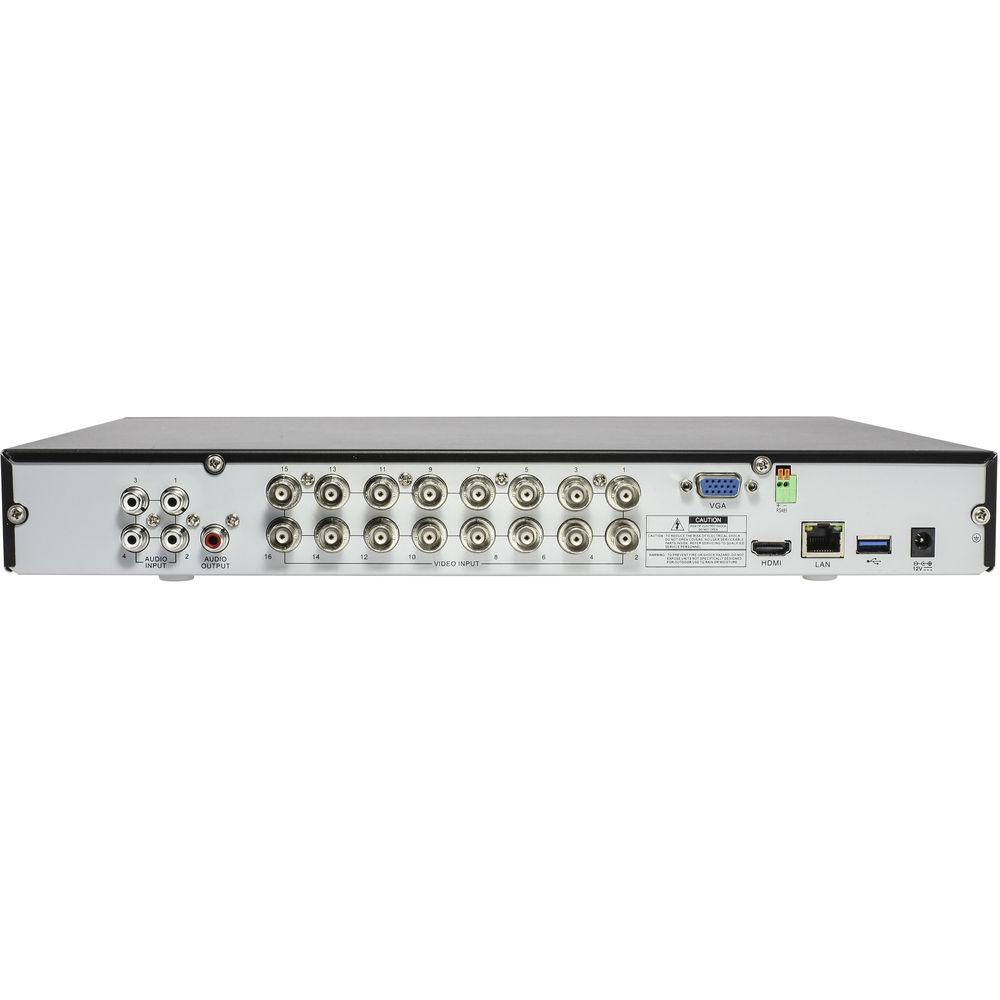

  • HDMI and VGA video outputs
  • Up to 4K display resolution
  • 4 audio inputs & 1 audio output
  • 1 x RJ45 port
  • 1 x USB 3.0 & 1 x USB 2.0
  • Save still images to your personal Dropbox account
  • Compatible with iOS, Android, Windows, and Mac OS X
  • IP66-rated aluminum cameras suitable for outdoor use

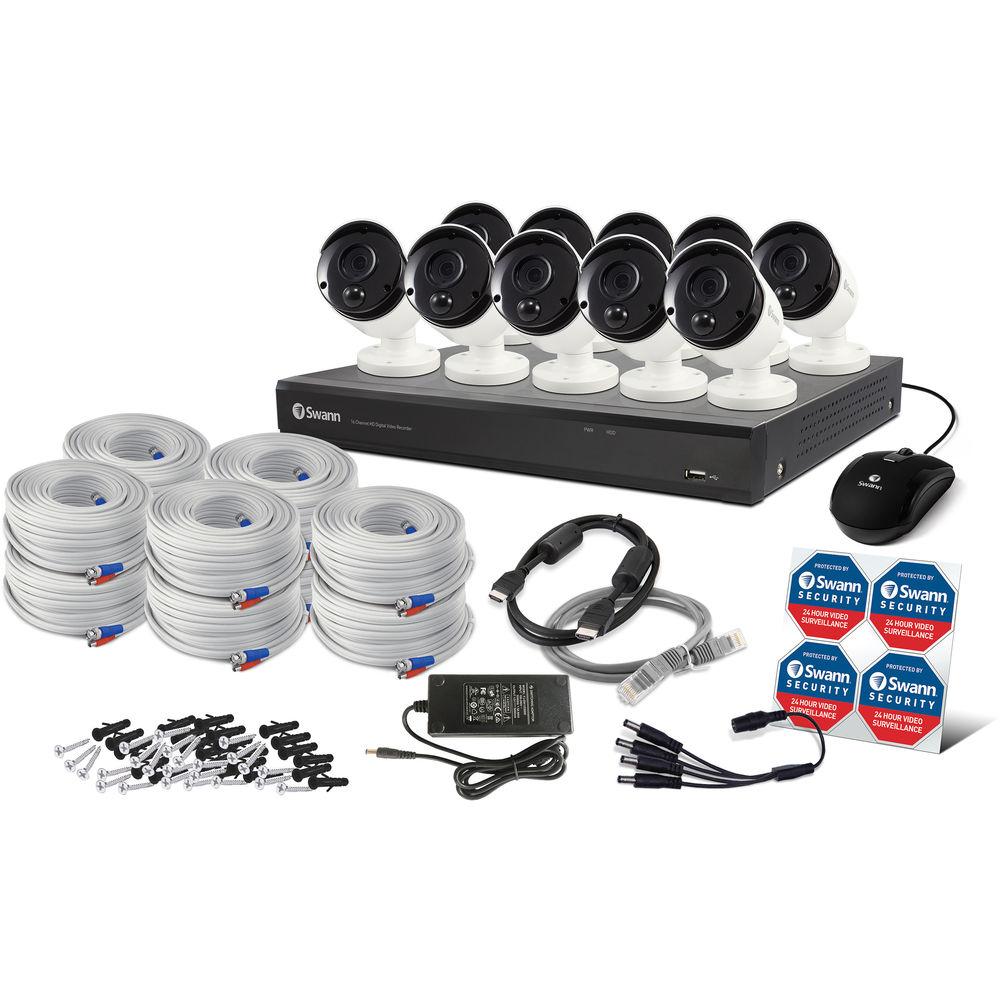

In the Box Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras
  • 10 x 60' BNC Cables
  • Ethernet Cable
  • HDMI Cable
  • Power Adapter & Splitters
  • Mouse
  • Mounting Screws & Plugs
  • Theft Deterrent Stickers
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Swann SWDVK-1649810-CL Specs

    Video Inputs 16 channels
    Video Outputs VGA, HDMI
    Display Resolution Up to 4K
    Audio I/O 4 x RCA inputs
    1 x RCA output
    Recording Resolution Up to 5 MP
    HDD 2 TB SATA HDD preinstalled, expandable up to 6 TB
    Network Interface 1 x RJ45 port
    USB Interface 1 x USB 3.0 (rear)
    1 x USB 2.0 (front)
    Supported Operating Systems Windows, Mac OS X
    Internet Viewing HomeSafe View
    Supported Mobile Devices iOS, Android, 3G/4G smartphones & tablets
    Dimensions 14.9 x 12.4 x 2.09" / 378 x 315 x 53 mm
    Weight Not specified by manufacturer
    Resolution 5 MP
    Field of View 70°
    Night Vision Range 100' / 30 m
    PIR Thermal/Motion Sensor Yes, TrueDetect
    PIR Sensor Range 32' / 10 m
    IP Rating IP66
    Operating Temperature -22 to 122°F / -30 to 50°C
    Construction Material Aluminum
    Dimensions 5.94 x 2.76 x 2.76" / 151 x 70 x 70 mm
    Weight Not specified by manufacturer
    Package Weight 32.0 lb
    Box Dimensions (LxWxH) 20.0 x 16.0 x 12.0"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 28 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Swann 3K Series 16-Channel 5MP DVR with 2TB HDD & 10 5MP Bullet Cameras

    Subject: No Video-No recording on screen monitor
    Date: 03.02.2022 02:03:15Name: Pedro Segura
    Checked and made sure all 4 connected video cables are connected to outside cameras and also connected to rear connection on DVR. Both emds of HDMI cables are connected to monitor and connected to rear of DVR.Splitter is connected to all 4 camera cables. Power adapter is connected to power source. Power is on feeding power adapter. Settings are set to record every day 24 hours a day including motion detection mode.
