User Manual for Swann 5580 Series 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Outdoor Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Swann 5580 Series 8-Channel 4K UHD
- Product category: Surveillance Systems Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Surveillance Systems
 |
User manual for the Swann 5580 Series 8-Channel 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|
Product description - Speak to See with Swann on CyberShack TV (Long) - Google Assistant Demo

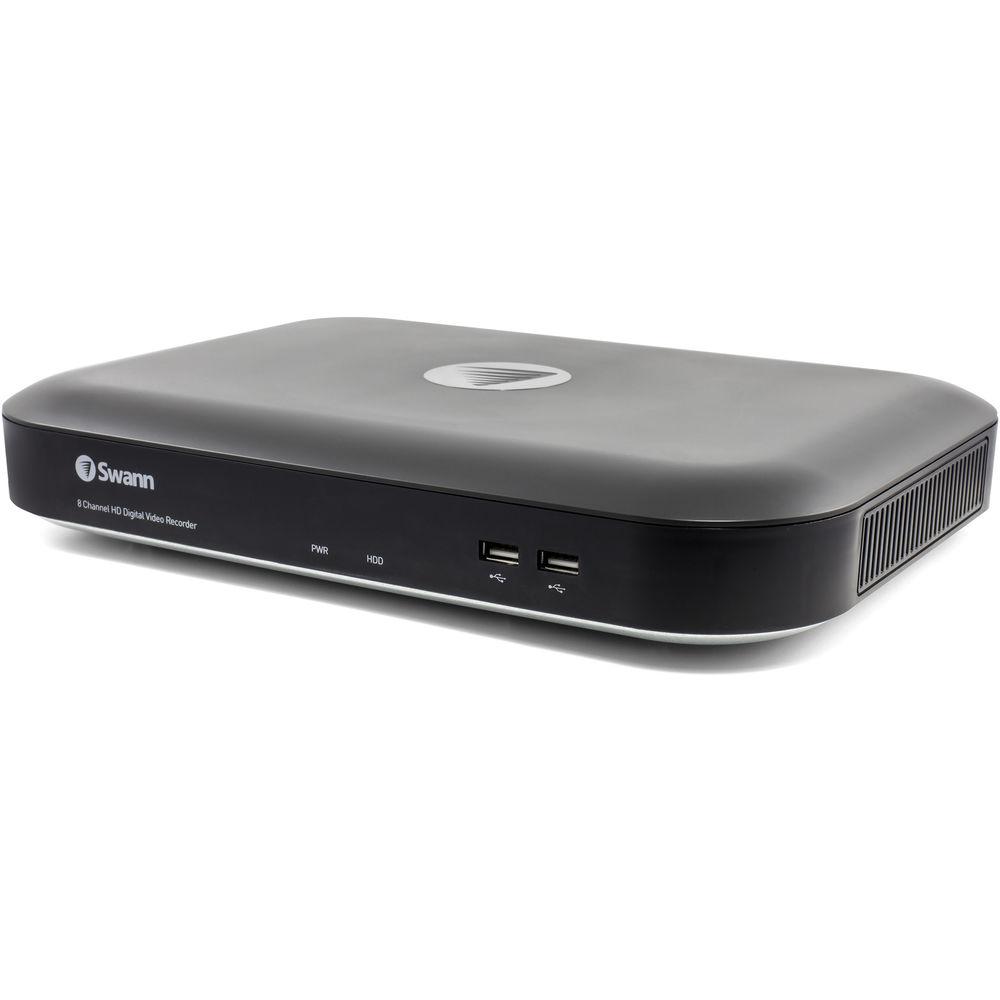

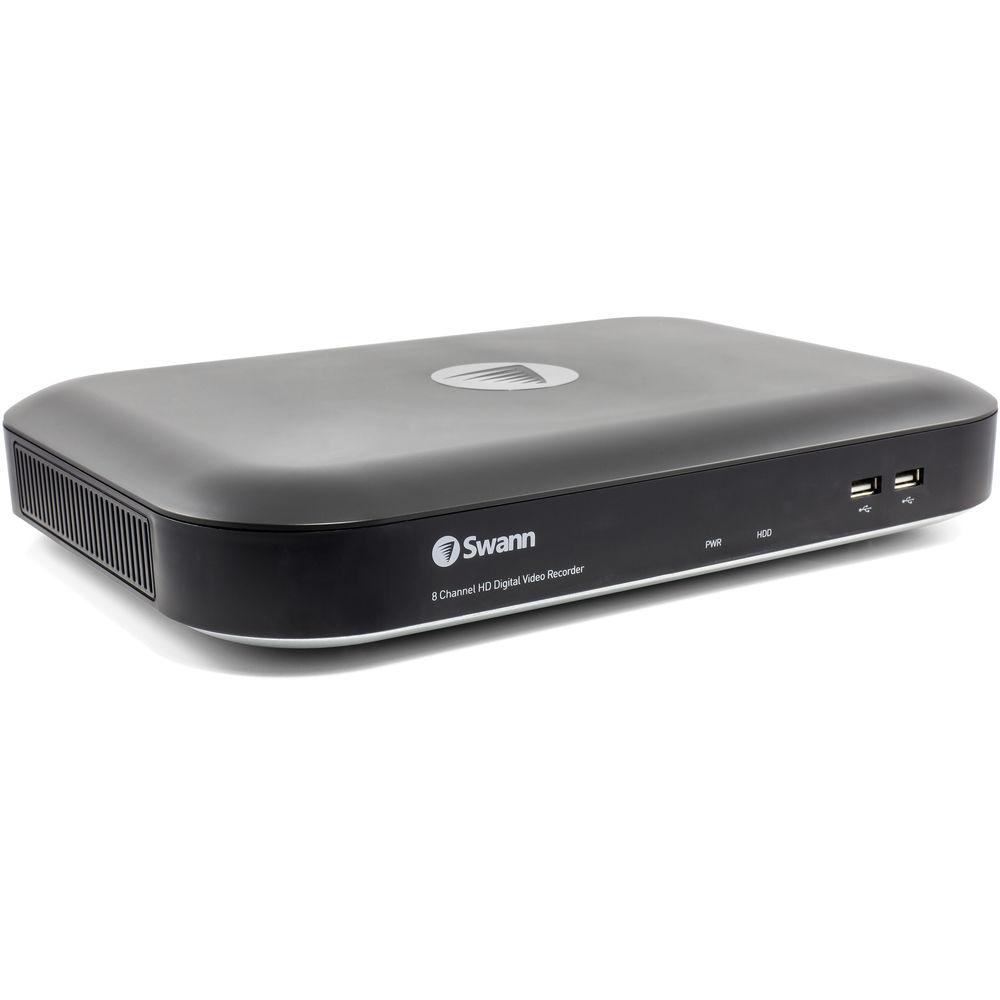

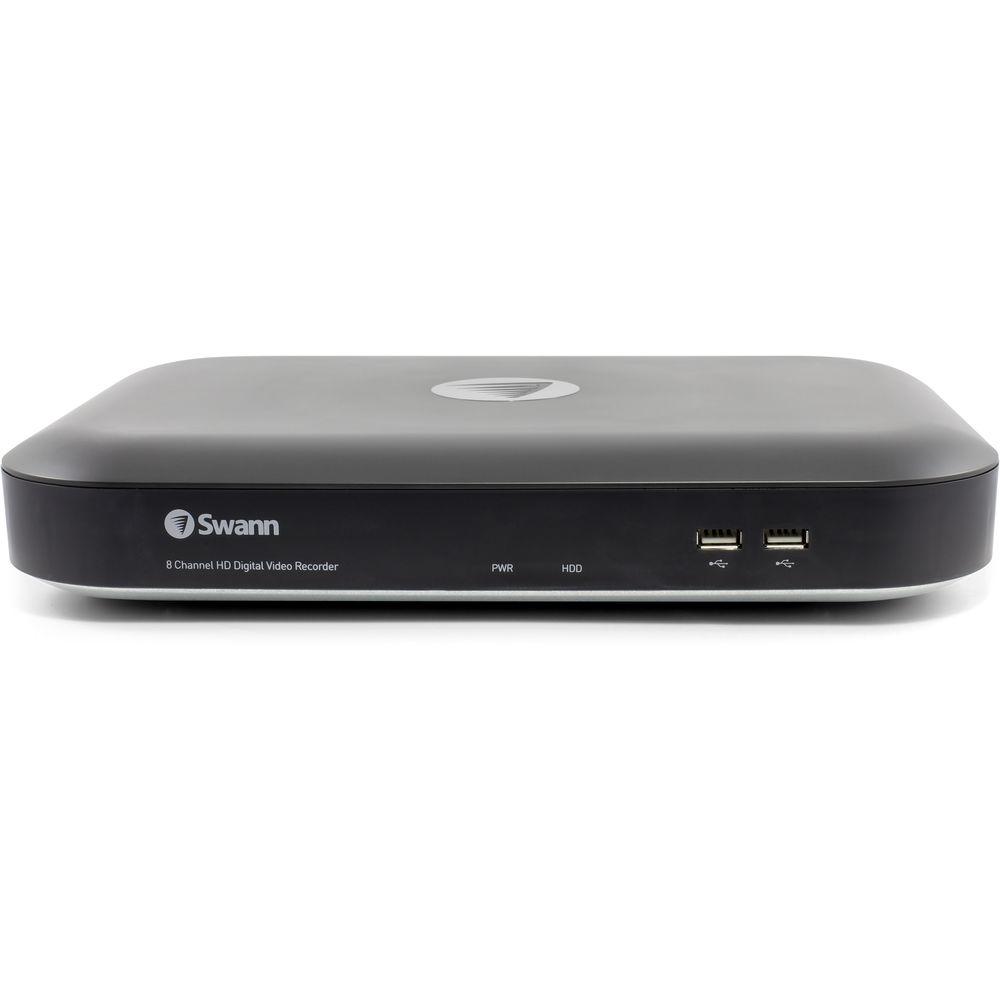

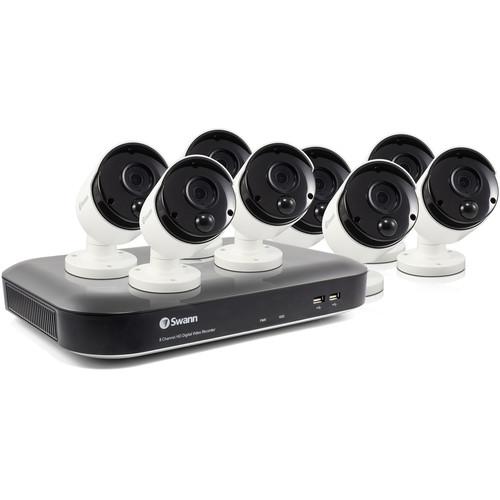

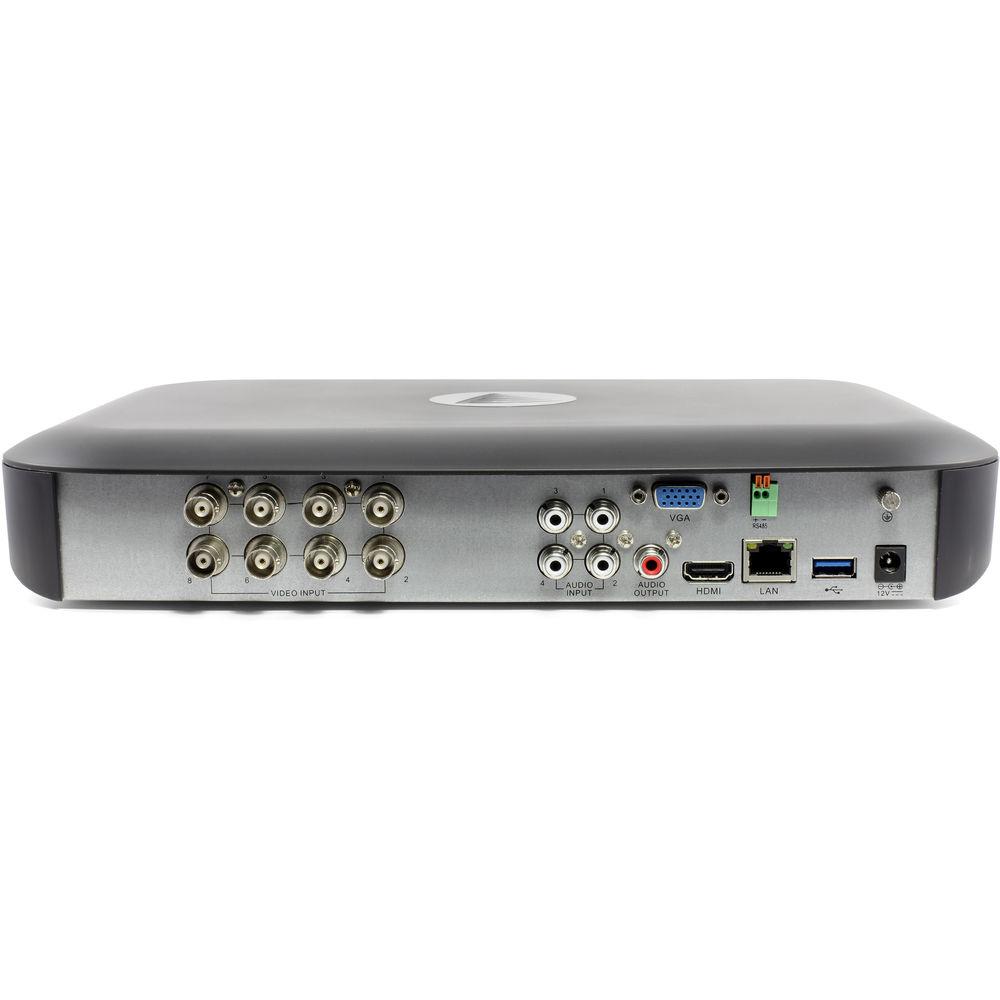

Monitor your home or business with the 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Outdoor Night Vision Bullet Cameras from Swann. The DVR comes with a preinstalled 2TB HDD to store video from the included bullet cameras. HDD storage is expandable to 6TB. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.

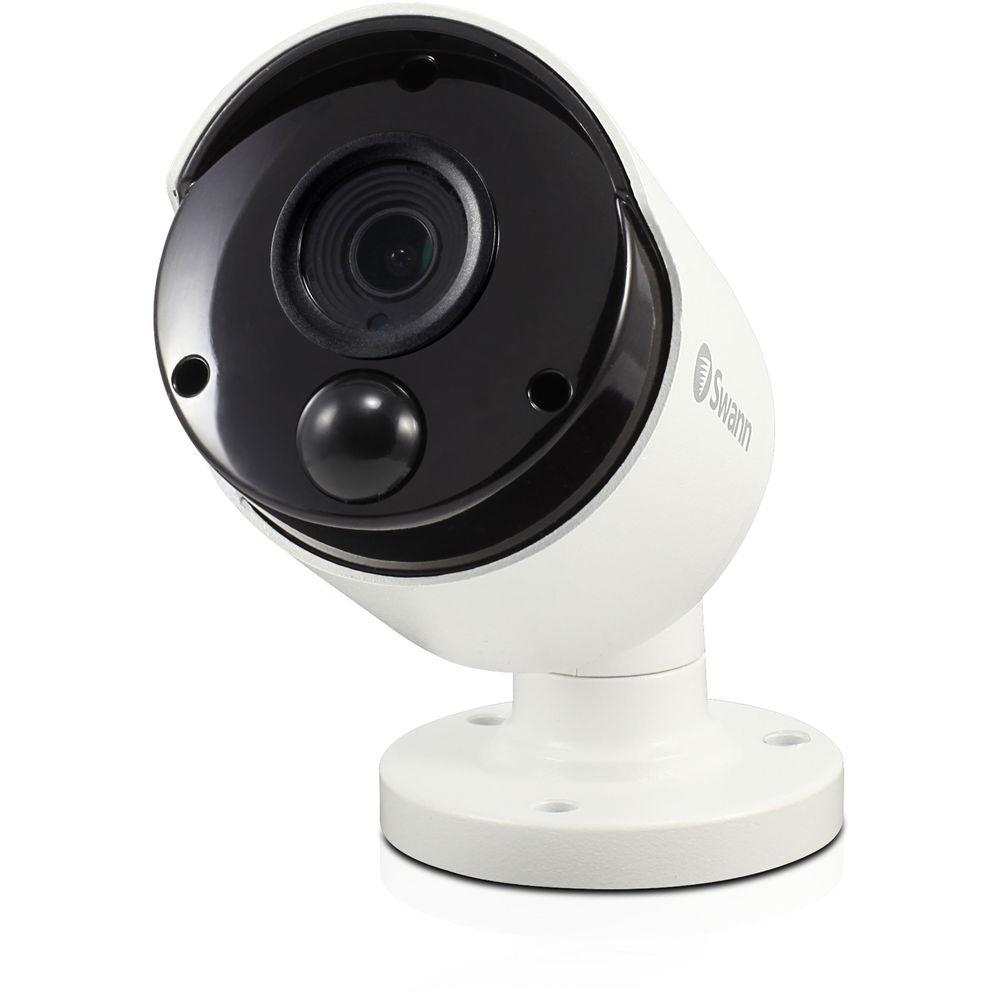

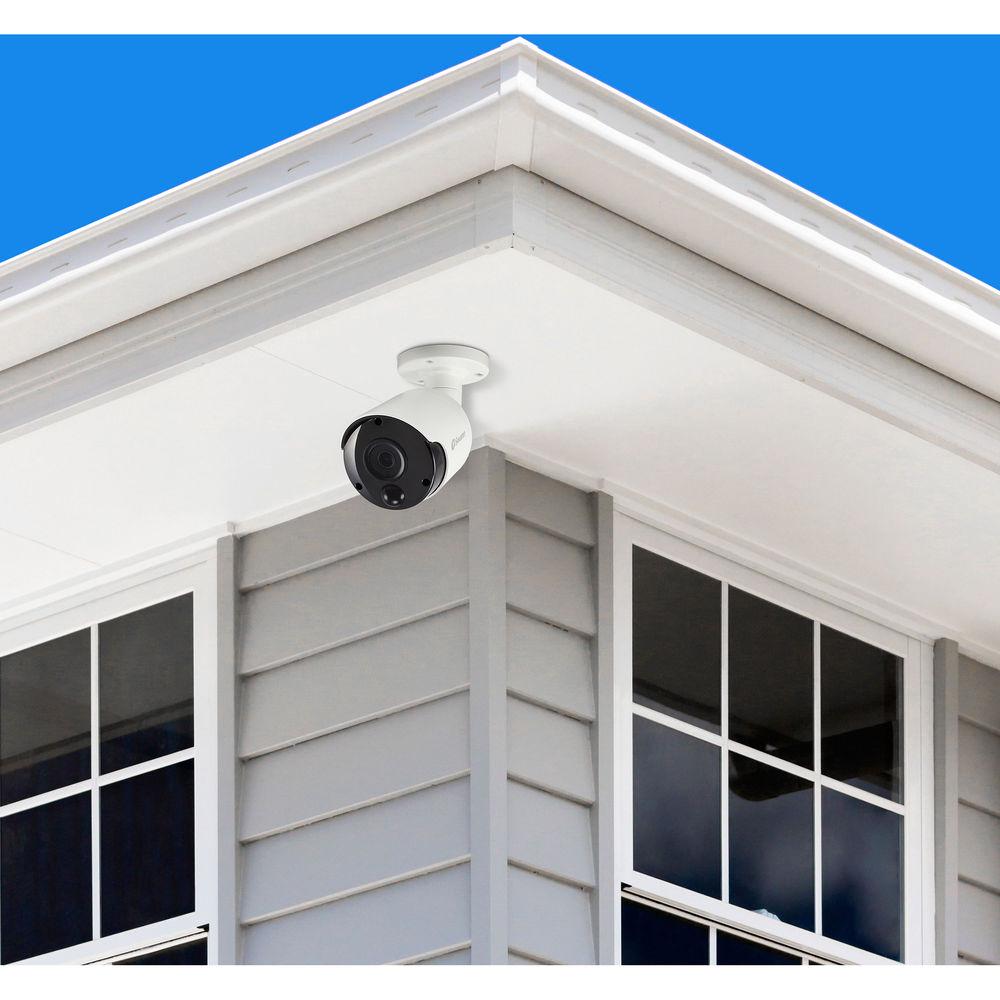

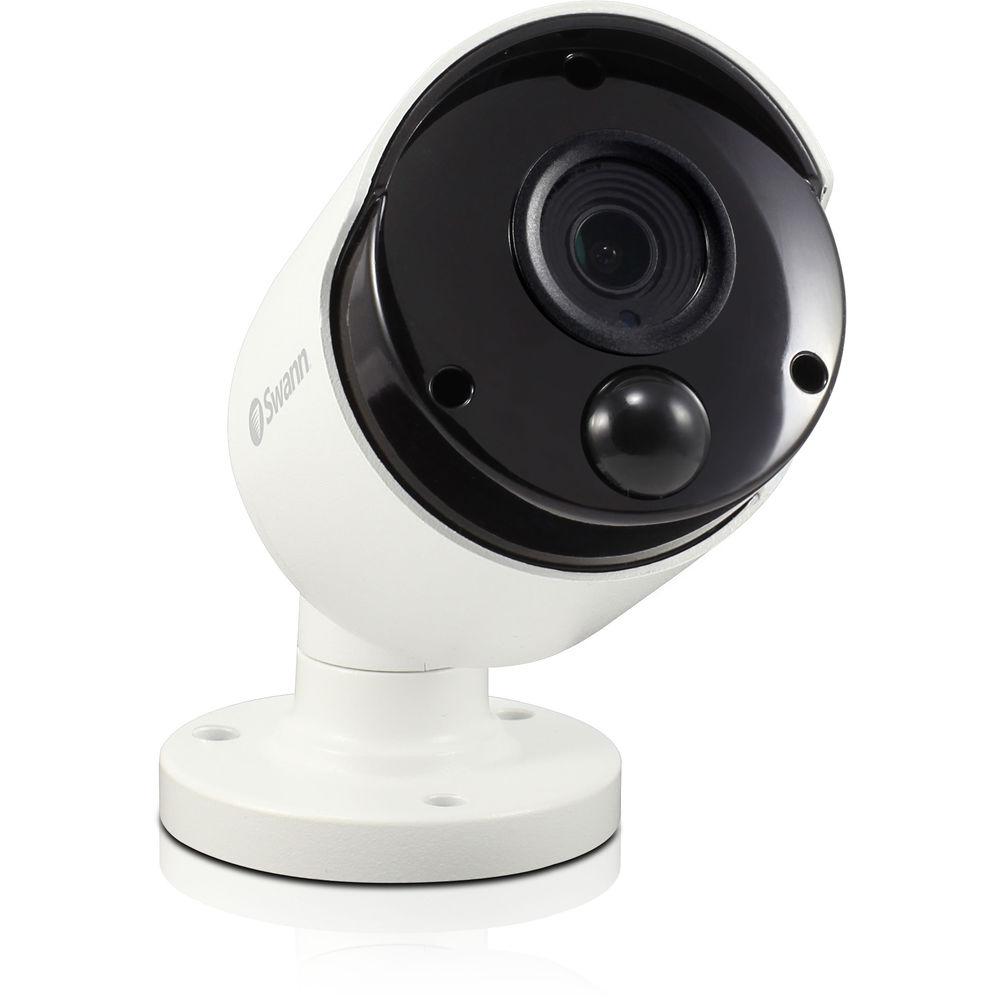

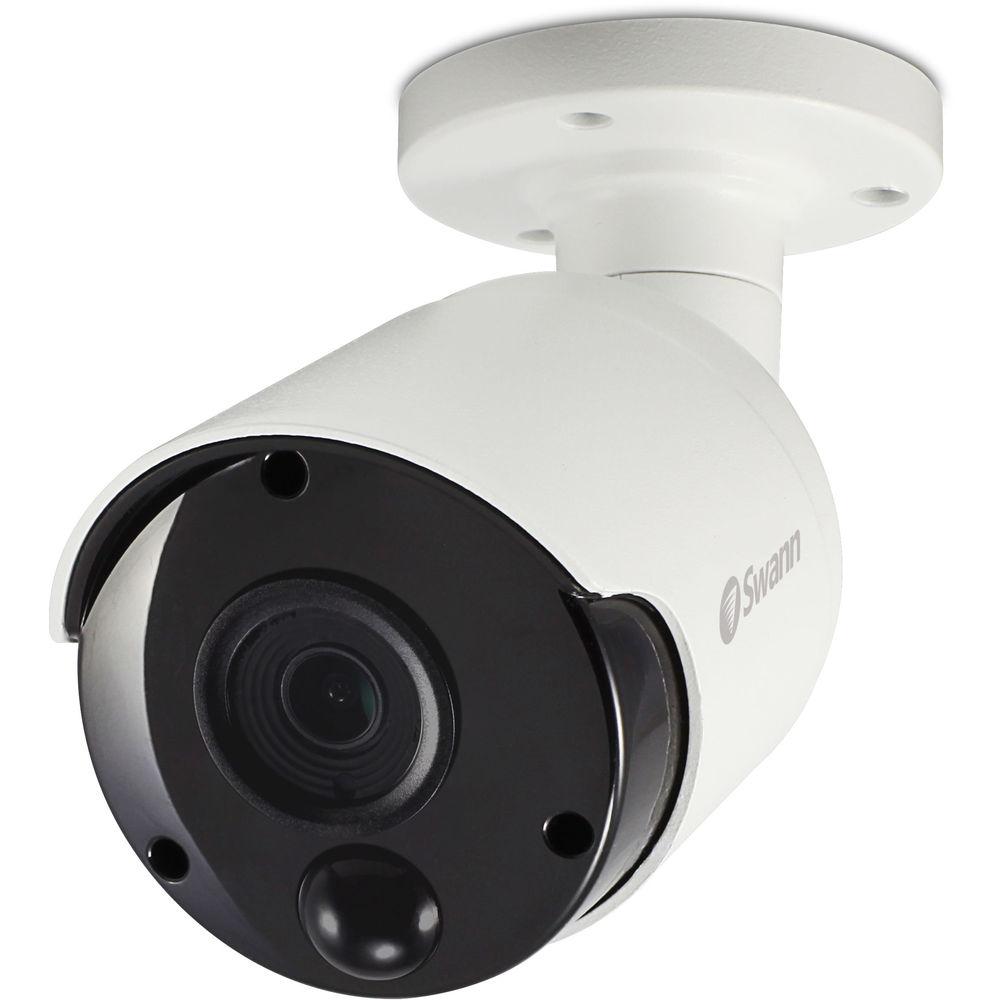

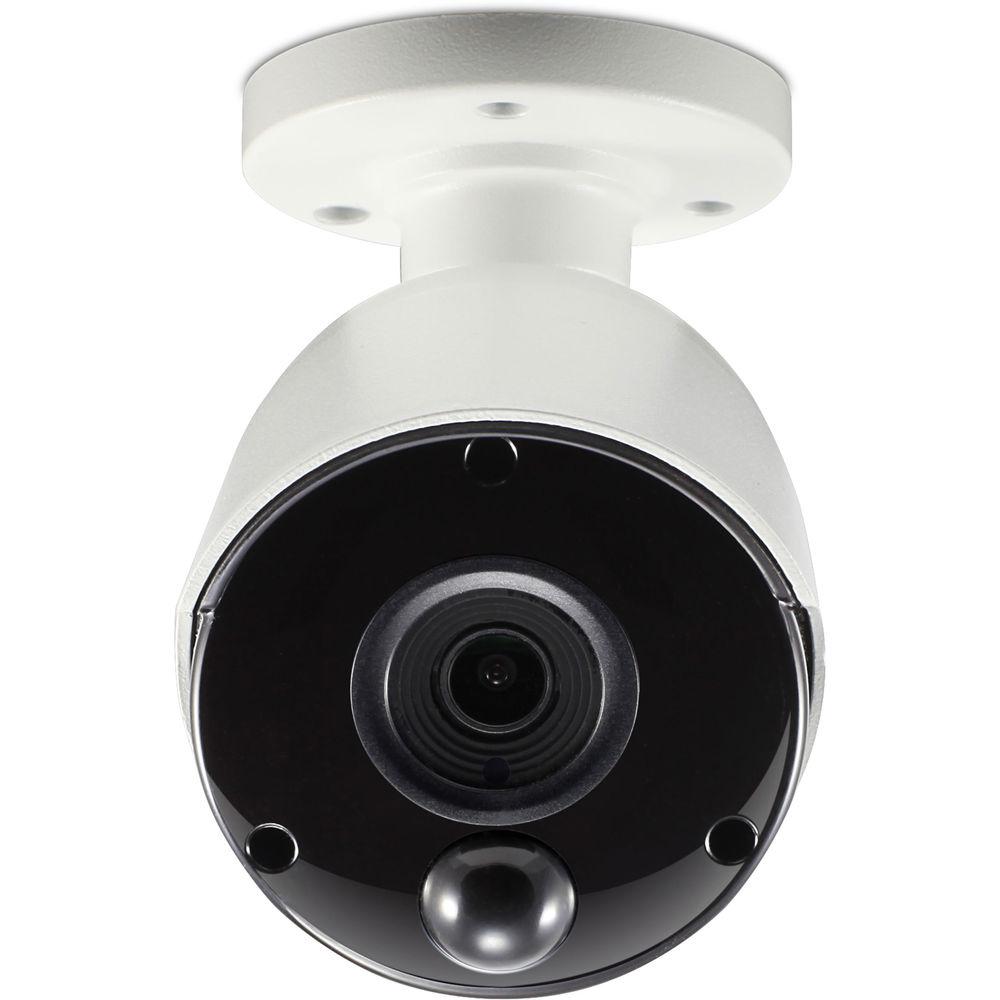

The included bullet cameras capture video at 4K resolution. They each deliver a 90° field of view and up to 150' of night vision. Additionally, they all feature a PIR motion sensor with a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated enclosure, making them suitable for outdoor use. - Works with Google Assistant for voice control
- TrueDetect technology for heat-based, motion-activated recording and alerts
- Remote viewing via HomeSafe View app
- Dropbox integration with QuickShot cloud for storing still images
- HDMI and VGA video outputs
- Up to 4K display resolution
- 4 x audio inputs & 1 x audio output
- 1 x USB 3.0 and 1 x USB 2.0 port
- Smart Search for onscreen activity tracking and playback
- QuickReview enables playback of various recordings from a single camera
- QuickShot allows you to quickly review recordings from multiple cameras
- Compatible with iOS, Android, Windows, Mac OS, and Chromecast
UPC: 840236122219 In the Box Swann 5580 Series 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Outdoor Night Vision Bullet Cameras 8-Channel 4K UHD DVR 8 x SWPRO-4KMSB-US 4K UHD Outdoor Bullet Camera with Night Vision 8 x 60' BNC Cables Ethernet Cable HDMI Cable Power Adapter & Splitter Mouse Mounting Screws & Plugs Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann 5580 Series 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann 5580 Series Specs | | | Video Inputs | 8 | | Video Outputs | VGA, HDMI | | Display Resolution | 3840 x 2160 | | Audio I/O | 4 x RCA inputs
1 x RCA output | | Recording Resolution | 3840 x 2160 | | HDD | 2 TB SATA HDD preinstalled, expandable up to 6 TB | | Network Interface | 1 x RJ45 port | | USB Interface | 1 x USB 3.0 (rear)
1 x USB 2.0 (front) | | Supported Operating Systems | Windows, Mac OS | | Internet Viewing | HomeSafe View app | | Supported Mobile Devices | iOS, Android, 3G/4G smartphones & tablets | | Dimensions (W x D x H) | 12.8 x 9.06 x 2.09" / 325 x 230 x 53 mm | | Weight | Not specified by manufacturer | | | | Video Resolution | 8 MP / 3840 x 2160 | | Field of View | 90° | | Night Vision | Total Darkness: Up to 150' / 45 m
Ambient Light: Up to 200' / 60 m | | PIR Thermal/Motion Sensor | Yes, TrueDetect | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Dimensions | Including Stand: 5.94 x 2.76 x 2.76" / 151 x 70 x 70 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 22.25 lb | | Box Dimensions (LxWxH) | 17.05 x 11.6 x 11.3" |
