Swann 8-Channel 3MP DVR with 2TB

Search your instruction manual in PDF to download

User Manual for Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras

Click to enlarge the picture
Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Contents of the user manual for the Swann 8-Channel 3MP DVR with 2TB
  • Product category: Surveillance Systems Swann
  • Brand: Swann
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Swann Surveillance Systems

Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras
User manual for the Swann 8-Channel 3MP DVR with 2TB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Swann product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!



Product description

  • Swann Security at a Service Station

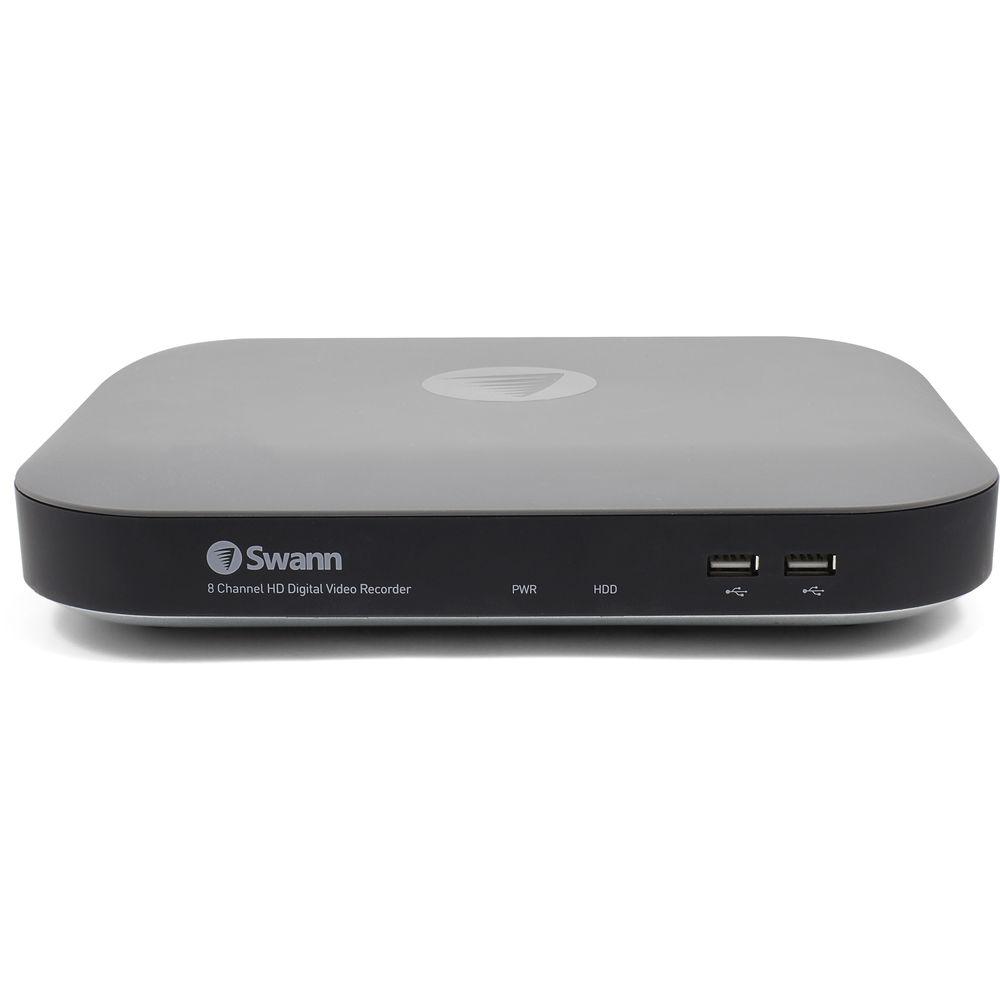

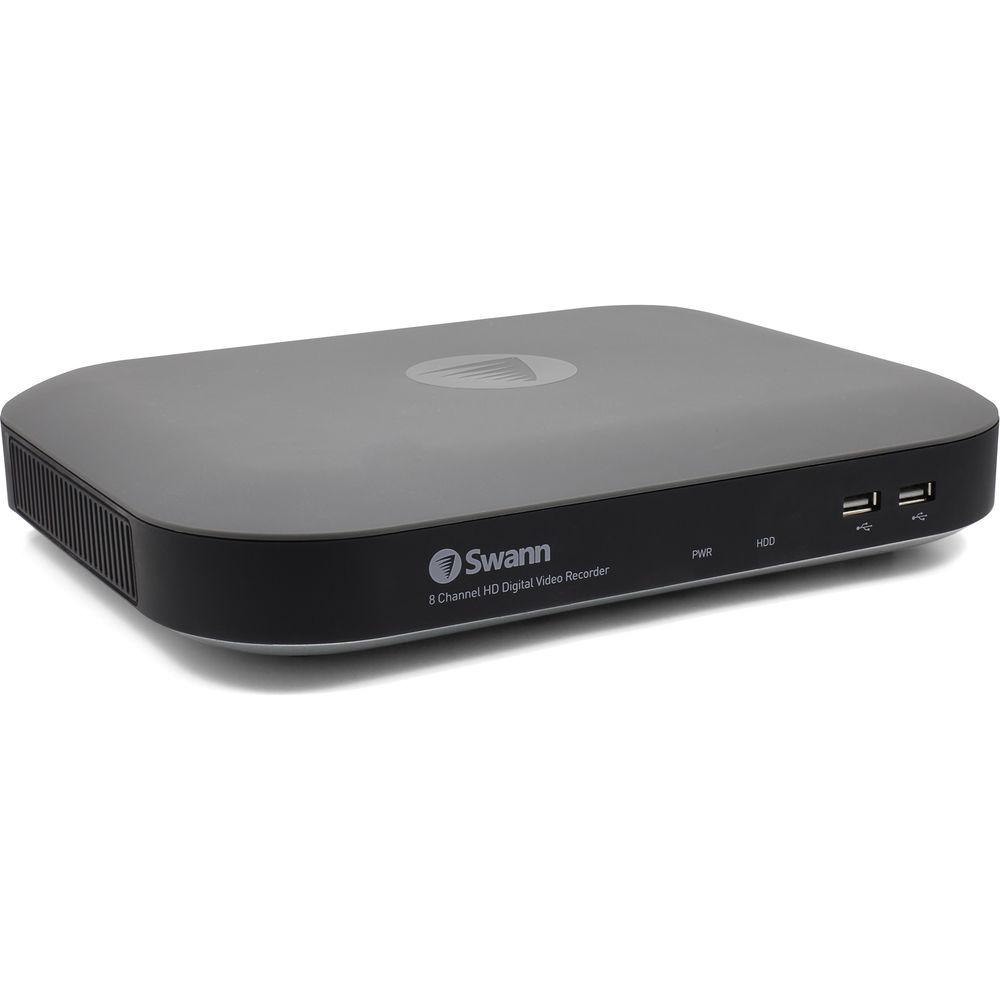

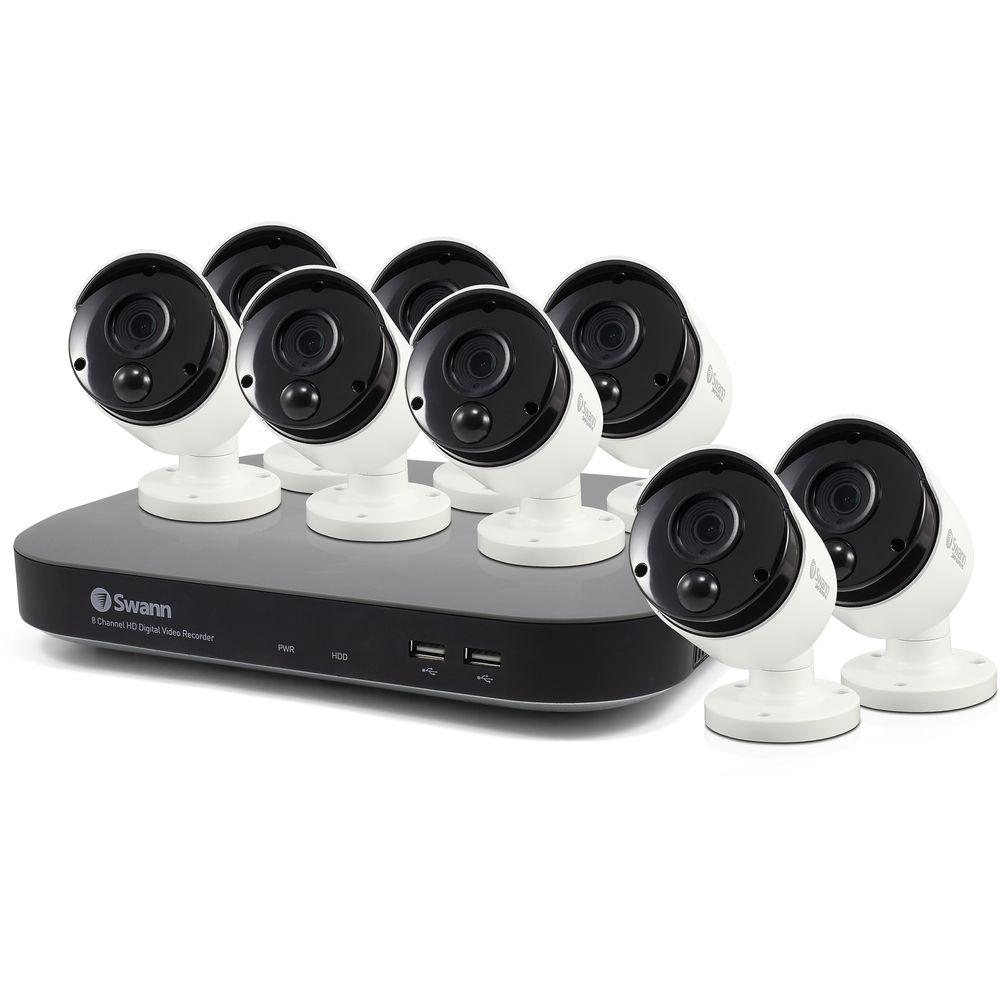

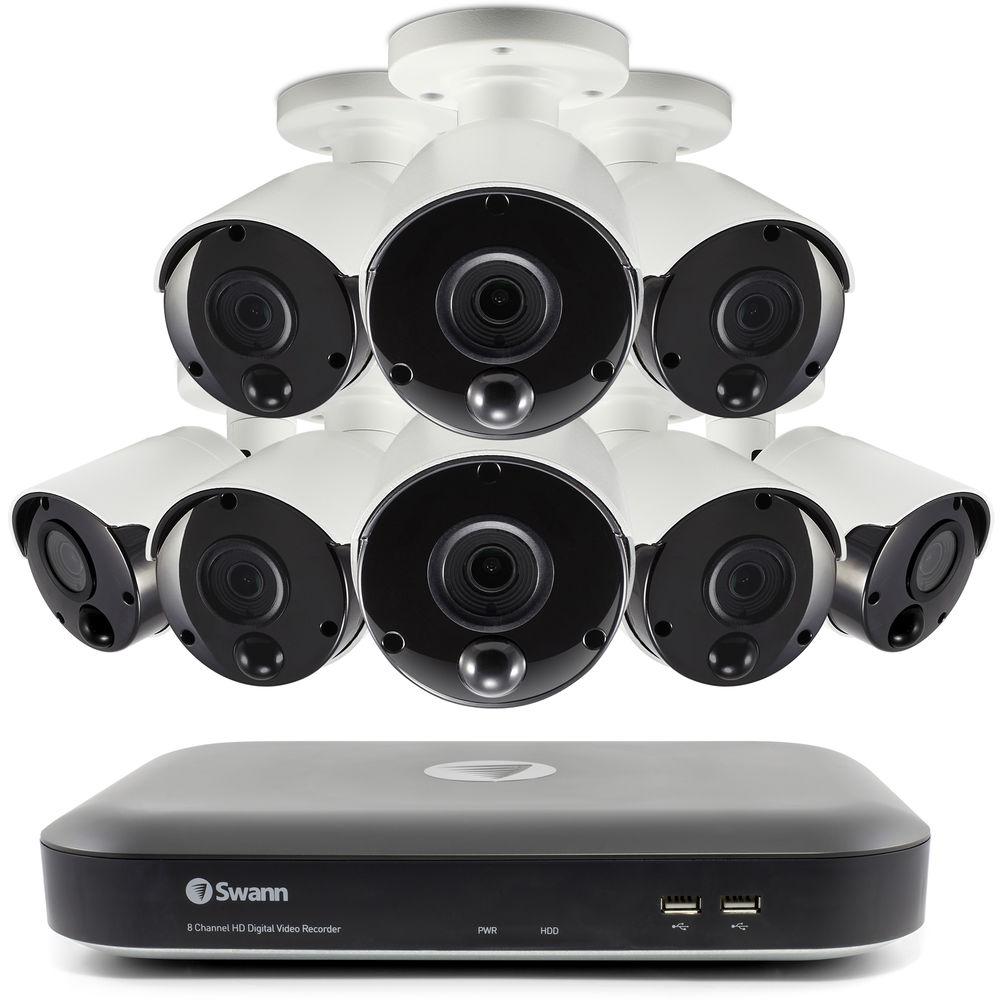

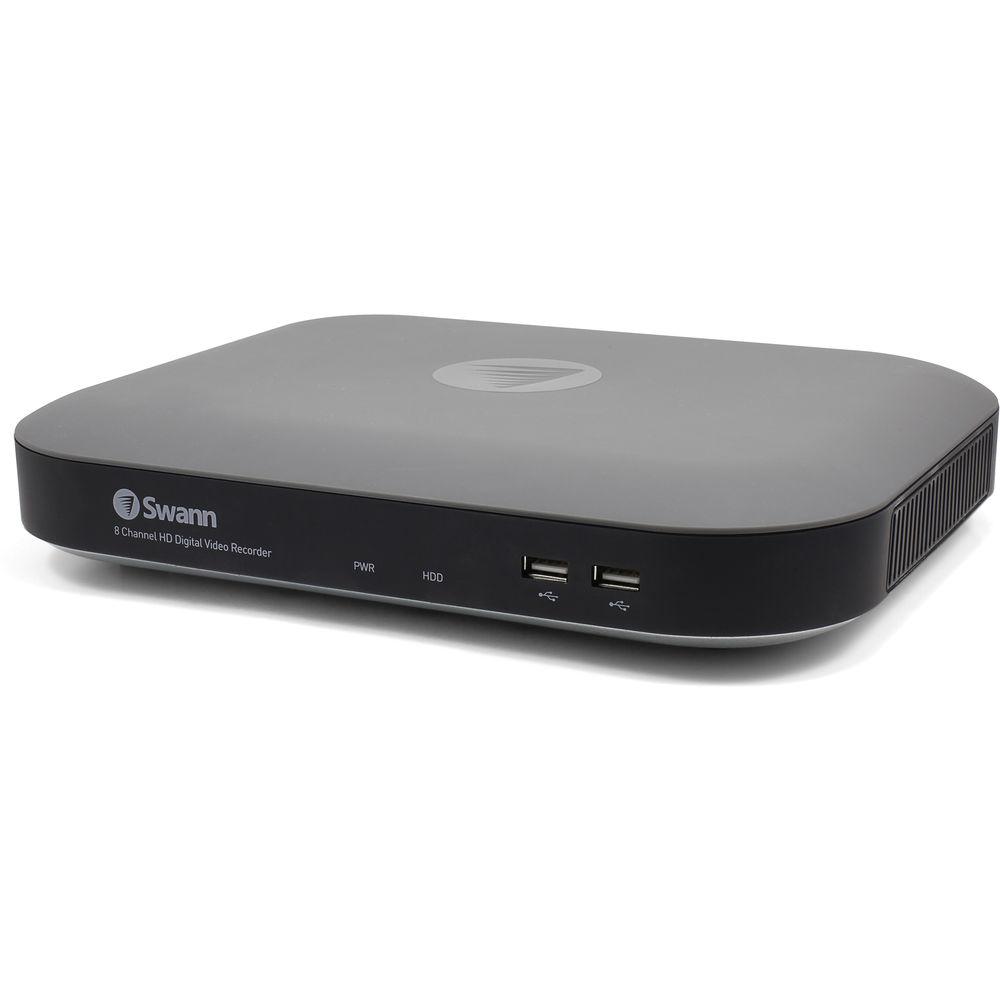

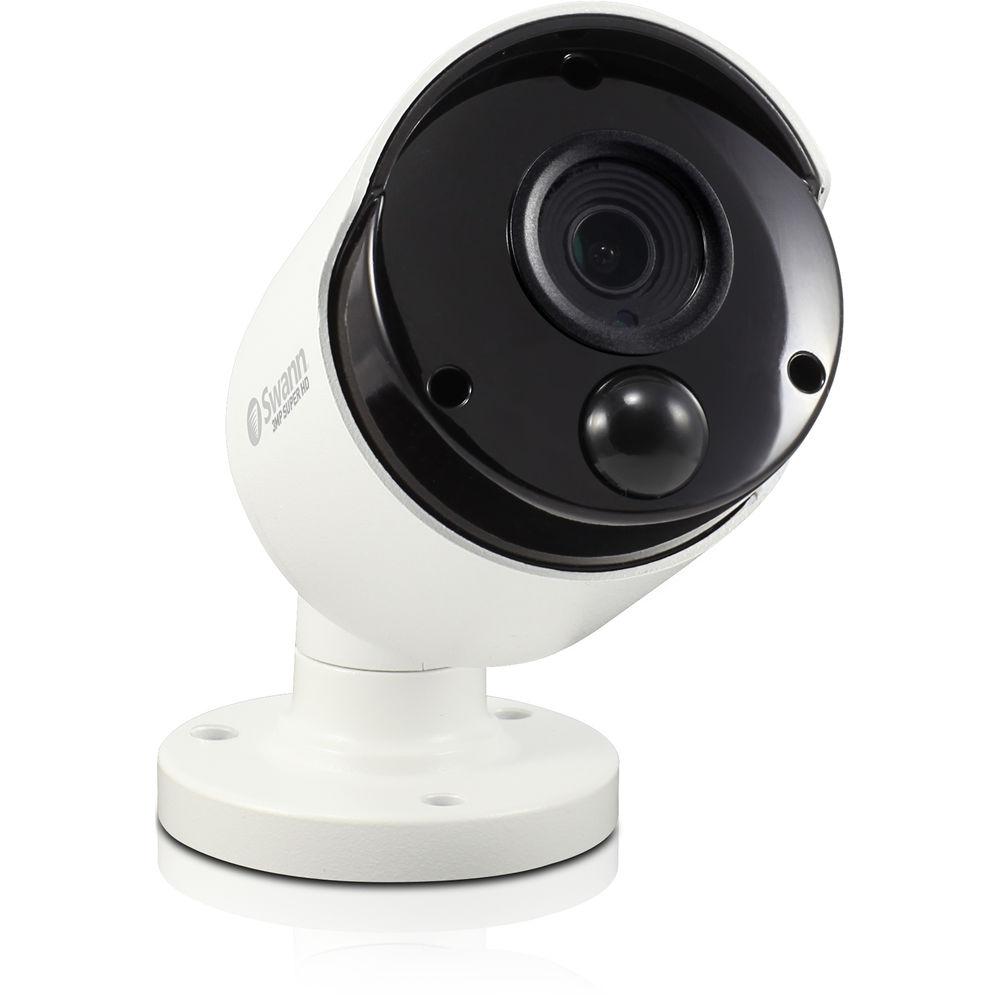

Monitor your home or business with the 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras from Swann. This kit comes with a preinstalled 2TB HDD to store recorded video from the included 3MP bullet cameras. HDD storage is expandable to up to 6TB. The built-in HDMI and VGA video outputs deliver a display resolution up to 1080p. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC. The PRO-3MPMSB cameras capture video at a resolution of 2048 x 1536, and feature a 64° field of view. Integrated IR LEDs deliver up to 100' of night vision. Additionally, the PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are housed in an IP66-rated aluminum enclosure, making them suitable for outdoor use.Eight 60' BNC cables, an HDMI cable, a power adapter & splitter, a mouse, mounting screws and plugs, and theft deterrent stickers are included, providing a complete, easy-to-install surveillance system.
  • BNC type connection
  • PIR sensor detection range of up to 32'
  • Motion detection and thermal sensing
  • IR cut filter
  • Cameras are each housed in an IP66-rated aluminum enclosure that is suitable for outdoor use

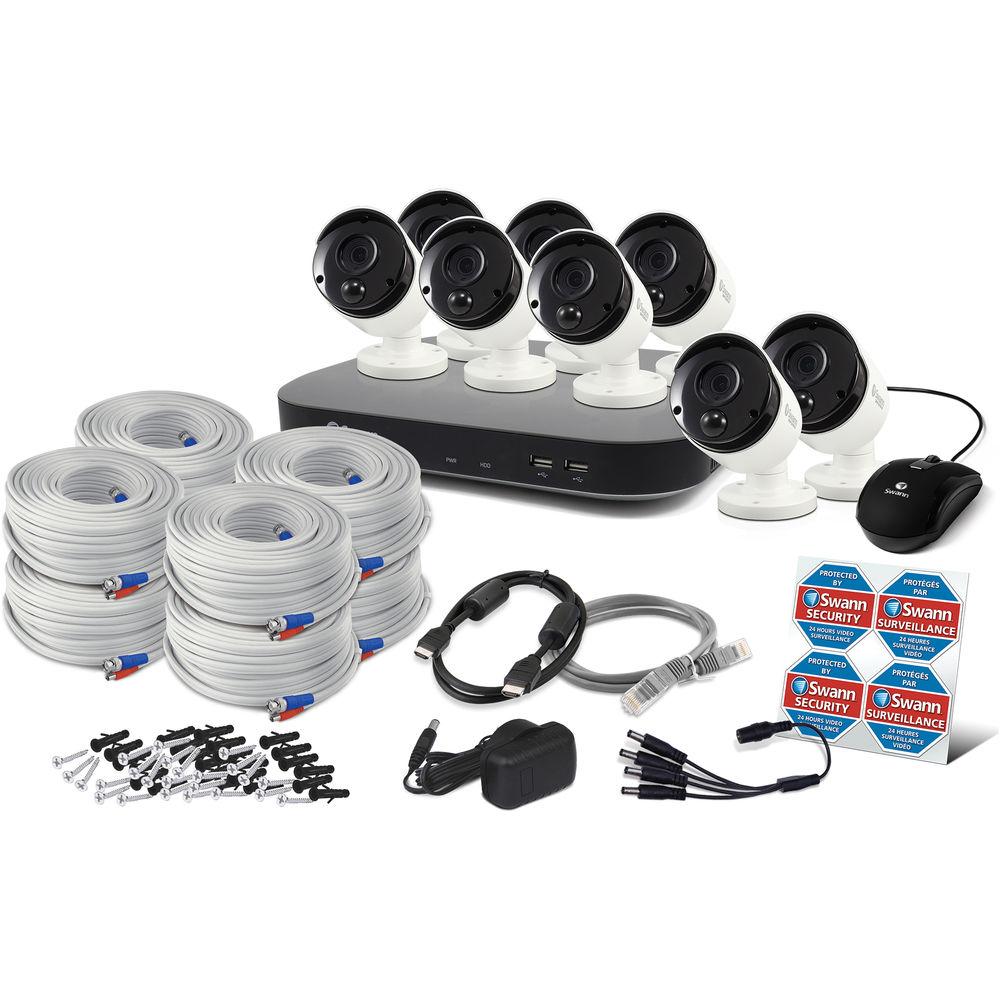

UPC: 840236120598 In the Box Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras
  • 8 x 60' BNC Cables
  • Ethernet Cable
  • HDMI Cable
  • Power Adapter & Splitter
  • Mouse
  • Mounting Screws & Plugs
  • Theft Deterrent Stickers
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Swann 8-Channel 3MP DVR with 2TB HDD and 8 3MP Outdoor Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

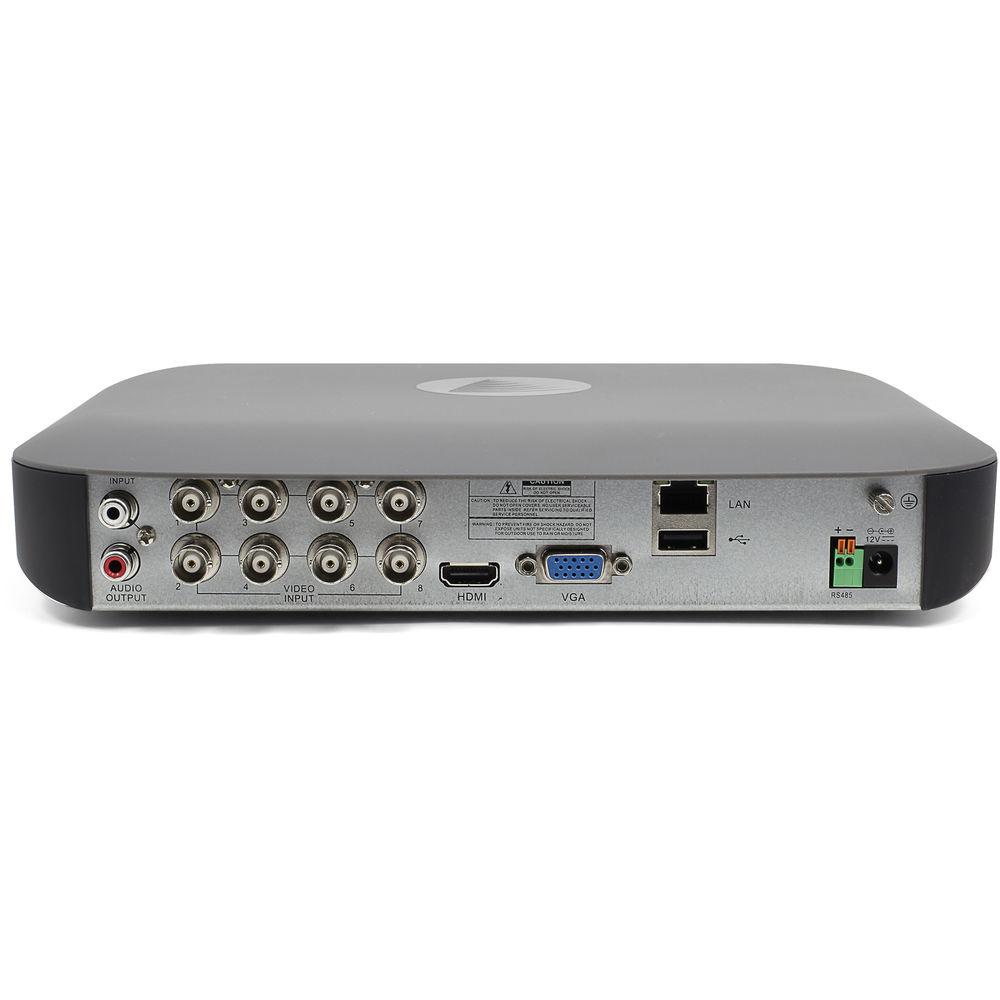

    Swann SWDVK-847808-US Specs

    Video Input 8 channels
    Video Outputs 1 x VGA
    1 x HDMI
    Display Resolution Up to 1080p (1920 x 1080)
    Audio Input 1 x RCA
    Audio Output 1 x RCA
    Recording Resolution Up to 3 MP (2048 x 1536)
    Hard Drive Support Includes 2 TB SATA HDD (supports up to 6 TB)
    Network Interface 1 x RJ45 Ethernet
    USB Interface 3 x USB 2.0 (2 in front, 1 in rear)
    Operating Systems Supported Windows, Mac OS
    Internet Viewing HomeSafe View app
    Compatible Mobile Devices iOS, Android, 3G/4G smartphones & tablets
    Dimensions (W x D x H) 11 x 9 x 2" / 275 x 220 x 53 mm

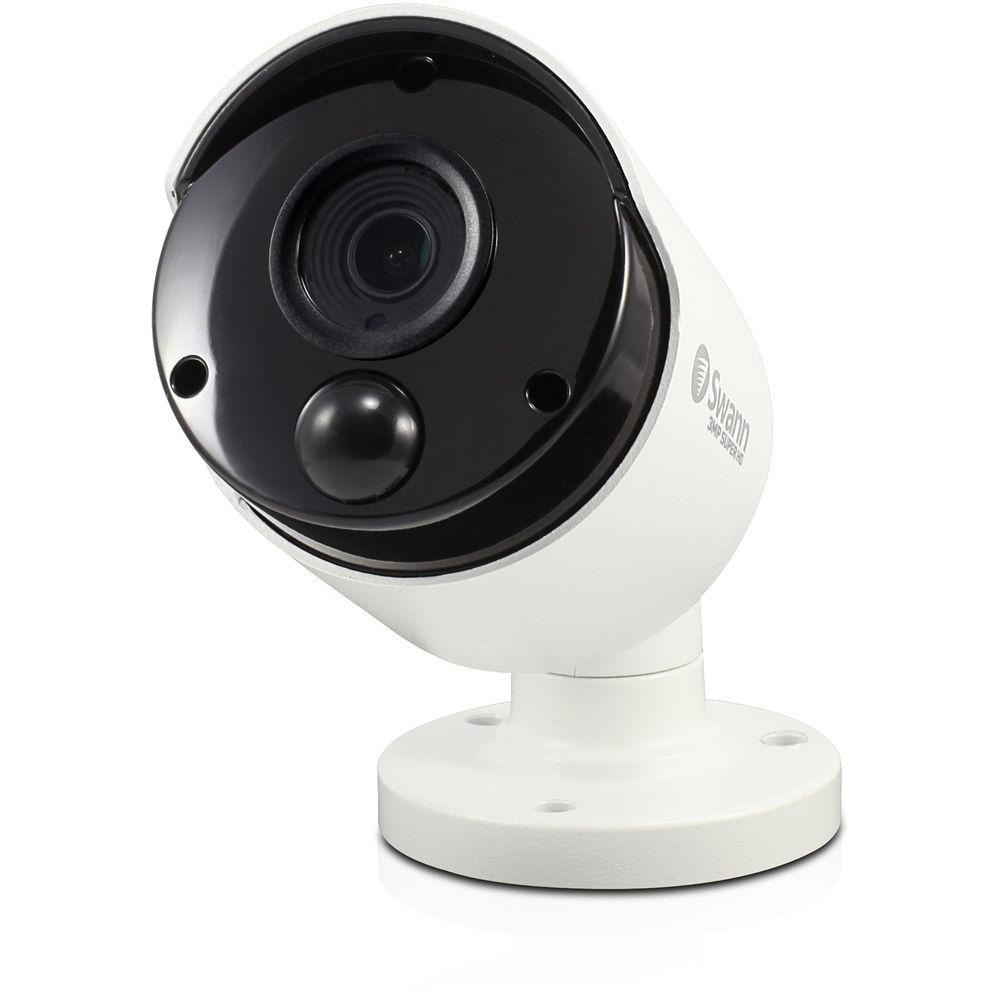

    Resolution 3 MP (2048 x 1536)
    Field of View 64°
    Night Vision Distance Up to 100' / 30 m
    PIR Thermal/Motion Sensor Yes, TrueDetect
    PIR Sensor Range Up to 32' / 10 m
    IP Rating IP66
    Operating Temperature -4 to 122°F / -20 to 50°C
    Construction Material Aluminum
    Dimensions 6 x 3 x 3" / 151 x 70 x 70 mm with stand
    Package Weight 22.6 lb
    Box Dimensions (LxWxH) 17.48 x 12.441 x 11.653"
