Product description - Speak to See with Swann on CyberShack TV (Long) - Google Assistant Demo

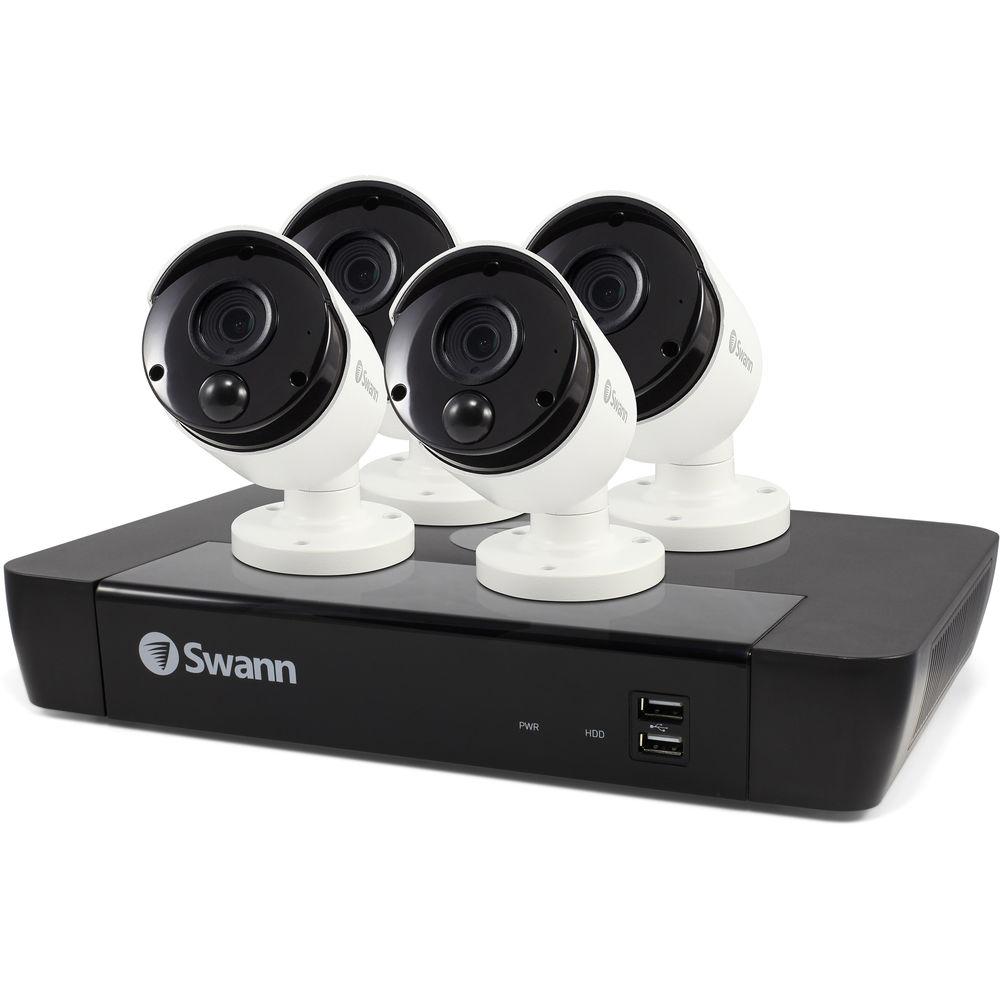

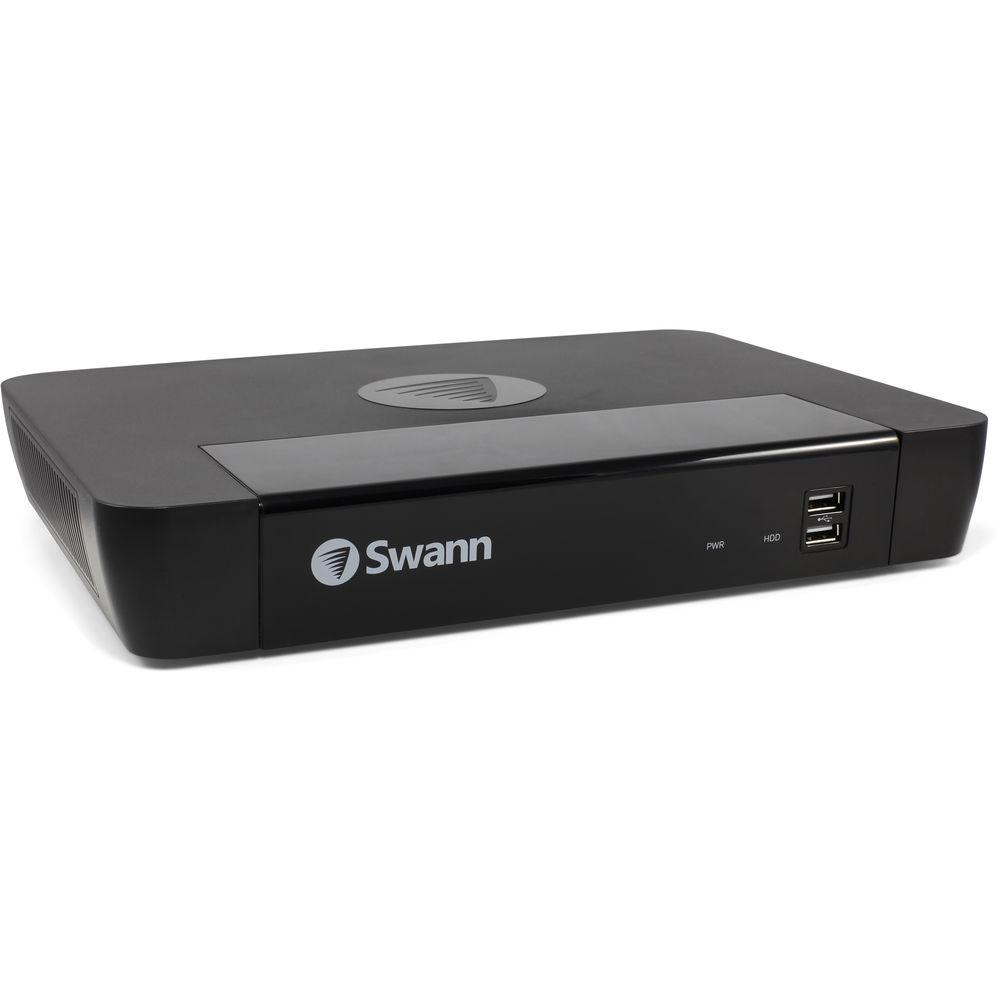

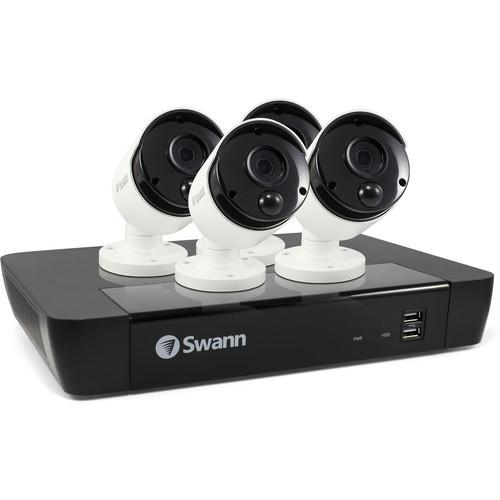

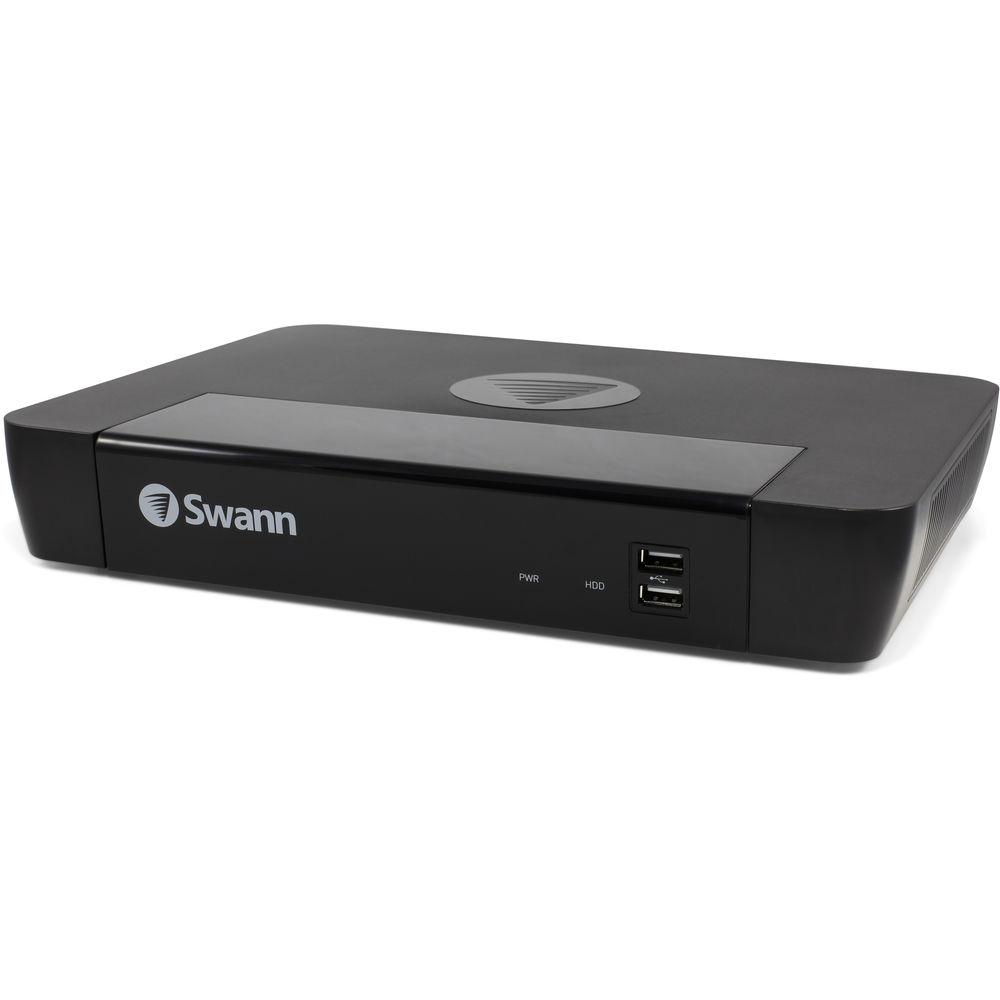

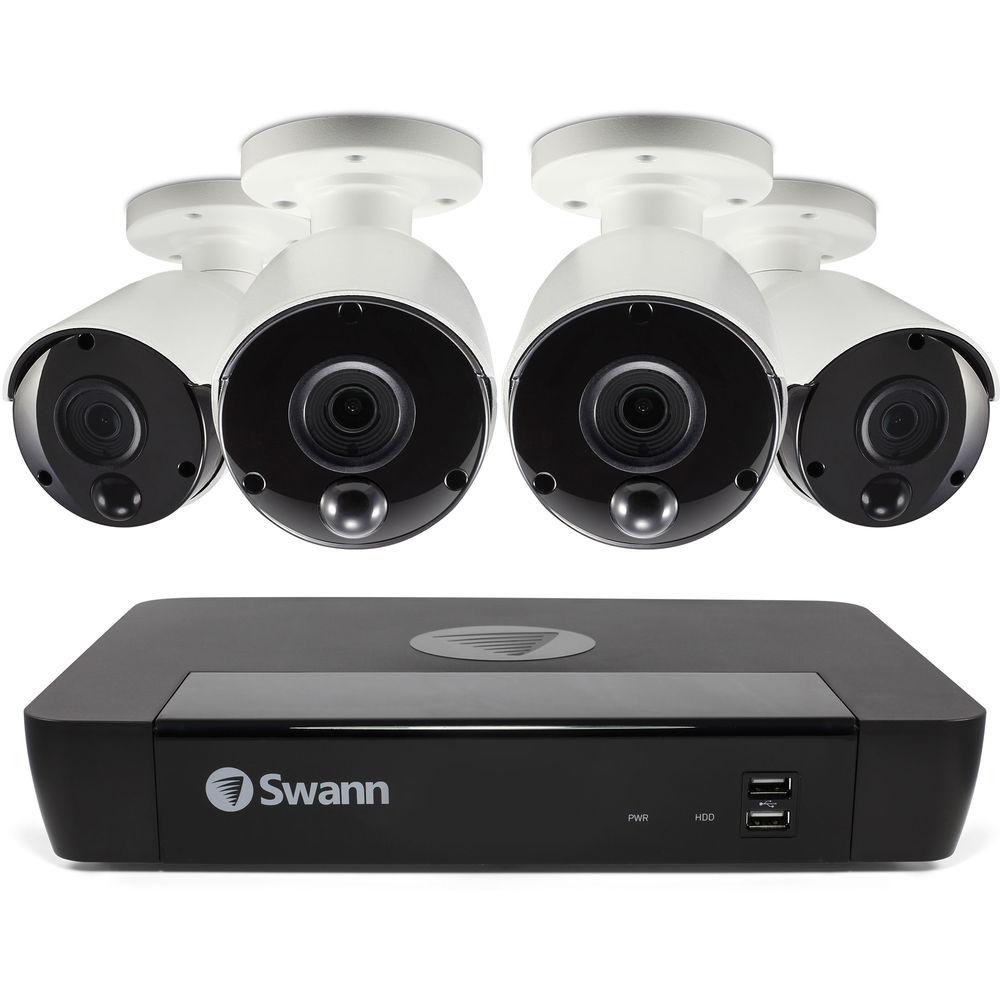

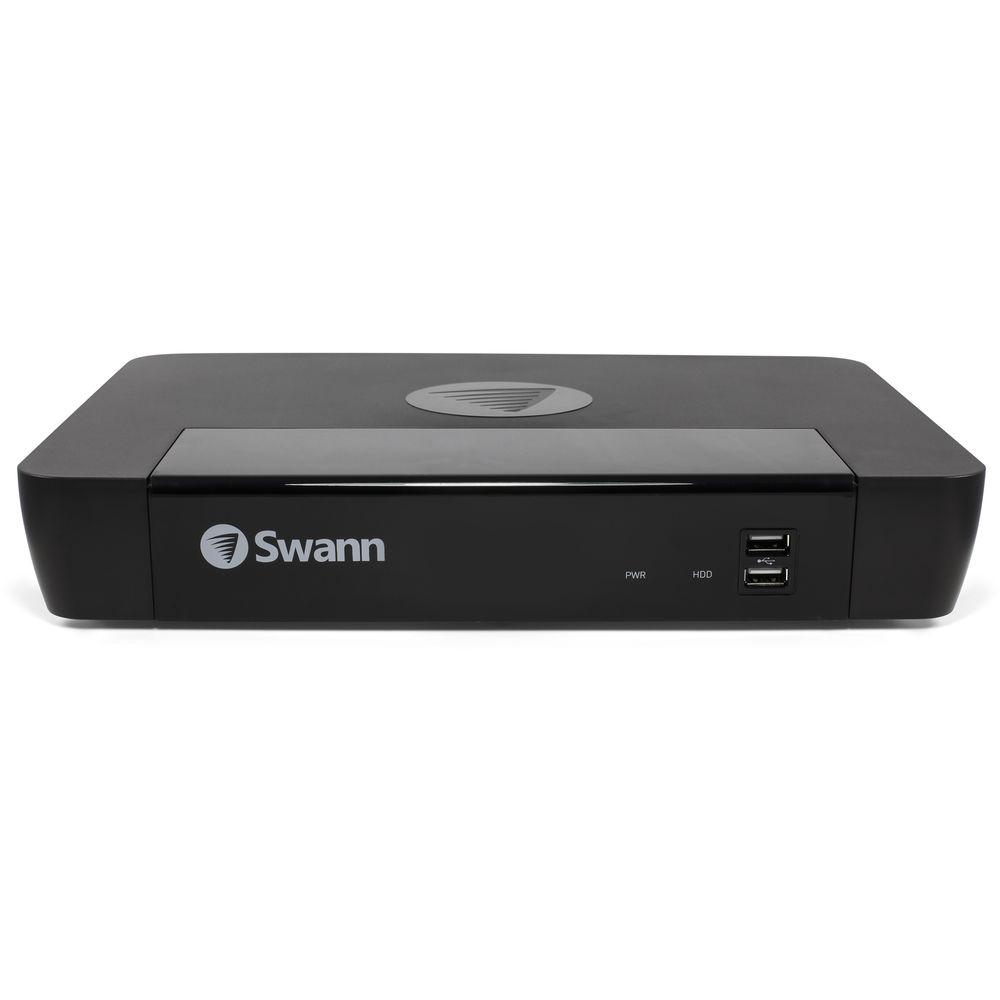

Monitor your home or business with the 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Outdoor Night Vision Bullet Cameras from Swann. This NVR kit comes with a preinstalled 2TB HDD to store recorded video from the included bullet cameras. HDD storage is expandable to 6TB. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.

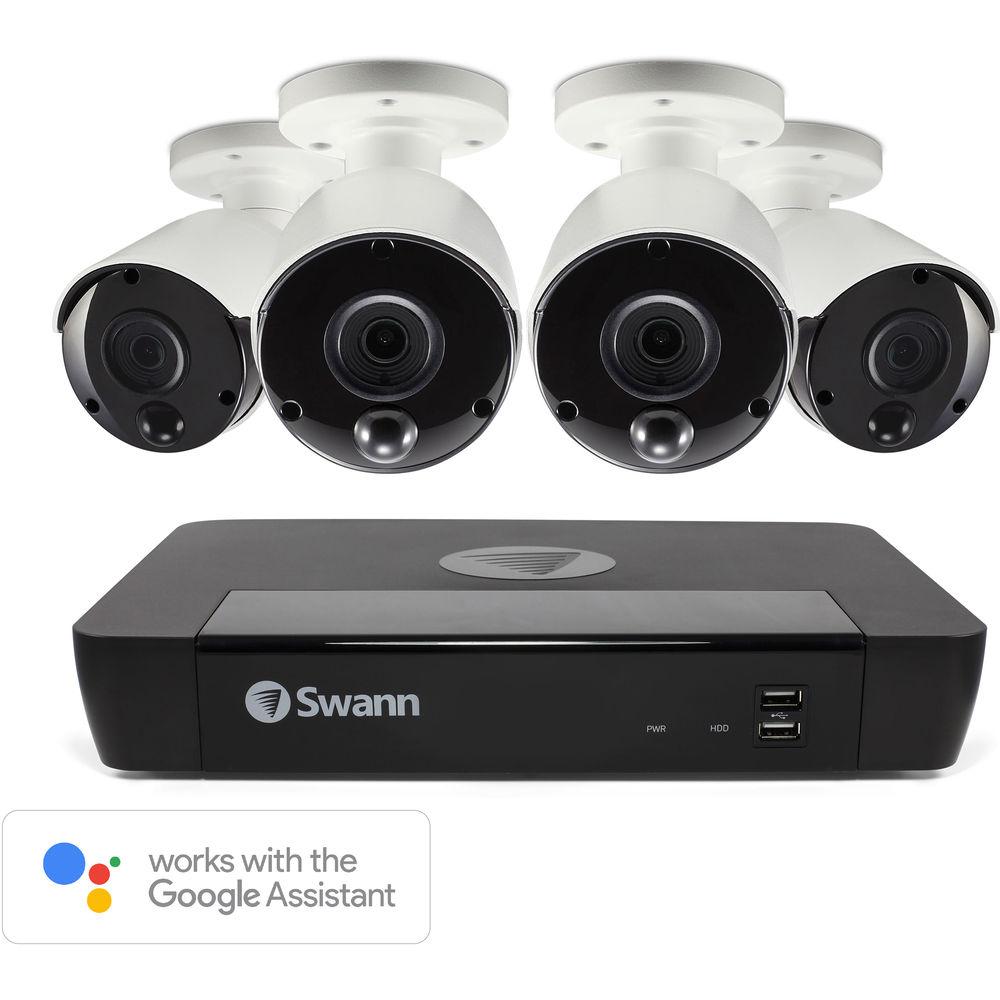

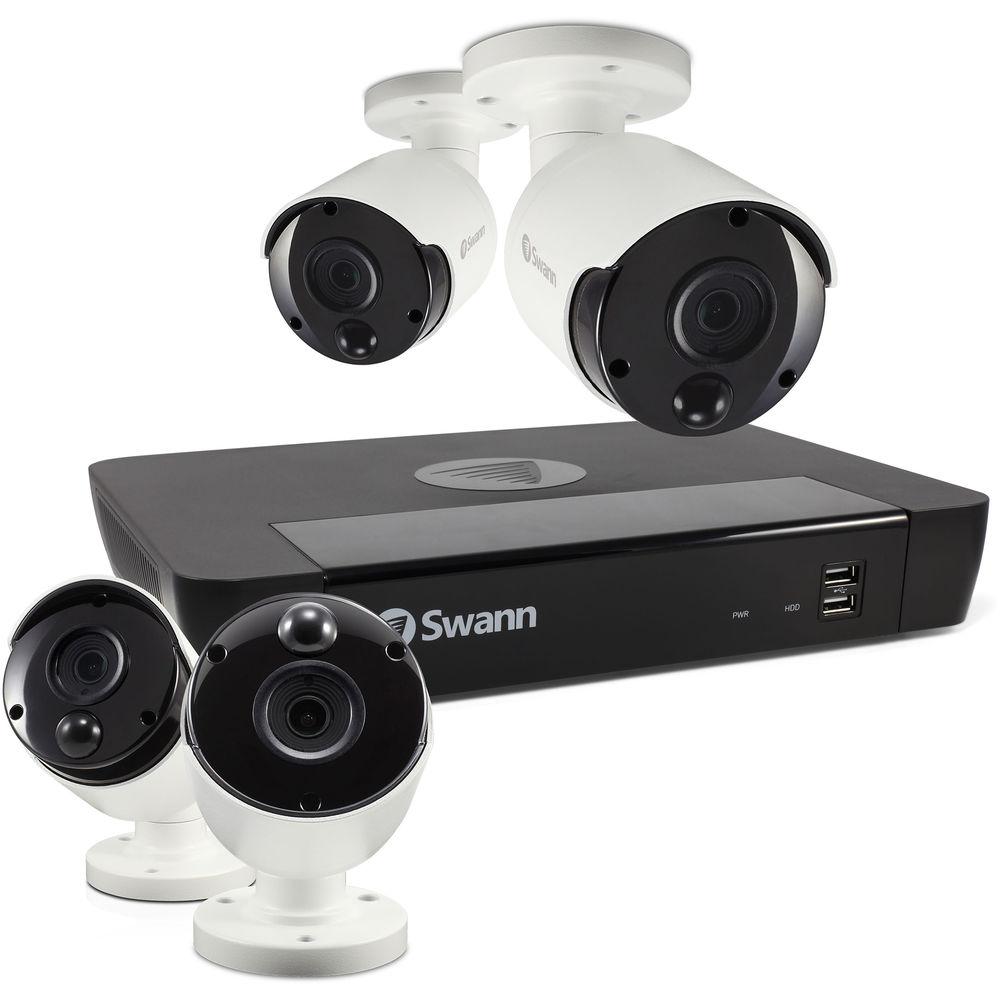

The included bullet cameras capture video at 5MP resolution. They each feature an 82° field of view and up to 130' of night vision. Audio is possible thanks to a built-in microphone. Additionally, a PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated aluminum enclosure, making them suitable for outdoor use. - Voice control via Google Assistant
- RJ45 Ethernet with PoE technology

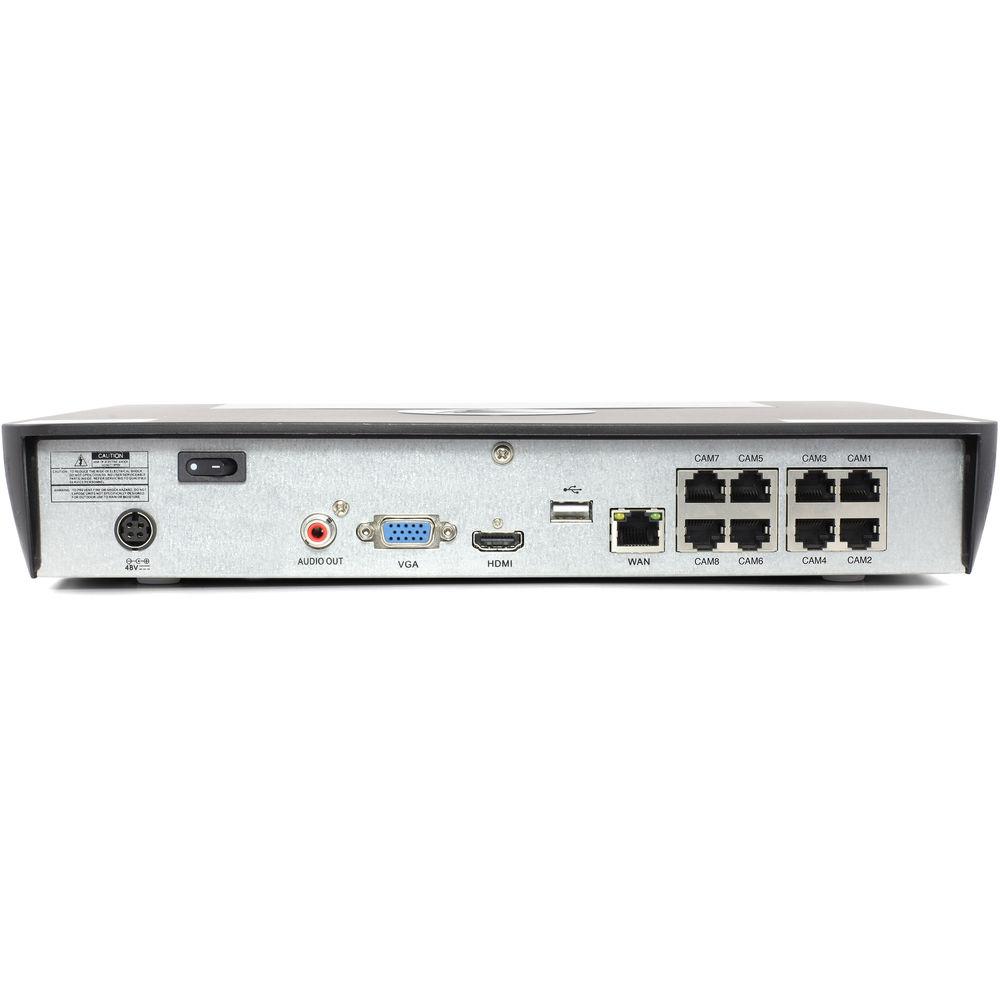

- HDMI and VGA video outputs
- True Detect technology for heat-based motion-activated recording and alerts
- Remote viewing via the free HomeSafe View app
- QuickShot Cloud feature lets you review recordings from multiple cameras, and save still images to a personal Dropbox account
- IP66-rated aluminum cameras suitable for outdoor use

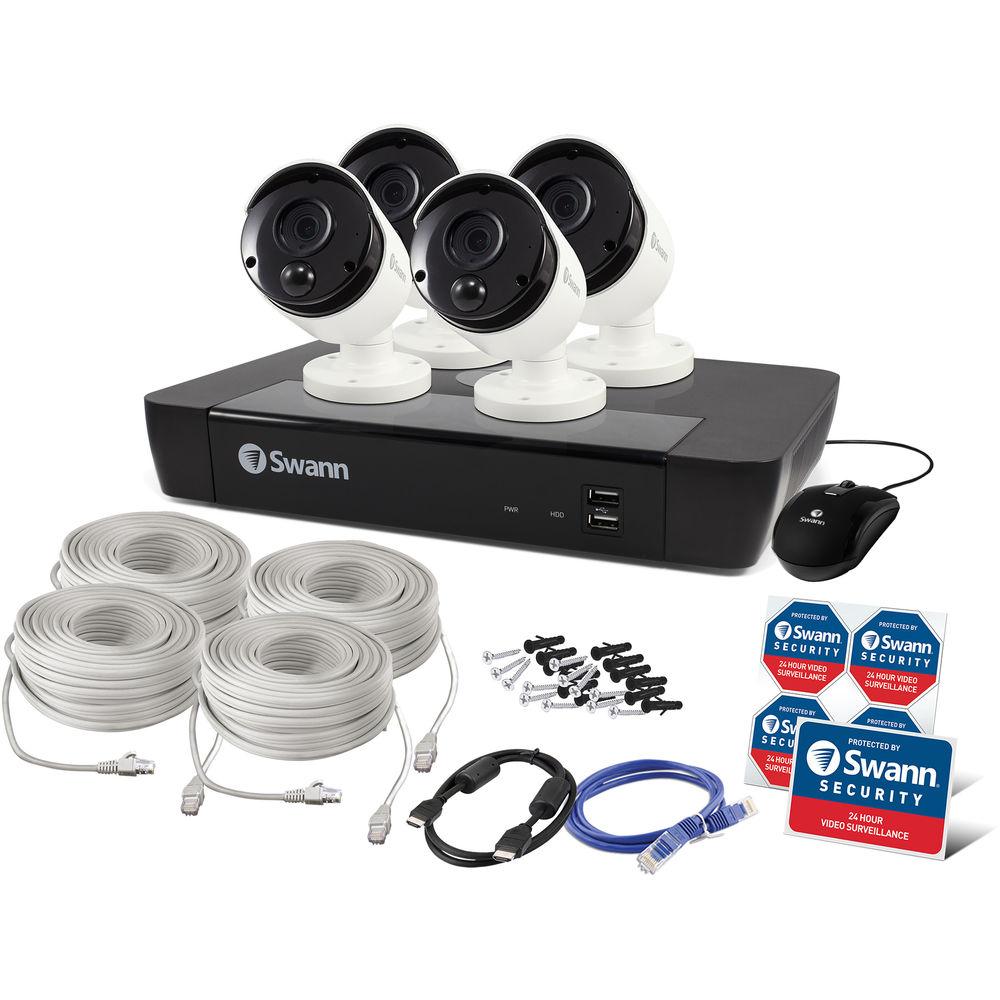

UPC: 840236122332 In the Box Swann 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Outdoor Night Vision Bullet Cameras HDMI Cable Mouse 4 x 60' / 18m Cat 5e Ethernet Cables 3' / 1m Cat 5e Ethernet Cable Power Adapter Mounting Screws & Plugs Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann 8580 Series Specs | | | Number of Channels (Input) | 8 | | Outputs | VGA, HDMI | | Display Resolution | Up to 3840 x 2160 | | Audio Inputs | 8 x PoE ports | | Audio Output | 1 x RCA | | Video Compression | H.264, H.265 | | Recording Resolution | Up to 4K/8 MP with 4K cameras | | Playback Speed | Up to 15 fps at 5 MP | | HDD Included | 2 TB | | HDD Capacity | Up to 6 TB | | Network Interface | 1 x RJ45 | | USB Interface | 3 x USB 2.0 | | Supported Operating Systems | Windows, Mac OS | | Internet Viewing | HomeSafe View | | Supported Mobile Devices | iOS, Android, 3G/4G smartphones & tablets | | Dimensions | 9.25 x 12.2 x 2" / 235 x 310 x 53 mm | | Weight | Not specified by manufacturer | | | | Resolution | 5 MP | | Field of View | 82° | | Built-In Microphone | Yes | | Audio Range | 16' / 5 m | | Night Vision Range | 130' / 40 m | | IR Cut Filter | Yes | | PIR Thermal/Motion Sensor | Yes, True Detect | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Construction Material | Aluminum | | Dimensions | 5.94 x 2.76 x 2.76" / 151 x 70 x 70 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 13.95 lb | | Box Dimensions (LxWxH) | 17.0 x 11.5 x 7.75" |
