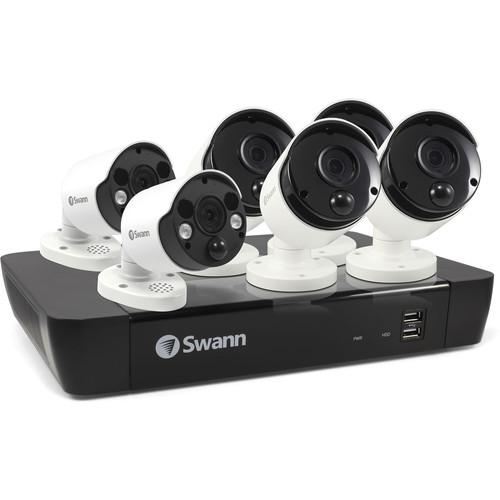

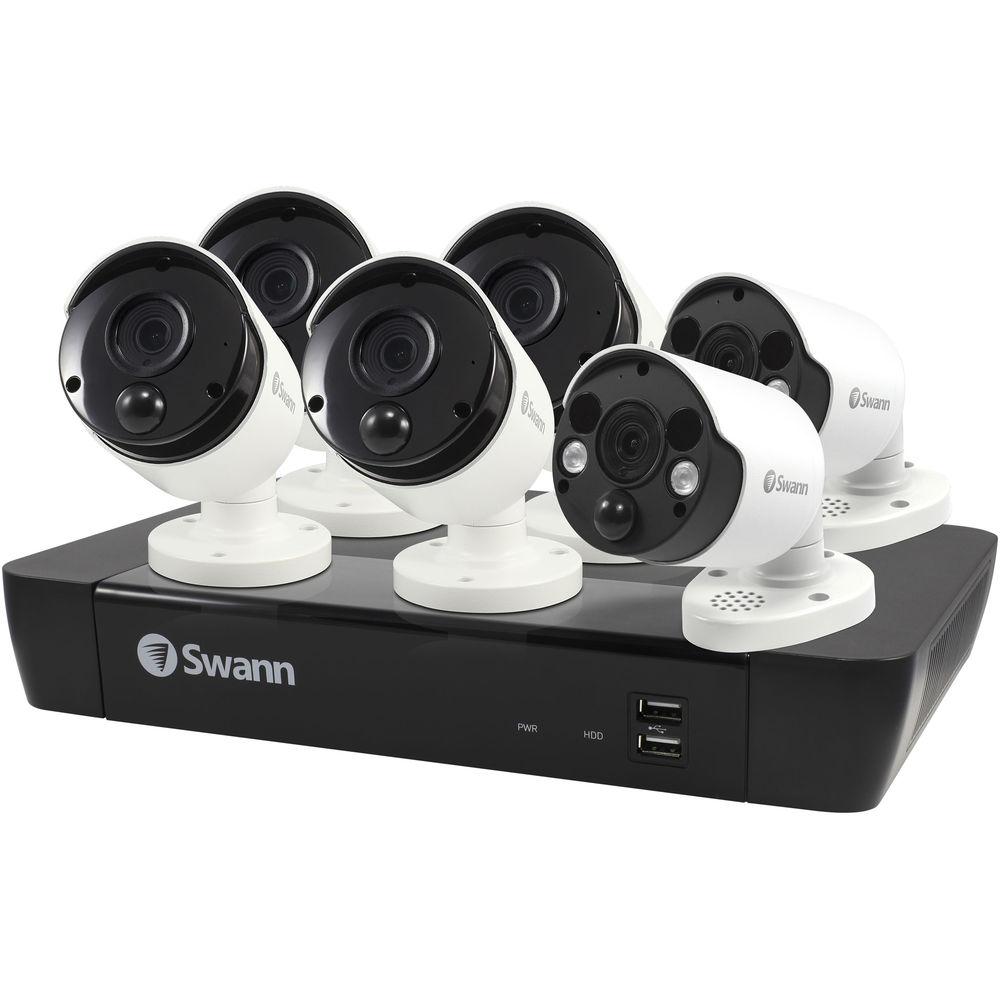

User Manual for Swann 8-Channel 4K UHD NVR with 2TB HDD & 6 5MP Outdoor Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Swann 8-Channel 4K UHD NVR with
- Product category: Surveillance Systems Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Surveillance Systems
 |
User manual for the Swann 8-Channel 4K UHD NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|
Product description - Speak to See with Swann on CyberShack TV (Long) - Google Assistant Demo

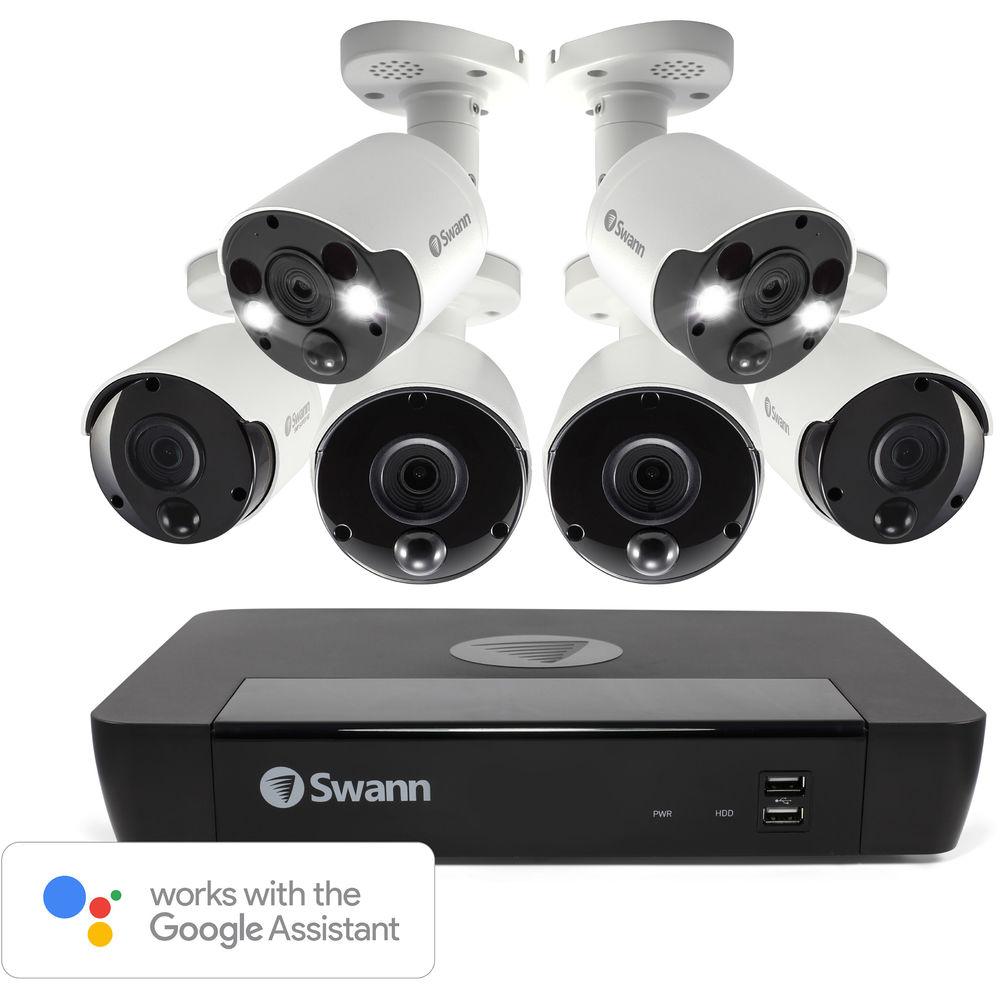

Monitor your home or business with the 8-Channel 4K UHD NVR with 2TB HDD & 6 5MP Outdoor Night Vision Bullet Cameras from Swann. This NVR kit comes with a preinstalled 2TB HDD to store recorded video from the included bullet cameras. HDD storage is expandable to 6TB. With the free HomeSafe View app, remote viewing can be accessed via iOS and Android mobile devices, or a Windows or Mac PC.
The included bullet cameras capture video at 5MP resolution. They each feature an 82° field of view and up to 130' of night vision. A PIR motion sensor has a range of up to 32', enabling the cameras to detect people, cars, animals, and other large heat-generating objects. The cameras are each housed in an IP66-rated aluminum enclosure, making them suitable for outdoor use. - NVR
-
- RJ45 Ethernet with PoE technology
- HDMI and VGA video outputs
- H.264/H.265 compression
- Remote viewing via the free HomeSafe View app
- 3 USB 2.0 ports
- Quickshot Cloud feature lets you review recordings from multiple cameras, and save still images to a personal Dropbox account
- Compatible with Windows, Mac OS, iOS, Android, Google Assistant, and Chromecast

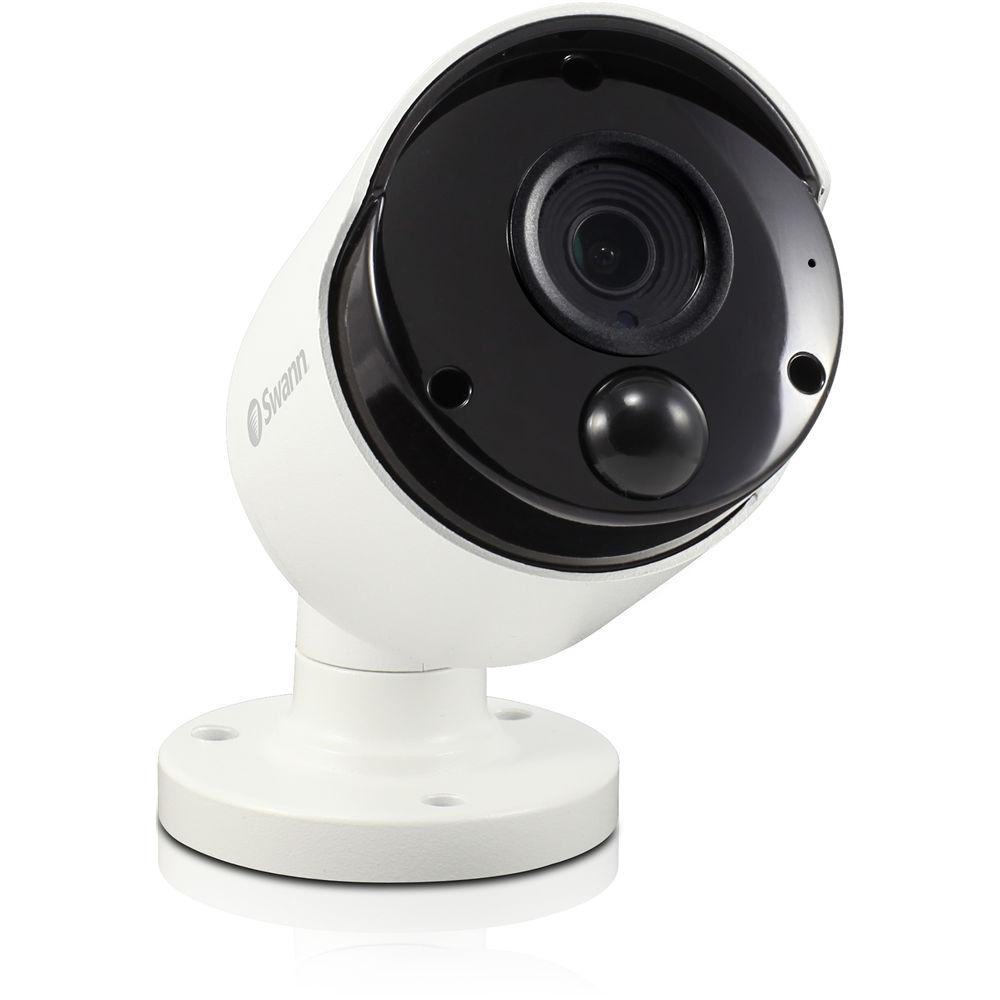

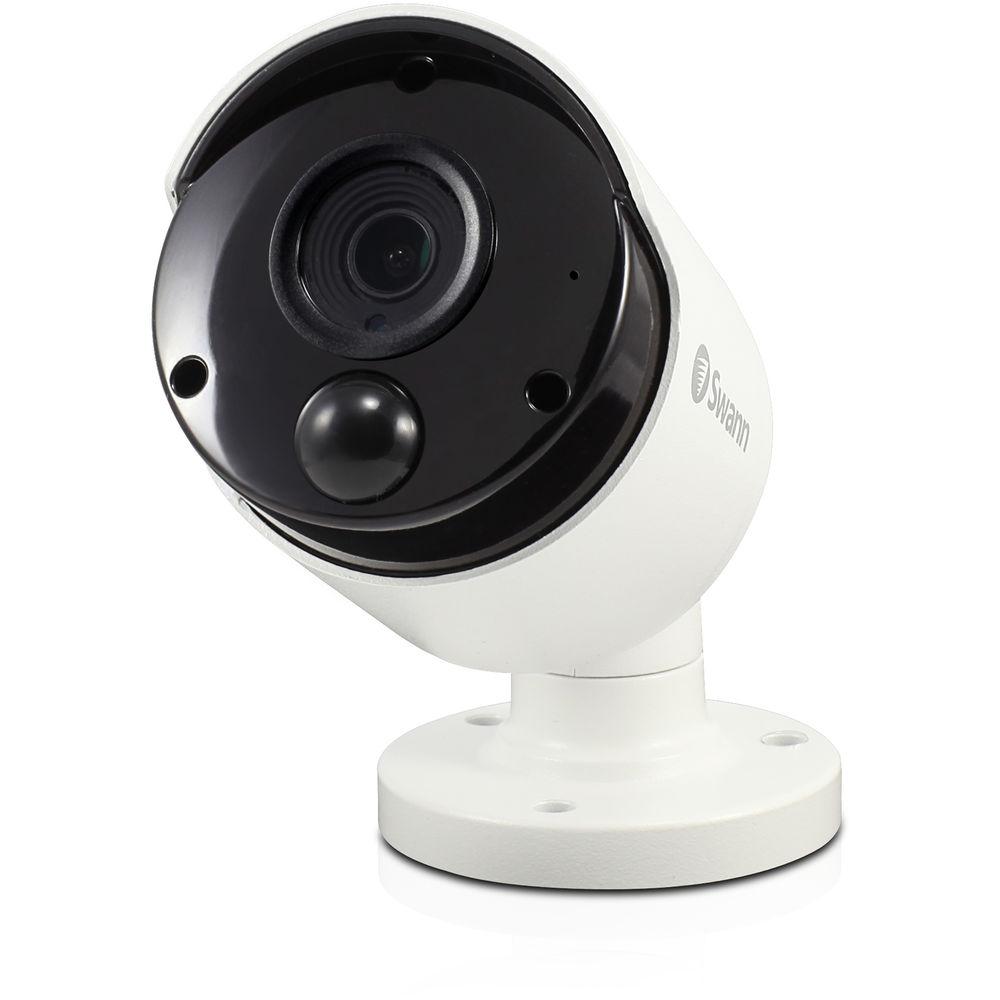

- SWNHD-865MSB-US 5MP Bullet Cameras
-
- IR cut filter
- Built-in microphone to record audio
- Audio range up to 16'
- Motion and heat events trigger recording and alerts with push notifications to your phone
- IP66-rated aluminum enclosure that is suitable for outdoor use

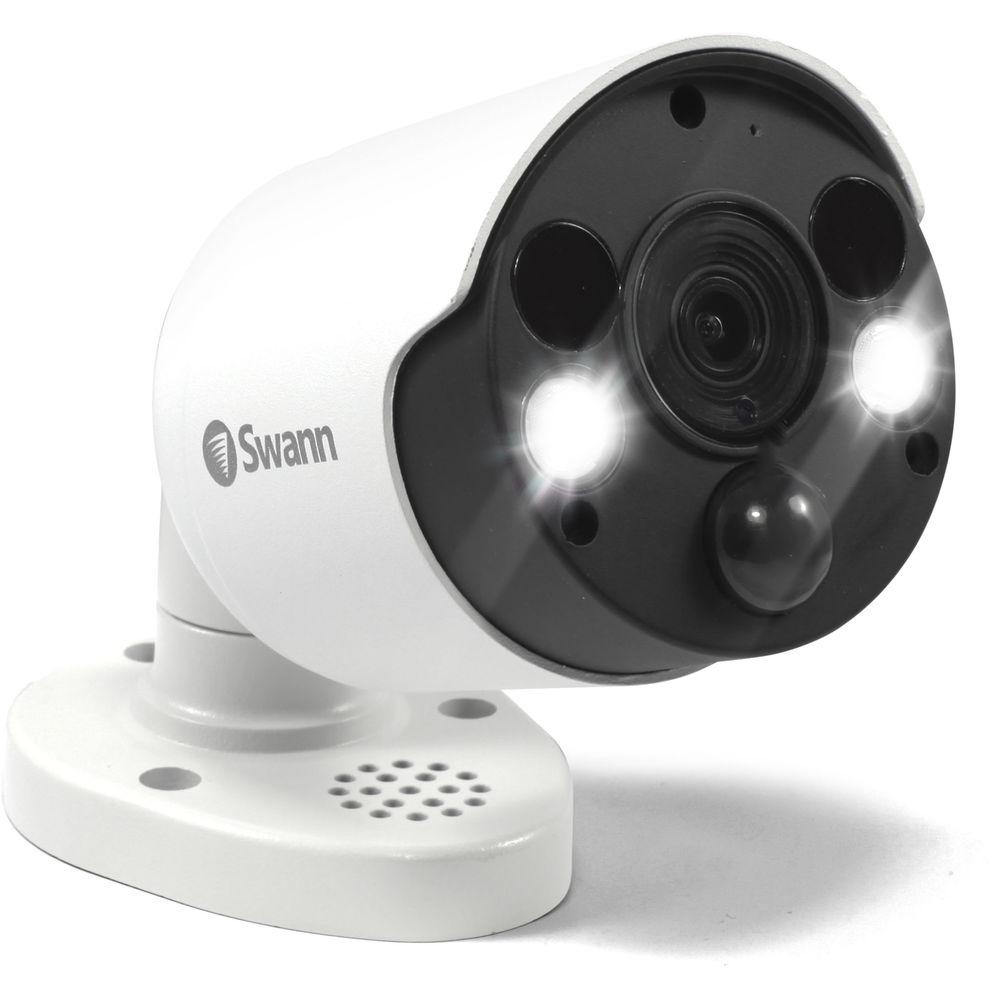

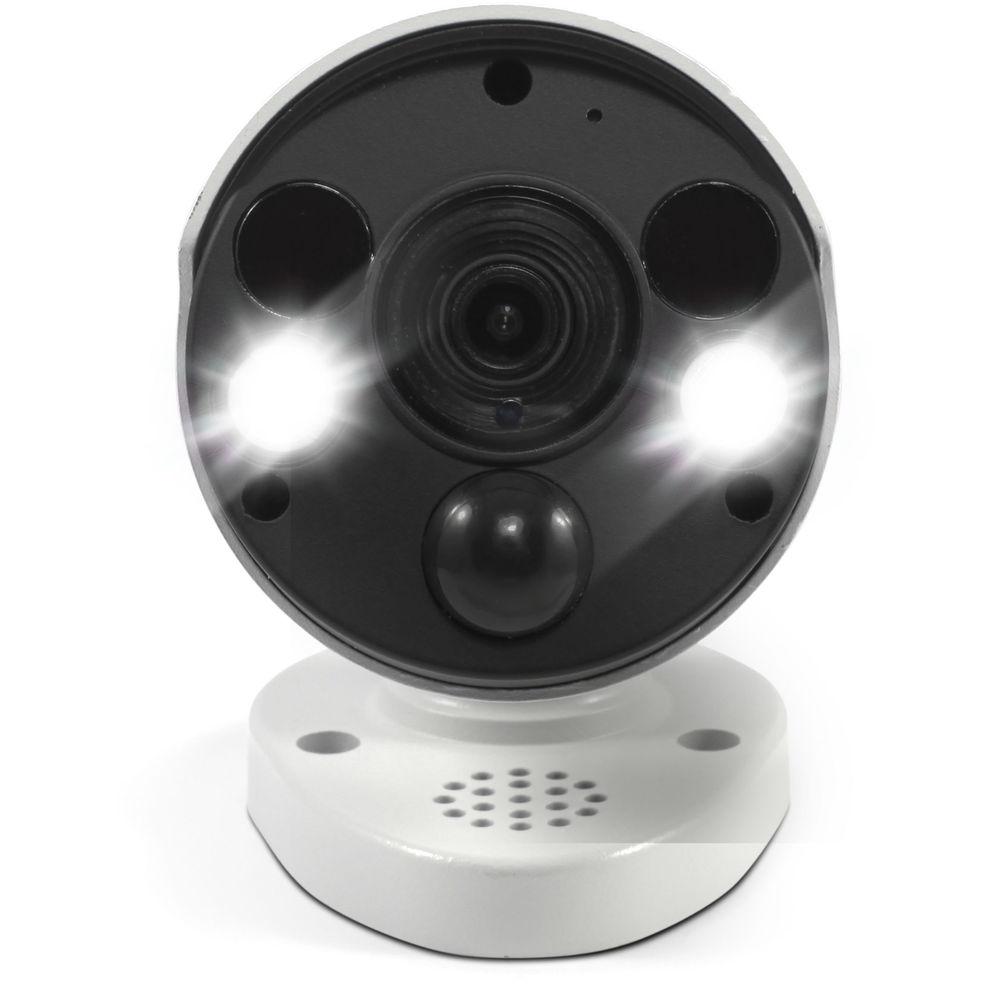

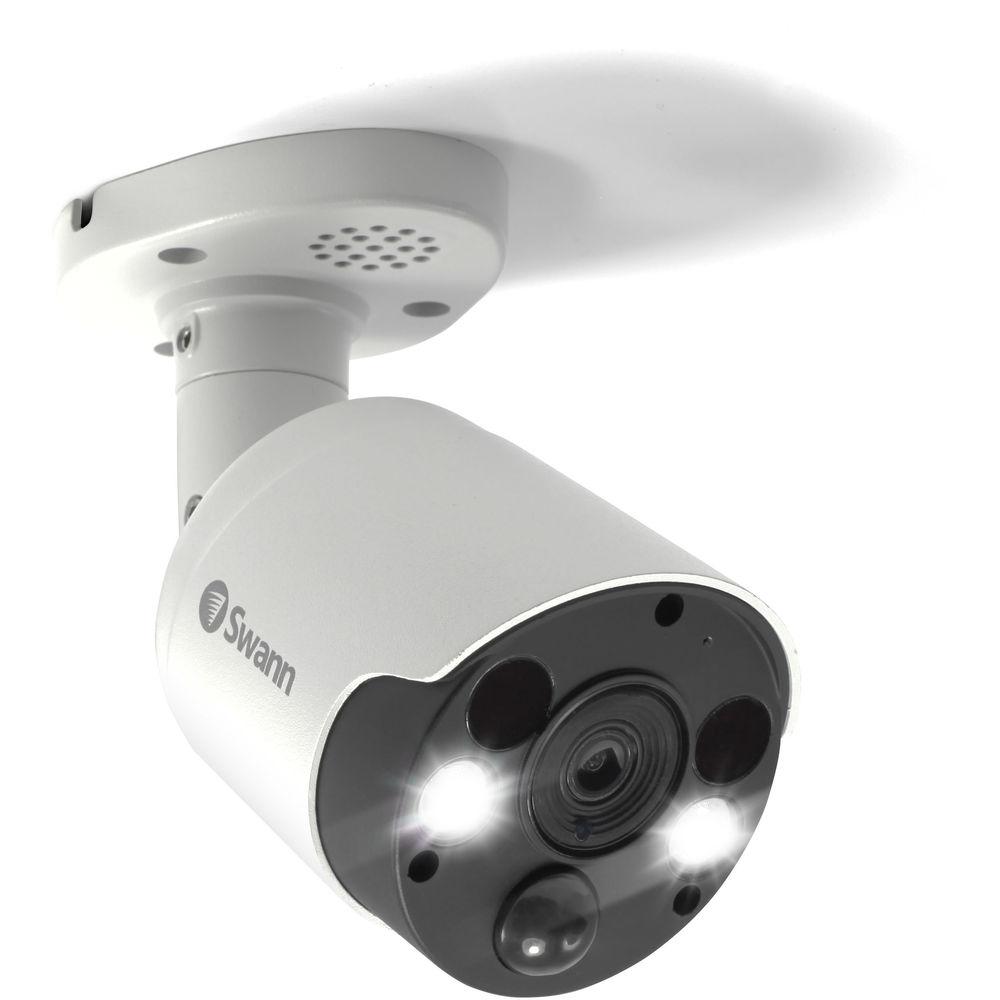

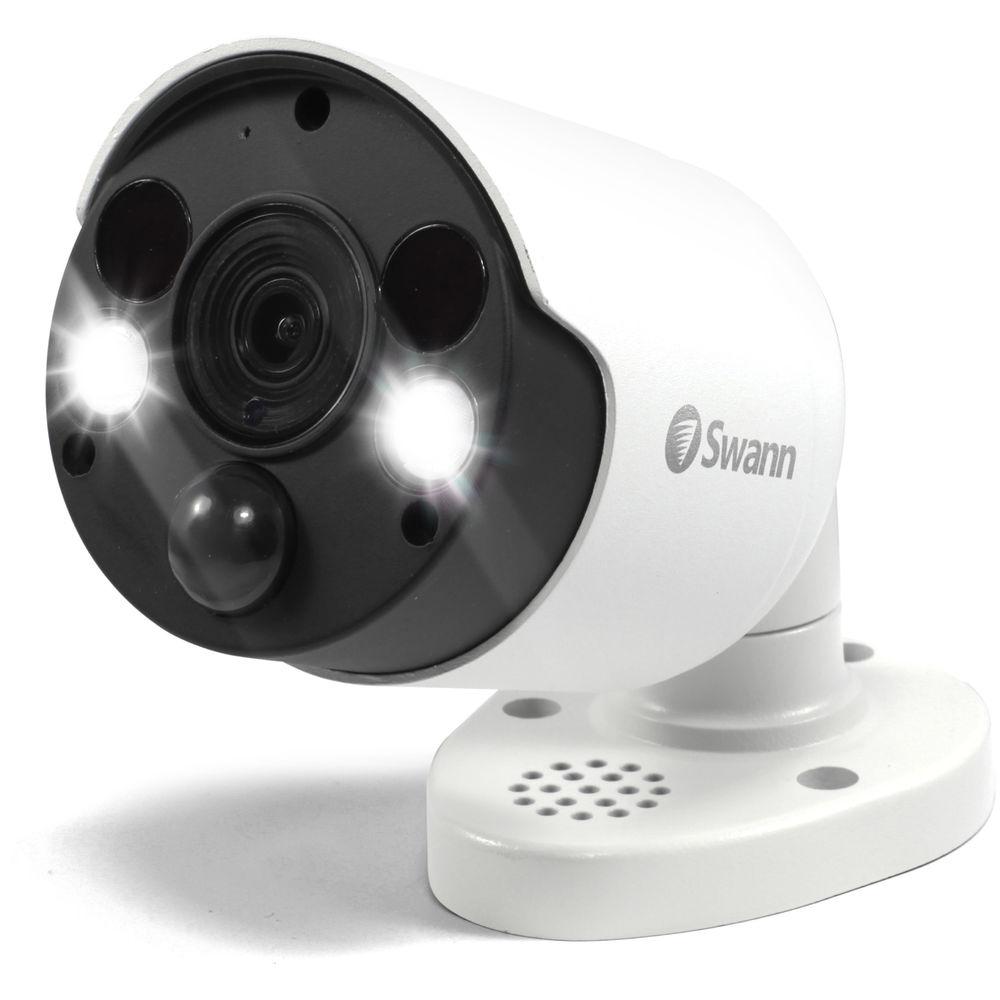

- SWNHD-865MSFB-US 5MP Bullet Cameras
-
- 130' of night vision in total darkness and 115' of color night vision
- IR cut filter
- Built-in microphone and speaker for two-way audio
- Audio range up to 16'
- Sensor spotlights and siren to deter intruders
- Motion and heat events trigger recording and alerts with push notifications to your phone
- IP66-rated aluminum enclosure that is suitable for outdoor use

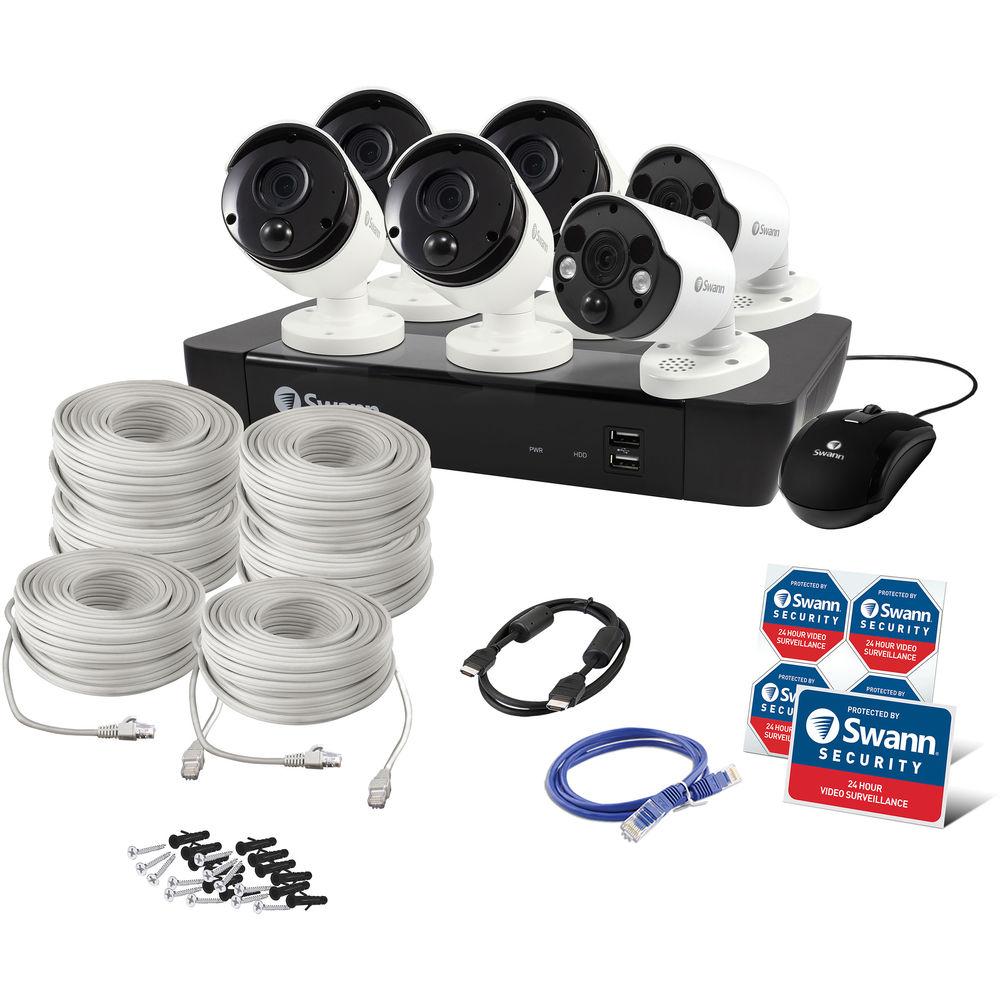

UPC: 840236123544 In the Box Swann 8-Channel 4K UHD NVR with 2TB HDD & 6 5MP Outdoor Night Vision Bullet Cameras 8-Channel 4K UHD NVR 4 x SWNHD-865MSB-US 5MP Outdoor Network Bullet Camera with Audio (White) 2 x SWNHD-865MSFB-US 5MP Outdoor Network Bullet Camera with Night Vision HDMI Cable 6 x 60' Cat 5e Ethernet Cables 3' Cat 5e Ethernet Cable Mouse Power Adapter Mounting Screws & Plugs Theft Deterrent Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann 8-Channel 4K UHD NVR with 2TB HDD & 6 5MP Outdoor Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann 8580 Series Specs | | | Video Inputs | 8 | | Outputs | VGA, HDMI | | Display Resolution | Up to 3840 x 2160 | | Audio Inputs | 8 x PoE ports | | Audio Outputs | 1 x RCA | | Video Compression | H.264, H.265 | | Recording Resolution | Up to 4K / 8 MP | | Frame Rate | Up to 15 fps | | HDD Included | 2 TB | | HDD Capacity | Up to 6 TB | | Network Interface | 1 x RJ45 | | Network Interface | 3 x USB 2.0 | | Supported Operating Systems | Windows, Mac OS | | Internet Viewing | HomeSafe View | | Supported Mobile Devices | iOS, Android, 3G/4G smartphones & tablets | | Dimensions | 9.25 x 12.2 x 2" / 235 x 310 x 53 mm | | Weight | Not specified by manufacturer | | | | Resolution | 2560 x 1920 (5 MP) | | Field of View | 82° | | Audio | Built-in microphone | | Audio Range | 16' / 5 m | | Night Vision Range | Up to 130' / 40 m | | IR Cut Filter | Yes | | PIR Thermal/Motion Sensor | Yes, True Detect | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Material of Construction | Aluminum | | Dimensions | 5.94 x 2.76 x 2.76" / 151 x 70 x 70 mm | | Weight | Not specified by manufacturer | | | | Resolution | 2560 x 1920 (5 MP) | | Field of View | 82° | | Two-Way Audio | Built-in speaker and microphone | | Siren | Yes | | Audio Range | 16' / 5 m | | Night Vision Range | Total Darkness: 130' / 40 m
Ambient Lighting/Color Night Vision: 115' / 35 m | | IR Cut Filter | Yes | | Lights | Sensor lights | | PIR Thermal/Motion Sensor | Yes, True Detect | | PIR Sensor Range | Up to 32' / 10 m | | IP Rating | IP66 | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Material of Construction | Aluminum | | Dimensions | 6.29 x 2.76 x 2.76" / 160 x 70 x 70 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 18.185 lb | | Box Dimensions (LxWxH) | 17.1 x 11.5 x 11.1" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Swann 8-Channel 4K UHD NVR with 2TB HDD & 6 5MP Outdoor Night Vision Bullet Cameras
| Subject: Resolution change | | Date: 28.01.2022 04:02:59 | Name: Rex Puxted | Everything was up and working OK. Then I changed to a higher resolution. Now the whole screen has slightly shifted to the left. Now I can't access the menu at the bottom left. Help !!
