User Manual for Swann NVW-485 4-Channel 1080p NVR with 1TB HDD and 2 1080p Outdoor Wi-Fi Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Swann NVW-485 4-Channel 1080p NVR with
- Product category: Surveillance Systems Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Surveillance Systems
 |
User manual for the Swann NVW-485 4-Channel 1080p NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|
Product description - Swann 1080p Wireless Security System sample CCTV footage review NVW-485 Security Camera

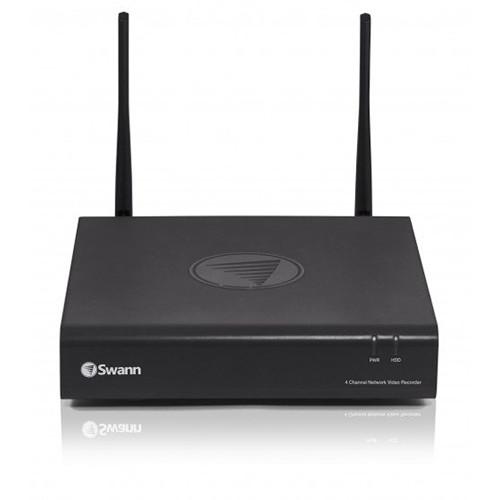

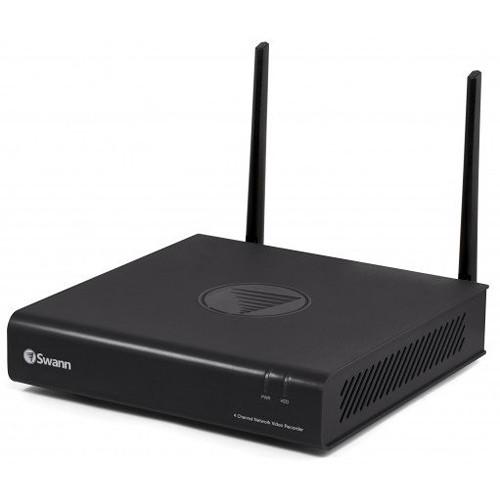

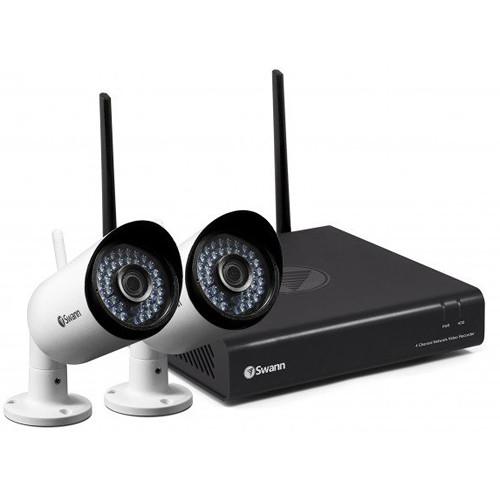

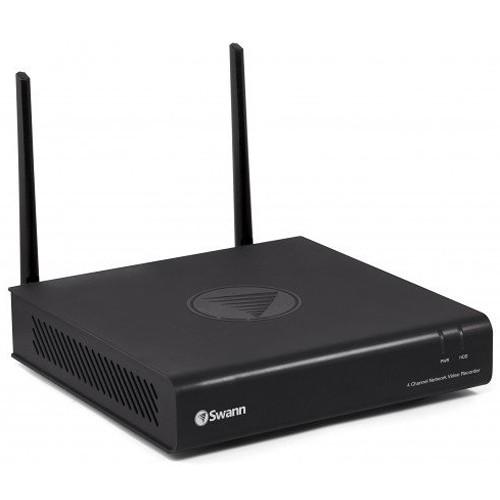

Secure your home or business with the NVW-485 4-Channel 1080p NVR with 1TB HDD and 2 1080p Outdoor Wi-Fi Bullet Cameras from Swann. Wirelessly connect the included cameras to the NVR and view a live stream from your mobile device via the free SwannView Link app for iOS and Android. The NVR comes with a preinstalled 1TB HDD to store recorded video and features HDMI, VGA, and USB outputs, as well as an audio output.

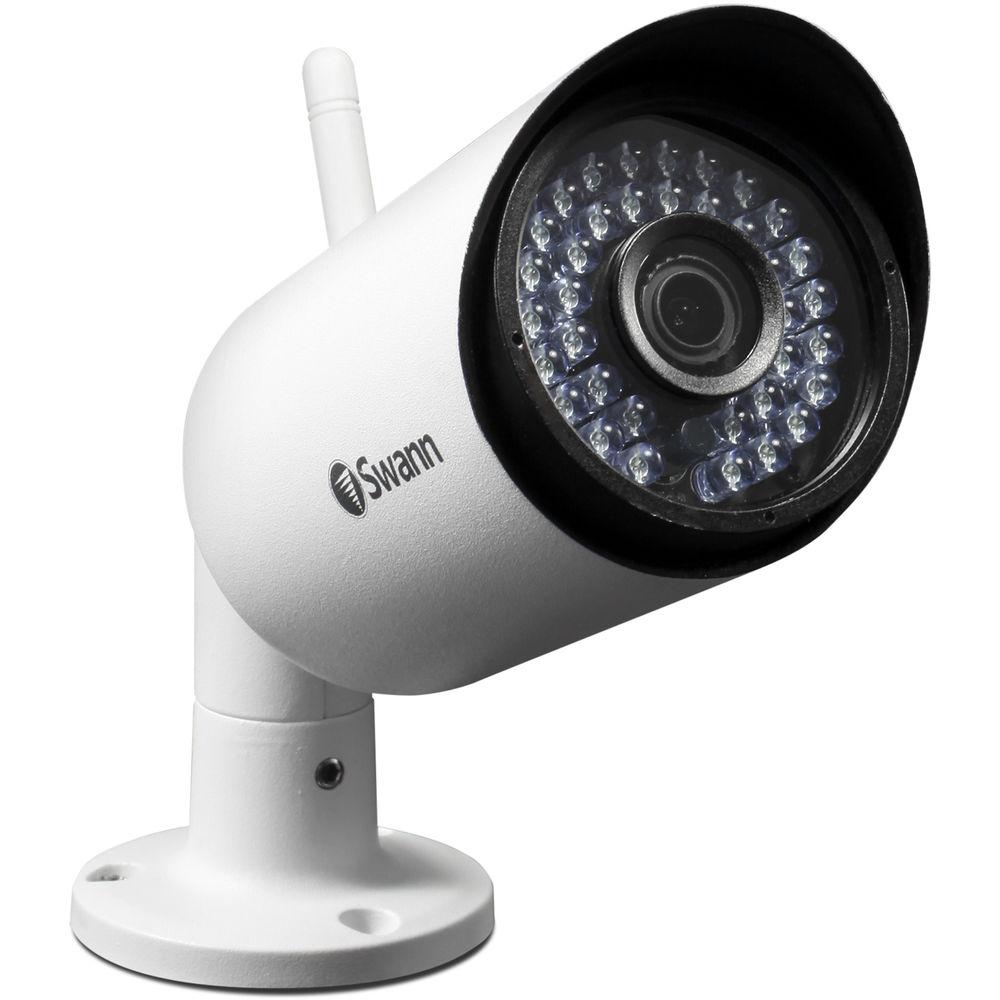

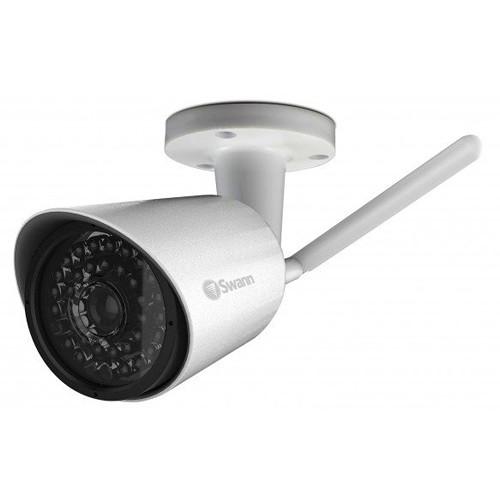

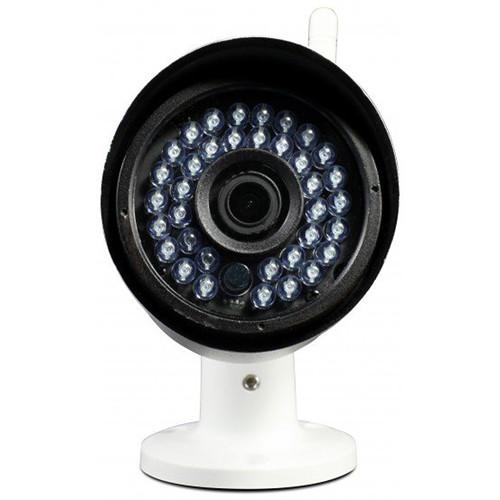

Each 1080p Wi-Fi bullet camera captures 1080p video at up to 15 fps for smooth recording and playback. Each camera's lens has a 75° field of view with integrated IR LEDs to provide up to 65' of night vision. A built-in microphone picks up nearby sound from up to 16' away, while Wi-Fi connectivity simplifies installation and customization. - 4-channel 1080p NVR with preinstalled 1TB HDD
- HDMI and VGA video outputs
- Add up to two more cameras to the system (available separately)
- 1080p resolution at up to 15 fps
- IR LEDs for night vision up to 65'

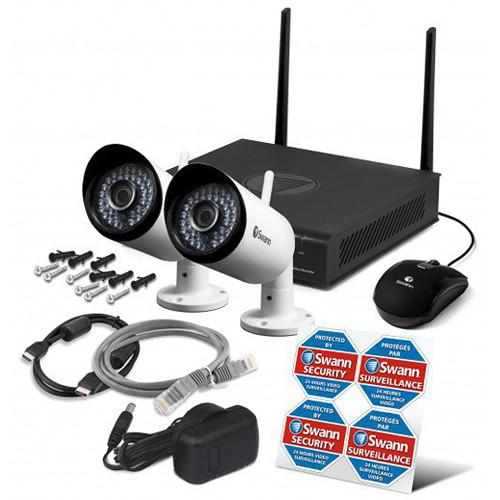

UPC: 840236116645 In the Box Swann NVW-485 4-Channel 1080p NVR with 1TB HDD and 2 1080p Outdoor Wi-Fi Bullet Cameras 4-Channel Wi-Fi NVR with 1TB HDD 2 x 1080p Wi-Fi Cameras Mouse 2 x 60' Power Extension Cables Network Cable HDMI Cable 3 x Power Adapters Mounting Hardware Theft Deterrent Stickers Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann NVW-485 4-Channel 1080p NVR with 1TB HDD and 2 1080p Outdoor Wi-Fi Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann SWNVK-485KH2-US Specs | | | Number of Channels (Input) | 4 | | Recording Resolution | 1920 x 1080 | | Video Output | HDMI and VGA | | Audio Output | RCA | | Display Resolution | 1920 x 1080 | | Hard Drive | 1 TB included, supports up to 4 TB | | USB Ports | 2 | | Wireless Range | Up to 100' (30 m)
Typical: 50' (15 m) | | Dimensions | 8.5 x 8.9 x 2" (21.5 x 22.5 x 5 cm) | | | | Requirements | NVW-485 Swann Security System (available separately) | | Image Sensor | Color video image sensor | | Resolution | 1920 x 1080 at up to 15 fps | | Field of View | 75° | | Day/Night | IR cut filter | | Night Vision Range | Up to 65' (20 m) | | Audio | Built-in microphone | | Audio Range | Up to 16' (5 m) | | IP Rating | IP66 and IP67 | | Connectivity | Wi-Fi | | Housing Material | Aluminum | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 7.8 x 2.6 x 2.6" (20 x 6.5 x 6.5 cm) | | | | Package Weight | 8.24 lb | | Box Dimensions (LxWxH) | 15.1 x 11.85 x 8.1" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
