User Manual for Swann PRO-1080MSB 1080p Outdoor Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Swann PRO-1080MSB 1080p Outdoor Bullet Camera
- Product category: Wired Analog & HD Cameras Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Wired Analog & HD Cameras
 |
User manual for the Swann PRO-1080MSB 1080p Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|

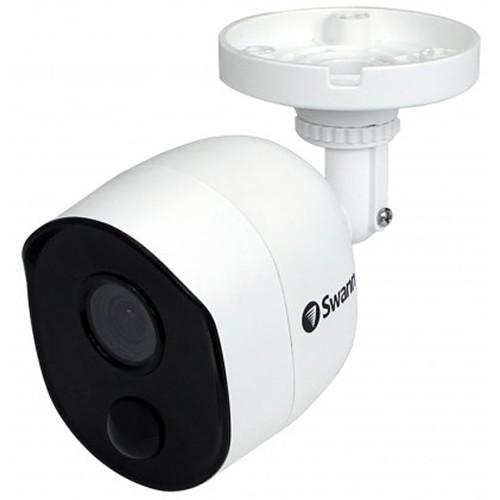

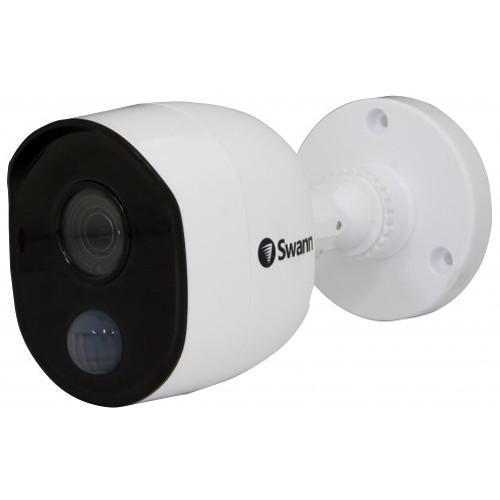

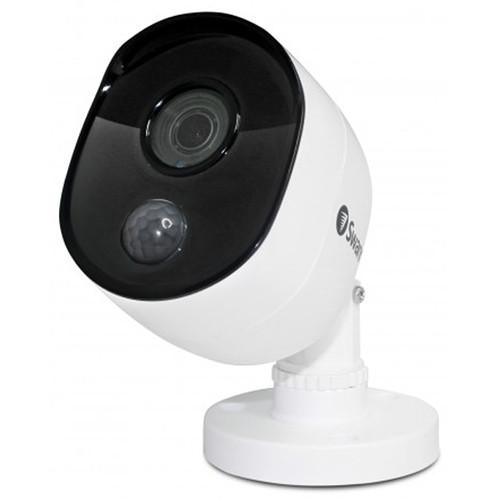

Product description The Swann PRO-1080MSB 1080p Outdoor Bullet Camera is designed for use with the Swann DVR-4575 8-Channel Digital Video Recorder, sold separately. It captures 1920 x 1080 HD resolution video, and the compatible DVR records the video in this resolution at 15 fps. The camera also features IR night vision, which allows it to capture video in black and white even in complete darkness.
A major feature of this camera is a PIR (passive infrared) motion sensor on the front (below the lens) that triggers recording upon detecting activity. This way you don't have to record around the clock but only when important events occur, thereby saving on storage space and the time needed to review recordings. Also, whenever video capture is triggered by the PIR sensor, you will be sent a push notification from the DVR to a smartphone app called HomeSafe View (free download for iOS/Android) so that you're instantly aware of the event. You can also monitor a live view as well as play back recordings via the app.
The PRO-1080MSB can be used indoors or outdoors. It is IP66 weatherproof-rated, so it will do its job in rain, snow, and other weather conditions.
A 60' coax power cable is included that allows you to connect the camera from a distance. A short power cable extends from the camera that connects into the coax cable, and the coax cable plugs into the compatible DVR-4575 DVR. Mounting accessories and theft deterrent stickers are also included. - Key Features
-
- Designed for use with the Swann DVR-4575 8-Channel Digital Video Recorder
- Captures 1920 x 1080 HD resolution at 15 fps
- 100' IR night vision
- PIR (passive infrared) thermal motion-detection sensor
- Push notifications are sent to an iOS/Android mobile app whenever motion detection recording is triggered
- Live view and playback of recordings via the mobile app
- 102° field of view
- IP66 weatherproof
- Includes 60' coax power cable
UPC: 840236119950 In the Box Swann PRO-1080MSB 1080p Outdoor Bullet Camera with Night Vision BNC Cable (60') Power Adapter & Splitter Mounting Screws & Plugs Theft Deterrent Stickers Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann PRO-1080MSB 1080p Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann Pro Series Specs | Sensor | 2 MP | | Resolution | 1920 x 1080p | | Field of View | 102° | | IR Cut Filter | Yes | | Minimum Illumination | 0.01 lux
0 lux with IR illumination on | | Night Vision Range | 100' (30 m) | | PIR Thermal/Motion Sensor | Yes | | PIR Sensor Range | 32' (9.7 m) | | Weatherproof Rating | IP66 | | Storage | Records to compatible Swann DVR (DVR-4575), sold separately | | Material of Construction | Polycarbonate | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Dimensions | 5.8 x 2.5 x 3" (14.6 x 6.5 x 8 cm) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 4.1" |
