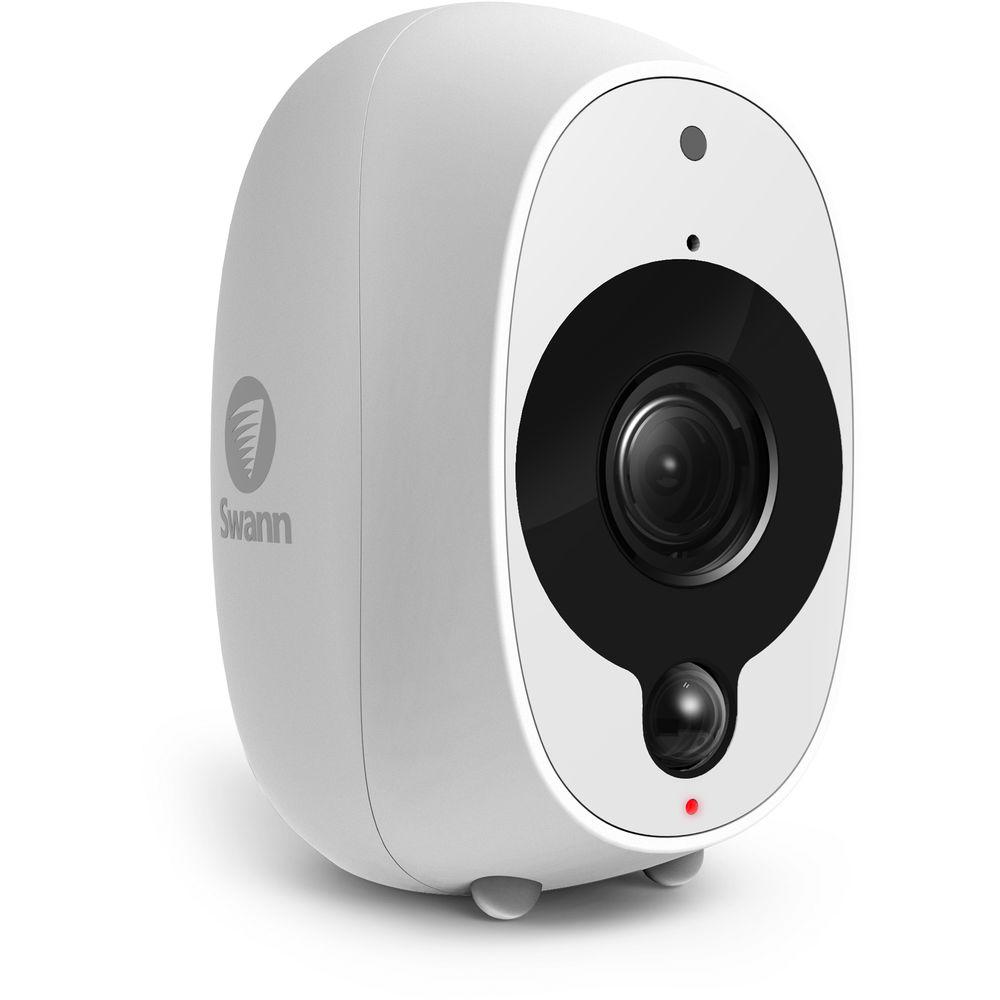

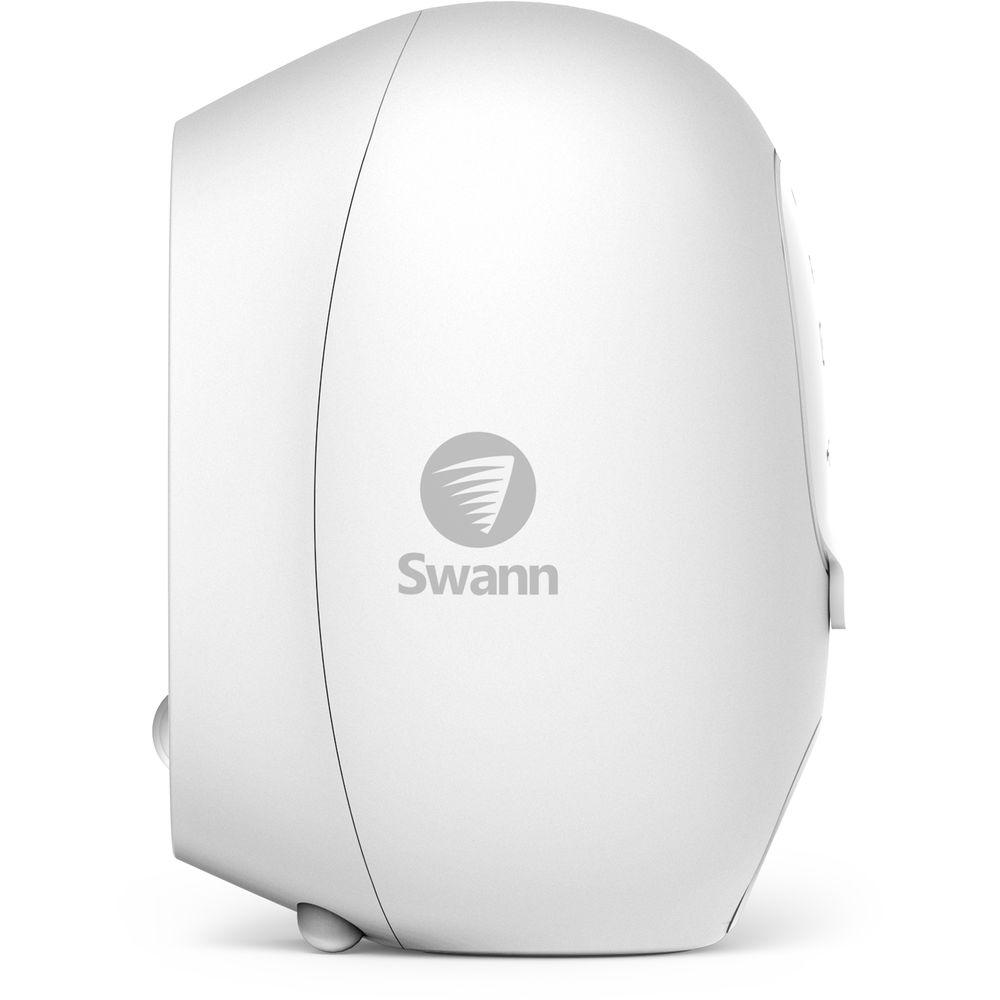

User Manual for Swann SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Swann SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network
- Product category: Wireless Cameras Swann
- Brand: Swann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swann Wireless Cameras
 |
User manual for the Swann SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swann product will considerably shorten its lifespan!
|
Product description - Swann Smart Security Camera 1

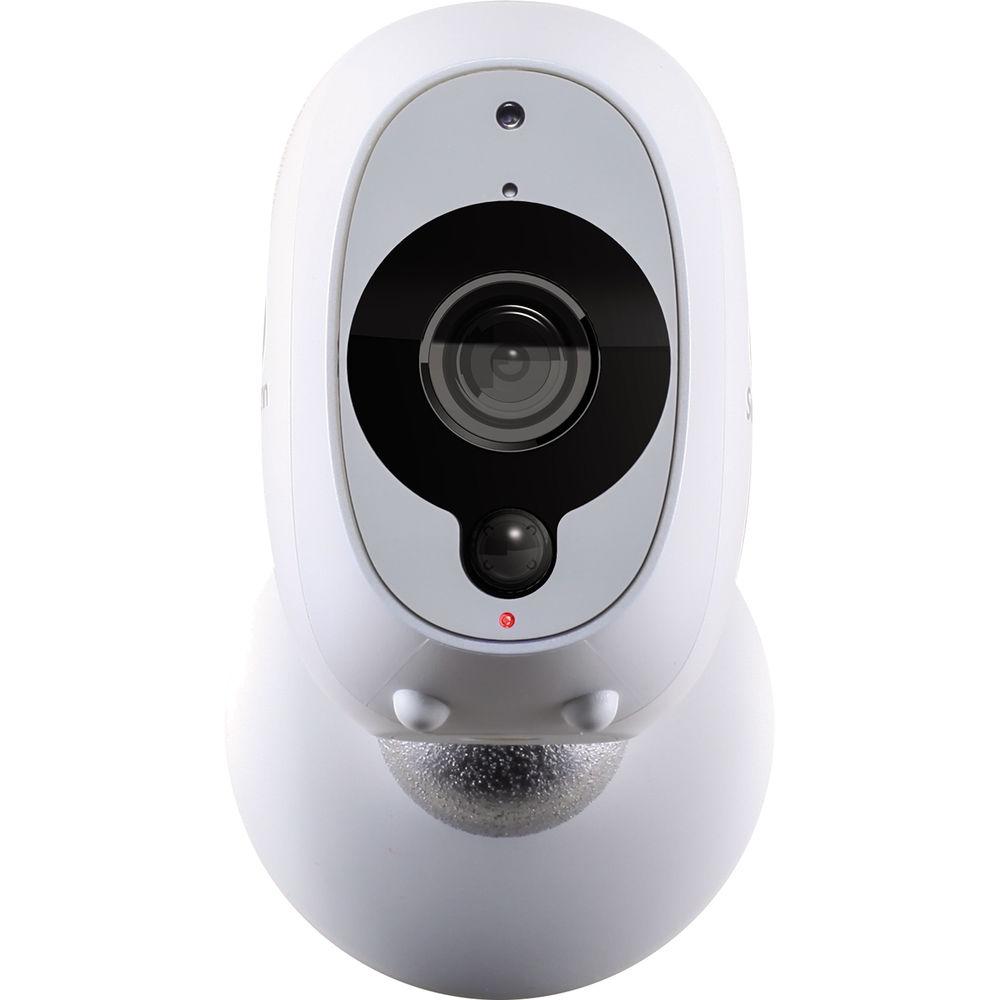

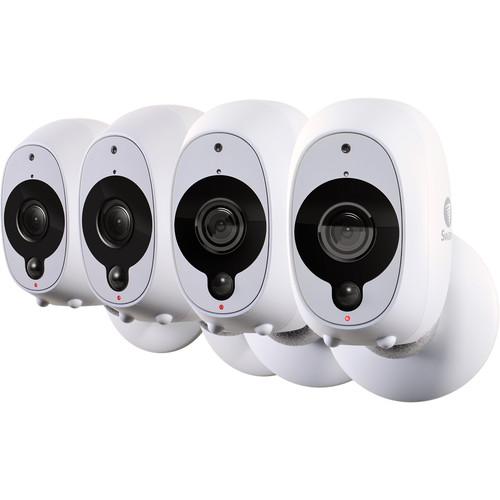

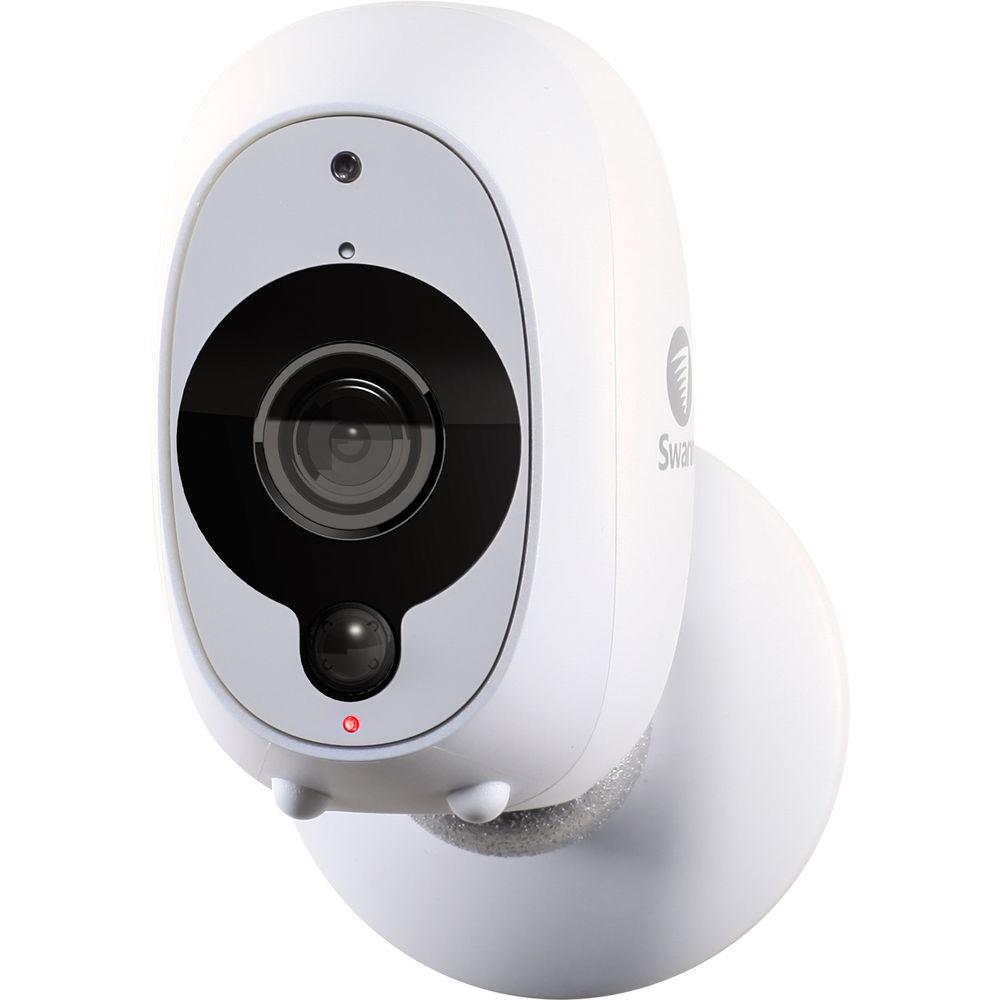

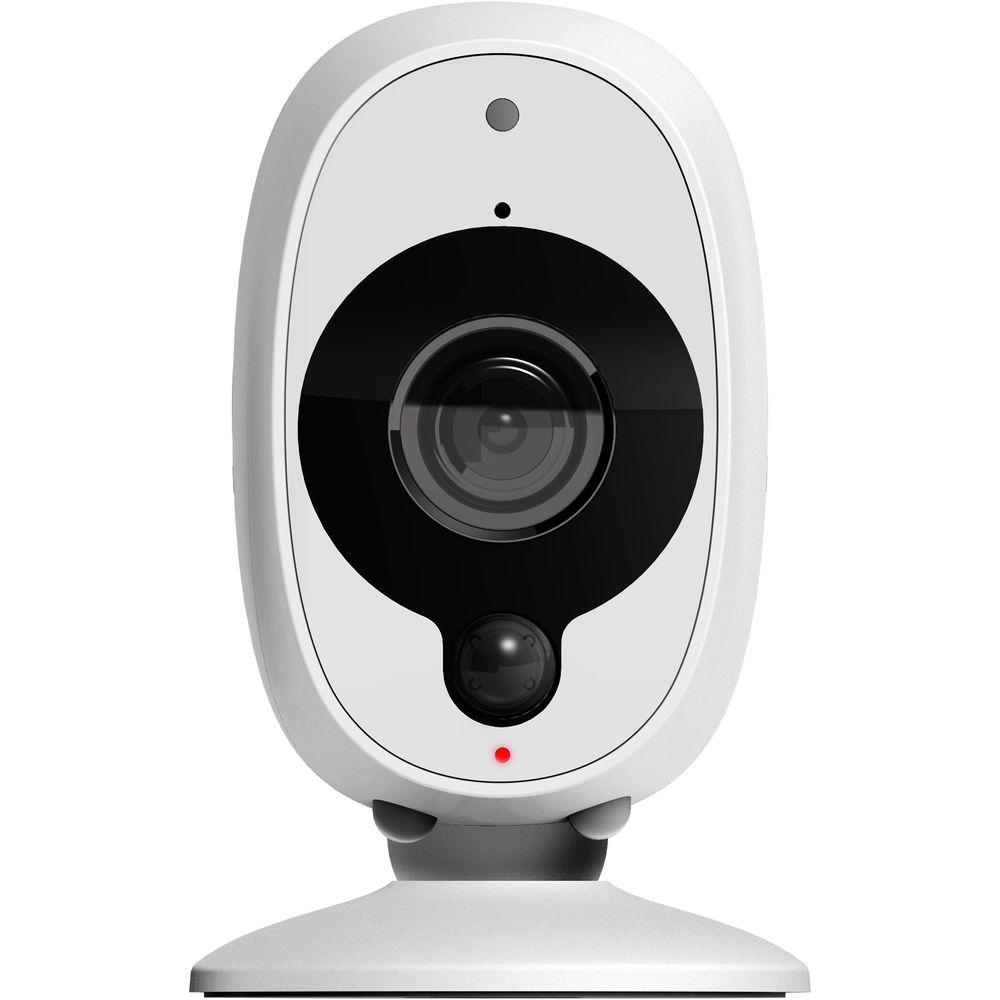

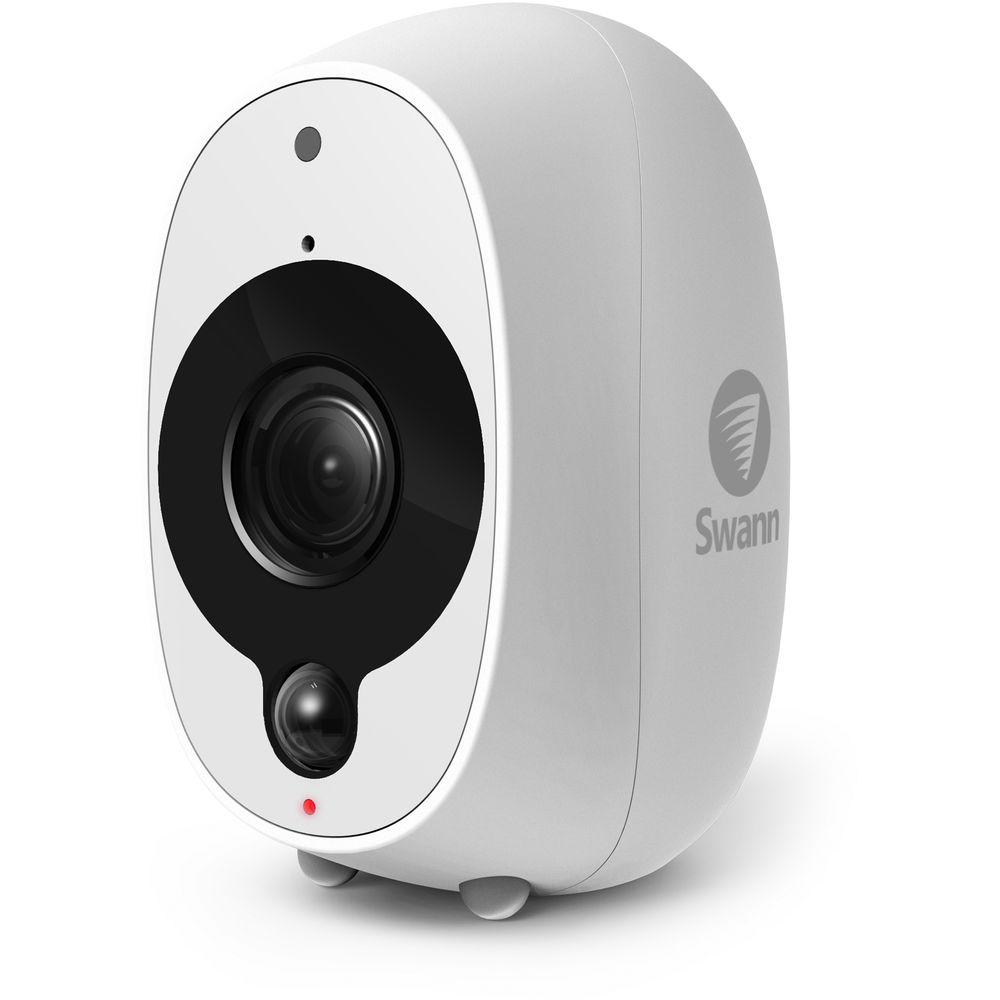

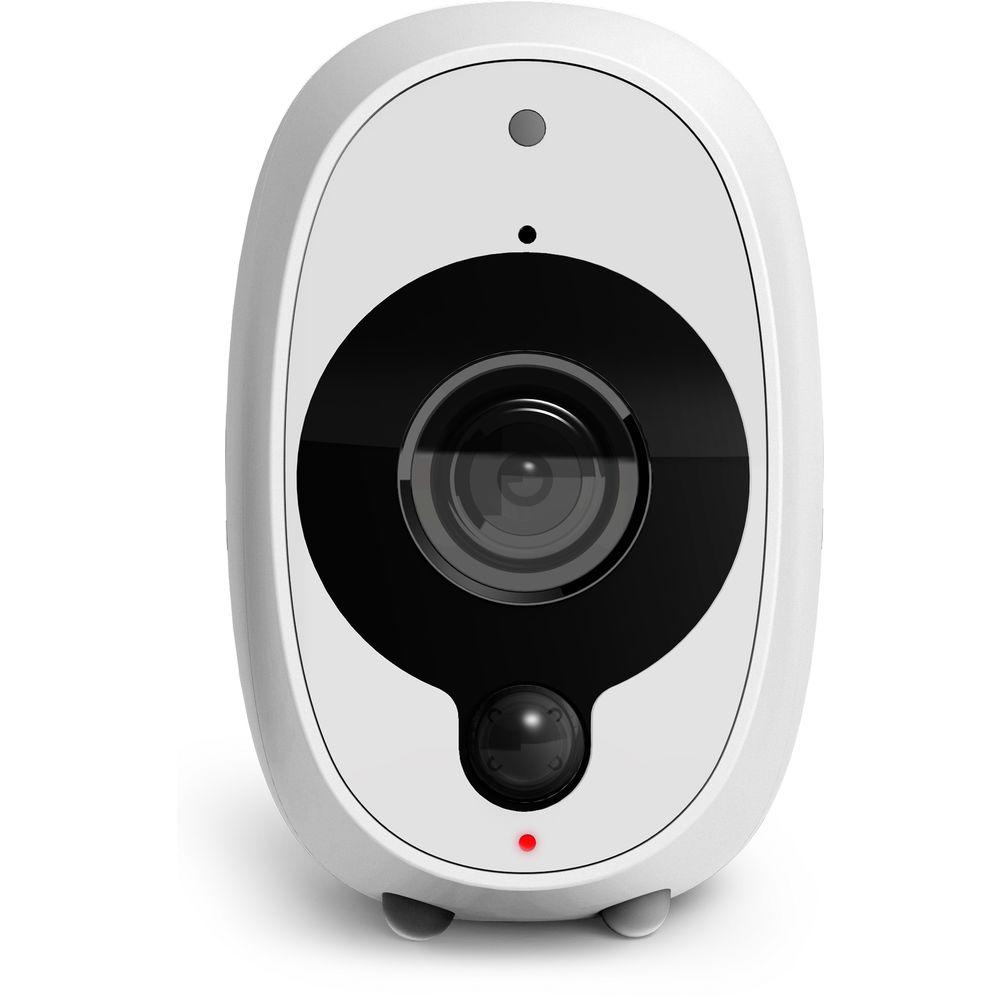

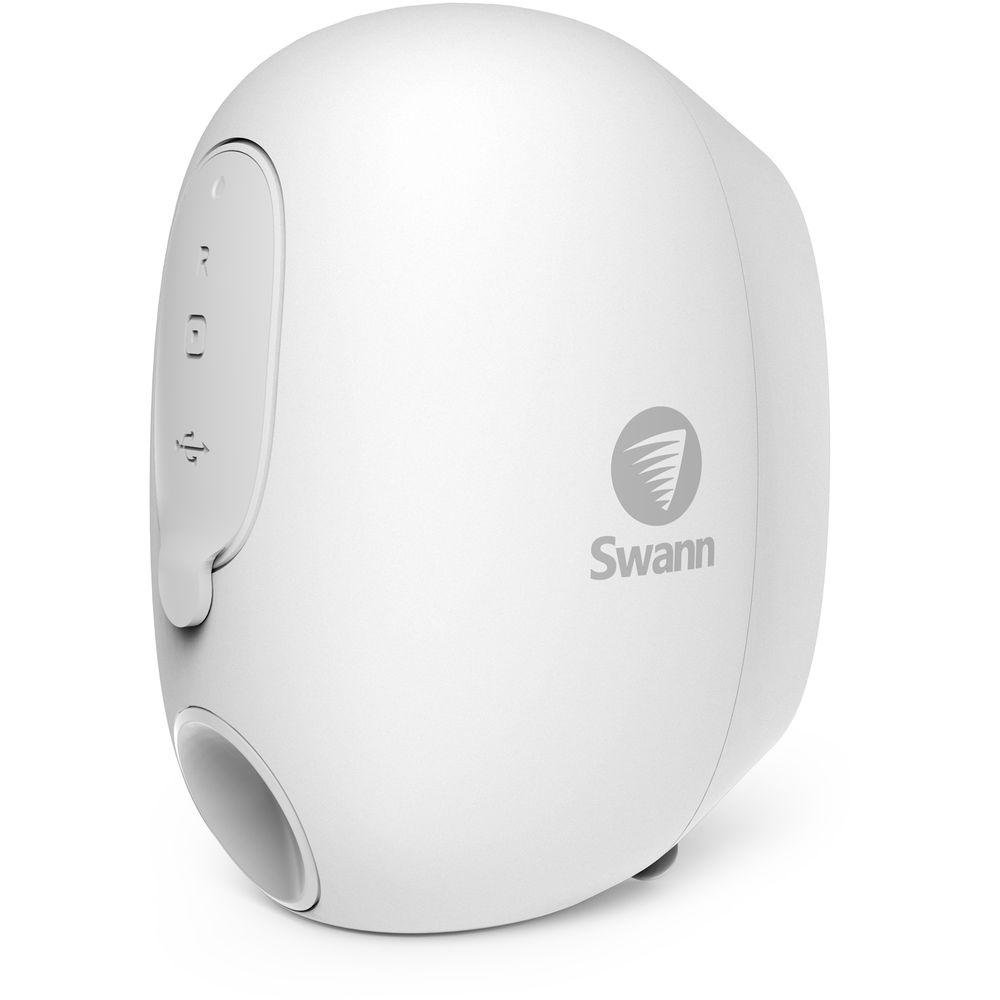

Keep your home or business safe with the SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network Camera with Night Vision (4-Pack) from Swann. This camera captures video at a resolution of 1920 x 1080. It features IR LEDs for night vision up to 32'. A 120° field of view enables the camera to cover a wide area. Additionally, the thermal PIR motion sensor has a range of up to 25', enabling the camera to accurately detect people, cars, large pets, and other large heat-generating objects while reducing false motion triggers due to small birds, plants moving in the wind, or leaves falling. A built-in microphone allows you to hear what is going on around the camera from up to 16' away. Each device is equipped with a rechargeable internal lithium battery. In addition, the heat-sensor of the camera preserves battery life. Wi-Fi connectivity is available on both 2.4 and 5 GHz bands, with a wireless range of up to 65'. The free SAFE by Swann app for iOS and Android devices enables remote viewing of live and recorded footage. This camera saves up to 7 days of 10- to 60-second video clips to its internal memory, and comes with 2 days of free cloud storage. It has an IP65-rated enclosure that is suitable for outdoor use. A USB charging cable is included. Note: Swann offers an optional cloud storage subscription plan that includes up to 30 days of cloud recording, 5 GB data storage, ongoing premium support, shared access for up to 4 users, and push notifications. Please visit the manufacturer's website for pricing. - Wireless design delivers a clutter-free installation
- Suitable for baby monitoring, safeguarding family members, watching pets, and any indoor or outdoor area
- Motion detection and thermal sensing up to 25'
- The included magnetic mounting stand and 3M adhesive strips offer a solution for renters, or anyone who prefers not to drill into walls
- Receive push notifications for motion detection and when your battery needs to be recharged
- Optional subscription-based cloud storage plans
- IP65-rated enclosure suitable for outdoor use

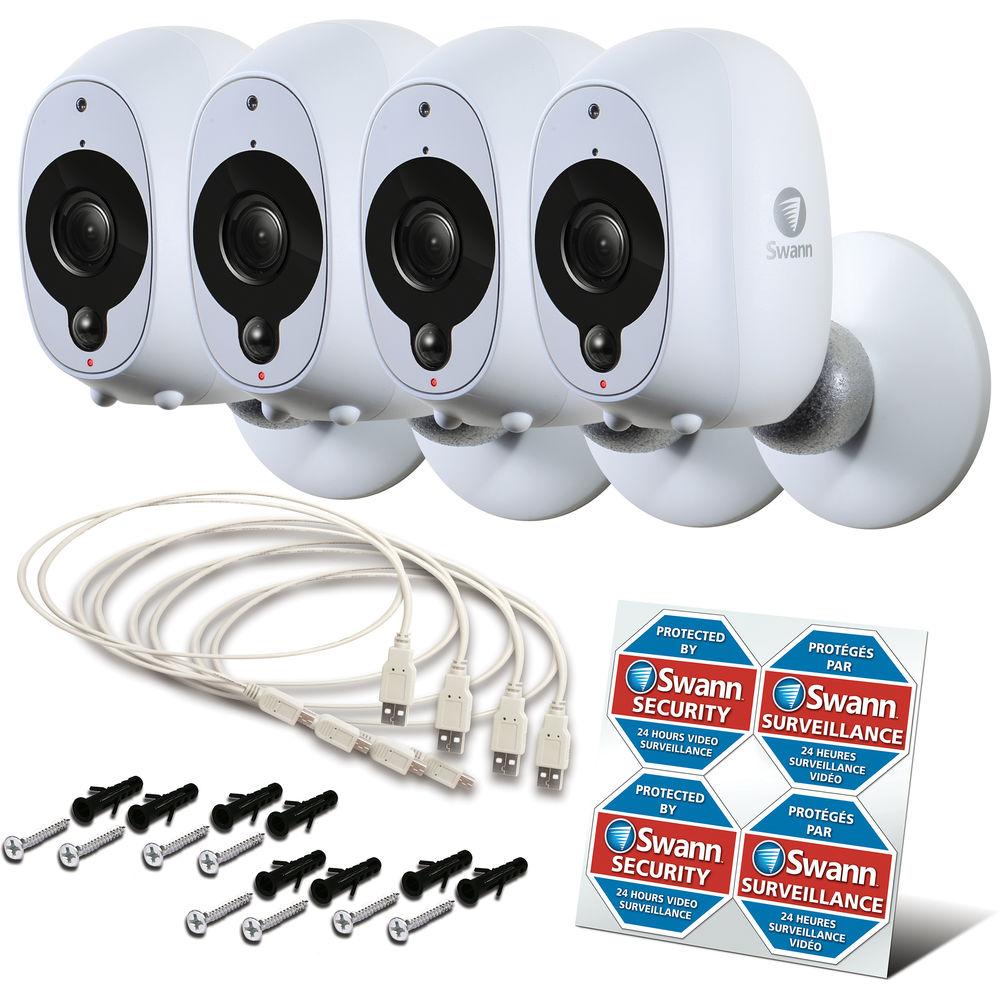

UPC: 840236120123 In the Box Swann SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network Camera with Night Vision (4-Pack) 4 x Magnetic Mounting Stand 4 x USB to Micro-USB Charging Cable Mounting Screws & Wall Plugs 3M Adhesive Strips Theft Deterrent Stickers Limited 1-Year Warranty More from Manufacturer crrufdcyftqazubfefqezzddb Table of Contents
|
Upload User Manual
Have you got an user manual for the Swann SWWHD-INTCAMPK4-US 2MP Outdoor Wi-Fi Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwann Intouch Specs | Video Resolution | 1920 x 1080 (2 MP) | | Field of View | 120° | | Motion Sensitivity | True Detect thermal / heat-sensing PIR | | PIR Range | Up to 25' / 8 m | | IR LEDs | Yes | | Night Vision Range | Up to 32' / 10 m | | Memory | Internal
Secure cloud (fees apply to 30-day storage option)
| | Battery Type | Rechargeable 6000 mAH lithium battery | | Battery Rechargeable | Via micro-USB cable (included) | | USB Port | 1 x micro-USB | | Built-In Microphone | Yes | | Audio Range | Up to 16' / 5 m | | Wi-Fi Connectivity | 2.4 & 5 GHz | | Wireless Range | Up to 65' / 20 m (depending on local conditions & usage rates) | | Mobile App | SAFE by Swann | | Reset Button | Yes | | Requirements | iOS 8.0 & above / Android 6.0 & above
Wi-Fi with high speed internet connection
512 kbps minimum upload speed
Smartphone or tablet charging plug (for faster charging Swann recommends using a higher amp charger such as a 5 VDC / 2.1 A)
| | IP Rating | IP65 | | Operating Temperature | 14 to 113°F / -10 to 45°C (battery performance may be affected by extreme cold) | | Dimensions (W x D x H) | 2.3 x 2.4 x 3.4" / 58 x 61 x 87 mm | | Weight | 0.49 lb / 222 g | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 9.1 x 8.3 x 6.5" |
