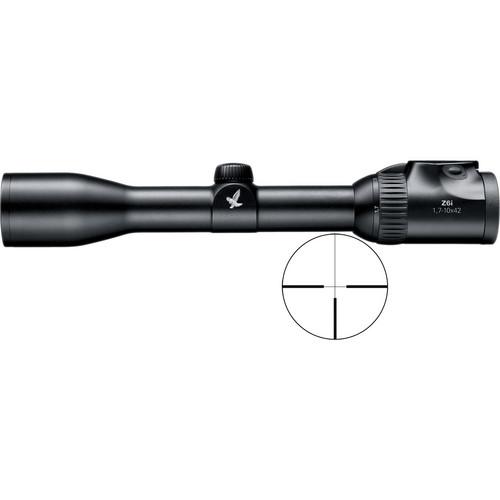

User Manual for Swarovski 1.7-10x42 Z6i 2nd Generation Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 1.7-10x42 Z6i 2nd Generation Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 1.7-10x42 Z6i 2nd Generation Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The 1.7-10x42 Z6i 2nd Generation Riflescope (Matte Black) from Swarovski Optik comes with an Illuminated 4A-I Reticle in the 2nd focal plane . The close to perfect Z6i has been re-engineered into the Z6i 2nd Generation - possibly reaching optical perfection. As if the Ballistic and Parallax turrets of the Z6i weren't already close enough to being mechanically flawless, the 2nd Generation Z6i's handling has been optimized even more. Swarolight technology has been added as well, providing automatic on-off reticle illumination for an extended battery life. The 1.7-10x42 Z6i scope has a smooth aluminum tube that accommodates ring mounting. It is rugged and dependable with a nitrogen filled tube for fogproofing and water proof to over 13 feet. A low magnification of 1.7x is appreciated by hunters attempting to gain positive target acquisition on fast moving game. Quickly dial up to the 10x high magnification for a longer shot. From the ocular to the objective, inside and out, this scope is a world class performer that will get you on target quickly and accurately.This Z6i has a 4A-I in the second focal plane so that the reticle size stays constant even though the target size increases with the zoom magnification. It has a 30mm tube and a matte black finish. Impeccable craftsmanship, optical genius, rugged dependability, and repeatable accuracy have all been engineered into the design and construction of this fine sighting optic to ensure a lifetime of successful hunting.To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Mounting
- Smooth aluminum tube accommodates ring mounting
- Waterproof and Fogproof
- 30mm main tube is nitrogen filled, fog proof & waterproof to 13 feet / 4 meters
- Temperature Ranges
- Operating temperature of -4 to 131°F / -20 to +55°C and storage temperature of -22 to +158°F / -30 to +70°C
- Sophisticated Optical System with 6X Zoom
- Magnification range offers both a wide field of view as well as the ability to zoom in for close-up observation
- Swarotop Coatings
- Proprietary up to date lens coatings increase light transmission & micro-grooves on the edges of lens elements prevent residual reflections inside the tube for bright high-contrast images under all lighting conditions
- Reticle Illumination
- Flashing reticle indicates battery is discharged
Low profile slim module for unrestricted viewing
Two CR2032 lithium batteries included; one as a spare
Memory function stores two brightness levels for quick access
Smart auto shut-off function differentiates between night and day
Ergonomic brightness control allows quick access, even with gloves on - 4A-I Reticle in Second Focal Plane
- Illuminated 4A-I reticle has three heavy posts at 3, 6, and 9 o'clock which stand out against heavy cover. A single stadia resides at 12 o'clock and intersects with fine crosshairs. An illuminated red dot indicates the exact point of aim
Second focal plane positioning of the reticle maintains its size throughout the zoom range. UPC: 708026692383 In the Box Swarovski 1.7-10x42 Z6i 2nd Generation Riflescope (Matte Black) Microfiber Cloth See-through Bikini Style Lens Caps 2 x 3.0V CR2032 Lithium Batteries Limited Lifetime Warranty Limited 10-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 1.7-10x42 Z6i 2nd Generation Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 69238 Specs | | | Magnification | 1.7 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 1.7x: 75.6' @ 100 yd / 25.2 m @ 100 m
10x: 12.6' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 1.7x: 9.4 mm
10x: 4.2 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Filter Thread | M44 x 0.75 | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 54 MOA | | Elevation Adjustment | 54 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.8" / 319 mm | | Weight | 18 oz / 510.3 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 20.0 x 5.0 x 5.0" |
