Product description - SWAROVSKI OPTIK Z8i Rifle Scope Illumination

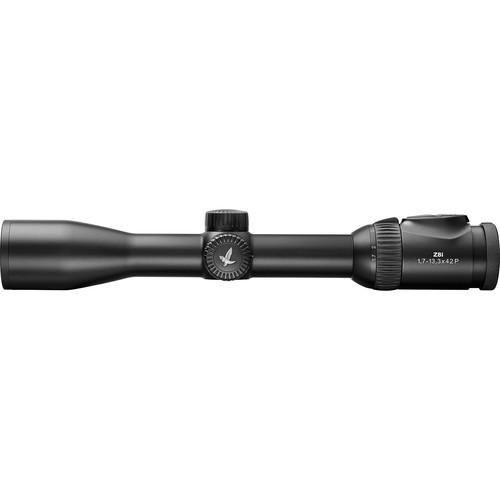

Swarovski designed and built the 1.7-13.3x42 Z8i P L Riflescope with a 30mm maintube to deliver uncompromising optical performance, precision, and durability. With its high-quality optical system, lens glass, and fully multi-layer anti-reflection coatings, it provides brilliant and sharp images with high resolution. No matter when you hunt, its state-of-the-art optical system will deliver bright, crisp, and clearly visible images with a versatile 42mm objective aperture. The objective and ocular lenses are further enhanced with a SWAROCLEAN coating to ensure that water droplets and dirt can be easily removed without a trace. To help with ballistic and wind drift compensation, this scope offers a 54 MOA windage and elevation adjustment ranges with 0.36 MOA click values.
A notable attribute of this riflescope is the 4A-IF illuminated reticle. Its outline resembles the legendary German #4 reticle. The reticle is etched on glass in the 2nd focal plane and features three medium posts, a fine crosshair, and an illuminated brilliant center dot. It also has a FLEXCHANGE function that allows you to add on-demand an illuminated target circle to the reticle's pattern. The FLEXCHANGE can be engaged using a small lever located on the top portion of the eyepiece. The scope also offers 64 reticle brightness levels (32 for twilight and 32 for daylight) and a SWAROLIGHT switch that turns off the illumination when you tilt your firearm up more than 70° or to the side more than 30°.
Drawing on a long tradition of engineering excellence and precision manufacturing, this waterproof and fogproof optic was crafted from high-quality, lightweight, and durable aluminum with a matte black corrosion-resistant anodized finish. Among the many highlights are a 30mm single-piece maintube, capped finger-operated turrets, a side parallax corrector, and a precision zoom eyepiece. The windage and elevation gear is also compatible with the optional high-precision ballistic turret flex (BTF). This turret can be used for either windage or elevation and provides extended range of adjustment, precision graduation, and high-traction knurling. The knob can be enhanced with custom graduation and does not require any tools for installation. - Optical Performance
-
- 1.7 - 13.3x magnification
- 42mm objective lens delivers bright images
- Anti-reflection fully multi-coated optics offers a total optical transmission of 93%
- SWAROCLEAN coating makes it easy to clean away water marks, insect repellent, and tree resin
- Use and Handling
-
- 0.36 MOA impact point correction
- 54 MOA windage and elevation adjustment ranges
- Parallax correction from 55 yd to infinity
- -3 to +2 dioptric correction
- 3.7" long eye relief
- Construction Details
-
- 30mm one-piece maintube
- Low-weight and durable aluminum alloy
- Corrosion-resistant and scratch-resistant matte-black anodized finish
- Compatible with optional top or side BTF ballistic turret flex
- Allows extended ballistic compensation
- Offers graduation in centimeters
- Compatible with optional graduated personalized ballistic rings (PBR)
- Fogproof, filled with proprietary inert gas
- Waterproof, submersible to 13'
- Illuminated 4A-IF Reticle
-
- 2nd focal plane
- German #4 style
- Three posts, a crosshair, and a brilliant target dot
- FLEXCHANGE adds an illuminated red target circle
- SWAROLIGHT turns off the illumination when you tilt your rifle up 70° or to the side 30°
- 64 reticle brightness levels: 32 for twilight and 32 for daylight
UPC: 708026682025 In the Box Swarovski 1.7-13.3x42 Z8i P L Riflescope (4A-IF Illuminated Reticle, Matte Black) - 2 x CR-2032 Batteries
- 2 x Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 1.7-13.3x42 Z8i P L Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 68202 Specs | | | Magnification | 1.7 to 13.3x | | Objective Lens Diameter | 42 mm | | Field of View | 1.7x: 75.6' @ 100 yd / 25.2 m @ 100 m
13x: 9.3' @ 100 yd / 3.1 m @ 100 m | | Exit Pupil Diameter | 1.7x: 8.1 mm
13.3x: 3.1 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 4A-IF Reticle (Second Focal Plane) | | | | Filter Thread | M44 x 0.75 | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 54 MOA | | Elevation Adjustment | 54 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 180 to 1400 Hours (Average) | | Dimensions | Length: 13.2" / 33.6 cm | | Weight | 21.9 oz / 620 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 16.2 x 4.5 x 3.8" |
