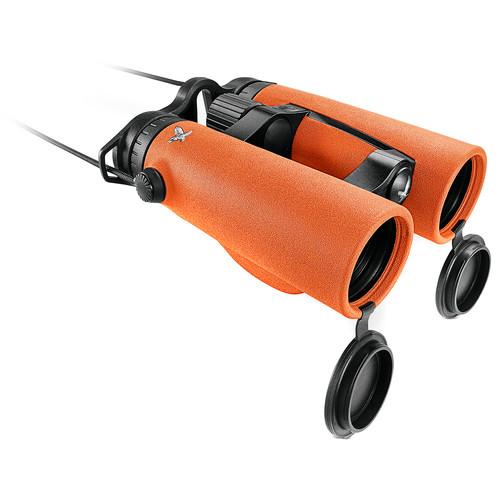

User Manual for Swarovski 10x42 EL Range Binocular Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Swarovski 10x42 EL Range Binocular Laser
- Product category: Laser Rangefinders Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Laser Rangefinders
|
User manual for the Swarovski 10x42 EL Range Binocular Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description Swarovski combines two invaluable outdoor tools into a single unit with the 10x42 EL Range Binocular/Laser Rangefinder. This version of the EL Range is offered in high-visibility orange so it's easy to find in low light and if they are left or dropped on the forest floor.This combination of optic and rangefinder maintains the high-quality binocular design elements expected from Swarovski including the SWARO-BRIGHT broadband anti-reflection multi-coatings that minimize light loss, increase image brightness, and enhance color fidelity across the entire visible spectrum. Its wide 63° apparent angle of view makes spotting and tracking game and targets fast and easy.Added to the optical performance is a precise IR laser rangefinder that can measure distances up to 1500 yards with an accuracy of ±1 yard in less than a second. For stationary targets, use the single-measurement mode or track moving targets with the scan mode for continuously updated distances. The in-view LCD display shows distances in yards or meters, depending on your preference. A built-in inclinometer and SWARO-AIM ballistic algorithm works in conjunction to the rangefinder to measure the relative angle from the user to the target and displays an adjusted distance for shooters to accurately compensate for the trajectory angle. A single button activates the rangefinder and provides access to all the features, functions, and settings.To withstand the rigors of a life lived outdoors, the EL Range features a lightweight and durable magnesium alloy housing with a rubberized textured armoring that protects the optic while providing a slip-resistant grip. Its open-bridge configuration helps to balance the binocular in the hand, while giving the user a whole-hand grip for a more secure hold. The optical tubes are nitrogen filled to give it fogproof performance in all weather, and O-rings seal the entire system allowing it to be submerged to a depth of 13 feet. The EL Range comes with the FieldPro package that includes a CR2 battery, tethered objective covers, a one-piece tethered ocular rainguard, an adjustable-length neoprene neck strap with an improved attachment system, and a carrying bag. - Optical Performance
-
- 10x magnification brings distant subjects in close for detailed observations
- 42mm objective lenses boost light-gathering capability to keep views bright even in challenging light conditions
- Roof prism optical path maintains a compact form factor for easier handling
- SWARO-BRIGHT proprietary broad-spectrum anti-reflection coatings increase light transmission and enhance color fidelity
- Wide 63° apparent angle of view helps to minimize the appearance of distracting hand shake that is common when holding high-power optics, while offering an immersive observational experience
- Spacious 331' field of view at 1000 yd
- Laser Rangefinder
-
- In-view LCD display
- Class 1 EN/FDA IR laser
- Built-in inclinometer measures relative angle to target, ±90°
- Measurements displayed in yards or meters
- Measuring range: 33-1500 yd
- Measuring accuracy: ±1 yd/m
- Measuring time: ≤1 second
- Single-measurement and continuous-scan modes
- SWARO-AIM: corrected ballistic shooting distance automatically adjusts the displayed distance to account for the angle to the target, to a max 999 yd/m
- Five brightness levels; automatic or manual adjustment
- Runs on one included CR2 battery
- Battery life: 1000 measurements
- One-button design provides access to all rangefinder features, functions, and settings
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight without sacrificing strength
- Large knurled center focus wheel is easy to manipulate in cold and wet weather, or while wearing gloves
- Dual locking -7/+5 dioptric correction rings enables ultra-fine tuning of the focusing system to ensure crisp and tack-sharp views
- 56-74mm interpupillary adjustment range makes them easy to use by a wide variety of users
- Electronic dioptric compensation adjustment mode
- Four-position twist-up click-stop rubber eyecups
- Long 17.3mm eye relief for comfortable use with reduced eye strain
- 4.2mm exit pupil will cover most pupils as they open and dilate in low light to keep the entire scene in view without vignetting
- Construction Details
-
- Bridge design adds more surface area for a secure grip
- Lightweight and durable magnesium alloy housing
- Textured rubberized armoring provides slip-resistant grip
- High-visibility orange armor color is easy to spot in low light or if they are laying on the forest floor
- Nitrogen filled, fogproof, and submersible to 13'
- Broad -13 to 131°F operating temperature range
- FieldPro accessory package includes tethered one-piece ocular rainguard and flip-down objective lens covers to keep them ready when not in use without the possibility of losing them on the forest floor; adjustable-length neoprene comfort-strap with pockets for spare batteries; carrying case
UPC: 708026700163 In the Box Swarovski 10x42 EL Range Binocular / Laser Rangefinder (Orange) CR2 Battery Carrying Bag Neoprene Strap Ocular Rainguard 2 x Objective Lens Covers Limited 2-Year Electronics Warranty Limited Lifetime Optics Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 10x42 EL Range Binocular Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski EL Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.3° (Actual) | | Field of View | 330.0' @ 1000 yd / 109.56 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 17.3 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | -7 / ±5 | | Focus Type | Center | | Dimensions | 6.3 x 5.4 x 3.2" / 16.0 x 13.7 x 8.1 cm | | Weight | 31.04 oz / 880 g | | | | Package Weight | 4.57 lb | | Box Dimensions (LxWxH) | 11.7 x 9.5 x 3.7" |
