Product description

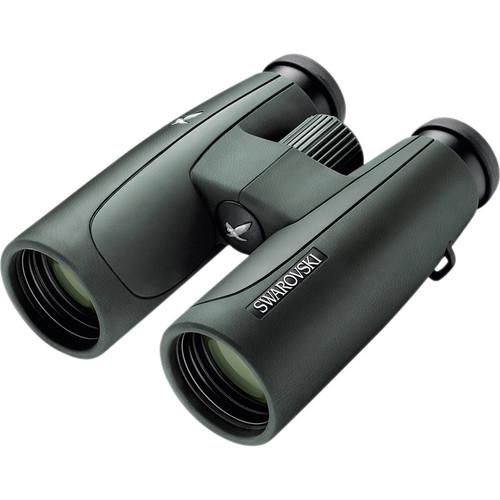

The B&H Binocular Buying Guide Read More fqdexxvruztfzxtsbqsfbd The 10x42 SLC Binocular from Swarovski combines extra-low dispersion (HD) glass elements and a range of proprietary optical coatings with a weather-resistant magnesium-alloy housing to create a multi-purpose set of glasses that delivers impressive image quality and durability. This configuration of the SLC displays an immersive 61° apparent viewing angle; a long 16mm eye relief and multi-position twist-up eyecups enable a comfortable viewing distance for almost any observer.Swarovski uses phase-corrected roof prisms and fully multi-coated fluorite-containing HD glass optics in the SLC binocular. Each of the HD lenses is finished with multiple layers of SWAROTOP anti-reflective lens coating. Resulting images transmitted by the optical path are rich with detail and saturated with lifelike color.In addition to its high-transmission optical system, Swarovski also equips the SLC binocular with a range of features that improve the handling experience of the observer. The geared focus system offers quick and precise focusing with the same focus wheel, permitting the observer to focus from infinity down to 10.5 ft in only two rotations. Covering the magnesium-alloy housing are two distinct types of rubber armoring, each providing impact protection and tactile response where they are needed most.Complementing the HD optics and improved ergonomics of the SLC series binoculars is a nitrogen-filled housing that is airtight to a depth of 13 ft. Swarovski finishes the exposed lens surfaces with their SWARODUR scratch-resistant and anti-reflective coating, as well as SWAROCLEAN non-stick lens coating, which repels moisture and prevents residue from adhering to the exposed glass. Its premium optics and user-friendly performance make the SLC binocular a reliable optic for most close to mid-range glassing tasks.
    Optical Performance
    • Magnification: 10x
    • Objective lenses: 42mm diameter
    • HD Optical System: fluorite-containing glass enhances color fidelity and brightness
    • SWAROBRIGHT highly reflective mirror prism coating optimizes color transmission
    • SWAROTOP anti-reflective lens coating reduces glare and improves contrast
    • P-Coating phase-correction preserves sharpness and clarity
    • 61° wide apparent viewing angle
    • 10.5 ft minimum focus distance
    • 16mm eye relief
    Use and Handling
    • Twist-up eyecups with three click-stop positions
    • Mechanical focus system enables quick yet precise focusing
    • Center wheel diopter adjustment
    • 1/4"-20 threaded mount for tripod adapter
    Construction Details
    • Nitrogen filled for fog and waterproof performance
    • Magnesium-alloy housing with dark green rubberized finish
    • Dual-texture rubber armoring enhances impact protection and ergonomics
    • SWAROCLEAN non-stick coating, SWARODUR scratch-resistant lens surfaces
    • Operating temperature: -13 to 131°F
    • Waterproof depth: 13 ft
    • Weight: 28 oz
UPC: 708026583100 In the Box Swarovski 10x42 SLC Binocular
  • Carrying Case
  • Neck Strap
  • Lens Covers
  • Limited Lifetime Warranty
  • Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents




    Upload User Manual

    Have you got an user manual for the Swarovski 10x42 SLC Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Swarovski 58310 Specs

    Prism Type Roof
    Magnification 10.0 x
    Objective Lens Diameter 42 mm
    Angle of View 6.3° (Actual)
    Field of View 330.7' @ 1000 yd / 110.2 m @ 1000 m
    Minimum Focus Distance 10.5' / 3.2 m
    Exit Pupil Diameter 4.2 mm
    Eye Relief 16 mm
    Interpupillary Adjustment 55.9 to 76.2 mm / 2.2 to 3"
    Dioptric Correction ±4
    Focus Type Center
    Tripod Mount Yes (Adapter Optional)
    Dimensions 5.7 x 4.7 x 2.5" / 144.8 x 119.4 x 63.5 mm
    Weight 28.00 oz / 793.80 g
    Package Weight 4.0 lb
    Box Dimensions (LxWxH) 11.8 x 9.65 x 3.8"
