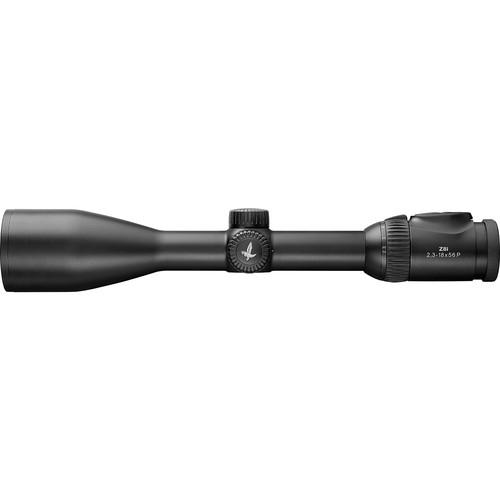

Product description - SWAROVSKI OPTIK Z8i Rifle Scope Illumination
Swarovski designed and built the Z8i 2.3-18x56 P L Riflescope to deliver uncompromising optical performance, precision, and durability. With its high-quality optical system, lens glass, and fully multi-layer anti-reflection coatings, it provides brilliant and sharp images with high resolution. No matter when you hunt, a state of the art optical system will deliver bright, crisp, and clearly visible images with the extra-wide 56mm objective aperture. The objective and ocular lenses are further enhanced with the SWAROCLEAN repellent coating to ensure that water droplets and dirt can be easily removed without a trace. To help with ballistic and wind drift compensation, this scope offers a 36 MOA windage and 64.8 MOA elevation adjustment ranges with 0.36 MOA click values.

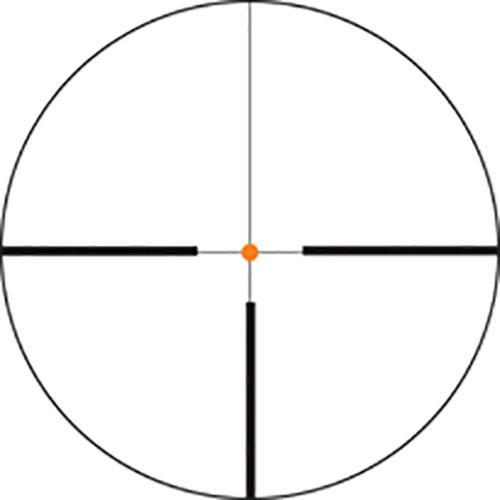

A notable highlight of this riflescope is the 2nd focal plane 4W-I illuminated reticle. Inspired by the German #4 pattern, the outline is etched on the glass and features a wide gate with a densely populated horizontal crosshair line, three medium posts, a fine crosshair, and an illuminated brilliant center dot. The scope also offers 64 reticle brightness levels for twilight and daylight and SWAROLIGHT inclination-dependent activation and deactivation of the illumination.
Drawing on their tradition of engineering excellence and precision manufacturing, this waterproof and fogproof optic was impeccably constructed from high-quality, lightweight, and durable aluminum with a matte black corrosion-resistant anodized finish. Among the many highlights are 30mm single-piece maintube, capped finger-operated turrets, a side parallax corrector, and a precision zoom eyepiece. The windage and elevation gear is also compatible with the optional high-precision Ballistic Turret Flex (BTF). This turret can be used for both windage and elevation, and provides an extended range of adjustment, precision graduation, and high-traction knurling. The knob can be enhanced with custom graduation and does not require any tools for installation. - Illuminated 4W-I Reticle
-
- 2nd focal plane
- German #4 inspired pattern
- Three medium posts
- Wide gate with a thin crosshair
- Brilliant illuminated center dot
- SWAROLIGHT inclination sensor switches reticle illumination off:
- At 30° left or right inclination
- At 70° forward up or down inclination
- 64 illumination brightness levels:
- 0 - 32 twilight illumination settings
- 33 - 64 daytime illumination settings
- Optical Performance
-
- 2.3 - 18x magnification
- 56mm objective lens delivers bright images in challenging light conditions
- Anti-reflection fully multi-coated optics offer a total optical transmission of 93%
- SWAROCLEAN coating makes it easy to clean away water marks, insect repellent, and tree resin
- Use and Handling
-
- 0.36 MOA per click impact point correction
- 36 MOA windage and 64.8 MOA elevation adjustment ranges
- Parallax correction from 55 yd to infinity
- -3 to +2 dioptric correction
- 3.7" long eye relief
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum alloy housing
- Corrosion-resistant, matte black anodized finish
- Compatible with optional top or side BTF ballistic turret flex:
- Can be combined with all reticles and doesn't require any tools
- Allows extended ballistic compensation
- Offers graduation in centimeters
- Optional personalized graduation ballistic rings (PBR) are available
- Waterproof and submersible to 13'
- Fogproof, filled with inert gas
UPC: 708026684050 In the Box Swarovski 2.3-18x56 Z8i P L Riflescope (4W-I Illuminated Reticle, Matte Black) - 2 x CR-2032 Batteries
- 2 x Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 2.3-18x56 Z8i P L Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 68405 Specs | | | Magnification | 2.3 to 18x | | Objective Lens Diameter | 56 mm | | Field of View | 2.3x: 55.8' @ 100 yd / 18.6 m @ 100 m
18x: 6.9' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 2.3x: 8.1 mm
18x: 3.1 mm | | Eye Relief | 3.7" / 95 mm | | | | Reticle Type | 4W-I Reticle (Second Focal Plane) | | | | Filter Thread | M58 x 0.75 | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 64.8 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes | | Operating Temperature | 4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 180 to 1400 Hours (Average) | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 25.6 oz / 725 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 16.2 x 4.5 x 3.8" |
