User Manual for Swarovski 2.5-15x44 P BT L Z6i 2nd Generation Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 2.5-15x44 P BT L Z6i
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 2.5-15x44 P BT L Z6i contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|

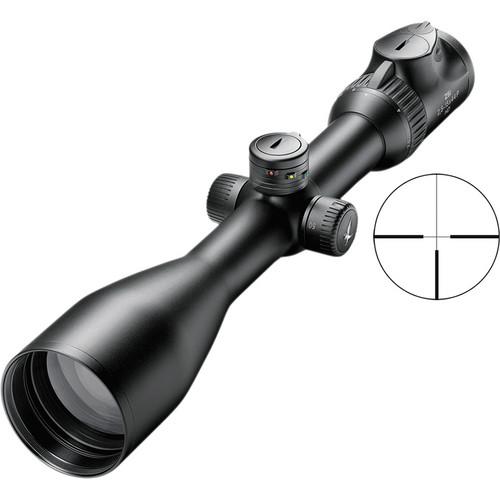

Product description The 2.5-15x44 P BT L Z6i 2nd Generation Riflescope (Matte Black) from Swarovski Optik comes with an Illuminated 4A-I Reticle in the 2nd focal plane and the addition of a Ballistic Turret (BT). It's a slim scope, ideal for mountain hunting. The Z6i has been re-engineered into the Z6i 2nd Generation - making an already great scope even greater. The 2nd Generation Z6i's handling has been optimized and Swarolight technology has been added providing automatic on-off reticle illumination for an extended battery life. The 2.5-15x44 P BT L Z6i scope has a smooth aluminum tube that accommodates ring mounting. It is rugged and dependable with a nitrogen filled tube for fogproofing and water proof to over 13 feet. High Definition (HD) glass has been used in the optics to provide minimal chromatic aberration and truer color. The 44mm objective affords increased light gathering for brighter views in low light conditions such as dawn, dusk or an overcast sky. A low magnification of 2.5x is appreciated by hunters attempting to gain positive target acquisition on fast moving game. A hunter can quickly dial up to the 15x high magnification for a longer shot. This rifle scope is a great choice for difficult, rough terrain, where weight and distance can play a decisive role.This Z6i has a 4A-I in the second focal plane so that the reticle size stays constant even though the target size increases with the zoom magnification. It has a 30mm tube and a matte black finish. An especially accurate and customizable feature is the addition of the Ballistic Turret (BT) to this riflescope. The BT allows repeatable, long range accuracy and user defined distance settings.Impeccable craftsmanship, optical genius, rugged dependability, and repeatable accuracy have all been engineered into the design and construction of this fine sighting optic to ensure a lifetime of successful hunting.To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Mounting
- Smooth aluminum tube accommodates ring mounting
- Waterproof and Fogproof
- 30mm main tube is nitrogen filled, fog proof & waterproof to 13 feet or 4 meters
- Temperature Ranges
- Operating temperature of -4 to 131°F / -20 to +55°C and storage temperature of -22 to +158°F / -30 to +70°C
- Sophisticated Optical System with 6X Zoom
- Magnification range offers both a wide field of view as well as the ability to zoom in for close-up observation
- Swarotop Coatings
- Proprietary up-to-date lens coatings increase light transmission & micro-grooves on the edges of lens elements, preventing residual reflections inside the tube for bright high-contrast images under all lighting conditions
- Reticle Illumination
- Flashing reticle indicates battery is discharged
Low profile slim module for unrestricted viewing
Two CR2032 lithium batteries included; one as a spare
Memory function stores two brightness levels for quick access
Smart auto shut-off function differentiates between night and day
Ergonomic brightness control allows quick access, even with gloves on - 4A-I Reticle in Second Focal Plane
- Illuminated 4A-I reticle has three heavy posts at 3, 6, and 9 o'clock which stand out against heavy cover. A single stadia resides at 12 o'clock and intersects with fine crosshairs. An illuminated red dot indicates the exact point of aim
Second focal plane positioning of the reticle maintains its size throughout the zoom range - Ballistic Turret
- Ballistic Turret (BT) provides an accurate aiming point and enables specific long-range target shots
The alignment nose indicates whether the basic setting is being used
Variable distance settings in addition to the 4 designated distances
The distances are shooter selected at any time, even in the field
BT is easily assembled and adjusted to the specific firearm
Swarovski proprietary internet ballistics software program will calculate the necessary click values for the desired distances to be used in conjunction with the BT UPC: 708026694585 In the Box Swarovski 2.5-15x44 P BT L Z6i 2nd Generation Riflescope (Matte Black) Microfiber Cloth See-through Bikini Style Lens Caps 2 x 3.0V CR2032 Lithium Batteries Limited Lifetime Warranty Limited 10-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 2.5-15x44 P BT L Z6i 2nd Generation Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 69458 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 44 mm | | Field of View | 1x: 127.5' @ 100 yd / 42.3 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 9.7 mm
15x: 2.9 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Filter Thread | M46 x 0.75 | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 64.8 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 358 mm | | Weight | 21.5 oz / 609.5 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 16.2 x 3.6 x 3.2" |
