User Manual for Swarovski 2.5-15x56 P L Z6i 2nd Generation Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 2.5-15x56 P L Z6i 2nd
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 2.5-15x56 P L Z6i 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|

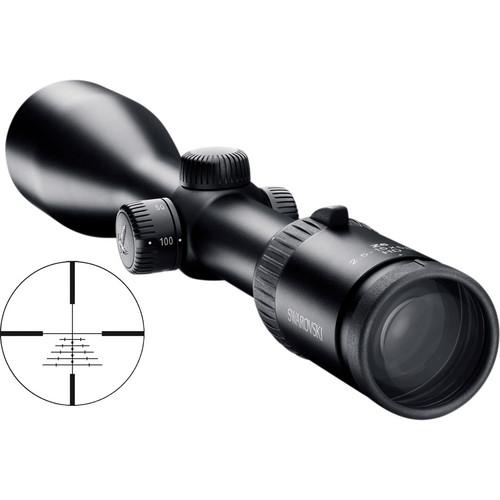

Product description The 2.5-15x56 P L Z6i 2nd Generation Riflescope (Matte Black) from Swarovski Optik offers an exceptionally large 56mm objective for expansive light gathering ability in twilight's dusk or dawn as well as overcast, gray, drab days when the call of the hunt beckons. Combined with a comfortable 2.5-15x low to high magnification, this a very versatile scope whether for up close bush work or long distance range shots. Legendary Sworovski optics leverage HD (High Density) glass to fine tune the total optical package and deliver an exceptionally high level of color fidelity. The Z6i has been re-engineered into the Z6i 2nd Generation - making an already great scope even greater. The 2nd Generation Z6i's handling has been optimized and Swarolight technology has been added, providing automatic on-off reticle illumination for an extended battery life. This scope is provisioned with a parallax correction turret, an Illuminated BRH-I Reticle in the 2nd focal plane. It has a smooth aluminum tube that accommodates ring mounting. It is rugged and dependable with a nitrogen filled tube for fogproofing and water proof to over 13 feet. A low magnification of 2.5x is appreciated by hunters attempting to gain positive target acquisition on fast moving game. A hunter can quickly dial up to the 15x high magnification for a longer shot. This rifle scope is a top choice for poor light conditions and distance shooting.The Z6i's BRH-I reticle is in the second focal plane so that its size will remain constant even though the target size increases with the zoom magnification. It has a 30mm tube and a matte black finish. Impeccable craftsmanship, optical genius, rugged dependability, and repeatable accuracy have all been engineered into the design and construction of this fine sighting optic to ensure a lifetime of successful hunting.To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Mounting
- Smooth aluminum tube accommodates ring mounting
- Waterproof and Fogproof
- 30mm main tube is nitrogen filled, fog proof & waterproof to 13 feet / 4 meters
- Temperature Ranges
- Operating temperature of -4 to 131°F / -20 to +55°C and storage temperature of -22 to +158°F / -30 to +70°C
- Sophisticated Optical System with 6X Zoom
- Magnification range offers both a wide field of view as well as the ability to zoom in for close-up observation
- Swarotop Coatings
- Proprietary up to date lens coatings increase light transmission & micro-grooves on the edges of lens elements prevent residual reflections inside the tube for bright high-contrast images under all lighting conditions
- Reticle Illumination
- Flashing reticle indicates battery is discharged
Low profile slim module for unrestricted viewing
Two CR2032 lithium batteries included; one as a spare
Memory function stores two brightness levels for quick access
Smart auto shut-off function differentiates between night and day
Ergonomic brightness control allows quick access, even with gloves on - BRH-I Reticle in Second Focal Plane
- Illuminated BRH-I reticle features a standard 4-post cross hair configuration. The four heavy weight posts morph into light weight posts to guide the eye to the center of the sight picture. On the lower stadia are alternating dots and hash marks that provide for bullet trajectory compensation for long range shots. An illuminated red dot indicates the exact point of aim
Second focal plane positioning of the reticle maintains its size throughout the zoom range UPC: 708026695377 In the Box Swarovski 2.5-15x56 P L Z6i 2nd Generation Riflescope (Matte Black) Microfiber Cloth See-through Bikini Style Lens Caps 2 x 3.0V CR2032 Lithium Batteries Limited Lifetime Warranty Limited 10-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 2.5-15x56 P L Z6i 2nd Generation Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 69537 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 1x: 127.5' @ 100 yd / 42.3 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 9.6 mm
15x: 3.7 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Filter Thread | M58 x 0.75 | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 64.8 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.4" / 367 mm | | Weight | 23.8 oz / 675 g | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 16.3 x 3.6 x 3.5" |
