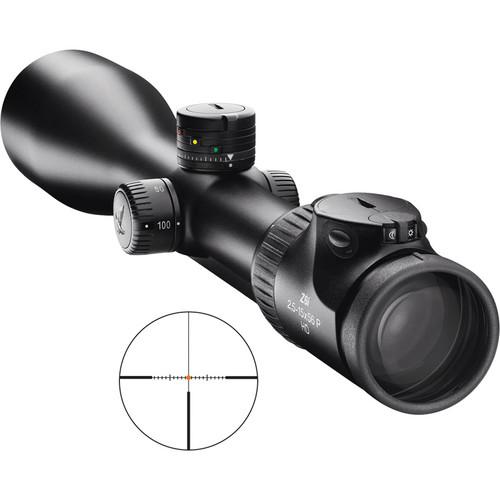

User Manual for Swarovski 2.5-15x56 Z6i 2nd Generation BT Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 2.5-15x56 Z6i 2nd Generation BT
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 2.5-15x56 Z6i 2nd Generation BT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The 2.5-15x56 Z6i 2nd Generation BT Riflescope with 4W-I reticle from Swarovski combines a fully multicoated optical path with a weatherproof housing and customizable ballistic turrets to create a dependable and precise targeting instrument. This second generation Z6i scope offers a streamlined form factor and improved functionality compared to its predecessor. The latest Z6i models also have a 30mm main tube that houses extra-low dispersion HD glass elements and transmits the premium image quality synonymous with Swarovski sport optics. This configuration of the Z6i riflescope features a second focal plane illuminated 4W-I reticle designed for precise wind drift compensation throughout the entire magnification range. Vertical lines in 2 MOA increments along the reticle's horizontal axis enables precise windage correction and shot placement. The reticle illuminator offers two last-used memory functions and 64-level brightness adjustments that allow the shooter to optimize the illumination setting for daylight, twilight, and anything in between. In addition to a shooter's base zero, Swarovski's Ballistic Turret (BT) impact point correction system enables a shooter to calibrate three distinct ballistic programs for swift zeroing at different distances. The BT locking mechanism preserves the three user-defined windage/elevation adjustments and prevents accidental movement of either turret. This 2nd Generation Z6i optic also includes Swarovski's innovative SWAROLIGHT automatic On/Off reticle illumination system. Using a built-in two-axis tilt sensor, the Z6i prolongs battery life by deactivating the reticle illuminator when the rifle is no longer in an upright level firing position; once the weapon is returned to the firing position, the reticle automatically illuminates at the previously-used brightness level. Complementing the impressive functionality and optical performance of the Z6i riflescope is a weatherproof build quality to match. The nitrogen-filled aluminum alloy housing is engineered to withstand extreme temperatures, intense humidity, and driving rain. A generous 3.7" eye relief, deeply grooved magnification ring, and rapid focus parallax adjustment turret provide the Z6i with additional features that help make it a fine-tuned aiming instrument for targets at almost any distance. - Optical Performance
-
- 2.5-15x magnification, 56mm objective
- 30mm main tube diameter
- Fluoride-containing HD glass
- Fully multicoated optics
- 91% light transmission
- 50m to infinity adjustable parallax
- 49.5-8.1 ft (15-2.5m) field of view at 100 yd
- 3.7" eye relief, 9.5-3.8mm exit pupil
- -3 to +2 diopter adjustment range
- Illuminated 4W-I Reticle
-
- Second focal plane position, reticle size is constant throughout zoom range
- Wind drift compensation marks in 2 MOA intervals
- Fine crosshair with heavy posts at three, six, nine o'clock
- Use and Handling
-
- 0.36" at 100 yd (10mm at 100m) per click elevation/windage adjustments
- 64.8"/36" at 100 yd (1.8m/1m at 100m) elevation/windage adjustment range
- Locking ballistic turrets with rectangular impact point adjustments
- Parallax adjustment turret detented at 100m
- SWAROLIGHT tilt-sensing auto-On/Off reticle illumination
- 64 brightness adjustment settings (Day:0-32 Night:33-64)
- Last-used memory function for Day/Night modes
- Spare battery compartment
- Construction Details
-
- One-piece aluminum alloy tube
- Nitrogen-filled fogproof/waterproof
- Watertight housing to 13 ft (4 m) depth
- -13 to 131°F (-25 to 55°C) operating temperature
- SWAROCLEAN non-stick coating on exposed lenses
- Microstructure internal surface reduces reflections
- 23 oz (655g) weight
UPC: 708026695391 In the Box Swarovski 2.5-15x56 Z6i 2nd Generation BT Riflescope (4W-I) Transparent Bikini-Style Lens Cap Coin Key CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 2.5-15x56 Z6i 2nd Generation BT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 69539 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 2.5x: 49.5' @ 100 yd / 15.1 m @ 100 m
15x: 8.1' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 2.5x: 9.5 mm
15x: 3.8 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 4W-I Reticle | | Illumination | Illuminated | | | | Filter Thread | M58 x 0.75 | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Operating Temperature | -13 to 131°F / -25 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 1400 Hours | | Dimensions | Length: 14.4" / 36.5 cm | | Weight | 23.1 oz / 655 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 16.2 x 3.5 x 3.3" |
