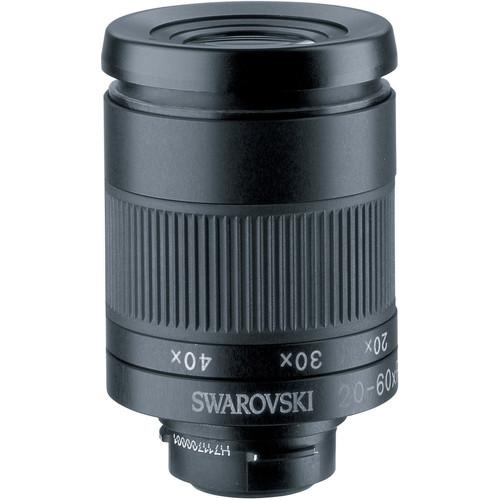

User Manual for Swarovski 20-60x Zoom Spotting Scope Eyepiece Click to enlarge the picture
Contents of the user manual for the Swarovski 20-60x Zoom Spotting Scope Eyepiece
- Product category: Eyepieces Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Eyepieces
|
User manual for the Swarovski 20-60x Zoom Spotting Scope Eyepiece contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description Designed to work with their ATS, STS, and STR spotting scopes, the Swarovski Optik 20-60x Zoom Spotting Scope Eyepiece maintains the wide magnification range and long eye relief, regardless of the spotter it is installed on. Its aspherical lens design virtually eliminates spherical aberration to produce crisp and sharp views - especially at the edges. Engineered to work seamlessly with the spotting scope optics, the eyepiece sports the proprietary SWAROTOP and SWAROCLEAN lens coatings to improve light transmission for brighter images, and to increase contrast; while repelling water, oils, dirt, and sap to make views clearer and cleaning easier. At lower magnifications the apparent angle of view reaches a wide 65°, and its ridged zoom collar makes it easy to progress through the entire magnification range quickly to make detailed observations at the higher powers. - Optical Performance
-
- 20-60x magnification on all spotting scopes
- Compatible with ATS, STS, and STR spotting scopes
- Aspherical lens design reduces spherical aberration for sharp image detail — especially at the edges
- SWAROTOP multi-coatings improve light transmission to produce bright high-contrast images
- SWAROCLEAN exterior lens coatings repels water, oils, sap, and dirt to make views crisper and cleaning easier
- Wide-angle viewing at lower powers — up to 65°
- 108-60' field of view at 1000 yards
- Use and Handling
-
- Proprietary bayonet mount facilitates easy installation and removal
- Laser-etched magnification indicators with textured zoom ring
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Long 17mm eye relief
- 3.3-1.1mm exit pupil
- Construction Details
-
- O-ring sealed to be waterproof
- Tethered eyecup cap with finger ridge to make removal fast and easy
- Weight: 9.2 ounces
- Made in Austria
UPC: 708026494307 In the Box Swarovski 20-60x Zoom Spotting Scope Eyepiece Mount Cap Bayonet Rear Eyepiece Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 20-60x Zoom Spotting Scope Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 49430 Specs Magnification | 20 to 60x | Angle of View | 2.1 to 1.1° (Actual) | Field of View | 108 to 60' @ 1000 yd / 36 to 20 m @ 1000 m | Exit Pupil Diameter | With 65 mm Scopes: 3.3 to 1.1 mm With 80 mm Scopes: 4 to 1.3 mm | Eye Relief | 17.0 mm | Water Resistance | Waterproof | Dimensions |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
