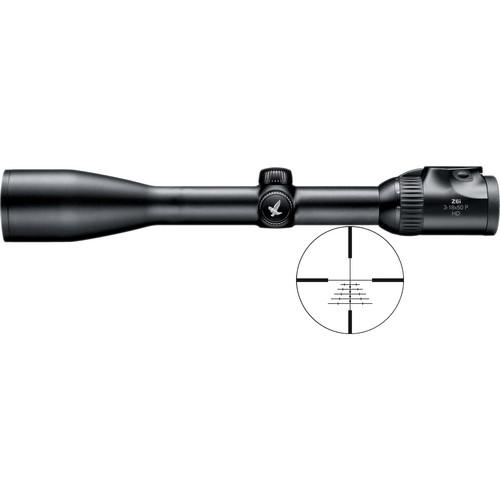

User Manual for Swarovski 3-18x50 Z6i P L 2nd Generation Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 3-18x50 Z6i P L 2nd
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 3-18x50 Z6i P L 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The 3-18x50 Z6i P L 2nd Generation Riflescope (Matte Black) from Swarovski Optik comes with an Illuminated BRH-I Reticle in the 2nd focal plane. It has a side parallax turret, a large objective for more light transmission at twilight and a powerful magnification range of 3-18x. Those specifications make it particularly suitable for long-range targets at dawn or dusk or on a gray cloudy day when the game is more abundant. The Z6i has been re-engineered into the Z6i 2nd Generation - making an already great scope even greater. The illumination housing has been redesigned into a lower, slimmer form factor with smoother edges while the controls have been made so that there is less chance of being accidentally turned off. Whenever the rifle is not in a shooting position, Swarolight technology takes over, automatically turning the reticle illumination off/on and greatly extending battery life. The 3-18x50 P L Z6i scope has a smooth aluminum tube that accommodates ring mounting. The tactile ribbing on the power ring has been made larger, affording an easier slip-proof grasp. It is rugged and dependable with a nitrogen purged tube for fogproofing, and is waterproof to over 13 feet. High Definition (HD) glass minimizes chromatic aberration thereby delivering greater color fidelity. This Z6i has a BRH-I in the second focal plane so that the reticle size stays constant even though the target size increases with the zoom magnification. It has a 30mm tube and a matte black finish. Impeccable craftsmanship, optical genius, rugged dependability, and repeatable accuracy have all been engineered into the design and construction of this fine sighting optic to ensure a lifetime of successful hunting.To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Mounting
- Smooth aluminum tube accommodates ring mounting
- Waterproof and Fogproof
- 30mm main tube is nitrogen purged, fogproof & waterproof to 13 feet / 4 meters
- Temperature Ranges
- Operating temperature of -4 to 131°F / -20 to +55°C and storage temperature of -22 to +158°F / -30 to +70°C
- Swarotop Coatings
- Proprietary SWAROCLEAN, SWARODUR, SWAROTOP up to date lens coatings increase light transmission
- Sophisticated Optical System with 6X Zoom
- Large magnification range offers both a wide field of view as well as the ability to zoom in for close-up observation
- Micro-Grooves
- Micro-grooves on the edges of lens elements prevent residual reflections inside the tube for bright high-contrast images under all lighting conditions
- Reticle Illumination
- Flashing reticle indicates battery is discharged
Low profile slim module for unrestricted viewing
Memory function stores two brightness levels for quick access
Smart auto shut-off function differentiates between night and day
Ergonomic brightness control allows quick access, even with gloves on - BRH-I Reticle in Second Focal Plane
- Illuminated BRH-I reticle features a standard 4-post cross hair configuration. The four heavy weight posts morph into light weight posts to guide the eye to the center of the sight picture. On the lower stadia are alternating dots and hash marks that provide for bullet trajectory compensation for long range shots. An illuminated red dot indicates the exact point of aim
Second focal plane positioning of the reticle maintains its size throughout the zoom range. UPC: 708026696374 In the Box Swarovski 3-18x50 Z6i P L 2nd Generation Riflescope (Matte Black) Microfiber Cloth See-through Bikini Style Lens Caps 3.0V CR2032 Lithium Batteries Limited Lifetime Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 3-18x50 Z6i P L 2nd Generation Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 69637 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 50 mm | | Field of View | 1x: 127.5' @ 100 yd / 42.3 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 3x: 9.7 mm
18x: 2.8 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Filter Thread | M50 x 0.75 | | Impact Point Correction | 0.2 MOA per Click | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 64.8 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.1" / 384 mm | | Weight | 22.4 oz / 635 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 16.2 x 3.8 x 3.4" |
