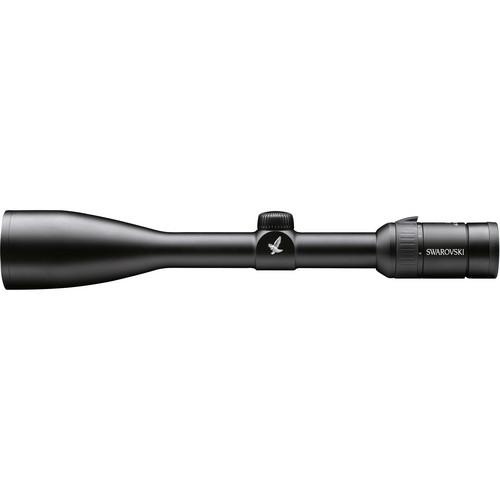

User Manual for Swarovski 4-12x50 Z3 Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 4-12x50 Z3 Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 4-12x50 Z3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description With its large objective lens and powerful magnification, the Swarovski Optik 4-12x50 Z3 Riflescope is designed to provide a good look at distant targets even in low light. The Z3 is configured with a 1" maintube and a 4A reticle in the second focal plane. The 4A reticle is similar to a traditional German #4. Three medium-weight posts at 3, 6, and 9 o'clock draw your eye to the center and stand out well against dark heavy cover. In the middle of your sight picture fine crosshairs intersect to indicate your exact point of aim. The parallax correction is factory preset at 109 yards.
SWAROTOP coatings limit light loss to just 0.2% at each air-to-glass surface, while the SWARODUR coating protects the external glass from scratches, moisture, gun oil, and insect repellent. Purged with inert gas, the scope is watertight and submersible to 13'. - Optical Performance
-
- 4-12x magnification
- 50 mm objective provides enhanced twilight performance
- SWAROTOP coatings: anti-reflective multi-coating enhances light transmission
- SWARODUR coating: protective scratch-resistant coating on external lens surfaces
- Parallax correction: 109 yards
- Construction Details
-
- 1/4" per click impact point correction
- 43" elevation and windage adjustment range at 100 yarsds
- Inert gas filled, submersible to 13'
- Durable yet lightweight 1.0" aluminum maintube
- 4A Reticle in the Second Focal Plane
-
- 4A reticle with three medium-weight posts at 3, 6, and 9 o'clock, with fine crosshairs in the middle
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
UPC: 708026590238 In the Box Swarovski 4-12x50 Z3 Riflescope (4A Reticle, Matte Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 4-12x50 Z3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59023 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 29.1' @ 100 yd / 9.7 m @ 100 m
12x: 9.9' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
12x: 4.2 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | 4A Reticle (Second Focal Plane) | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 43 MOA | | Elevation Adjustment | 43 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.8" / 35 cm | | Weight | 0.9 lb / 410 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 16.2 x 3.5 x 3.4" |
