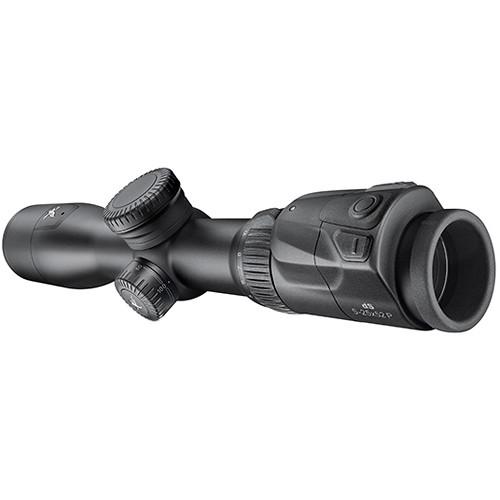

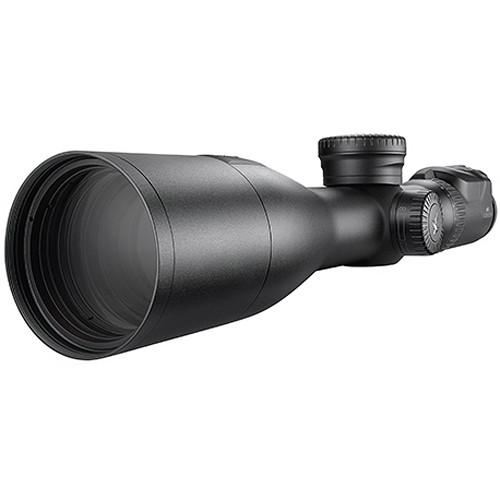

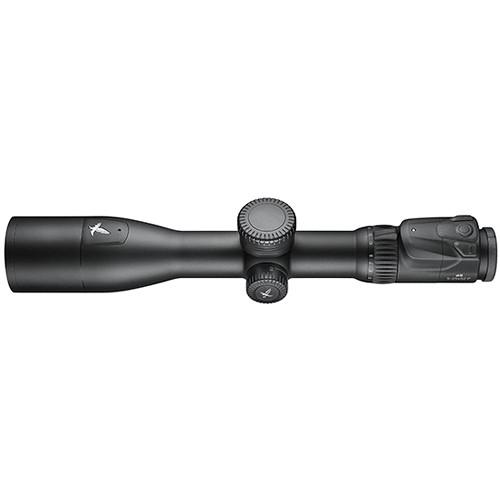

User Manual for Swarovski 5-25x52 dS P L Digital Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 5-25x52 dS P L Digital
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
 |
User manual for the Swarovski 5-25x52 dS P L Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description - SWAROVSKI OPTIK - dS START SMART
- SWAROVSKI OPTIK - dS rifle scope: Sighting in and app configuration
The Swarovski Optik 5-25x52 dS P L Digital Riflescope takes all the guesswork out of shooting to greatly improve your accuracy—whether you're shooting from medium to extreme long range.Packed into a conventional form factor, the scope features a wide zoom range and an oversized objective that allows you to use it for large and small game, in all light conditions, and keeps views bright and clear even when targeting small game at long ranges. It comes with the full complement of optical coatings to maximize light transmission and keep the lenses clear and clean.Beyond the optical performance you'd expect from a Swarovski riflescope, the dS is packed with a suite of electronics and tools to get you on-target, starting with integrated laser rangefinder and inclinometer. These measure the distance and relative angle from you to your target and, using low-power consumption Bluetooth connectivity, transmits that data to your smartphone running a companion app for iOS or Android devices. The app takes the distance and angle transmitted from the scope and adds information you've entered—such as your rifle and ammunition load, altitude, air pressure, wind speed, and temperature—and calculates an adjusted aiming point, which it transmits back to the scope. With this new aiming point determined, the illuminated aiming point on the reticle is moved to appropriate position. Now, all you need to do is put the dot on your target and squeeze. At no point do you need to manually adjust your turrets, so your rifle remains properly zeroed at all times.Protecting the optics and electronics is a large 40mm aluminum maintube and housing that is treated with a scratch-resistant anodized finish. The scope is nitrogen filled and O-ring sealed to be waterproof and submersible to 13 feet and resistant to internal fogging even in extreme conditions and temperatures. Front objective filter threads allow you to install polarizing or specialty filters to further improve performance, while the included clear lens caps give you another level of protection with the ability to use the scope with them on. The illuminated reticle, rangefinder, inclinometer, and Bluetooth are powered by a single included CR123 battery. - Optical Performance
-
- Wide 5-25x zoom range allows scope to be used at medium to extreme long range
- Large 52mm objective lens draws in copious amounts of light for use in all light conditions, from pre-dawn through dusk, and keeps view bright even when viewing small targets at very long range
- SWAROTOP internal lens coatings are index matched to the glass to reduce light loss to just 0.2%
- SWARODUR lens coating protects the external lenses from chemicals such as hand perspiration, condensation, gun oils, and insect repellents while offering scratch resistance
- SWAROCLEAN external lens coating makes it considerably easier to clean off insect repellents, watermarks, and other residue without leaving streaks
- Comfortable 3.74" eye relief
- 9.6-2.1mm exit pupil
- 21.9-4.5' field of view at 100 yd
- Reticle Details
-
- Modified 4A-I duplex reticle
- Designed for accuracy without obstructing view or target, even at long ranges
- Thick outer posts on horizontal and lower vertical axes draw the eye toward the center
- Thin hairs in center and upper vertical axes won't obstruct small targets
- Second focal plane placement maintains the reticle size through the zoom range
- Red illuminated aiming dot; placement changes based on calculations transmitted from app
- Illuminated aiming circle around center dot indicates when a measurement has been activated
- Reticle can be used with illumination turned off, but adjusted aiming point will not be displayed
- Free subtension dimensions program at SUBTENSIONS.SWAROVSKIOPTIK.COM provides accurate subtensions for all magnifications and different distances
- Shot Placement Calculator
-
- dS Configurator app for iOS (v8.1 and higher) or Android (v4.4 KitKat or higher) uses a variety of data to calculate precise shot placement for improved accuracy
- Customizable to specific rifle and ammunition load
- Utilizes range and angle to target, air pressure, and temperature to determine an adjusted aiming point
- No manual adjustment to windage or elevation turrets required, aiming point is automatically moved in the field of view
- Range and angle are automatically transmitted to app
- Additional data is entered on the dS Configurator app and the calculated ballistic curve is transferred directly to the scope via Bluetooth connectivity
- Adaptive system adjusts aiming point if magnification is turned up or down
- Ranging Capabilities
-
- Class 1 eye-safe IR laser
- Integrated rangefinder accurately ranges distance to target
- Built-in inclinometer measures upward or downward angle to target up to ±60°
- 33-1,500 yard metering distance with ±1 yd/m ranging accuracy
- ≤ 0.7 second measuring time
- Maximum aiming correction range 1120 yards (1024m)
- Display distance in yards or meters
- Use and Handling
-
- Monochrome Liquid Crystal on Silicon (LCoS) display shows information clearly without distorting view
- Selectable 40/60/80 second display time, configurable through the companion app
- Pitch rifle/scope side-to-side 20° to override and reset the display timer without having to take another measurement
- 64 brightness levels for use in all light conditions
- 1/4 MOA impact point correction enables precise zeroing
- Inset and covered windage and elevation turrets; used primarily for zeroing scope to rifle
- -3 to +2 diopter allows reticle and in-view display to be perfectly focused
- Parallax adjustment from 55 yards to infinity
- Separate brightness + and - control buttons for easy adjustment

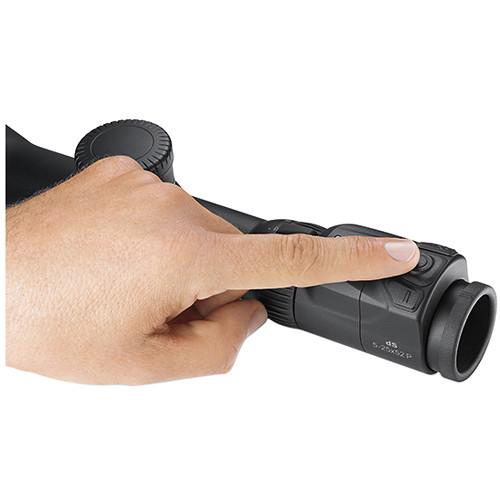

- Single button activates rangefinder function
- Low battery indicator when an estimated 100 measurements are still possible
- LED Bluetooth indication light
- Construction Details
-
- 40mm maintube
- Lightweight and durable aluminum alloy
- Scratch-resistant anodized finish
- Nitrogen filled to be fogproof when moving through extreme changes in temperature and environmental conditions
- Waterproof to 13' (4m) or 0.4 bar of pressure, able to withstand brief submersion in puddles/stream or use in driving rain
- M63 x 0.75 objective filter threads
- Protective front and rear transparent lens covers
- Broad 14 to 131°F operating temperature
- Torx wrench and adjustment tool stored in battery compartment for easy access in the field
- Runs on one included CR123 battery. Rechargeable batteries should not be used
UPC: 708026710001 In the Box Swarovski 5-25x52 dS P L Digital Riflescope (4A-I Illuminated Reticle) Transparent Protective Cover Microfiber Cloth Tool Kit CR123 Battery Limited Lifetime Optics Warranty Limited 2-Year Electronics Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 5-25x52 dS P L Digital Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 71000 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 52 mm | | Field of View | 5x: 22' @ 100 yd / 7.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 9.6 mm
25x: 2.1 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Modified 4A-I Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illumination Type | LED | | Brightness Settings | Adjustable Brightness (64 Levels) | | | | Laser Type | Class 1 Eye Safe | | Metering Range | 32.8 to 1504.3 yd / 30 to 1375 m | | | | Mounting | None | | Filter Thread | M63 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 164' / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Maintube Diameter | 40 mm | | Battery | 1 x CR123A | | Material | Aluminum | | Dimensions | Length: 15.9" / 40.3 cm | | Weight | 38.4 oz / 1090 g | | | | Package Weight | 4.09 lb | | Box Dimensions (LxWxH) | 18.8 x 4.7 x 3.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Swarovski 5-25x52 dS P L Digital Riflescope
| Subject: Adjustments | | Date: 06.11.2022 12:11:23 | Name: Steve de Ricquebourg | | Once I've set everything up on my scope including the transfer of information. Can I still adjust the hairs manually without having to resend all the information. | | Post reply |
