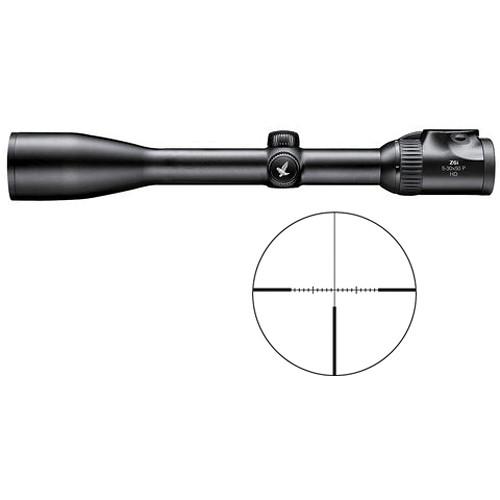

User Manual for Swarovski 5-30x50 Z6 2nd Generation BT Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski 5-30x50 Z6 2nd Generation BT
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski 5-30x50 Z6 2nd Generation BT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The 5-30x50 Z6 2nd Generation BT Riflescope with 4W reticle from Swarovski combines a fully multicoated optical path with a weatherproof housing and customizable ballistic turrets to create a dependable and precise targeting instrument. This second generation Z6 scope offers a streamlined form factor and improved functionality compared to its predecessor. The latest Z6 models also have a 30mm main tube that houses extra-low dispersion HD glass elements and transmits the premium image quality synonymous with Swarovski sport optics. This configuration of the Z6 riflescope features a second focal plane 4W reticle designed for precise wind drift compensation throughout the entire magnification range. Vertical lines in 2 MOA increments along the reticle's horizontal axis enables precise windage correction and shot placement. In addition to a shooter's base zero, Swarovski's Ballistic Turret (BT) impact point correction system enables a shooter to calibrate three distinct ballistic programs for swift zeroing at different distances. The BT locking mechanism preserves the three user-defined windage/elevation adjustments and prevents accidental movement of either turret. Complementing the impressive functionality and optical performance of the Z6 riflescope is a weatherproof build quality to match. The nitrogen-filled aluminum alloy housing is engineered to withstand extreme temperatures, intense humidity, and driving rain. A generous 3.7" eye relief, deeply grooved magnification ring, and rapid focus parallax adjustment turret provide the Z6 with additional features that help make it a fine-tuned aiming instrument for targets at intermediate to long-range distance. - Optical Performance
-
- 5-30x magnification, 50mm objective
- 30mm main tube diameter
- Fluoride-containing HD glass
- Fully multicoated optics
- 90% light transmission
- 50m to infinity adjustable parallax
- 23.7-3.9 ft (7.2-1.2m) field of view at 100 yd
- 3.7" eye relief, 9.5-1.7mm exit pupil
- -3 to +2 diopter adjustment range
- Use and Handling
-
- 0.36" at 100 yd (10mm at 100m) per click elevation/windage adjustments
- 43.2"/25.2" at 100 yd (1.2m/0.7m at 100m) elevation/windage adjustment range
- Locking ballistic turrets with rectangular impact point adjustments
- Parallax adjustment turret detented at 100m
- Construction Details
-
- One-piece aluminum alloy tube
- Nitrogen-filled fogproof/waterproof
- Watertight housing to 13 ft (4 m) depth
- -13 to 131°F (-25 to 55°C) operating temperature
- SWAROCLEAN non-stick coating on exposed lenses
- Microstructure internal surface reduces reflections
- 21.2 oz (600g) weight
UPC: 708026599187 In the Box Swarovski 5-30x50 Z6 2nd Generation BT Riflescope (4W) Transparent Bikini-Style Lens Cap Coin Key CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 5-30x50 Z6 2nd Generation BT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59918 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 23.7' @ 100 yd / 7.2 m @ 100 m
30x: 3.9' @ 100 yd / 1.2 m @ 100 m | | Exit Pupil Diameter | 5x: 9.5 mm
30x: 1.7 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 4W-I Reticle | | | | Filter Thread | M52 x 0.75 | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Operating Temperature | -13 to 131°F / -25 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.5" / 39 cm | | Weight | 21.2 oz / 600 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 20.0 x 5.0 x 5.0" |
