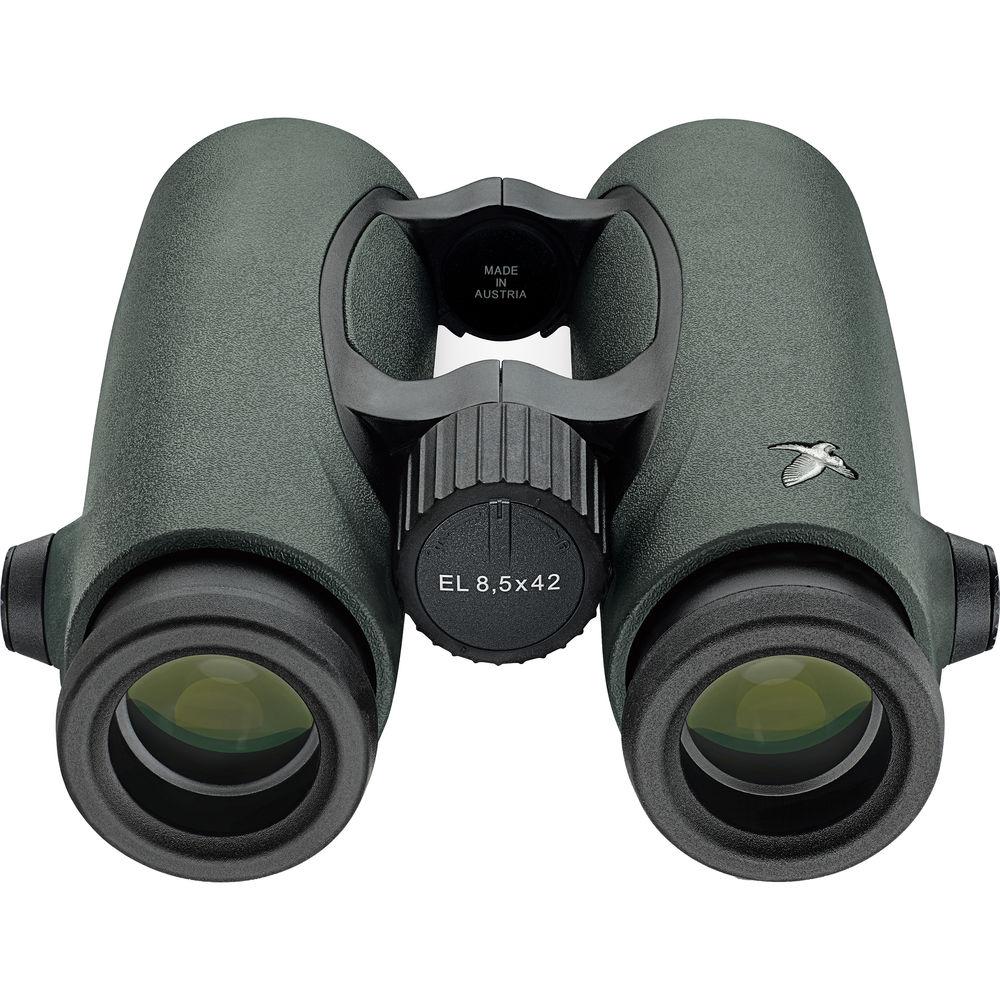

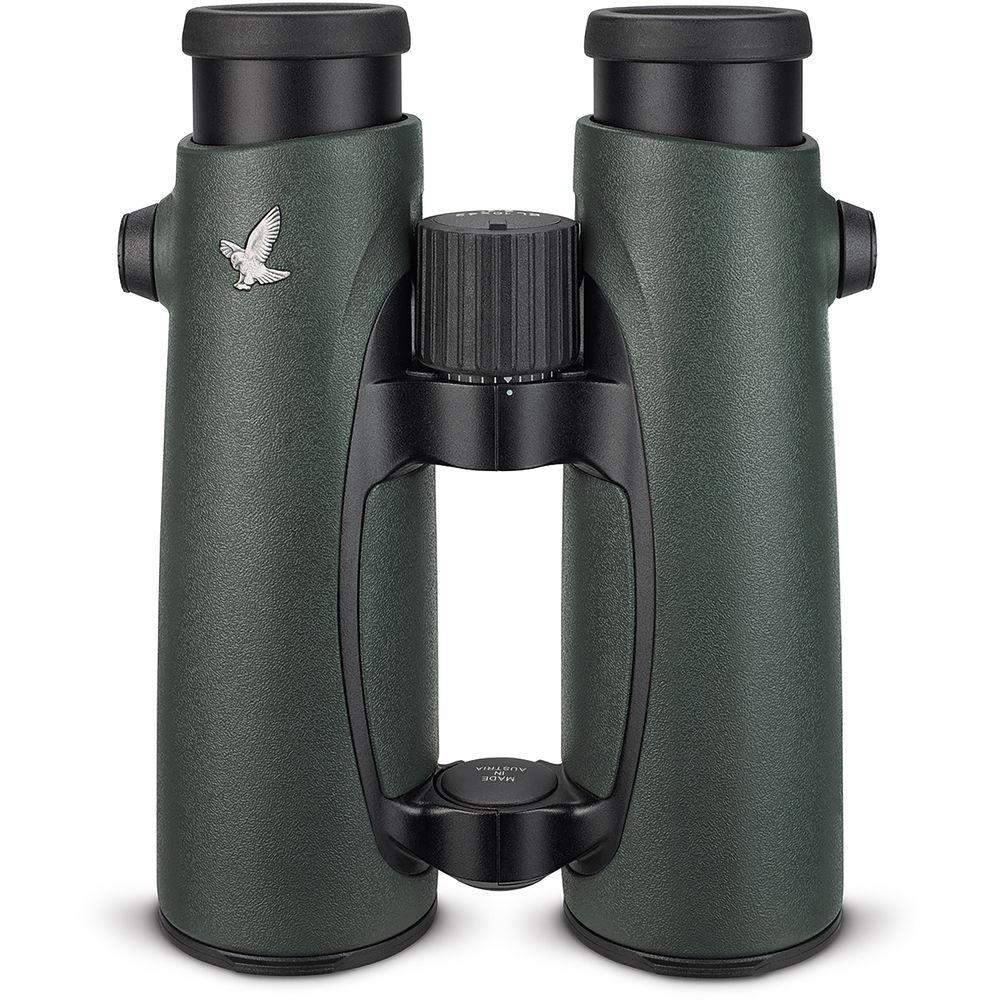

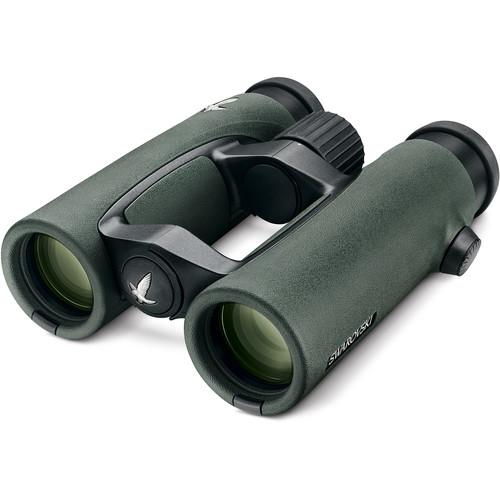

User Manual for Swarovski 8.5x42 EL42 Binocular with FieldPro Package Click to enlarge the picture
Contents of the user manual for the Swarovski 8.5x42 EL42 Binocular with FieldPro
- Product category: Binoculars Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Binoculars
 |
User manual for the Swarovski 8.5x42 EL42 Binocular with FieldPro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Developed to give hunters and birders a slightly higher magnification over standard 8x optics while preserving a wide-angle field of view and limiting visible hand shake common in higher power glasses, Swarovski's green 8.5x42 EL42 Binocular features a high-transmission optical path, legendary Swarovski optical coatings, and a weather-sealed magnesium-alloy housing. Its wide 65° apparent viewing angle and short 4.9-foot minimum focus distance make this optic ideal for close to medium-long range viewing. The ELs employ a suite of SWAROVISION coatings and technologies that enhance the user experience, including SWAROBRIGHT, SWAROTOP, SWARODUR, SWAROCLEAN, phase-correcting P-coatings, field-flattener lenses, and fluoride glass. These technologies work seamlessly to produce bright and clear high-contrast and high-resolution images with true color fidelity and virtually no distortion across the entire field of view. The 8.5x magnification, coupled with wide-angle viewing and generous 42mm objectives, make this EL ideal for a diverse range of observational situations, from birding and hunting to sightseeing and terrain navigation, with enhanced low-light capabilities over small-objective binoculars.Complementing the optical performance is a lightweight and durable magnesium-alloy chassis that can withstand a life in extreme conditions. Its nitrogen-filled optical tubes are water and fogproof to ensure performance in all weather and environments without internal fogging when moving quickly between wide temperature ranges. An ergonomic, wraparound green rubber armor ensures that the binoculars will remain comfortable in the hand during long glassing sessions and helps to maintain a sure grip when it's cold and wet. This version of the EL comes with Swarovski's FieldPro package that features their proprietary rotating pin attachment and adjustment system for the strap that improves mobility and comfort over conventional systems. Included with the binocular are the FieldPro bag, carrying strap, tethered objective lens covers, and a soft rubber tethered ocular rainguard. - Optical Performance
-
- 8.5x magnification
- 42mm objective lenses
- Compact roof prism optical path
- Fluoride glass virtually eliminates chromatic aberration for improved color rendition, resolution, and contrast
- SWAROBRIGHT coatings provide enhanced contrast, brightness, and color fidelity
- SWAROTOP coatings on lenses and prisms reduce light reflection to improve brightness and contrast
- Phase-correcting P-coating further improves color and contrast
- Field-flattener lenses improve edge sharpness and lower the distortion
- SWARODUR outer coating on optics helps to prevent scratches and abrasions
- SWAROCLEAN non-stick coatings make cleaning dirt, dust, sap, moisture, and fingerprints from lens surfaces easy and fast
- 399' field of view at 1000 yards
- Wide 65° apparent angle of view
- Short 4.9' close-focus distance
- Use and Handling
-
- Open-bridge configuration
- Fully armored, non-slip focusing wheel for comfortable focusing
- Wraparound grips and ergonomic thumb rests for comfortable long-duration observations
- Integrated ±5 dioptric adjustment
- Diopter adjustment lock prevents accidental adjustment
- Hypoallergenic twist-up eyecups
- Wide 56-74mm interpupillary adjustment range
- Long 20mm eye relief
- 4.9mm exit pupil
- Construction
-
- Lightweight and durable magnesium-alloy chassis
- Green rubber armoring protects against drops and impacts while providing slip-resistant grip
- Nitrogen filled for fog and waterproof performance
- Includes FieldPro package:
- FieldPro carrying bag
- Adjustable carrying strap with proprietary rotating pin attachment and adjustment system
- Tethered objective lens covers reduce risk of loss
- Soft rubber ocular rainguard offers greater protection and noise reduction
UPC: 708026342080 In the Box Swarovski 8.5x42 EL42 Binocular with FieldPro Package (Green) FieldPro Bag LSCP Lift Carrying Strap Pro for EL Series Binoculars 2 x Objective Lens Cover Hinged Ocular Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 uzxduqurbtesdbcyzfvwxybexszvveuvsu A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 uzxduqurbtesdbcyzfvwxybexszvveuvsu Spec sheet PDF 163.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 8.5x42 EL42 Binocular with FieldPro Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 34208 Specs | Prism Type | Roof | | Magnification | 8.5 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.6° (Actual) | | Field of View | 399.0' @ 1000 yd / 133.0 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 4.9 mm | | Eye Relief | 20 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±5 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.3 x 5.2 x 2.4" / 16.0 x 13.2 x 6.1 cm | | Weight | 28.00 oz / 793.8 g | | | | Package Weight | 4.235 lb | | Box Dimensions (LxWxH) | 11.75 x 9.75 x 3.7" |
