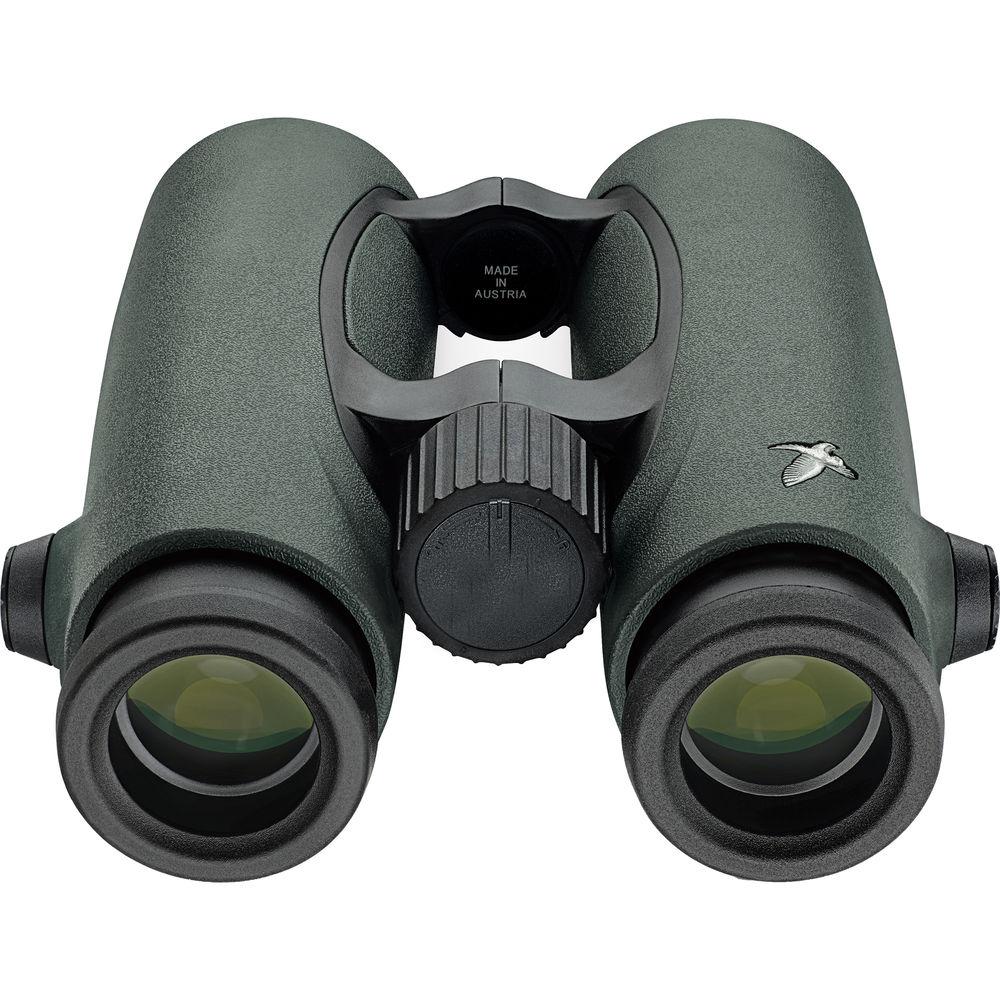

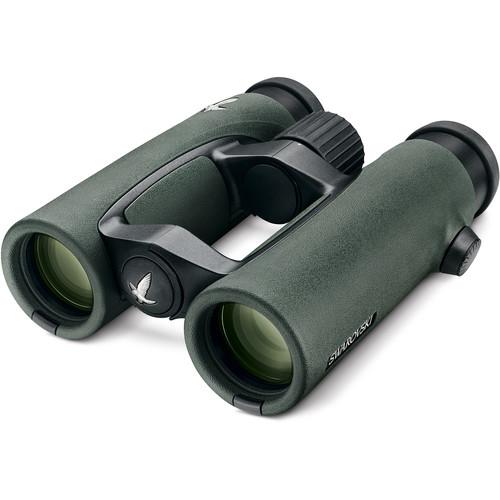

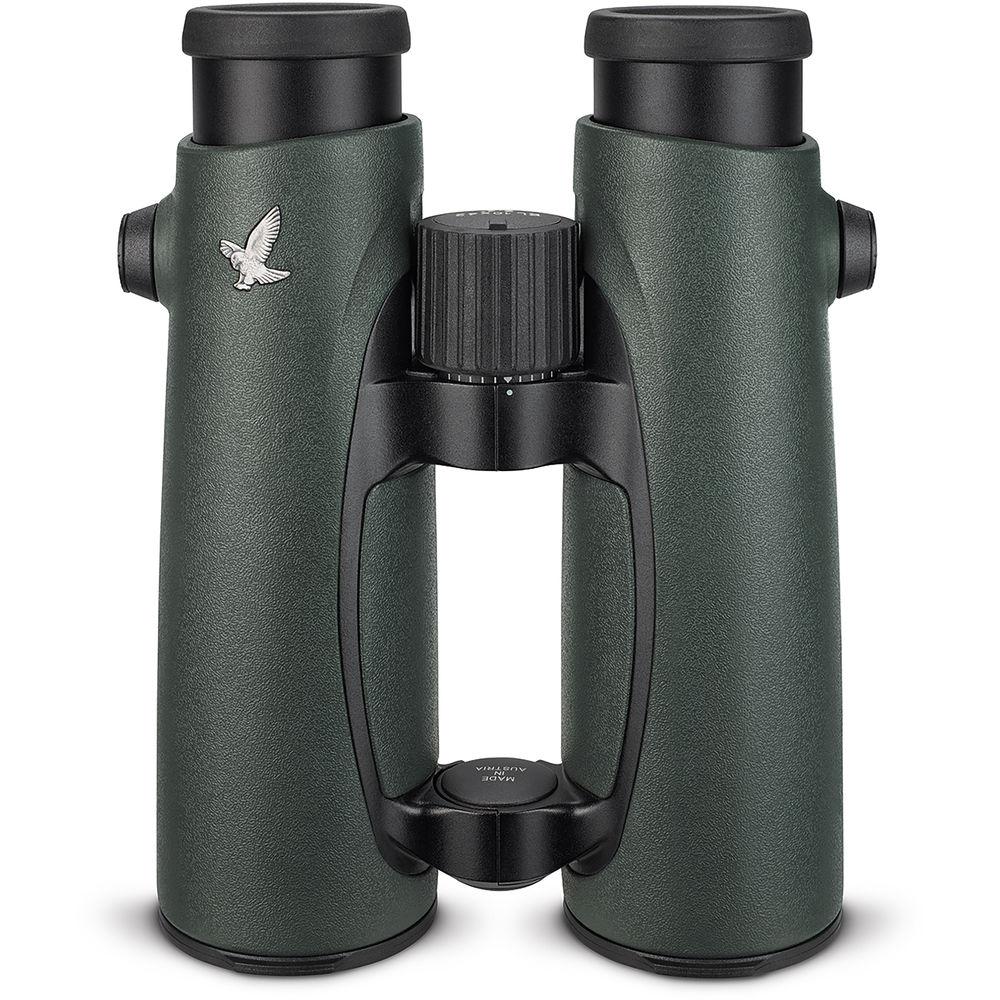

Product description The B&H Binocular Buying Guide Read More This version of Swarovski's green 8x32 EL32 Binocular features a high-transmission wide-angle viewing optical path, legendary Swarovski optical coatings, and a weather-sealed magnesium-alloy housing. Its wide 61° apparent viewing angle and 6.2-foot minimum focus distance make this optic ready for almost any close to mid-range viewing task. The ELs employ a suite of SWAROVISION coatings and technologies including SWAROBRIGHT, SWAROTOP, SWARODUR, SWAROCLEAN, phase-correcting P-coatings, field-flattener lenses, and fluoride glass. These technologies work seamlessly to produce bright and clear high-contrast and high-resolution images with true color fidelity and virtually no distortion across the entire field of view. The 8x magnification coupled with wide 61° apparent angle of view is ideal for a diverse range of observational situations, from birding and hunting to sightseeing and terrain navigation, while giving users an immersive experience.Complementing the optical performance is a lightweight and durable magnesium-alloy chassis that can withstand a life in extreme conditions. Its nitrogen-filled optical tubes are water and fogproof to ensure performance in all weather and environments without internal fogging when moving quickly between wide temperature ranges. An ergonomic, wraparound green rubber armor ensures that the binoculars will remain comfortable in the hand during long glassing sessions and helps to maintain a sure grip when it's cold and wet. This version of the EL comes with Swarovski's FieldPro package that features their proprietary rotating pin attachment and adjustment system for the strap that improves mobility and comfort over conventional systems. Included with the binocular are the FieldPro bag, carrying strap, tethered objective lens covers, and a soft rubber tethered ocular rainguard. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- Compact roof prism optical path
- Fluoride glass virtually eliminates chromatic aberration for improved color rendition, resolution, and contrast
- SWAROBRIGHT coatings provide enhanced contrast, brightness, and color fidelity
- SWAROTOP coatings on lenses and prisms reduce light reflection to improve brightness and contrast
- Phase-correcting P-coating further improves color and contrast
- Field-flattener lenses improve edge sharpness and lower the distortion
- SWARODUR outer coating on optics helps to prevent scratches and abrasions
- SWAROCLEAN non-stick coatings make cleaning dirt, dust, sap, moisture, and fingerprints from lens surfaces easy and fast
- 423' field of view at 1000 yards
- Wide 61° apparent angle of view
- Use and Handling
-
- Open-bridge configuration
- Fully armored, non-slip focusing wheel for comfortable focusing
- Wraparound grips and ergonomic thumb rests for comfortable long-duration observations
- Integrated ±4 dioptric adjustment
- Diopter adjustment lock prevents accidental adjustment
- Hypoallergenic twist-up eyecups
- Wide 54-74mm interpupillary adjustment range
- Long 20mm eye relief
- 4mm exit pupil
- Construction
-
- Lightweight and durable magnesium-alloy chassis
- Green rubber armoring protects against drops and impacts while providing slip-resistant grip
- Nitrogen filled for fog and waterproof performance
- Includes FieldPro package:
- FieldPro carrying bag
- Adjustable carrying strap with proprietary rotating pin attachment and adjustment system
- Tethered objective lens covers reduce risk of loss
- Soft rubber ocular rainguard offers greater protection and noise reduction
UPC: 708026322082 In the Box Swarovski 8x32 EL32 Binocular with FieldPro Package (Green) FieldPro Bag LSCP Lift Carrying Strap Pro for EL Series Binoculars 2 x Objective Lens Cover Hinged Ocular Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 fafyzefuruyv A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 fafyzefuruyv Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Spec sheet PDF 163.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 8x32 EL32 Binocular with FieldPro Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 32208 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 8.0° (Actual) | | Field of View | 420.0' @ 1000 yd / 140.0 m @ 1000 m | | Minimum Focus Distance | 6.2' / 1.9 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 20.0 mm | | Interpupillary Adjustment | 54 to 74 mm / 2.1 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Dimensions | 5.4 x 5.0 x 2.2" / 13.7 x 12.7 x 5.6 cm | | Weight | 21.00 oz / 595.35 g | | | | Package Weight | 3.665 lb | | Box Dimensions (LxWxH) | 12.1 x 9.6 x 3.8" |
