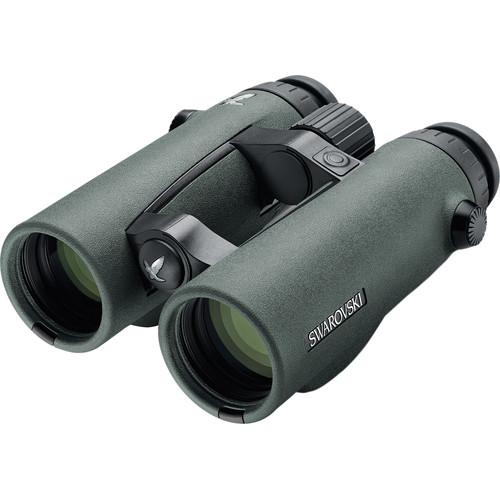

User Manual for Swarovski 8x42 EL Range Binocular Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Swarovski 8x42 EL Range Binocular Laser
- Product category: Laser Rangefinders Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Laser Rangefinders
|
User manual for the Swarovski 8x42 EL Range Binocular Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description Swarovski Optik combines two invaluable outdoor tools into a single unit, the 8x42 EL Range Binocular/Laser Rangefinder. This combination of optic and rangefinder maintains the high-quality binocular design elements expected from Swarovski including the SWARO-BRIGHT broad-band anti-reflection multicoatings that minimize light loss, increases image brightness, and enhances color fidelity across the entire visible spectrum. Its wide 62° apparent angle of view makes spotting and tracking game and targets fast and easy.Added to the optical performance is a precise IR laser rangefinder that can measure distances up to 1500 yds with an accuracy of ± 1yd in less than a second. For stationary targets, use the single-measurement mode or track moving targets with the scan mode for continuously updated distances. The in-view LCD display shows distances in yards or meters, depending on your preference. A built-in inclinometer and SWARO-AIM ballistic algorithm works in conjunction to the rangefinder to measure the relative angle from the user to the target and display an adjusted distance for shooters to accurately compensate for the trajectory angle. A single button activates the rangefinder, and provides access to all the features, functions, and settings.To withstand the rigors of a life lived outdoors, the EL Range features a lightweight and durable magnesium alloy housing with a rubberized textured armoring that protects the optic while providing a slip-resistant grip. Its open-bridge configuration helps to balance the binocular in the hand, while giving the user a whole-hand grip for a more secure hold. The optical tubes are nitrogen-filled to give it fogproof performance in all weather, and O-rings seal the entire system allowing it to be submerged to a depth of 13 feet. The EL Range comes with the FieldPro package that includes a CR2 battery, tethered objective covers, a one-piece tethered ocular rainguard, an adjustable-length neoprene comfort neck strap with an improved attachment system, and a carrying bag. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Roof prism optical path
- SWARO-BRIGHT proprietary broad-spectrum anti-reflection coatings increase light transmission and enhance color fidelity
- 412' field of view at 1000 yd
- 62° wide-angle apparent angle of view
- Laser Rangefinder
-
- Class 1 EN/FDA IR laser
- Built-in inclinometer measures relative angle to target, ±90°
- Display: In-view LCD
- Measurement units: yard / meter
- Measuring range: 33-1500yd (30-1375m)
- Measuring accuracy: ±1 yd/m
- Measuring time: ≤1 second
- Single-measurement and continuous-scan mode
- SWARO-AIM: corrected ballistic shooting distance automatically adjusts the displayed distance to account for the angle to the target, max 999 yd/m
- Five brightness levels; Automatic or manual adjustment
- Runs on one included CR2 battery
- Battery life: 1,000 measurements
- Use and Handling
-
- One-button design provides access to all rangefinder features, functions, and settings
- Open bridge configuration
- Large knurled center focus wheel
- Dual locking dioptric correction rings
- Electronic dioptric compensation adjustment mode
- Four-position twist-up click-stop rubber eyecups
- Construction Details
-
- Lightweight and durable magnesium alloy housing
- Textured rubberized armoring provides slip-resistant grip
- Nitrogen-filled. Fogproof, submersible to 13' (4m)
- Broad -13 to 131°F (-25 to 55°C) operating temperature range
- FieldPro package:
- Tethered objective lens covers
- Tethered one-piece ocular rainguard
- Adjustable-length neoprene comfort-strap with pockets for spare batteries
- Updated strap attachment system
- Carrying bag
UPC: 708026700187 In the Box Swarovski 8x42 EL Range Binocular / Laser Rangefinder - CR2 Battery
- Carrying Bag
- Neoprene Strap
- Ocular Rainguard
- 2 x Objective Lens Covers
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski 8x42 EL Range Binocular Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 70018 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.8° (Actual) | | Field of View | -1.0' @ 1000 yd / -1.0 m @ 1000 m | | Minimum Focus Distance | 105.9' / 41.7 m | | Exit Pupil Diameter | 5.3 mm | | Eye Relief | 19.2 mm | | Interpupillary Adjustment | 8.7 to 11.5 mm / 0.3 to .5" | | Dioptric Correction | +7 / -5 | | Focus Type | Center | | Dimensions | 6.5 x 5.4 x 3.2" / 16.6 x 13.7 x 8.1 cm | | Weight | 31.57 oz / 895 g | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 11.7 x 9.6 x 3.8" |
