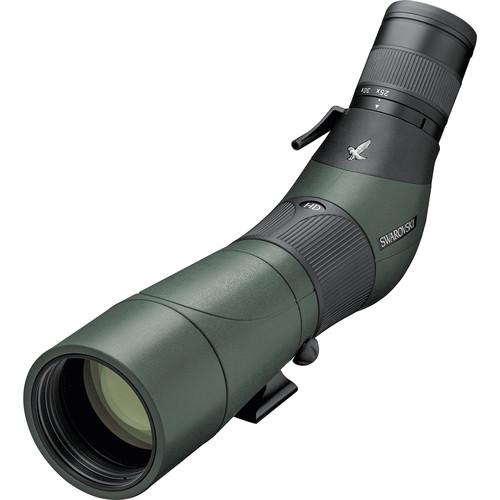

User Manual for Swarovski ATS-65 HD Spotting Scope Click to enlarge the picture
Contents of the user manual for the Swarovski ATS-65 HD Spotting Scope
- Product category: Spotting Scopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Spotting Scopes
|
User manual for the Swarovski ATS-65 HD Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Updated with an easy-to-use Arca-Swiss-compatible mounting shoe, the angled-viewing Swarovski Optik ATS-65 HD Spotting Scope provides discerning users with the power and performance they've come to expect from the brand.This scope utilizes extra-low dispersion (ED) fluoride HD glass, which produces bright and clear views with accurate color representation. Color, clarity, resolution, and contrast are further improved through the use of the proprietary SWAROTOP, SWARODUR, and SWAROCLEAN optical coatings, which maximize light transmission while adding scratch resistance to the lenses and allowing dirt, dust, and oils to be easily cleaned off for smudge-free lenses. The moderate 65mm objective makes this scope ideal for making detailed observations of subjects at medium to long range, especially when coupled with one of the optional zoom eyepieces. Front threads on the objective lens housing accept filters such as neutral density (ND) or polarizers to be installed to enhance views—this is especially useful when digiscoping with the ATS.This updated version of the ATS-65 comes with a variety of mounting options to make it compatible with a wide range of tripods and other support systems. The mounting shoe is now Arca-Swiss compatible, so it will fit directly into Arca-Swiss heads without the need for quick-release plates. If the user's head is not an Arca-Swiss type, the shoe has a dual 1/4"-20 and 3/8"-16 threaded socket that will make it fit onto most standard photo/video/field tripods, heads, and quick-release plates. The scope body is made of a lightweight and durable aluminum alloy that is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging. A large slip-resistant collar enables precise focusing even in cold and wet weather or while wearing gloves. - Optical Performance
-
- Body only—eyepiece required for proper use; optional 25-50x and 20-60x eyepieces available
- 65mm objective lens provides performance in challenging light conditions while maintaining a comfortable size and weight
- Extra-low dispersion (ED) fluoride HD lenses minimize color fringing and other chromatic aberrations to produce crisp and sharp high-resolution views
- SWAROTOP and SWARODUR multi-coatings limit reflection and enhance light transmission across the entire visible spectrum to ensure bright views with accurate color fidelity, with increased contrast and clarity
- SWAROCLEAN exterior lens coatings offer scratch resistance while allowing dirt, dust, oils, and sap to be easily cleaned off without leaving residue to ensure clear and smudge-free views
- Use and Handling
-
- Proprietary bayonet eyepiece mount makes a fast, easy, and secure connection to body
- Eyepiece holder is set at a 45° angle to scope body to place user's head in a comfortable viewing position when standing, sitting, or lying prone
- Large slip-resistant focusing collar is easy to manipulate in cold and wet weather or while wearing gloves
- Extendable sunshade prevents glare to preserve image brightness and contrast while eliminating lens flare that can spook game
- Rotating mounting collar allows precise eyepiece orientation in any viewing position
- Arca-Swiss-compatible mounting shoe enables direct connection to Arca-Swiss heads—does not require a quick-release plate
- 1/4"-20 and 3/8"-16 threaded socket makes it compatible with most photo/video/field tripods and non–Arca-Swiss heads and quick-release plates
- Front M67x0.75 objective lens threads for view-enhancing filters such as neutral density (ND) and polarizing
- Construction Details
-
- Lightweight and durable aluminum chassis
- Removable sighting aid for quick target pickup
- Nitrogen filled to be watertight and submersible to 13 feet, dustproof, and resistant to internal fogging when moving through extreme temperature and environmental changes
- Slip-resistant protective rubber armoring provides secure handling during setup and breakdown even in cold and wet weather
- Broad -13 to 131°F (-25 to 55°C) operating temperature range
UPC: 708026493157 In the Box Swarovski ATS-65 HD Spotting Scope (Angled Viewing, Eyepiece Required, Arca-Swiss Shoe) Objective Lens Cap Bayonet Mount Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski ATS-65 HD Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski ATS-65 HD Specs | | | Objective Lens Diameter | 65 mm | | Minimum Focus Distance | 10.0' / 3.0 m | | Diopter Correction | -5.0 to +5.0 | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | M67 x 0.75 | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Dimensions | L: 12.8" / L: 32.5 cm | | Weight | 37.7 oz / 1069.0 g | | | | Package Weight | 4.41 lb | | Box Dimensions (LxWxH) | 15.9 x 6.55 x 4.7" |
