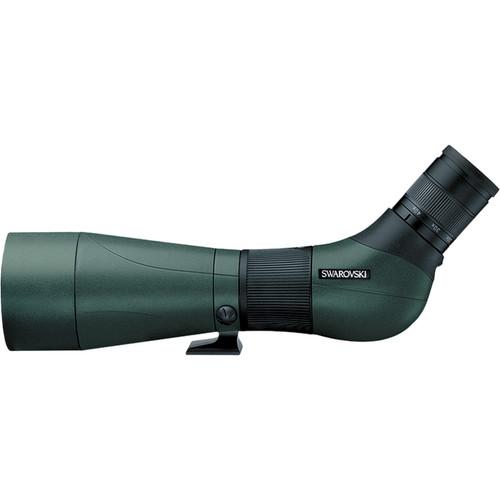

User Manual for Swarovski ATS-80 25-50x80mm HD Spotting Scope with Eyepiece Click to enlarge the picture
Contents of the user manual for the Swarovski ATS-80 25-50x80mm HD Spotting Scope
- Product category: Spotting Scopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Spotting Scopes
|
User manual for the Swarovski ATS-80 25-50x80mm HD Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The ATS-80 25-50x80mm HD Spotting Scope with Eyepiece (Angled Viewing) from Swarovski is a rugged yet refined scope from one of the world's most renowned optics manufacturers. The 80mm configuration is robust yet relatively lightweight, and is suited to a wide range of glassing needs, including those of long-range hunters and bird-watchers.Fluoride-containing, premium-glass lenses efficiently transmit all wavelengths of visible light for bright images that are color faithful, crisp, and rich with detail. Coatings on all lenses minimize glare while maximizing contrast, phase-corrected prisms ensure that images are rendered with clarity, and field-flattener lens technology eliminates geometric optical distortion throughout the zoom range. And because life in the field can be messy, the SWAROCLEAN lens coating makes it easier to clean away dirt such as water marks, insect repellents, or tree resin.The included 25-50x eyepiece features a wide viewing angle and generous eye relief. The eyepiece quickly attaches to and detaches from the objective assembly's bayonet mount for easy disassembly, transportation, and storage. The nitrogen-purged, O-ring sealed, and rubber-armored housing ensure water, fog, and shockproof performance in almost any environment. A removable sighting aid helps in target acquisition when a camera is mounted to the eyepiece. - Optical Performance
-
- 80mm objective diameter
- 25-50x zoom eyepiece
- Angle of view: 70-60° (apparent), 2.4-1.55° (actual)
- Field of view: 126-81 feet at 1000 yards
- Fluoride-containing apochromatic HD glass elements
- High-contrast optical coatings
- Field-flattener lens eliminates geometric optical distortion and preserves edge sharpness
- Phase-corrected roof prisms
- Use and Handling
-
- Wide angle of view and extra-long eye relief
- Removable sighting aid
- Twist-up eyecups
- Angled-viewing configuration
- Ergonomic and oversized focus wheel
- Integrated tripod collar for convenient mounting
- Digiscoping compatible with point-and-shoot, mirrorless, and DSLR cameras
- Eye relief: 17mm
- Exit pupil: 4.0-1.3mm
- Construction
-
- Lightweight and rugged aluminum housing
- Supple yet durable rubber-armored exterior
- Nitrogen-purged interior for water and fogproof performance
- -13 to 131°F operating temperature
- Submersible to 13 feet
- Weight: 59.1 oz (1675.5 g)
UPC: 708026866159 In the Box Swarovski ATS-80 25-50x80mm HD Spotting Scope with Eyepiece (Angled Viewing) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski ATS-80 25-50x80mm HD Spotting Scope with Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski ATS 80 HD Specs | | | Magnification | 25 to 50x | | Objective Lens Diameter | 80 mm | | Angle of View | 25x: 70° (Apparent)
50x: 60° (Apparent)
25x: 2.4° (Actual)
50x: 1.55° (Actual) | | Field of View | 25x: 126.0' @ 1000 yd / 42.0 m @ 1000 m
50x: 81.0' @ 1000 yd / 27.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Exit Pupil Diameter | 25x: 3.2 mm
50x: 1.6 mm | | Eye Relief | 17.0 mm | | Diopter Correction | +5.0 | | | | Water Resistance | Waterproof | | | | Filter Thread | M82 x 0.75 | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Dimensions | L: 15.8" / L: 40.0 cm | | Weight | 59.1 oz / 1675.5 g | | | | Package Weight | 6.47 lb | | Box Dimensions (LxWxH) | 19.65 x 6.85 x 4.95" |
