Product description - Swarovski Digiscoping PT. 1
- Product Demo
- SWAROVSKI OPTIK ATX/STX spotting scope

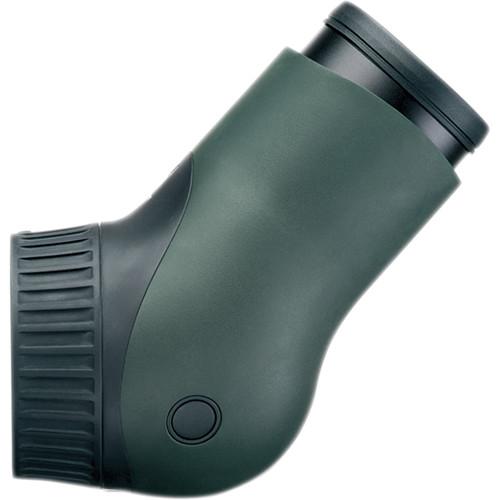

The ATX Spotting Scope Modular Zoom Eyepiece (Angled Viewing) from Swarovski is a wide angle eyepiece specifically engineered for the ATX spotting scope series. The angled-view configuration is well-suited for digiscoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the ATX-65, ATX-85, and ATX-95 objective assemblies. Mounted with either the ATX-65 or ATX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the ATX-95 model, the magnification range is 30-70x. This configuration of the Modular Zoom Eyepiece seamlessly integrates with the DCB II and TLS APO digiscoping adapters. These optional accessories from Swarovski allow operators to transform their ATX spotting scope into a formidable digital imaging platform. The accessory adapters enable integration with point-and-shoot, mirrorless, and DSLR camera systems, and feature the build-quality and thoughtful engineering you expect from Swarovski. Now your superior optics can be used to capture high-definition stills and video of that rare bird or butterfly in your sight. Ergonomic handling and user-friendly functionality makes the ATX eyepiece an observer's delight. The eyepiece quickly attaches/detaches from the objective assembly's bayonet mount, making the scope easy to disassemble, transport, and store. Swarovski engineered the angled-view eyepiece's focus dial to precisely align with the zoom dial on the objective assembly, enabling one-handed adjustments to field of view and zoom. This feature is especially useful when tracking an object, requiring one hand to guide the tripod head. This eyepiece's generously wide viewing angle, extra-long eye relief, and click-stop twist-in eyecup makes using your ATX spotting scope a world-class glassing experience. - Optical Performance
-
- 25-60x zoom range (with ATX-65, ATX-85)
- 30-70x zoom range (with ATX-95 only)
- Apparent angle of view: 71-57°
- Angle of view: 2.37-1.3° (ATX-65, ATX-85), 1.98-1.09° (ATX-95 only)
- SWAROCLEAN non-stick coating on ocular surface
- Phase-corrected roof prisms
- Use and Handling
-
- Extra-long 20mm eye relief
- Click-stop twist-in (and removable) eyecup
- One-handed operation via side-by-side zoom and focus dials
- Grooved zoom dial
- Mounts seamlessly with ATX objective assembly
- Digiscoping compatible with point-and-shoot, mirrorless, and DSLR cameras
- Construction Details
-
- Lightweight and rugged housing
- Supple yet durable rubber armor
- Nitrogen-purged interior for waterproof/fogproof performance
- -13 to 131°F (-25 to 55°C) operating temperature
- Submersible to 13' (4 m)
UPC: 708026499012 In the Box Swarovski ATX Spotting Scope Modular Zoom Eyepiece (Angled Viewing) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski ATX Spotting Scope Modular Zoom Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski ATX Specs | Magnification | With ATX-65, ATX-85 Scopes: 25 to 60x
With ATX-95 Scopes: 30 to 70x | | Angle of View | With 65 mm, 85 mm Scopes: 2.4 to 1.3° (Actual)
With 95 mm Scopes: 2 to 1.1° (Actual)
71 to 57° (Apparent) | | Field of View | With ATX-65, ATX-85 Scopes: 124 to 68' @ 1000 yd / 37.8 to 20.7 m @ 1000 m
With ATX-95 Scopes: 104 to 57' @ 1000 yd / 31.7 to 17.4 m @ 1000 m | | Minimum Focus Distance | With 65 Scopes: 6.9' / 2.1 m
With 85 Scopes: 11.8' / 3.6 m
With 95 Scopes: 15.7' / 4.8 m | | Exit Pupil Diameter | With ATX-65 Scopes: 2.6 to 1.1 mm
With ATX-85 Scopes: 3.4 to 1.4 mm
With ATX-95 Scopes: 3.2 to 1.4 mm | | Eye Relief | 20.0 mm | | Diopter Correction | +5.0 | | Water Resistance | Waterproof | | | | Package Weight | 3.46 lb | | Box Dimensions (LxWxH) | 9.75 x 5.3 x 3.8" |
